LevelOne GSW-0503T Manuel utilisateur

LevelOne

GSW-0503T

GSW-0803T

5/8-port Gigabit Switch

User’s Manual

TABLE OF CONTENTS

INTRODUCTION ............................................................................ 1

FEATURES ......................................................................................2

PACKAGE CONTENTS ......................................................................2

HARDWARE DESCRIPTION......................................................... 3

FRONT & REAR PANEL ....................................................................3

LED INDICATORS ............................................................................4

INSTALLATION ............................................................................. 6

NETWORK APPLICATION............................................................ 7

TECHNICAL SPECIFICATION ...................................................... 8

Introduction

In the modern business society, communication and sharing information is

essential. Computer networks have proven to be one of the fastest

methods of communication.

Gigabit Ethernet over copper technology is a cost effective way for

network equipments to be upgraded from Fast Ethernet to Gigabit speeds.

By using standard 4-pair Category 5 copper cabling, it doesn’t need to pull

expensive fiber optics cabling. This Technology will create high-speed

backbone connections between switches, servers, database, and end

stations.

The GSW-0503T/0803T 5/8-Port Gigabit Switch is an ideal solution

for solving traffic block at the core of the network. It offers 5/8

auto-negotiation 10/100/1000Base-T Gigabit Ethernet ports which

can significantly improve your network backbone performance.

Besides, this Switch will fit into any enterprise level network to act as

an exit to the backbone switch.

The GSW-0503T/0803T 5/8-Port Gigabit Switch features Auto

MDI/MDIX function for each port. [In general, MDI means connecting to

another Hub or Switch while MDIX means connecting to a workstation or

PC. Therefore, Auto MDI/MDIX means that you can connect to another

Switch or workstation without changing non-crossover or crossover

cabling. Besides, it also features a store-and-forward switching and can

auto-learn and store source address on a 4K MAC address table.

Features

Conforms to IEEE 802.3, 802.3u, 802.3ab and 802.3x



5 / 8-port 10/100/1000 Mbps Gigabit Switch

Automatic MDI/MDIX crossover for all ports

Back-plane:

 5-port: 10Gbps back-plane

 8-port: 16Gbps back-plane

N-Way Auto-Negotiation

Back pressure half duplex

Flow control full duplex

True non-blocking switching

Store-and-Forward architecture support

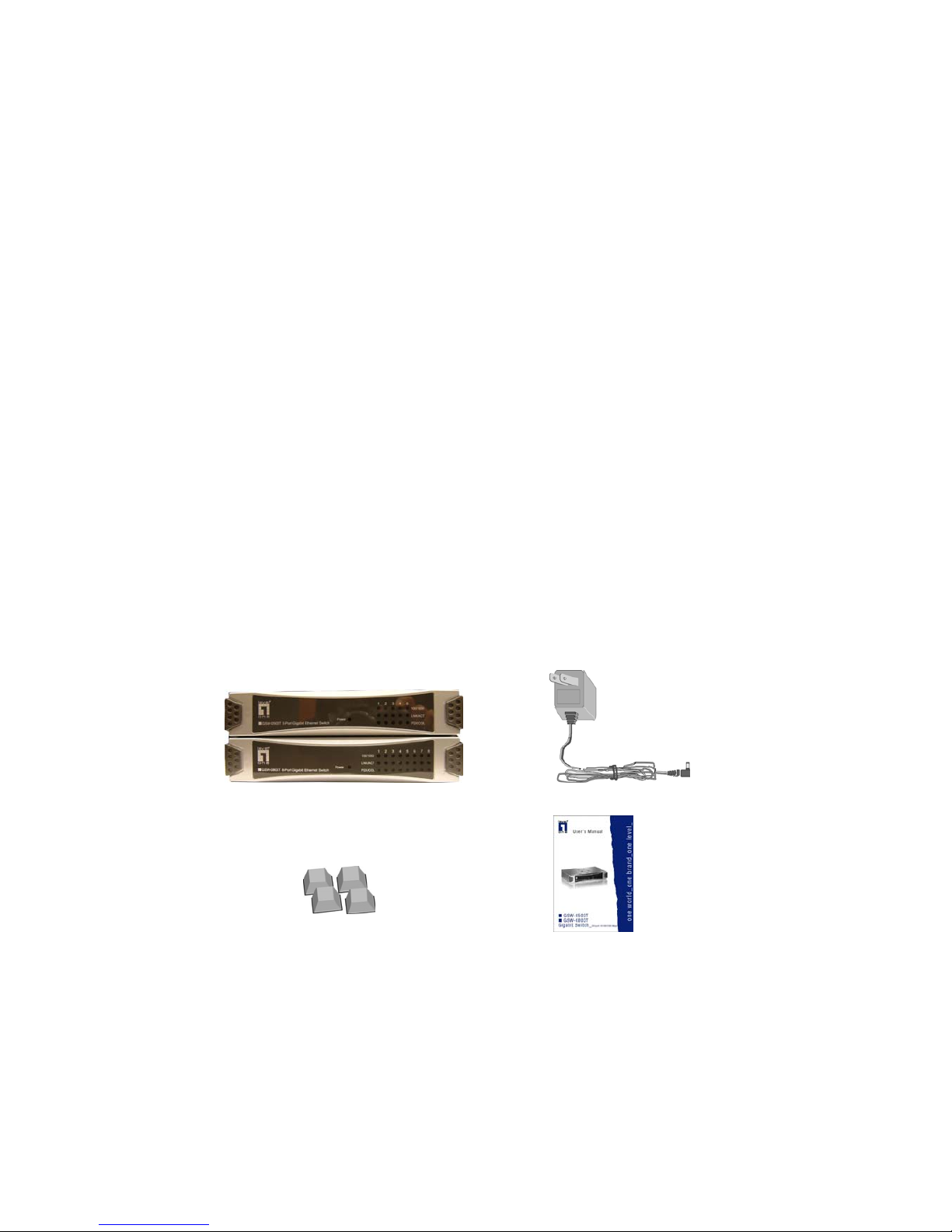

Package Contents

 One 5/8-Port Gigabit Switch

 Power Adapter

 Four Rubber Feet

 User’s Manual

One5/8-PortGigabitSwitch PowerAdapter

Four Rubber Feet User’s Manual

ure 1-1. Packa

e Contents

Compare the contents of your 5/8-Port Gigabit Switch package with the

standard checklist above. IF any item is missing or damaged, please

contact your local dealer for service.

Hardware Description

This Section describes the hardware of the 5/8-Port Gigabit Switch.

Front & Rear Panel

The Front Panel of the 5/8-Port Gigabit Switch consists of LED-indicators

(100/1000, Link/Activity, Full duplex/Collision) for each Gigabit port and

power LED-indicator for unit.

Figure 2-1. The Front Panel of the 5/8-Port Gigabit Switch

The Rear Panel of the 5/8-port Gigabit Switch consists of 5/8

auto-negotiation 10/100/1000Mbps Ethernet RJ-45 connectors (support

Automatic MDI/MDIX function).

RJ-45 Ports (Auto MDI/MDIX): 5/8 auto-negotiation 10/100/1000

Mbps Ethernet RJ-45 connectors



[Auto MDI/MDIX means that you can connect to another switch or

workstation without changing straight through or crossover cabling.]

Figure 2-2. The Rear Panel of the 5/8 Port Gigabit Switch

LED Indicators

The LED Indicators gives a real-time indication of system operating

statuses. There are 3 LED-indicators (100/1000, LNK/ACT, FDX/COL) for

each Gigabit port and one Power LED for unit. The following table

provides descriptions of LEDs status and their meaning.

Figure 2-3.LED Indicators

LED Status Description

Green Power On

Power

Off Power is not connected

Green The port is operating at the speed of

1000Mbps.

100/1000

Orange The port is operating at the speed of

100Mbps.

Off No device attached or in 10Mbps mode

Green The port is connecting with the device.

Blinking The port is receiving or transmitting data.

LNK/ACT

Off No device attached.

Orange The port is operating in Full-duplex mode.

Blinking Packet collision occurred on this port.

FDX/COL

Off No device attached or in half-duplex mode.

Table 2-1. The Descriptions of LED Indicators

Installation

This section shows the installation procedures of the switch.

Set the Switch on a sufficiently large flat space with a power outlet nearby.

The surface where you put your Switch should be clean, smooth, level,

and sturdy. Make sure there is enough clearance around the Switch to

allow attachment of cables, power cord and air circulation.

Attaching Rubber Feet

A. Make sure mounting surface on the bottom of the Switch is grease and

dust free.

B. Remove adhesive backing from your Rubber Feet.

C. Apply the Rubber Feet to each corner on the bottom of the Switch.

These footpads can prevent the Switch from shock/vibration.

Power On

Connect the cord of power adapter to the power socket on the rear panel

of the Switch. The other side of power cord connects to the power outlet.

Check the power indicator on the front panel to see if power is properly

supplied.

Network Application

This section provides you one sample of network topology in which the

5/8-Port Gigabit Switch is used. In general, the 5/8-Port Gigabit Switch is

designed as a high-bandwidth backbone switch.

You can use the 5/8-Port Gigabit Switch to connect servers, switches,

workstation, and PCs (Of course, the Gigabit 1000Base-T NIC has

installed into the PC) to each other by connecting these devices directly to

the Switch. The Switch automatically learns node address, which are

subsequently used to filter and forward all traffic based on the destination

address.

For enterprise networks where large data broadcast are constantly

processed, this switch is an ideal suitable for departmental switches to

connect to the Core Switch.

All ports can connect to departmental switches, and the departmental

switches can be connected to the 5/8-Port Gigabit Switch. Then all the

devices in this network can communicate with each other. Connecting

servers to the Core Switch allow each end station to access the server’s

data.

This switch is an ideal solution for backbone connectivity. In the above

example, servers, department switches, and workstation are directly

connected to the Core Switch, 5/8-Port Gigabit Switch.

Technical Specification

The following table provides the technical specification of 5/8 ports Gigabit

Switch.

Standard

IEEE 802.3 10BASE-T Ethernet,

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE802.3x Flow Control and Back-pressure

Protocol CSMA/CD

Technology Store-and-Forward switching architecture

Transfer Rate

14,880 pps for 10Mbps

148,800 pps for 100Mbps

1,488,000 pps for 1000Mbps

Connector 5/8 Gigabit Copper: RJ-45 ; Auto-MDIX on all ports

MAC Address 4K Mac address table

Memory Buffer 1Mbits

Network Cable

10BASE-T: 2-pair UTP/STP Cat. 3, 4, 5 cable

EIA/TIA-568 100-ohm (100m)

100BASE-TX: 2-pair UTP/STP CAT. 5 cable

EIA/TIA-568 100-ohm (100m)

Gigabit Copper: 4 pair UTP/STP CAT. 5 cable

EIA/TIA 568 100-ohm (100M)

Backplane 5 port: 10Gbps

8 port: 16Gbps

LED

Per port: 100/1000, Link/Activity, Full duplex/

Collision

Per unit: Power
