LevelOne FSW-2208TX Manuel utilisateur

LevelOne

FSW-2205TX

FSW-2208TX

5/8Port 10/100Mbps

Internal Power SOHO Switch

User's Manual

(Version 1.0)

TABLE OF CONTENTS

Overview...................................................................................3

Features....................................................................................3

User Guide................................................................................5

HARDWARE DESCRIPTION..........................................................5

The Top View .................................................................................5

The Rear View .............................................................................6

HARDWARE INSTALLATION.........................................................7

Basic Installation ............................................................................7

NWAY Process...............................................................................7

SampleApplication................................................................9

Technical Specifications....................................................10

Overview

Thanks for choosing LevelOne FSW-2205/2208TX 5/8Port

10/100Mbps Internal Power SOHO Switch. It is the smallest switch

with internal power supply around the world. The switches are

designed to be suitable for integrating both 10BASE-T and

100BASE-TX networking circumstance with cabling UTP (Unshielded

Twisted-Pair) connection in Small/Medium Business (SMB) and Small

Office/Home Office (SOHO) environment. Simple plug in the

networking cable and the switches will automatically detect the

maximum speed of networking connection to offer smooth network

migrations and easy upgrades to network capacity. In addition, built-in

power supply eliminates the hassle of power adapter allocation and

increase users’ convenience. For easy recognition of network status

and trouble-shooting, it provides a set of diagnostic LEDs, including

10Mbps, 100Mbps, Link/Activity and FDX/Col.

Features

ØSingle chip with highest level of silicon integration for the 5/8-port

10/100 Fast Ethernet switch device, embedded on-chip memory

used for packet buffer and MAC address

ØSupport auto-crossover (auto MDI/MDI-X) on every 10/100M

RJ-45 port

ØDesigned with internal power supply. Palm-sized, plastic case

together with internal power design, convenient for the

placement and power cord arrangement

ØEach port with non-blocking wire speed forwarding performance.

ØEach port support flow control and back-pressure.

ØSmall size and Plug-and-Play solution for SOHO application

ØFCC Part15 Class B, CE EN55022 Class B, VCCI Class B

User Guide

HARDWARE DESCRIPTION

A. The Top View

nLevelOne FSW-2205 5Port 10/100Mbps

Internal Power SOHO Switch

nLevelOne FSW-2208TX 8Port 10/100Mbps

Internal Power SOHO Switch

The LED indicators will help you monitor the status of each port and

connected segment. The functions of the LEDs indicators are

described as follows.

LED Indicators Color Description

Power Green ON: Power On

OFF: Power Off

10/100M Speed Green ON: Link at 100Mbps

OFF: Link at 10Mbps or no link

Link/Activity Green ON: Good link on the port

Blinking: The port is

receiving/transmitting data

OFF: No Link is occurring on the port

Full-Duplex/Collision

Amber ON: Full-duplex mode

OFF: Half-duplex mode

Blinking: Data collision

B. The Rear View

The rear panel contains 5/8-port 10/100Mbps RJ-45 and a power core

socket.

HARDWARE INSTALLATION

A. Basic Installation

1. Place LevelOne 5/8Port 10/100Mbps Internal Power SOHO

Switch on a smooth surface.

2. Connect the power cord to the LevelOne 5/8Port 10/100Mbps

Internal Power SOHO Switch.

3. Connect server, workstation or PC to your 5-port/8-port Switch

using standard RJ-45 Ethernet cable.

4. Connect another workstation or PC to your LevelOne 5/8Port

10/100Mbps Internal Power SOHO Switch by following the same

process as described in Step 3.

5. If necessary, another hub/switch also can be connected to any

port of LevelOne 5/8Port 10/100Mbps Internal Power SOHO

Switch using standard RJ-45 Ethernet cable for more flexible

application.

6. Ensure that each device is connected properly. Plug power cord

into the power outlet.

B. NWAY Process

“Auto-Negotiation” (NWAY) mode automatically sets the best possible

bandwidth when connection is established with another network

device.

The Auto-Negotiation priorities:

A. 100Base-TX Full Duplex (200Mbps)

B. 100Base-Tx Half Duplex (100Mbps)

C. 10Base-T Full Duplex (20Mbps)

D. 10base-T Half Duplex (10Mbps)

Each port with NWAY capability, support Half/Full Duplex function.

?Attention:

1. The cable distance between the LevelOne FSW-2205/2208TX

5/8Port 10/100Mbps Internal Power SOHO Switch and hub/server

should not exceed 100 meters.

2. Make sure the wiring is correct. In 10Mbps operation, Category

3/4/5 cable can be used for connection. To reliably operate your

network at 100Mbps, you must use Category 5 cable, or better

Data Grade cabling.

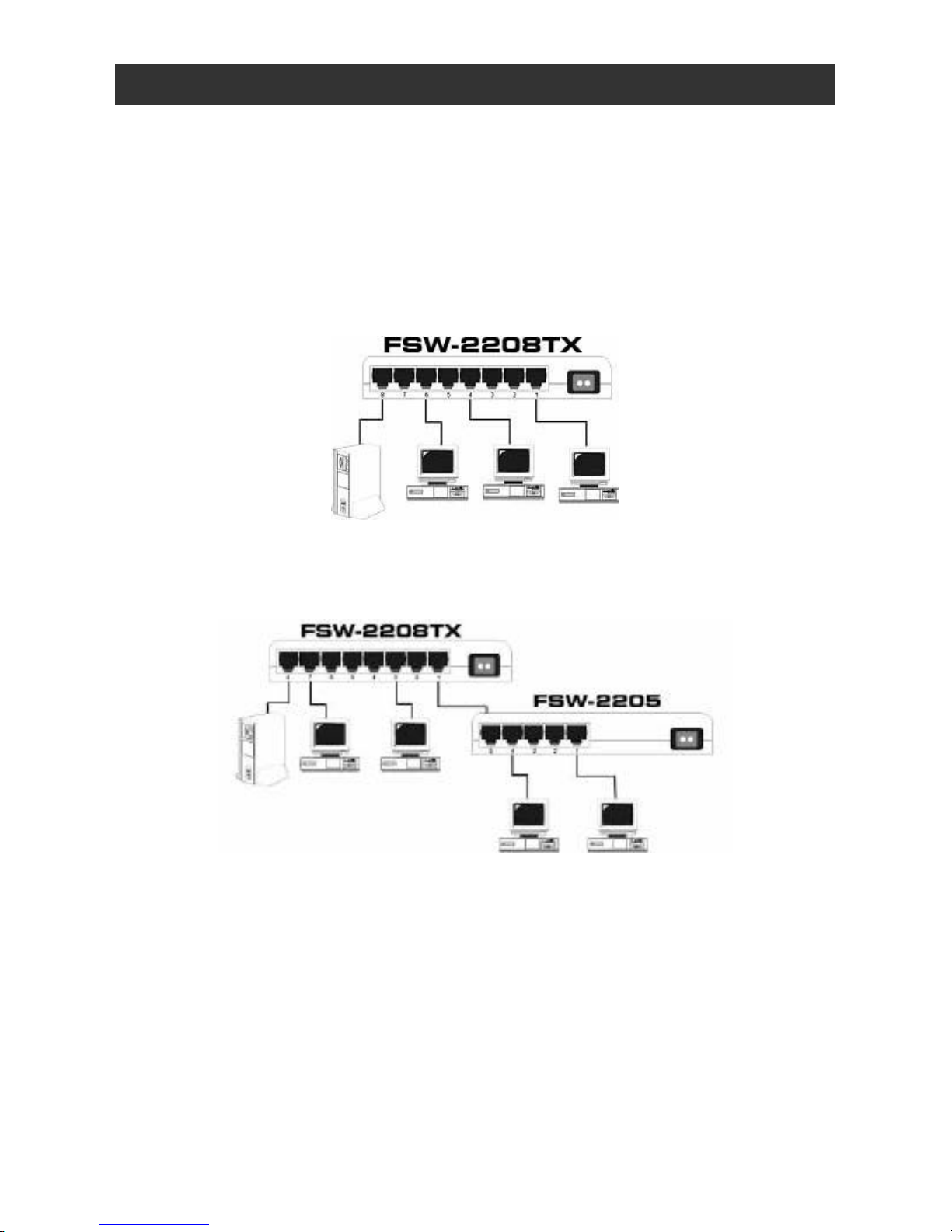

Sample Application

The optimal application for the LevelOne 5/8Port 10/100Mbps Internal

Power SOHO Switch is as a “bridge” joining 100Mbps and 10Mbps

network segments. The following figure illustrates the application.

Scenario I:

Scenario II:

Note:

LevelOne FSW-2205/2208TX 5/8Port 10/100Mbps Internal Power

SOHO Switch supports auto-crossover (auto MDI/MDI-X) function.

Every port can be connected directly to another hub/switch for more

flexible application. The user doesn’t need to use special crossover

cable for uplink.

Technical Specifications

Standard IEEE802.3(Ethernt)

IEEE 802.3u (Fast Ethernet)

IEEE 802.3x (flow control)

Full Duplex 200Mbps (for 100BASE-TX),

20Mbps (for

10Base-T)

Max.

Bandwidth

Half Duplex

100Mbps (for 100BaseTX), 10Mbps (for

10BaseT)

Media Interface Five/Eight 10/100Mbps RJ45 ports

10BASE-T2-

pair UTP/STP Cat. 3 or

higher, Up to 100m (328 ft)

Cabling

100BASE-TX

pair UTP/STP Cat. 5 or

higher. Up to 100m (328 ft)

Packet Forwarding Rate 10Mbps:14880pps 100Mbps:148810pps

FSW-2205TX

2K entries

MAC Address

FSW-2208TX

4K entries

FSW-2205TX

Built-in 128 Kbytes

Packet Buffer memory

FSW-2208TX

Built-in 256 Kbytes

Modes Half and Full Duplex, auto-negotiation

Forwarding Mode Store and Forward

Non-blockingYes

Flow Control

(IEEE802.3x) Half: backpressure Full: pause frame

Auto Crossover Yes for each port

Diagnostic LEDs Speed, Link/Active, FDX/Col

Operating Temperature 0?to 45?(32?to 113?)

Operating Humidity 10% to 90% (Non-Condensing)

Input Power Requirement 100-240VAC,Auto-Sensing

Certification

FCC Class B, CE EN55022 Class B,

VCCI Class B
