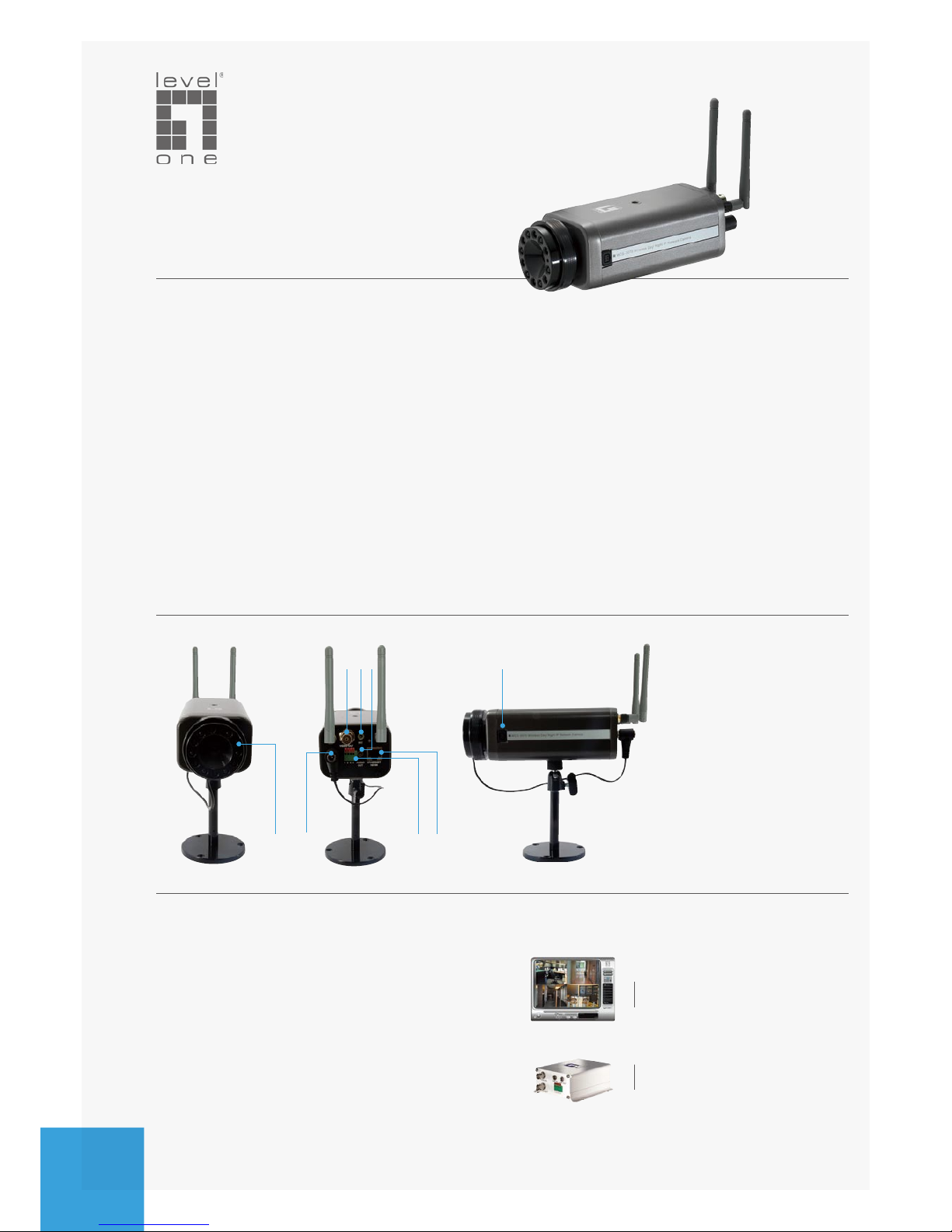

11g Wireless Day/Night

Network Camera WCS-2070

H/W Version: 1

Product Overview

The LevelOne Day/Night IP Network Camera

provides high-quality video and audio to

a control room or broadcast it to remote

locations over the Internet. The WCS-2070

dual-Codec network camera with 2-way audio

and extensible day/night feature makes it more

suitable for surveillance applications than any

other IP camera in its class.

Day/Night Camera

The WCS-2070 IP Camera is an excellent solution

when deployed outside. With its high quality

CCD sensor and IR attached lens, it can capture

brilliant and clear pictures under low light

conditions making it suitable for almost all

surveillance applications.

Advanced Features

The Day/Night camera features motion

detection, and extended Input/Output

connectors makingit possible to connect sensors

and alarms with this camera.

Free Bundled Software

With LevelOne’s free bundled software,

administrators are able to monitor up to

32 channels simultaneously. It also provides

recording capabilities for synchronized video

and audio when captured by event-driven or

scheduled recording modes.

Key Features

- 802.11g Wireless Connection with WEP &

WPA-PSK

- MJPEG/MPEG4 video compression

- Day/Night application in low light conditions

- Two-way audio

- Optimal synchronization of audio and video

- Motion detection

- Extended I/O for sensors and alarms

- Provides BNC video output for CCTV system

- Free software included (Industry-leading

32-channel IP CamSecure Lite™ software)

FCS-7011

1-Port PoE Video Server

Works Well With

1. IR Lens

2. Power

3. Digital Input/Output

4. LAN Port

5. BNC Connector

6. Audio In

7. Audio Out

8. 4-pin Auto Iris Connector

FCS-9464

IP CamSecure Pro64 Mega

123 4

6 7 8

Network Camera

www.level1.com

one world_one brand_one level_



Audio Out

Audio output connetor

Audio Codec

8/24/32kbps Full-Duplex

S/N Ratio

>58dB

Digital Zoom

Hardware & Environment

Flash ROM

4MB Flash ROM

SDRAM

16MB SDRAM

Housing

Indoor use

Day/Night

Infrared LEDs on lens

Digital I/O

1 sensor input max. 12DC 50mA

1 relay output max. 24DC 1A/125AC 0.5A

Power

Consumption: Max. 9.4W

Input: 100-240VAC, 50/60Hz, 0.4A

Output: 12VDC, 1.5A

Temperature

Operating: 0°C ~ 40°C /32-104°F

Humidity

Operating: 85%RH

Dimension

140mm(L) * 70mm(W) * 55mm(H)

Weight

430g

Supported Protocols

UPnP, TCP/IP, HTTP, SMTP, FTP, Telnet, NTP, DNS, DHCP,

DDNS

Software

Bundled with 32-Channel LevelOne IP CamSecure Lite

surveillance management software

Viewing System Requirement

Microsoft Windows 2000/XP/Vista

Browser

IE 6.x or above

EMI and Safety

FCC, CE

Technical Specication

Network

Standards Compliance

IEEE 802.3 10BaseT Ethernet

IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.11b/g

Ports

1 x RJ-45 10/100 Mbps port

Frequency

2.4~ 2.4835GHz

Antenna

Gain Value: 2 dBi

RF Output Power: 64QAM: 14dBm; 16QAM: 15dBm;

QPSK: 16dBm; BPSK: 17dBm; DBPSK, DQPSK, CCK:

17dBm

Video

Compression Mode

MPEG4/MJPEG

Max. Resolution

704x480 pixels(NTSC)

704x576 pixels(PAL)

Frame Rate

176x120: 30/25fps

352x240: 30/25fps

704x480: 15/12fps

Still Picture

JPEG

Video Record

AVI

Camera

Sensor

1/3 inch color CCD sensor

Lens

f=6.0mm, F2.0

View Angle

Vertical 34∘

Horizontal 44∘

Minimum Illumination

0.5 Lux / F2.0 (Typical); 0 Lux (10meters with IR Lens)

Infrared Facility

Infrared LEDs on lens

Electronic Shutter (Sec)

1/60~1/100,000(NTSC)

1/50~1/100,000(PAL)

AGC/AWB/AES

Auto Iris Control

DC-drive Iris

Audio

Audio In

External Microphone Input*1

Built-in Microphone

Omni-directional

Frequency: 20 – 20,000Hz



Internet

Remote

User

Broadband

Modem

Switch

WCS-2070

LAN Control

Console

Order Information WCS-2070: 11g Wireless Day/Night Network Camera

Package Contents WCS-2070

IR Lens

Dipole Antennas

Power Adapter

Camera Stand

CD Manual/Utility

Quick Installation Guide

Optional Accessories

Product Diagram

All mentioned brand names are registered trademarks and property of their owners. Technical specications are subject to change without notice.

NAS

CAS-1100

6~60mm Vari-focal Lens

CAS-3030

IR Illuminator (30M)

CAS-3015

IR Illuminator (15M)

CAS-1000A

3.5~8mm Vari-Focal Lens

Broadband

Router

Wireless AP WCS-2070
