LevelOne FCS-0032 Instructions d'utilisation

Fixed Network Camera

Hardware User Manual

FCS-0032

Ver. 2013/12/04

Hardware Manual

Table of Contents

Precautions 3

Safety Instructions........................................................................................ 5

Introduction 6

List of Models................................................................................................ 6

Package Contents.......................................................................................... 6

Physical Description...................................................................................... 7

Mount Type.................................................................................................... 8

Installation Procedures 9

Step 1: Mount the Camera........................................................................... 9

1. Mount the Bracket......................................................................9

2. Install the Camera.................................................................... 11

Step 2: Connect the Camera ...................................................................... 14

Connecting a Single Camera .......................................................14

Connecting Multiple Cameras......................................................15

Step 3:Access the Camera andAdjust the Focus .................................... 15

Accessing Camera 16

Configure the IPAddresses........................................................................ 16

Using DHCP Server to Assign IP Addresses................................16

Using the Default Camera IPAddress..........................................18

Access the Camera...................................................................................... 20

Hardware Manual

Precautions

Read these instructions

You should read all the safety and operating instructions before using this product.

Heed all warnings

You must adhere to all the warnings on the product and in the instruction manual. Failure to

follow the safety instruction given may directly endanger people, cause damage to the system

or to other equipment.

Servicing

Do not attempt to service this video device yourself as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified service

personnel.

Trademarks

All names used in this manual are probably registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your

local office if you find any inaccuracies or omissions. We cannot be held responsible for any

typographical or technical errors and reserve the right to make changes to the product and

manuals without prior notice.

Hardware Manual

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a

class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications to the equipment that are not expressly approved by the

responsible party for compliance could void the user’s authority to operate the equipment.

European Community Compliance Statement

This product has been tested and found to comply with the limits for Class B

Information Technology Equipment according to European Standard EN 55022

and EN 55024. In a domestic environment, this product may cause radio interference in which

cause the user may be required to take adequate measures.

Hardware Manual

Safety Instructions

Don’t open the housing of the product

Cleaning

Disconnect this video product from the power supply before cleaning.

Attachments

Do not use attachments not recommended by the video product manufacturer as they may

cause hazards.

Water and Moisture

Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink,

or laundry tub, in a wet basement, or near a swimming pool and the like.

Don’t use accessories not recommended by the manufacturer

Only install this device in a dry place protected from weather

Servicing

Do not attempt to service this video product yourself as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified service

personnel.

Damage Requiring service

Disconnect this video product from the power supply immediately and refer servicing to

qualified service personnel under the following conditions.

1) When the power-supply cord or plug is damaged

2) If liquid has been spilled, or objects have fallen into the video product.

3) If the video product has been directly exposed to rain or water.

4) If the video product does not operate normally by following the operating Instructions in

this manual. Adjust only those controls that are covered by the instruction manual, as an

improper adjustment of other controls may result in damage, and will often require

extensive work by a qualified technician to restore the video product to its normal

operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to

perform safety checks to determine if the video product is in proper operating condition.

Hardware Manual

Introduction

List of Models

This hardware manual contains the following models:

FCS-0032

Fixed Network Camera, 3-Megapixel, PoE 802.3af

Package Contents

Camera

Bracket

Mounting Screw Kit

Quick Installation Guide

Hardware Manual

Physical Description

1) Reset Button

The Reset button is used to reset the camera to its default factory settings, if necessary.

To reset the camera:

Step 1: Press and continue to hold the Reset Button for 5 seconds (with a sharp tipped object,

like a pen.) after the unit has successfully completed the boot process.

Step 2: The Ethernet LED light will turn off for about 1~2 seconds and flash on for another

second. By this time the reset to default operation is already completed. You may then release

the reset button. This length of time fluctuates slightly with the environment. The unit will come

back on and stay on after a few more seconds. The unit will start up with factory default

settings automatically.

2) Ethernet Port

The IP device connects to the Ethernet via a standard RJ45 connector. Supporting NWAY, this

IP device can auto detect the speed of local network segment (10Base-T/100Base-TX

Ethernet).

Hardware Manual

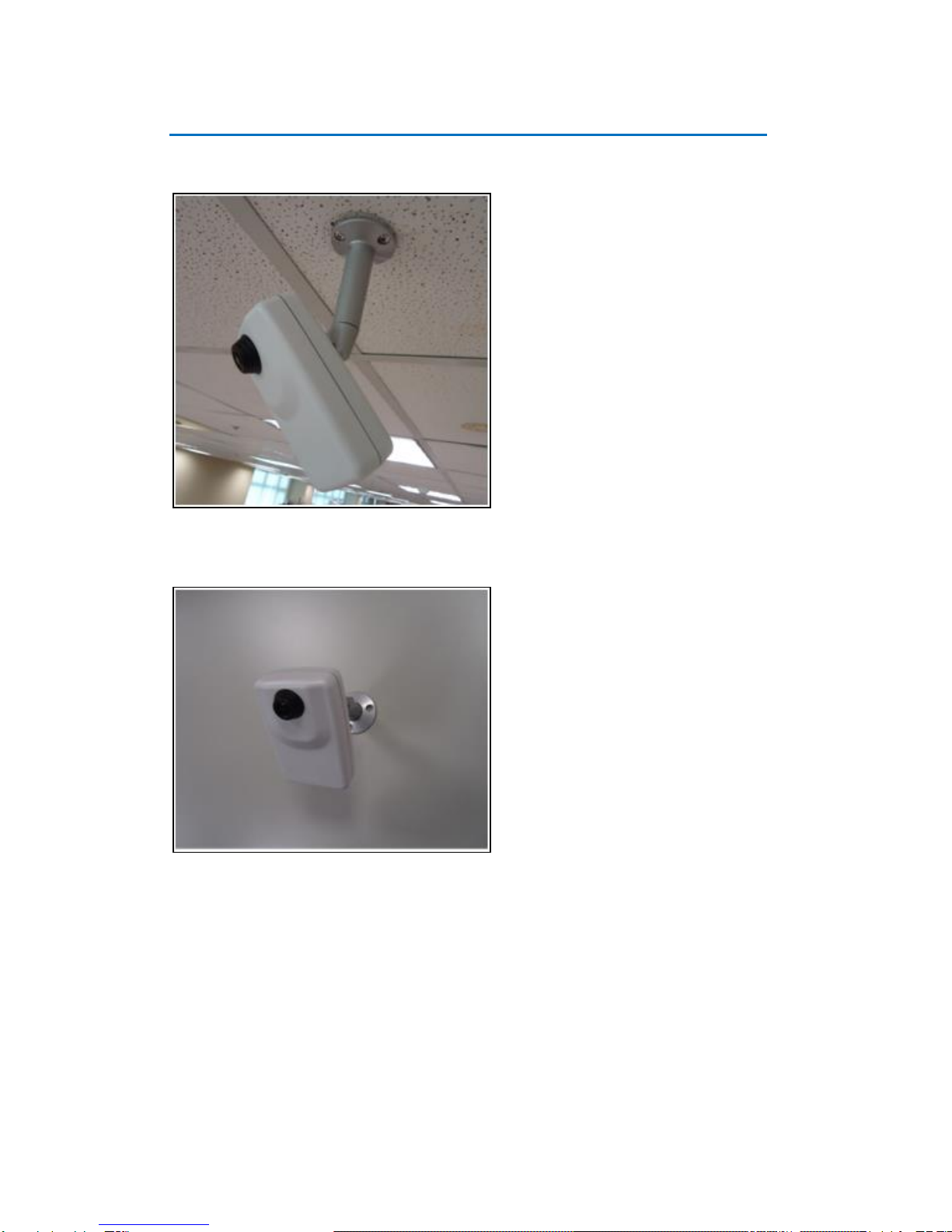

Mount Type

Ceiling Mount

Wall Mount

Hardware Manual

Installation Procedures

Step 1: Mount the Camera

1. Mount the Bracket

The bracket can be mounted on a concrete or wooden wall or ceiling. Select the location

where you want to mount the bracket.

When mounting on a concrete wall or ceiling

1. Mark the location of the three screw holes on the wall or ceiling and drill the holes.

2. Insert the supplied plastic washer into each hole.

Hardware Manual

3. Using a Phillips screwdriver, attach the three supplied screws to secure the bracket to

the wall or ceiling.

When mounting on a wooden wall or ceiling

1. Place the bracket on the desired mounting location on the wall or ceiling.

2. Using a Phillips screwdriver, screw the supplied screws through the screw holes of the

bracket and the wall or ceiling.
