LevelOne IES-0810 Manuel utilisateur

IES-0810

8 FE Unmanaged Switch -20 to 60, DIN-rail

User Manual

v1.00 -1206

IES-0810 User Manual Page 2

Preface

A member of the growing family of rugged switches, thisswitch addresses a need for a

smallerswitch.Thisswitchprovides an affordable solution for rugged andoutdoor

environment, transportation road-side cabinet, industrial floor shop, multitenant

dwellings or FiberToThe Home (FTTH) applications. Capableof operating at temperature

extremes of -20°C to +60°C,thisis theswitchof choiceforharshenvironments constrained

by space.

Plug-and-PlaySolution:

The switch is aplug-and-playFast Ethernet Switch in compact size. It doesn't have any

complicated software to set up.

Thismanualdescribeshowtoinstallandusethe hardened EthernetSwitch.Thisswitch

integratesfull wirespeedswitchingtechnology.Thisswitchbringsthe answer to

complicatedhardened networking environments.

To get the most out of this manual, you should havean understanding of Ethernet

networking concepts.

In this manual, you will find:

•Features on the switch

•Illustrative LED functions

•Installation instructions

•Specifications

IES-0810 User Manual Page 3

Table of Contents

PREFACE ........................................................................................................................................................ 2

PRODUCT OVERVIEW ................................................................................................................................... 4

HARDENED ETHERNETSWITCH ...............................................................................................................................................................4

PACKAGE CONTENTS ................................................................................................................................................................................4

PRODUCT HIGHLIGHTS.............................................................................................................................................................................5

FRONTPANEL DISPLAY.............................................................................................................................................................................6

INSTALLATION............................................................................................................................................... 7

SELECTING A SITE FORTHE SWITCH.........................................................................................................................................................7

DINRAIL MOUNTING ..............................................................................................................................................................................8

CONNECTINGTOPOWER..........................................................................................................................................................................9

CONNECTINGTOYOUR NETWORK........................................................................................................................................................11

SPECIFICATIONS.......................................................................................................................................... 12

APPENDIX A – CONNECTOR PINOUTS........................................................................................................ 13

IES-0810 User Manual Page 4

Product Overview

Hardened Ethernet Switch

Package Contents

When you unpack the product package, youshall find the items listed below. Please

inspect the contents, andreport any apparent damage or missing items immediately to

your authorized reseller.

•IES-0810

8 FE Unmanaged Switch -20 to 60, DIN-rail

•Quick Installation Guide

•CD User Manual

IES-0810 User Manual Page 5

Product Highlights

Basic Features

•Meets IEC61000-6-2 EMC Generic Standard Immunity for industrial environment.

•Support 802.3/802.3u/802.3X.

•Auto-negotiation: 10/100Mbps, Full/half-duplex;Auto MDI/MDIX.

•Support 2048 MAC addresses.

•Provides 768Kbits memory buffer.

•Alarms for power failure by relay output.

•Operating voltage and Max. current consumption: 1.1A @ 12VDC, 0.55A @ 24VDC.

•Power consumption: 13.2W Max.

•Power Supply: Redundant DCTerminal Block power inputs or 12VDC DC JACKwith

100-240VAC external power supply.

•Supports DIN-Rail, Panel, or RackMounting installation.

IES-0810 User Manual Page 6

Front Panel Display

Basic Features

•PowerStatus (PW1, PW2)

These LEDs come on when the switch is properlyconnected to power and turned on.

‚Port Status LEDs

The LEDs display status for each respective port.

LED Status Description

PW 1,2

(Green) Steady Power On

Off Power Off

10/100Base-TX or 100Base-FX/BX

LNK/ACT

(Green) Steady Network connection is established

Flashing Transmitting or Receiving data

100

(Yellow) Steady Connection at 100Mbps speed

Off Connection at 10Mbps speed

Physical Ports

This switch provides:

Eight 10/100Base-TX ports

Eight 10/100Base-TXports + one 100Base-FXport

Six 10/100Base-TX ports + two 100Base-FX ports

Four 10/100Base-TX ports + four 100Base-FX ports

Connectivity

RJ-45 connector

SCor ST connector on 100Base-FX fiber port

IES-0810 User Manual Page 7

Installation

This chapter gives step-by-step instructions about how to install the switch:

Selecting a Site for the Switch

As with anyelectric device, you should place the switch where it will not be subjected to

extreme temperatures, humidity, or electromagnetic interference. Specifically, the site you

select should meet the following requirements:

•The ambient temperature should be between -20to 60 degrees Celsius.

•The relativehumidity should be less than 95 percent, non-condensing.

•Surrounding electrical devices should not exceed the electromagnetic field (RFC)

standards.

•Make sure that the switch receives adequate ventilation. Do not block the ventilation

holes on each side of the switch

•The power outlet should be within 1.8 meters of the switch.

IES-0810 User Manual Page 8

DIN Rail Mounting

Fix the DIN rail attachment plate to the back panel of the switch.

Installation: Place the switch on the DIN rail fromabove using the slot. Push the front of

the switch toward the mounting surface until it audibly snaps into place.

Removal: Pull out the lower edge and then remove the switch from the DIN rail.

IES-0810 User Manual Page 9

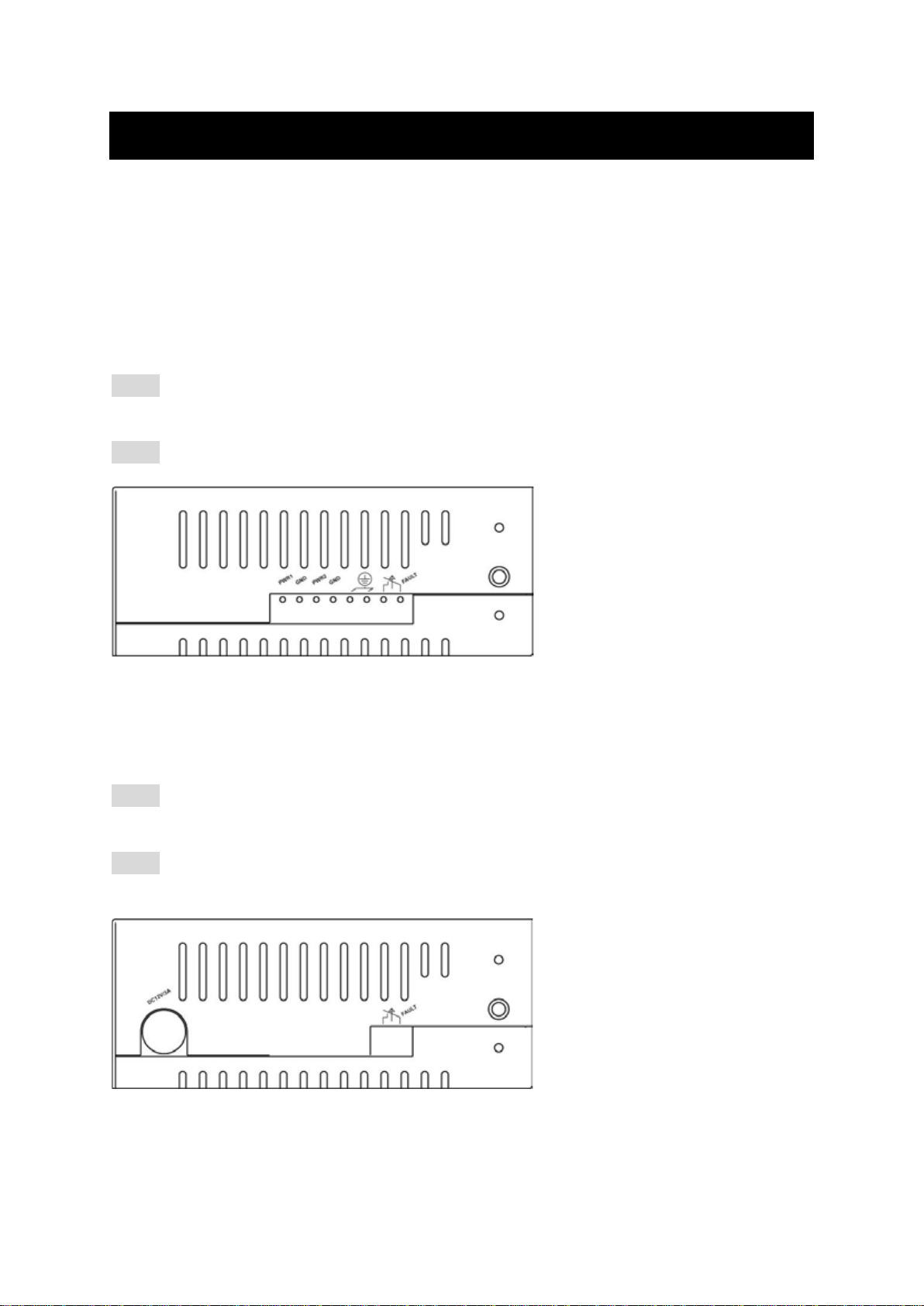

Connecting to Power

Redundant DCTerminalBlockPower Inputs or 12VDC DC Jack (Optional):

Redundant DCTerminal Block Power Inputs

There are two pairs of power inputs can be used to power up this device.You only need to

have one power input connected to run the switch.

Step 1: Connect the DC power cord to the plug-able terminal block on the switch, and

then plug it into a standard DC outlet.

Step 2: Disconnect the power cordif you want to shut down the switch.

12VDC DC Jack (Optional)

Step 1: Connect the supplied AC to DC power adapter to the receptacle onthe topside of

the switch.

Step 2: Connect the power cord tothe AC to DC power adapter and attach the plug intoa

standard ACoutlet with the appropriate ACvoltage.

IES-0810 User Manual Page 10

Alarms for Power Failure

Step 1:There are two pins on the terminal block are used for power failure detection. It

provides the normally closed output when the power source is active. Use this as a dry

contact application to send a signal for power failure detection.

Terminal Block

PW1 + 12 – 30VDC

–

Power Ground

PW2 + 12 – 30VDC

– Power Ground

Earth Ground

Relay Output 1A @ 12 - 30VDC

1. Therelaycontactopensif Power1 or Power2 falls

Special note:

The relay output is normal open position when there is no power to the switch.

Please do not connect anypower source to thisterminal to prevent the shortage to

yourpower supply.
