LevelOne GSW-0807 Manuel utilisateur



8-Port Gigabit

Ethernet Switch GSW-0807

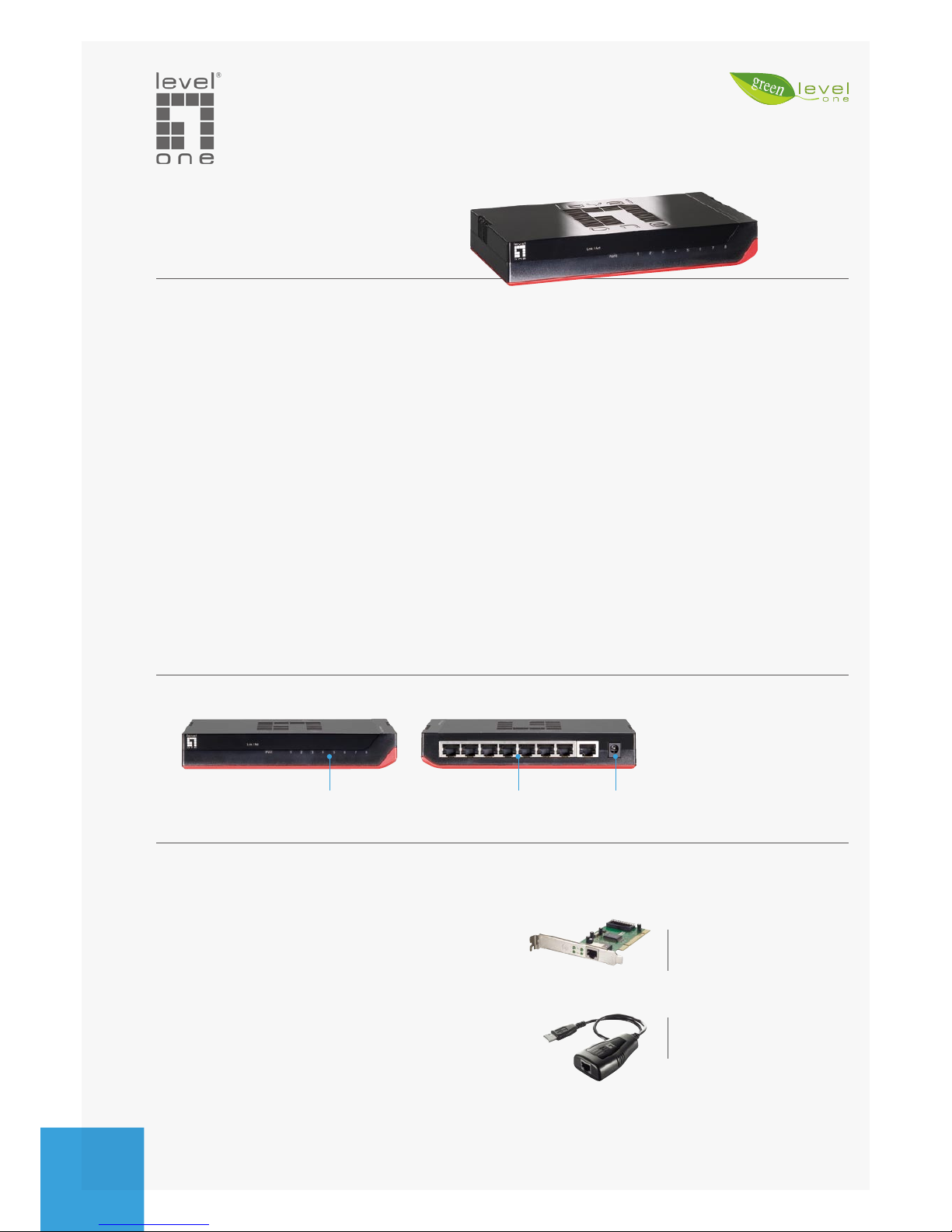

Product Overview

LevelOne's GSW-0807 is a high-performance

10/100/1000 Mbps Gigabit Ethernet switch with

8 Gigabit Ethernet ports. It provides a robust

16 Gbps backplane so users can utilize a Gigabit

LAN network without bandwidth limitations.

GSW-0807 is ideal for micro-segmenting large

networks into smaller, connected subnets

for improved performance, enabling the

bandwidth demanding multimedia and imaging

applications.

It is 1000BASE-T compliant and supports full-

and half duplex auto-detection modes. It

further supports MDI/MDI-X auto crossover and

IEEE802.3x ow control.

Save Power With LevelOne Green Technology

Active Link Detection: A LevelOne Green device

can tell if there is activity on each individual

LAN port. If an 8-port switch only has 6 active

devices connected to it, power is saved because

no trafc is routed to the 2 inactive ports.

Cable Length Detection: The switch is able to

detect the distance of the connected device and

adjusts its power accordingly. For example, if

you have a LevelOne Green switch a computer

connected to a 10-meter cable will consume

less power than a computer connected to a

100-meter cable.

Sleep Mode: The device will enter sleep/standby

mode when the connected devices are powered

down and no active links are detected. This

helps save energy consumption during extended

periods of network inactivity, such as nights,

weekends and holidays.

Key Features

- Compact size 8-port Gigabit Network Switch

- Supports MDI/MDI-X auto crossover

- Supports half-duplex and full-duplex auto-

detection

- Provides wire-speed packet ltering and data

forwarding

- Supports back-pressure and ow control

- Features Store-and-Forwarding architecture

- Supports 8k MAC address entries, 144KB

buffer memory and 9K Jumbo frame rate

- Extensive LED indicators for network

diagnostics

- Save up to 84% power compare to non Green

Switch with similiar functions

GNC-0105T

32-bit Gigabit Ethernet PCI

Adapter

Works well with

1. LEDs

2. 10/100/1000 Mbps

3. Externel power socket

H/W Version: 2

USB-0201

USB Gigabit Ethernet

Adapter

2 3

www.level1.com

one world_one brand_one level_ Ethernet Switches



Technical Specications

Product Diagram

Order Information GSW-0807: 8-Port Gigabit Ethernet Switch

Package Contents GSW-0807, Power Adapter, User Manual, Wall-Mounting Kit

All mentioned brand names are registered trademarks and property of their owners. Technical specications are subject to change without notice.

GSW-0807

Broadband Router Internet

NB PC Print server Printer

Power Saving by

Operating Temperature

0°C ~ 40°C

Operating Humidity

10% ~ 90% (non-condensing)

Dimensions

160 X 90 X 29 (mm)

Power Supply

External power 12VDC, 1A

Certication

FCC Class A

Green Power Consumption

Power Consumption with 8 x 100 meters Cable Connected

6.96W

Power Consumption with 8 x 10 meters Cable Connected

5.4W

GSW-0807 Base Power Consumption

(No Cables are Connected)

0.6W

Non Green Switch Base Power Consumption

(No Cables are Connected)

3.84W

Standard Compliance

Compliant

IEEE802.3

IEEE802.3u

IEEE802.3ab

IEEE802.3x

Network Interface

Ports

8x 10/100/1000Mbps RJ-45 switching ports

Uplink

Auto MDI/MDI-X (Auto crossover)

Network Speeds

10/100/1000Mbps

Full/Half duplex mode auto detection

MAC Address

8K MAC entries

Buffer Memory

144K bytes

Jumbo Frame

Physical Specications

LEDs

Power, Link/Activity

Active

Power Consumption

Power Consumption Inactive

PWR

Active Link Detection

PWR

Cable Length Detection Active

Active

Power Consumption

20m 40m

60m 80m 100m

PWR

Sleep Mode

Inactive

Power Consumption
