Lenovo USB-C Dock Manuel utilisateur
Lenovo USB-C Dock (Windows Only)
ThinkPad Universal USB-C Dock
ThinkPad Universal USB-C Smart Dock
User uide
Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Lenovo 40B50090EU
replicatore di porte e docking station Nero o cerca il tuo prodotto tra le migliori offerte di Schede di
Memoria e Lettori
https://www.lenovo.com/safety
Note: Before using this documentation and the product it supports, ensure that you read and understand
the warranty information in the documentation that comes with the product.
Third Edition (July 2022)
© Copyright Lenovo 2021, 2022.
LIMITED AND RESTRICTED RI HTS NOTICE: If data or software is delivered pursuant to a eneral Services
Administration “ SA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. S-
35F-05925.
Contents
Chapter 1. bout the dock . . . . . . . 1
In the box . . . . . . . . . . . . . . . . . . 1
Product overview . . . . . . . . . . . . . . . 2
Chapter 2. Set up the dock . . . . . . . 5
Install the dock . . . . . . . . . . . . . . . . 5
Install the dock driver and firmware . . . . . . . . 5
Install Lenovo Dock Manager . . . . . . . . . . 5
Chapter 3. Use the dock. . . . . . . . . 7
Use the video output connectors . . . . . . . . . 7
Supported resolution . . . . . . . . . . . . 7
Configure the external displays . . . . . . . . 7
Use the Ethernet connector . . . . . . . . . . . 7
Chapter 4. Troubleshooting . . . . . . . 9
ppendix . ccessibility
information . . . . . . . . . . . . . . . 11
ppendix B. Compliance
information . . . . . . . . . . . . . . . 13
ppendix C. Trademarks . . . . . . . 15
© Copyright Lenovo 2021, 2022 i
ii Lenovo USB-C Dock (Windows Only) ThinkPad Universal USB-C Dock ThinkPad Universal USB-C Smart Dock User uide
Chapter 1. bout the dock
Thanks for using Lenovo USB-C Dock (Windows Only) / ThinkPad Universal USB-C Dock / ThinkPad
Universal USB-C Smart Dock. Illustrations in this documentation might look different from your product.
The dock is an enhanced universal compatible module to help you expand your computer. You can use it to
connect your computer (Microsoft® Windows® 10 only) to a local area network (LAN) and multiple devices,
such as a headset, external displays, and Universal Serial Bus (USB) devices.
To view the compatible computers,
1. o to https://support.lenovo.com/us/en/solutions/accs-guide.
2. Select ThinkPad, ThinkCentre, ThinkStation, Ideapad and Ideacentre Option Compatibility Matrix.
Then follow the on-screen instructions.
In the box
• Lenovo USB-C Dock (Windows Only) / ThinkPad Universal USB-C Dock / ThinkPad Universal USB-C
Smart Dock
• 90W ac power adapter and power cord
• 1m USB-C® cable
• Documentation
Contact your place of purchase if any item is missing or damaged. Ensure that you retain your proof of
purchase and packing material. They might be required to receive warranty service.
© Copyright Lenovo 2021, 2022 1

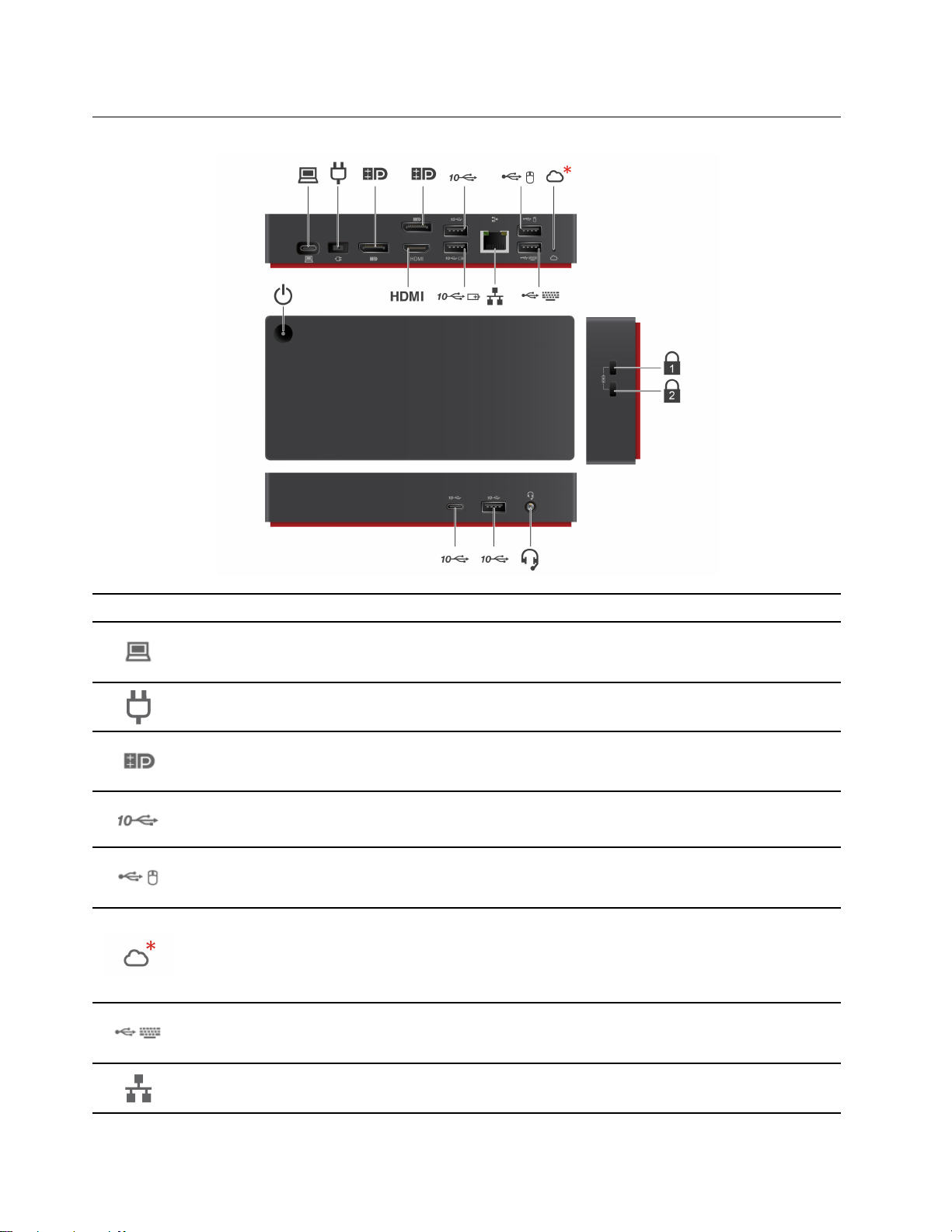

Product overview
Item Description
USB-C connector (for connecting computer)
Connect to your computer with the accompanying USB-C cable.
Power connector
Connect to ac power with the accompanying ac power adapter and power cord
DisplayPort® connector
Connect to an external display with a DisplayPort cable.
USB 3.2 connector Gen 2
Connect a compatible device to transfer data at USB 3.2 speed, up to 10 bps.
USB 2.0 connector
Connect a USB device, such as mouse.
Cloud indication (* For ThinkPad Universal USB-C Smart Dock only)
Indicates the cloud connection status.
• Solid amber: Disconnected
• Blinking amber (1 second on/off): Connecting
• Solid green: Connected
USB 2.0 connector
Connect a USB device, such as keyboard.
Ethernet connector
Connect to a LAN with an Ethernet cable.
2Lenovo USB-C Dock (Windows Only) ThinkPad Universal USB-C Dock ThinkPad Universal USB-C Smart Dock User uide
Item Description
lways On USB 3.2 connector Gen 2
Connect a compatible device to transfer data or charge with the output voltage and current of up to 5 V
and 2.4 A.
HDMITM connector
Connect to an external display with a High- Definition Multimedia Interface (HDMI) cable.
Power button
Press to turn off or turn on the dock.
Security-lock slot
Support cable locks that conform to the Kensington / Lenovo NanoSaver® lock standards (using Cleat
locking technology).
Security-lock slot
Support cable locks that conform to the Kensington / Lenovo MicroSaver® lock standards (using T- bar
locking technology) or MiniSaver® lock standards (using CleatTM locking technology).
udio connector
Connect a headset or headphones with 3.5 mm plug.
Power button indication
When the dock is connected to ac power but not your computer, press the dock power button to turn off or
turn on the dock. The indicator on the dock power button shows the dock status:
LED status Dock status
Amber On
Off Off
When the dock is connected to both your computer and the ac power adapter, the indicator on the dock
power button shows the computer status:
LED status Computer status
Solid white On
Blinking white In sleep mode
Blinking orange Updating driver
Off Off or in hibernation mode
Statement on USB transfer rate
Depending on many factors such as the processing capability of the host and peripheral devices, file
attributes, and other factors related to system configuration and operating environments, the actual transfer
rate using the various USB connectors on this device will vary and will be slower than the data rate listed
below for each corresponding device.
USB device Data rate (Gbit/s)
3.2 en 1 / 3.1 en 1 5
3.2 en 2 / 3.1 en 2 10
3.2 en 2 × 2 20
Chapter 1.About the dock 3
USB device Data rate (Gbit/s)
Thunderbolt 3 connector (USB-C) 40
Thunderbolt 4 connector (USB-C) 40
4Lenovo USB-C Dock (Windows Only) ThinkPad Universal USB-C Dock ThinkPad Universal USB-C Smart Dock User uide
Chapter 2. Set up the dock
Install the dock
Use the accompanying ac power adapter, power cord, and USB-C cable to install the dock. The dock
supplies power to the computer when the dock is connected to ac power and your computer.
Install the dock driver and firmware
The dock driver and firmware is preinstalled on compatible computers and the dock is ready for use after you
connect it to ac power and computer.
It is recommended that you update the dock driver and firmware whenever a new version is available to
improve performance of the dock.
To update dock firmware:
1. o to https://www.lenovo.com/support/docks.
2. Select the entry for the dock and then follow the on-screen instructions to download the firmware.
3. When the indicator on the dock power button turns to solid white, the update is completed. The update
takes effect when you reconnect the dock to your computer.
Install Lenovo Dock Manager
Lenovo Dock Manager is designed to provide silent firmware update and device information query.
To download Lenovo Dock Manager, go to https://support.lenovo.com/us/en/solutions/ht037099.
Note: Lenovo USB-C Dock (Windows Only) do not support silent firmware update.
© Copyright Lenovo 2021, 2022 5
