Lenovo ThinkPad USB-C Dock Manuel utilisateur

ThinkPadUSB-CDockUserGuide

http://www.lenovo.com/safet

Note:Beforeinstallingtheproduct,besuretoreadthewarrantinformationinAppendixB“LenovoLimited

Warrant”onpage19.

FirstEdition(December2016)

©CopyrightLenovo2016.

LIMITEDANDRESTRICTEDRIGHTSNOTICE:IfdataorsoftwareisdeliveredpursuanttoaGeneralServices

Administration“GSA”contract,use,reproduction,ordisclosureissubjecttorestrictionssetforthinContractNo.

GS-35F-05925.

Contents

Chpter1.Aboutthedock.......1

Productdescription..............1

Mainfeatures................1

Maximumresolutionsandrefreshrates......1

Componentoverview.............2

Sstemrequirements.............4

Chpter2.Settingupthedock.....5

InstallingthedevicedriveronWindowsoperating

sstems..................5

Connectingthedocktoourcomputer......5

UninstallingthedevicedriverfromWindows

operatingsstems..............6

Chpter3.Usingthedock.......7

Usingtheheadsetandmicrophonecombo

connector.................7

UsingtheEthernetconnector..........7

UsingtheUSBconnectors...........8

UsingtheDPandVGAconnectors........8

Chpter4.Workingwiththedock...9

Understandingthevideooutputmodes......9

Extendmode..............9

Mirrormode..............10

Single-displamode..........10

Conﬁguringthedock............11

Manuallenablingtheheadsetand

microphonecomboconnector.......11

Rotatingtheexternalmonitordispla....11

Settingthecolorqualitoftheexternal

monitor................12

Settingtheresolutionoftheexternalmonitor.13

Chpter5.Troubleshooting......15

AppendixA.ServicendSupport...17

Onlinetechnicalsupport...........17

Telephonetechnicalsupport.........17

Accessibilitinformation...........17

AppendixB.LenovoLimited

Wrrnty................19

Part1-GeneralTerms...........19

Part2-Countr-speciﬁcTerms........21

Part3-WarrantServiceInformation......24

SuplementodeGarantíaparaMéxico......25

AppendixC.Complince

informtion..............27

Electronicemissionnotices..........27

FederalCommunicationsCommission

DeclarationofConformit........27

AppendixD.Notices..........31

Recclingandenvironmentalinformation....31

RecclinginformationforChina........31

RecclinginformationforBrazil........32

BatterrecclinginformationfortheEuropean

Union..................32

ImportantWEEEinformation.........33

ExportClassiﬁcationNotice.........33

Trademarks................34

AppendixE.RestrictionofHzrdous

SubstncesDirective(RoHS).....35

EuropeanUnionRoHS...........35

ChinaRoHS................35

TurkishRoHS...............35

UkraineRoHS...............35

IndiaRoHS................36

©CoprightLenovo2016i

iiThinkPadUSB-CDockUserGuide

Chpter1.Aboutthedock

ThischaptercontainsproductinformationabouttheThinkPad®USB-CDock(hereaftercalleddock).

Productdescription

ThedockisaportableexpansionmodulethatenablesoutoeasilconnectourcomputertotheEthernet

andmultipledevices,suchasaheadset,amonitor,andUniversalSerialBus(USB)devices.

YoucansetupourworkareabconnectingourcomputertothedockwithaUSB-Ccable,connecting

multipledevicestothedock,andconﬁguringthedockonourcomputer.Then,ouarereadtousethe

multipledeviceseachtimeouconnectourcomputertothedock.Thedockcanalsosupplpowertoour

computerwhenitisconnectedtothecomputer.

Youroptionpackageincludesthefollowing:

•ThinkPadUSB-CDock

•Poweradapter

•Powercord

•USB-Ccable

•Warrantposter

Contactourplaceofpurchaseifanitemismissingordamaged.Besuretoretainourproofofpurchase

andpackingmaterial.Themightberequiredtoreceivewarrantservice.

Minfetures

Thedockprovidesthefollowingmainfeatures:

•USBconnectors:threeUSB3.0connectors,twoUSB2.0connectors,andoneUSB-Cconnector

•Networkconnection:GigabitEthernetspeed

•Supportedexternalmonitors:DisplaPort®(DP)monitorandvideographicsarra(VGA)monitor

•Supportedfunctions:

–ThinkVantage®AccessConnectionsTM(Windows®7onl)

–PrebooteXecutionEnvironment(PXE)(supportedonsomeLenovo®computers)

–MediaAccessControl(MAC)addressPassThrough

–WakeonLAN

Formoreinformationaboutthesupportedfunctions,see“UsingtheEthernetconnector”onpage7.

Mximumresolutionsndrefreshrtes

Toachievebetterdisplaexperience,itisrecommendedthatouconnectoneortwoexternalmonitors

tothedockatatime.

•DPoutputonl:3840x2160pixels(30Hz)

•VGAoutputonl:1920x1200pixels(60Hz)

•DPandVGAsimultaneousoutput:1920x1080pixels(60Hz)

©CoprightLenovo20161

•DPandDPsimultaneousoutput:1920x1080pixels(60Hz)

Componentoverview

Thefollowingillustrationhelpsoulocateandidentiftheconnectorsandcontrolsonourdock.

Figure1.Componentoverview

1Powerbuttonwithindicator2Securit-lockslot

3Headsetandmicrophonecomboconnector4USB3.0connector

5USB-Cconnector6DPconnectors

7AlwasOnUSB3.0connector8USB3.0connector

9Ethernetconnector10USB2.0connectors

11VGAconnector12USB-Cconnector

13Powerconnector

1Powerbuttonwithindictor

•Powerbutton

–Whenthedockisdisconnectedfromthecomputer,pressthepowerbuttontoturnoffthedock.

–Whenthedockisconnectedtothecomputer,thepowerbuttononthedockhasthesamefunctions

asthepowerbuttonofthecomputer.Youcanusethepowerbuttononthedocktoturnon,turnoff,

sleep,hibernate,orwakeupthecomputerafteroudeﬁnewhatpowerbuttondoesonourcomputer.

Tochangewhatthepowerbuttondoes,dothefollowing:

2ThinkPadUSB-CDockUserGuide

1.GottoControlPanelandthenchangetheviewoftheControlPanelfromCategortoLarge

iconsorSmallicons.

2.ClickPowerOptions➙Choosewhtthepowerbuttonsdo.

3.Followtheinstructionsonthescreen.

•Powerbuttonindicator

Theindicatorshowsthedockstatusandcomputerstatus:

–Off:Thedockisoff,orthecomputerisofforinhibernationmode.

–White:Thecomputerison.

–Whitendblinkingslowly:Thecomputerisinsleepmode.

–Amber:Thedockisonandreadtoconnecttothecomputer.

2Security-lockslot

Toprotectourdockfromtheft,lockourdocktoadesk,table,orotherﬁxturesthroughasecuritcable

lockthatﬁtsthissecurit-lockslot.

Note:Youareresponsibleforevaluating,selecting,andimplementingthelockingdeviceandsecurit

feature.Lenovomakesnocomments,judgments,orwarrantiesaboutthefunction,qualit,orperformance

ofthelockingdeviceandsecuritfeature.

3Hedsetndmicrophonecomboconnector

Connectheadphonesoraheadsetwitha3.5-mm(0.14-inch),4-poleplug.

48USB3.0connector

ConnectUSB-compatibledevices,suchasaUSBstoragedevice,oraUSBprinter.Foroptimaldata

transfer,connectaUSB3.0devicetoaUSB3.0connectorinsteadofaUSB2.0connector.

5USB-Cconnector

ConnectUSB-Ccompatibledevicesfordatatransferonl,suchasaUSB-Cstoragedevice.

6DPconnector

Connectahigh-performancemonitor,adirect-drivemonitor,orotherdevicesthatuseaDPconnector.

7AlwysOnUSB3.0connector

Chargedevicesevenwhenourcomputeristurnedoff,insleepmode,orinhibernationmode;orwhenthe

dockisdisconnectedfromourcomputer.

9Ethernetconnector

ConnectthedocktoanEthernetLANwithanEthernetcable.

10USB2.0connectors

ConnectUSB2.0devices,suchasaUSBkeboard,aUSBmouse,aUSBstoragedevice,oraUSBprinter.

Notes:

•ItisrecommendedthatouconnectaUSBkeboardandaUSBmousetotheUSB2.0connectors.

Chapter1.Aboutthedock3

•IfouareusingaUSB3.0device,itisrecommendedthatouconnectittoaUSB3.0connectorfor

fasterUSBtransmissionspeed.

11VGAconnector

ConnectaVGA-compatiblevideodevice,suchasaVGAmonitor.

12USB-Cconnector

ConnectthedocktoourcomputerbaUSB-Ccable.

13Powerconnector

Connectthedocktothepoweradapter.

Systemrequirements

Beforeusingthedock,ensurethatourcomputerhasoneofthefollowingMicrosoft®operatingsstems

installed:

•Windows7

•Windows10

4ThinkPadUSB-CDockUserGuide

Chpter2.Settingupthedock

Thissectionprovidesinformationabouthowtoconnectthedocktoourcomputer,andhowtoinstall

anduninstallthedevicedriver.

InstllingthedevicedriveronWindowsopertingsystems

TheLenovocomputerwithUSB-Cconnectorshasthedockdevicedriverpreinstalled.Inthissituation,the

dockisreadforuseafterouconnectittoanacpowersourceandourcomputer.Forthedetailed

computermodelinformation,gotohttp://www.lenovo.com/support/docksandclickThinkPdUSB-CDock.

ThelatestdevicedriverforthedockalsoisavailablefordownloadingfromtheLenovoWebsite.Goto

http://www.lenovo.com/support/docks,clickThinkPdUSB-CDock,anddownloadthedriverinstallation

ﬁle.Thenfollowtheinstructionsonthescreentoinstallthedevicedriver.

Connectingthedocktoyourcomputer

Toconnectthedocktoourcomputer,dothefollowing:

1.Connecttheacpoweradaptertothepowercord1.

2.Connectthepowercordtoanelectricaloutlet2.

3.Connecttheacpoweradaptertothepowerconnectorofthedock3.

Figure2.Connectingthedocktothepowersupply

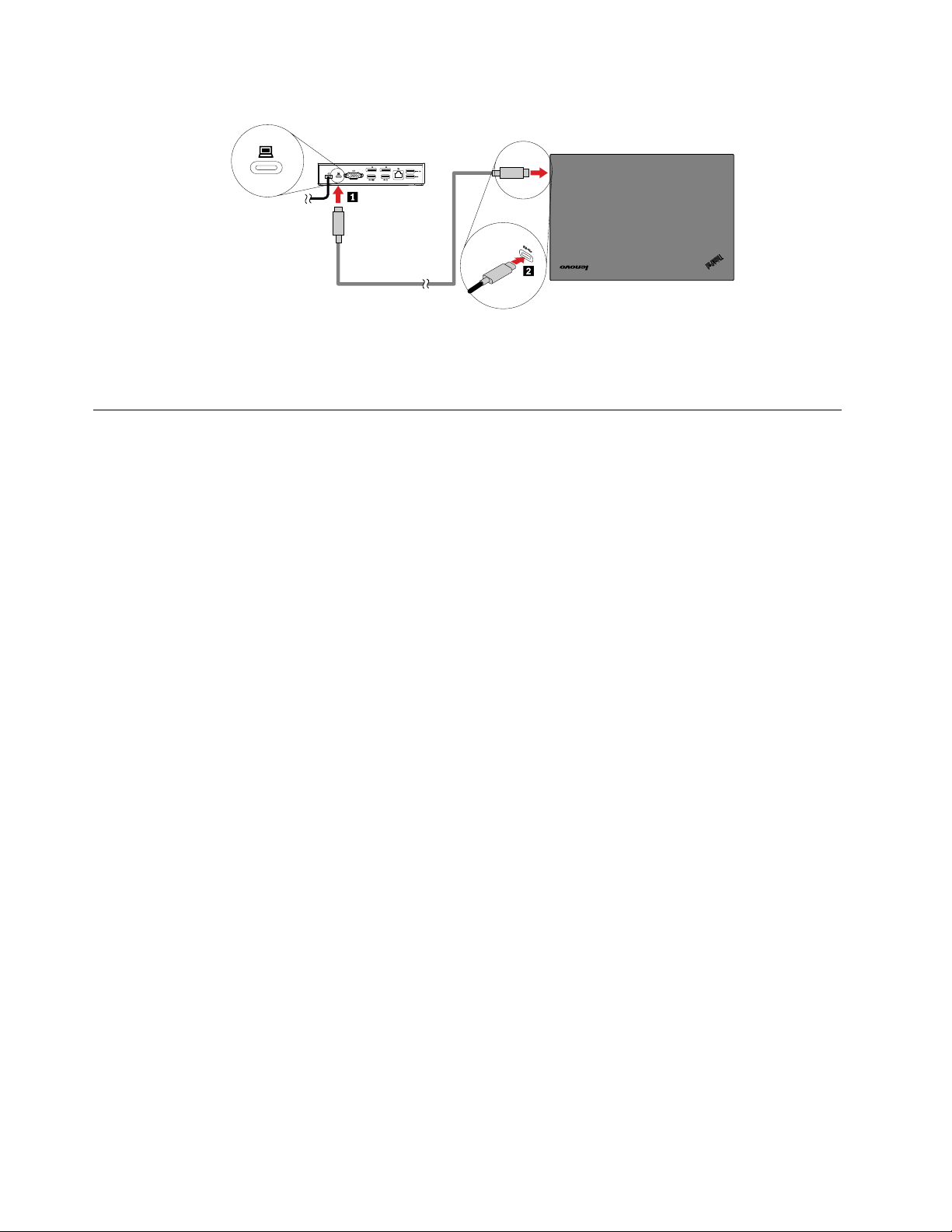

4.ConnectoneendoftheUSB-Ccabletothedock1.

5.ConnecttheotherendoftheUSB-Ccabletothecomputer2.

©CoprightLenovo20165

Figure3.Connectingthedocktothecomputer

Note:Thedocksuppliespowertothecomputerwhenitisconnectedtothecomputer.

UninstllingthedevicedriverfromWindowsopertingsystems

Touninstallthedevicedriver,dothefollowing:

FortheWindows7opertingsystem:

1.Exitallapplicationsthatusethedock.

2.ClickStrt➙ControlPnel.ThenchangetheviewofControlPaneltoCategor.

3.ClickUninstllprogrm➙ThinkPdUSB-CDockUSBAudio,andthenright-clicktoselect

Uninstll.

4.Followtheinstructionsonthescreentouninstallthedevicedriver.

5.Ifnecessar,restartourcomputer.

FortheWindows10opertingsystem:

1.Fromthedesktop,movethepointertothebottom-leftcornerofthescreen,andthensearchControl

Pnelinthesearchbox.

2.ClickControlPnel,andthenchangetheviewofControlPaneltoCategor.

3.ClickUninstllprogrm➙ThinkPdUSB-CDockUSBAudio,andthenright-clicktoselect

Uninstll.

4.Followtheinstructionsonthescreentouninstallthedevicedriver.

6ThinkPadUSB-CDockUserGuide
