Lennox M0STAT120N-1 Manuel utilisateur
INSTALLATION AND USER
INFORMATION GUIDE
©2023 Lennox Industries Inc.
Dallas, Texas, USA
M0STAT120N-1 Indoor
Wired Programmable
Controller
CONTROLS
508332-01 6/2023
THIS MANUAL MUST BE LEFT WITH
THE OWNER FOR FUTURE REFERENCE
WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, personal injury, or loss of life.
Installation and service must be performed
by a licensed professional HVAC installer
(or equivalent) or a service agency.
CAUTION
As with any mechanical equipment, contact
with sharp sheet metal edges can result in
personal injury. Use caution while handling
this equipment. Wear gloves and protective
clothing.
IMPORTANT
Frequent changes to operating mode may
cause system malfunctions. Allow at least
one minute between mode changes to allow
the system to stabilize.
2
Table of Contents
General ..........................................................3
Requirements................................................3
Shipping and Packing List...........................3
Product Overview.........................................4
Product Features..........................................4
Product Dimensions.....................................5
Back Plate Removal .....................................5
Installing Back Plate.....................................6
Making Connections ....................................6
Cable Connection Illustration................ 6
Reattach the Top Panel ................................8
Buttons and Functions ................................8
Buttons and Functions .......................... 8
Wired Controller Indicators .......................10
Operations
Set Time and Date................11
Lock Function.......................................11
Louver Swing Function ........................11
Units with Up/Down and Left/Right
Swing Functions Only .....................................11
Units with Up/Down Swing Functions Only.....11
Units with Four Up-Down Louvers ................. 12
Selecting System Mode ...................... 12
Selecting Turbo Feature...................... 12
Intelligent Eye Display......................... 12
Filter Reset.......................................... 13
Humidity Setting Function................... 13
GEAR Function................................... 13
Fan Speed Setting .............................. 14
Step-Less Speed Regulation (if supported) ... 14
Room Temperature Settings........................... 14
Timer Function .................................... 14
To Set the ON or OFF TIMER ........................ 14
Weekly Timer 1 or 2 ....................................... 15
To Activate or Deactivate the Weekly Timer ... 15
Turning OFF Cooling or Heating while
the Timer is Active.......................................... 16
To Set Day Off for Holiday.............................. 16
Delay Function ............................................... 16
Copying Day Setting ...................................... 17
Electric Heat
(MMA Units with Auxillary Heat Only) . 17
3
General
The M0STAT120N-1 is a wired programmable
local controller for mini-split indoor units with
convenient timed schedules for daily operation.
These instructions are intended as a general
guide and do not supersede local codes in any
way. Consult authorities having jurisdiction
before installation.
Requirements
Verify the power supply has been turned o
before beginning installation. This controller
should be used only as described in this
manual.
Do not install the controller on exterior walls
(where there is unconditioned space on
opposite side of wall) or in locations where
direct sunlight may be present.
Shipping and Packing List
Item Qty
Wired Controller 1
Battery 1
Connection Cable D for MWMC,
MWHB, and MWCB wall mounted
models.
1
Connection Cable for MMDA/B,
MCFA/B, M22A and M33A/B/C
indoor units
1
Item Qty
Installation and User Information
Guide 1
Screws for securing back plate to
drywall (M3.9*25) 3
Drywall anchors for securing back
plate 3
4-pin extension cable assembly -
20 Feet (6 meters) 1
Ground screw for extension cable
(M4x8) 1
4
Product Overview
• Wired programmable local controller for
mini-split indoor units with convenient timed
schedules for daily operation
• Weekly timers (2), 7-day timer, up to 8
scheduled events per day
• Schedule start time, mode, set point, and
fan speed
• Compatible with all indoor units
• Copy/paste function for easy duplication of
events to other days
• Built-in system diagnostics
• Dimensions (H x W x D) - 4-3/4 x 4-3/4 x
7/8 inches (83 x 83 x 22 mm)
• 3-1/2 inch (89 mm) back-lit LCD display
screen
• Adapter cables are furnished for various
indoor unit connections
• Maximum cable length using multiple exten-
sion cables (sold separately) is 164 feet (50
meters)
• Hardware for mounting furnished
• Power Supply: 12 VDC
• Audible tone when a button is pressed (can
be disabled)
• Lock function disables buttons to prevent
tampering
Product Features
• Active Clean - Washes away dust, mold,
and grease that may cause odors when it
adheres to the indoor coil by automatically
freezing and then rapidly thawing the coil.
After 20 to 45 minutes the unit will automati-
cally cancel the operation
NOTE: Only available in COOL or DRY
modes.
• Breeze Away - Unavailable feature on U.S.
models.
• ECO - Controls temperature/energy e-
ciency of the unit. Only available in Cooling
mode.
• Follow Me - Allows remote temperature
sensing of the room at the remote controller
location
• GEAR - Reduces electrical consumption to
75% or 50%
NOTE: Only available in COOL or DRY
modes.
• Breezeless - Unavailable feature on U.S.
models.
• Intelligent Eye Display (Single Zone)
Automatically detects human activity in the
room. If there is no activity for 30 minutes,
the sensor reduces compressor operating
frequency in cooling mode for increased
eciency. The Intelligent Eye only functions
in the cooling mode and will cancel when
5
the unit switches to any other mode. This
feature is not available for multi-zone
systems.
• Purify - Unavailable feature on U.S.
models.
• Rotation - Unavailable feature on U.S.
models.
• Sleep - Enables the system to automati-
cally increase cooling or decrease heating
(in 2°F increments) per hour for the rst 2
hours, then maintain a steady temperature
for 5 hours
• Turbo - Enables the unit to reach the
preset temperature during colling or heating
operation in the shortest time.
Product Dimensions
4-3/4” (120mm)
4-3/4” (120mm)
3/4” (20mm)
Figure 1. Product Dimensions
Back Plate Removal
1. Insert a at-head screwdriver into the
slot located in the lower section of the
back plate.
2. Rotate the screwdriver to remove the
back plate.
IMPORTANT
The printed circuit board (PCB) is located
in the upper section of the remote
control. Avoid damaging the PCB with the
screwdriver.
3. Remove the back plate.
6
Back cover
Prying
position
Figure 2. Back Plate Removal
Installing Back Plate
When installing the back plate to a at drywall
surface, use the provided screws for securing
the back plate to the drywall (ST3.9*25). Wall
anchors are provided for use, if necessary.
IMPORTANT
Always install the back plate on a at
surface. Do not distort back plate by over-
tightening the mounting screws.
3 screws (ST3.9*25)
Figure 3. Securing Back Plate to
Drywall
Making Connections
Cable Connection Illustration
1. Connect the controller 4-pin shielded
cable assembly to the 4-pin shielded
extension cable.
2. Connect the 4-pin shielded extension
cable to the adapter board, which
connects to the display board.
4-core wire
Adaptor board
Display board
The connection cable A
XYE5V/12V
White
Yellow Brown
Red
The connection cable D
Figure 4. Connection Cable D for
MWMC, MWHB, and MWCB Wall
Mounted Models
4-core wire The connective wires group
shielded wire(some units)
Mainboard
Figure 5. Connection Cable for
MMDA/B, MCFA/B, M22A and M33A/
B/C Indoor Units
7
HA HB
HAHB
Indoor Unit
Wired Controller
0
Figure 6. Cable Connection for MMA
Air Handlers

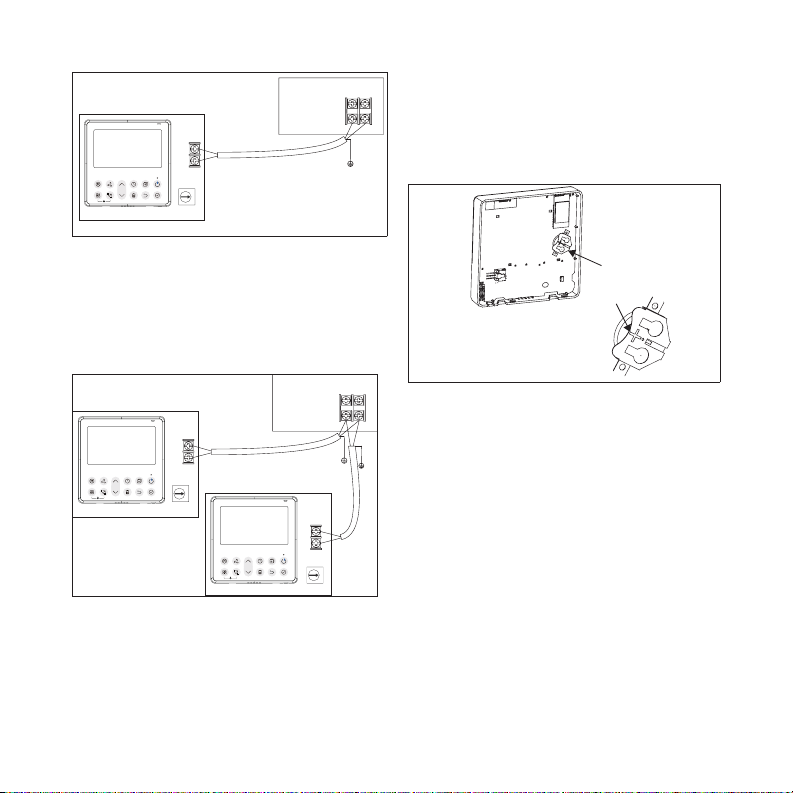

Figure 6 shows one controller wired to an
indoor unit. The HA and HB terminals on the
controller connects to the HA and HB terminals
on the indoor unit.
HA HB
HAHB
HAHB
Indoor Unit
Wired Controller 1
Wired Controller 2
0
1
Figure 7. Cable Connection for MMA
Air Handlers (Two Controllers)
Figure 7 shows two controllers wired to one
unit. The wired controllers connect to the unit’s
HA and HB ports via the HA and HB port on the
controller. The Dual Control function enables
two controllers to issue commands to the
indoor unit.
Battery Installation
Install the provided Lithium CR3032 battery
into battery slot.
Insert Battery with
postive side in up
position
Figure 8. Cable Assembly Connections
8
Reattach the Top Panel
Figure 9. Reattaching Top Panel
Buttons and Functions
1
3
2
4
5
9
7
6
8
10
11
12
Buttons and Functions
1. FAN SPEED Button
2. MODE Button
Press the Mode button to scroll through
available operation modes (Auto / Cool / Dry
/ Heat / Fan).
3. FUNCTION Button
Scrolls through unit operations in this order:
• Turbo
• Sleep
• Follow Me
4. SWING Button
Used to stop or start louver auto swing feature
5. UP/DOWN Buttons
Increase or decrease the indoor temperature in
1ºF (0.5ºC degree increments). The maximum
86°F (30°C) and minimum depends on the
outdoor unit.
9
• For MWMC/MWHB/MWCB/M33C the
minimum is 60ºF (15.5ºC).
• For MMDB/A, MCFA/B and M22A the mini-
mum is 62°F (16.6°C).
NOTE: The temperature cannot be
adjusted in FAN mode.
6. TIMER Button
Sets unit for daily or weekly on/o operation
7. COPY Button
Copy schedules from one day to another
8. POWER Button
Turn system on and o
9. CONFIRM Button
Conrms each step when managing schedules
10. BACK Button
Returns to the previous step
11. DAY OFF/DELAY Button
• Disable specic days/schedules of the
week
• Delete a specic event
12. LOCK Function
Press the Function and Swing buttons
simultaneously to lock the Controller to prevent
tampering with settings.
10
Wired Controller Indicators
NOTE
:
Icons are shown for display purposes only
.An asterisk(*) indicates the function is only available on selected models.
F° / C° display
Room temperature display
*Relative humidity display
Wireless control feature display
Follow me feature display
*Breeze away display
Delay off display
Turbo feature display
*ECO feature display
Purify feature display
Filter reminder display
SLEEP feature display
*GEAR feature display
*Breezeless display
Rotation display
Active clean display
*Intelligent eye display
*Electric heating display
Not used
*Certain Models
Table des matières
Autres manuels Lennox Contrôleurs
Lennox
Lennox V0STAT54P-2 Instructions d'installation
Lennox
Lennox OLT-1X Manuel utilisateur
Lennox
Lennox HYDRON Series Manuel d'instructions
Lennox
Lennox DELTA 2 Manuel du propriétaire
Lennox
Lennox M0STAT64Q-1 Instructions d'installation
Lennox
Lennox Wired Controller Manuel utilisateur
Lennox
Lennox M0STAT61Q-1 Instructions d'installation
Lennox
Lennox Core Unit Controller Manuel utilisateur
Lennox
Lennox CLIMATIC 200 Manuel utilisateur
Lennox
Lennox PRODIGY2.0 Guide de l'utilisateur
Lennox
Lennox M0STAT64Q-2 Instructions d'installation
Lennox
Lennox V0STAT51P-2 Manuel utilisateur
Lennox
Lennox PRODIGY M2 Guide de l'utilisateur
Lennox
Lennox F1943L-3P Manuel utilisateur
Lennox
Lennox V0STAT52 Manuel utilisateur
Lennox
Lennox PRODIGY M2 Manuel utilisateur
Lennox
Lennox E210 Manuel d'instructions
Lennox
Lennox icomfort Wi-Fi (2.0) Demo Manuel utilisateur
Lennox
Lennox Prodigy Manuel utilisateur
Lennox
Lennox VRF VEWCL1B Manuel utilisateur
