Lennox F1943L-3P Manuel utilisateur

INSTALLATION

INSTRUCTIONS

VRF Systems - Controls

508210-02

08/2022

VRF Wi-Fi Controller Installation

VRF

This manual must be left with the owner for

future reference.

WARNING

Improper installation, adjustment, alteration,

service or maintenance can cause property

damage, personal injury or loss of life.

Installation and service must be performed by a

licensed professional HVAC installer (or equivalent)

or service agency.

General

The F1943L-3P (19B16) controller is a wired touch

screen programmable local controller for VRF Heat

Recovery and Heat Pump indoor units capable of

Wi-Fi control via a mobile application. These instruc-

tions are intended as a general guide and do not su-

persede local codes in any way. Consult authorities

having jurisdiction before installation.

Be sure that power supply has been turned o󰀨 before

beginning installation. This controller should be used

only as described in this manual.

Tools Needed

#2 Phillips screwdriver

Slotted precision screwdriver

Level

1/8” wall anchor tools

Controller Placement

Avoid installing local controller in high load or heat

loss areas such as exterior walls or walls that are

against unconditioned spaces, near entry doors

and windows, or where direct sunlight may be

present.

CAUTION

To ensure proper system performance and reliabil-

ity, Lennox does not recommend operation of VRF

systems during any phase of construction. Con-

struction debris, low temperatures, harmful vapors,

and operation of the unit with misplaced lters can

damage the units. Failure to follow these guide-

lines will result in the warranty being voided.

Shipping and Packing List

Package 1 of 1 contains;

1 – Wired Controller

1 – Back plate and Wire Terminals

2 – Mounting screws and anchors

2 – Machine screws for connecting controller to

back plate

IMPORTANT

Frequent changes to operating mode may cause

system malfunction. Allow at least one minute

between mode changes to allow the system to

stabilize.

• This manual provides the installation instructions for

this controller. Refer to the included wiring diagrams

to connect the controller to the indoor unit.

• Do not expose to volatile organic compounds

(V.O.C.) and/or alcohol that can cause sensor dam-

age.

• Do not expose to construction dust, paint, and/or

other contaminants that can deposit on the circuit

board surface inside the unit.

• Physical damage can lead to broken cover glass as

well as prevent the unit from functioning correctly.

• The controller uses low voltage. Keep a minimum

distance of 12” (305 mm) between low voltage con-

trol wire and high voltage power wires.

Power wiring between controller and rst indoor

unit:

• Minimum 18 AWG stranded, shielded cable up to

164 feet (50 m).

• Ensure there are no gaps between the controller

back cover and the mounting surface.

• Fill any holes in the wall behind the controller to

avoid false readings from inltration.

• Ground the shielded control wiring.

• Do not use a megger to test insulation.

Communication wiring between indoor units:

• Minimum 18 AWG stranded, shielded cable.

Installation

CAUTION

Do not install controller in areas where harmful

gases containing sulfur or other damaging agents

may exist or the controller may be damaged.

Clean controller using a clean, damp cloth. Do not

spray cleanser on or around controller.

Be sure that power supply has been turned o󰀨 be-

fore beginning installation.

Do not operate controller with wet hands.

WARNING

IMPORTANT

Read all of the information in this manual before us-

ing this controller. All wiring must conform to local

and national building and electrical codes and ordi-

nances. This is a 12 VDC controller. Do not install

on voltages higher than 12 VDC.

IMPORTANT

Electrostatic discharge can a󰀨ect electronic

components. Take precautions to neutralize

electrostatic charge by touching your hand and

tools to metal prior to handling the control.

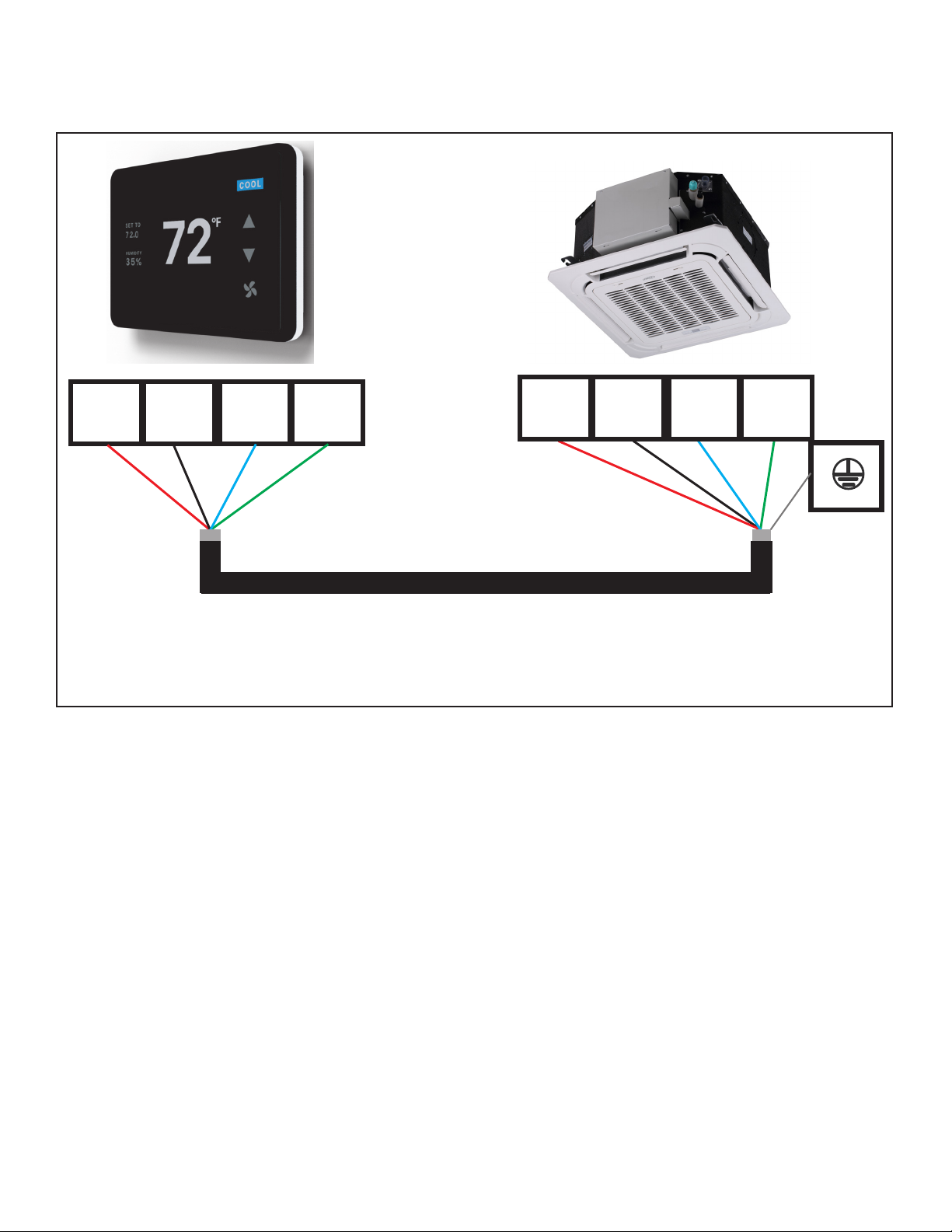

Figure 1. Connect to P3 Indoor Unit

-12V +12V

NOTE - 1. Connect up to 16 indoor units

2. Ground cable shielding at indoor unit

3. All wiring is polarity sensitive

COM 12V

Connecting to a Single P3 Indoor Unit

Connect the controller to an indoor unit using Control Protocol 3, or P3, using 4-conductor wire to terminals

+12V,-GND,HA,HB. See Figure 1.

Figure 2. Connect Controller to Multiple Indoor Units Wiring Connections

Connecting to Multiple Indoor Units

Connect the controller to multiple indoor units, up to 16. Use 4-conductor shielded cable to connect to the rst

indoor unit, then daisy chain control wiring to each indoor unit using the HA/HB terminals in the electrical con-

trol box of the indoor unit. Do not daisy chain 12V power cable. See Figure 2.

NOTE – All of the indoor units connected to the controller must be on the same refrigerant circuit, connected

to the same outdoor unit.

CAUTION

Connect “12V” on the controller to terminal “12V” on

the rst indoor unit only. 12V connection provides

power to controller; connection to multiple indoor

units will damage controller and indoor unit boards.

NOTES - 1. Connect “+12V” on the controller to terminal “+12V” on the first indoor

unit only. 12V connection provides power to controller; connection to

multiple indoor units will damage controller and indoor unit boards.

2. Ground cable shielding at each indoor unit.

4. Use stranded, shielded, 18 GA cable.

5. Connect up to 16 indoor units.

COM 12V

HA COM 12V

1. Attach the back cover to the wall using screws.

2. Connect the controller to one indoor unit main

control board using appropriate wiring method

as determined.

3. Push the controller back toward the back plate

until it “snaps” into place, use machine screws

to secure cover to back plate.

Mount the Controller

Figure 3. Back Plate

Operation

Main Menu

To access the main menu, tap the mode (HEAT, COOL,

or OFF) on the top right corner of the screen.

The main menu allows for quick access to changing

modes, fan operation, and other settings if enabled by

the system operator.

Depending on your HVAC system, some options may

be disabled and not displayed.

When the system is actively cooling or heating the

space, an underline will appear below the HEAT/

COOL indicator on the main screen. The line will

disappear during the system is idle or when the set-

point is satised.

Settings Menu

To access this menu, tap settings in the main menu.

This menu allows for changing of the temperature unit,

time format, and access to the schedule hold menu.

Factory Reset: A reset switch is hidden behind the rst

grill on the top right (see image below). Use a non-

metal tool to contact and press the reset switch.

Single Press: A single press of the switch will reboot

the device without changes to the stored information.

Long Press (Factory Reset): Holding the switch down

for more than ve seconds will put the device in factory

reset.

A visual indication is shown on the screen.

Note: Factory resets do not erase network information

and the device will remain on the network until a leave

operation is performed (via the network menu or over

the air).

Figure 4. Factory Reset Button

Technical Support

1-800-4LENNOX

(1-800-453-6669)

[email protected]

www.LennoxCommercial.com

Scan this QR code to download the Lennox VRF & Mini-Splits App

from the Apple App Store or the Google Play store.

The app contains technical literature and troubleshooting resources.

Scan this QR code to download the Lennox VRF Wi-Fi

Controller App

from the Apple App Store or the Google Play store.

The app provides control of the VRF Wi-Fi Controller.
