Lennox M0STAT64Q-1 Instructions d'installation

INSTALLATION/

OPERATION

INSTRUCTIONS

CONTROLS

507644-02

3/2019

Supersedes 507644-01

This manual must be left with the

owner for future reference.

M0STAT64Q-1 Indoor Unit

Programmable

Controller

Dallas, Texas, USA

IMPORTANT

Frequent changes to operating mode may

cause system malfunction. Allow at least

one minute between mode changes to

allow the system to stabilize.

WARNING

Improper installation, adjustment,

alteration, service or maintenance can

cause property damage, personal injury or

loss of life.

Installation and service must be performed

by a licensed professional HVAC installer

(or equivalent) or service agency.

Shipping and Packing List

Package 1 of 1 contains;

1 – Wired Controller

1 – Lithium battery

3 – Screws (mount to wall)

2 – Screws (mount to J-box)

2 – Plastic spacers (J-box)

1 – Connection Cable A with connector for all

indoor units

1 – Connection Cable B with connector for

MMDA/B, MCFA/B, M22A and M33A/B

indoor units

1 – Connection Cable C with connector for

MWMA/B indoor units

1 – Installation and operation manual

Specications

Input voltage 5 VDC

Ambient temperature 23~110°F (-5~43°C)

Ambient humidity RH40%~RH90%

General

The M0STAT64Q is a wired programmable local

controller for mini-split indoor units with conve-

nient timed schedules for daily operation. These

instructions are intended as a general guide and

do not supersede local codes in any way. Con-

sult authorities having jurisdiction before instal-

lation.

Requirements

Be sure that power supply has been turned off

before beginning installation. This controller

should be used only as described in this man-

ual. Do not install the controller on outside walls

(where there is unconditioned space on opposite

side of wall) or in locations where direct sunlight

may be present.

Wiring Connections

Dimensions

123mm

(4.8”)

120mm

(4.7”) 18.5mm

(0.7”)

83.5mm

(3.3”)

46mm

(1.8”)

62mm

(2.4”)

Figure 1. M0STAT64Q Dimensions

WARNING

Be sure that power supply has been turned

off before beginning installation.

CAUTION

Clean controller using a clean, damp

cloth. Do not spray cleanser on or around

controller.

WARNING

Do not operate controller with wet hands.

CAUTION

Do not install controller in areas where

heavy oil, vapor, or gases containing

sulfur may exist or the controller may be

damaged.

• This manual provides the installation instruc-

tions for this controller. Refer to the included

wiring diagrams to connect the controller to

the indoor unit.

• The controller uses low voltage. Keep a mini-

mum distance of 12” (305 mm) between low

voltage control wire and high voltage power

wires.

1. Use the wiring connections illustrations (Fig-

ures 2 and 6) to connect the controller to the

indoor unit. NOTE - Connection details for

wall-mounted units differ from the other indoor

unit types.

IMPORTANT

Read all of the information in this manual be-

fore using this controller. All wiring must con-

form to local and national building and elec-

trical codes and ordinances. This is a 5 VDC

controller. Do not install on voltages higher

than 5 VDC.

IMPORTANT

The provided cables must be used. Do not

use excessive force while pulling the cable or

when making the connections.

• Ground the shielded control wiring.

• Do not use a megger to test insulation.

• The controller cable length should not exceed

164 ft (50 m).

Indoor unit main board

Receiver board

Cable A

CN40

Cable B

3 ft. 7 in. (1.1m)

4-conductor shielded wire on the controller

Figure 2. Wiring Connections MMDA/B, MCFA/B, M22A and M33A/B

Figure 3. MMDA/B Main Board

Figure 5. M22A and M33A/B Main Board

CN 40

Connect to

controller

CN 40

Connect to

controller

Figure 4. MCFA/B Main Board

CN 40

Connect to

controller

Figure 6. Wiring Connections MWMA/B

Figure 7. MWMA/B Receiver Board

CN 403

Connect to

controller

Receiver board

4-conductor shielded wire on the controller

Cable C

CN403

Cable A

NOTE - CN 403 is used to connect either the M0STAT64Q local controller OR a centralized control. It is not possible to connect

both the M0STAT64Q controller and a centralized control to this unit.

Factory-connected to

Display Board

2. Select the cable exit route from the back of the

controller. See gure 8.

Figure 8. Select Cable Route

PCB

¹Use snips to notch the

controller casing to allow

the cable to pass through.

3. Include a drip loop in the cable. See gure 9.

4. Seal the cable entrance to the controller cas-

ing and any wall penetrations to prevent water

from entering the controller. See gure 9.

Figure 9. Prevent Water from Entering Con-

troller Casing

Sealant Drip

Loop

Drip

Loop

Drip

Loop

Sealant Sealant

5. Reattach the controller to the back plate. Be

careful not to pinch or bind the wires. See g-

ure 10.

Figure 10. Reattach Controller to Back Plate

1. Remove the controller from the back plate us-

ing a at-head screwdriver. See gure 11.

2. Mount the back plate as appropriate for your

application. See gures 12 and 13.

Figure 11. Remove Back Plate

Slots

Figure 12. Attach Back Plate to Wall

Back plate

Screws (M4×20)

Figure 13. Attach Back Plate to J-box

Switch box

Back plate

Screw (M4×20)

Screws (M4×25)

3. J-box installation - Adjust the length of the two

plastic spacers as needed to allow the control-

ler to be mounted ush with the wall.

NOTE – Be sure to provide for future mainte-

nance by allowing enough slack in the wiring to

allow the controller to be removed from the wall

if needed.

Installation

4. Insert the provided battery into controller,

positive side out. The battery stores the day

and time in case of power outage. Replace

the battery when it’s charge is depleted.

5. Reattach the controller to the back plate. Be

careful not to pinch or bind the wires. See

gure 10.

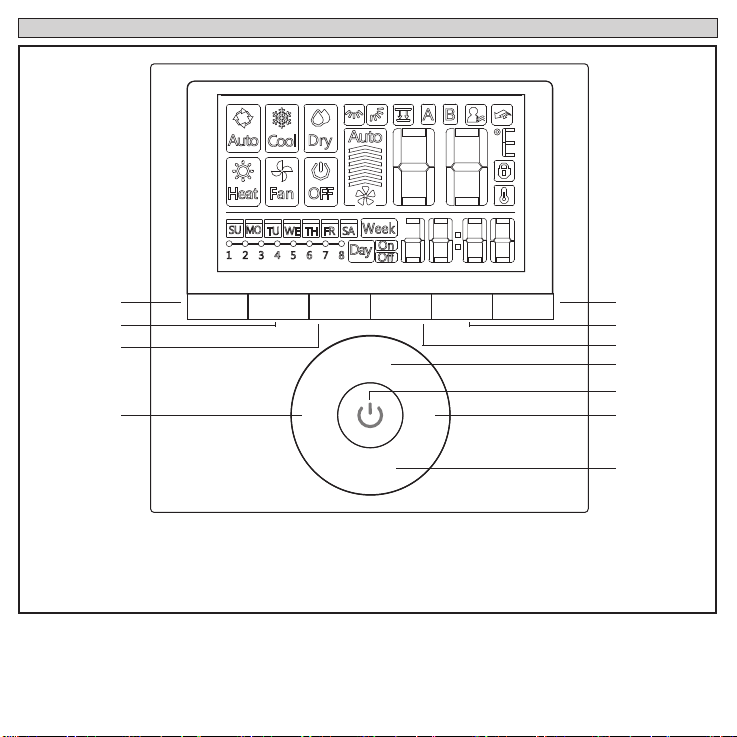

Display

Operation

Mode

Fan

Speed

Horizontal and Vertical Swing

(not available for all indoor unit models)

Faceplate

Function

On/Off Timer

Schedule

Follow me

Function Turbo/PTC

°F or °C

¹Tempera-

ture display

Lock

Indication

Room

Temperature

Clock

¹ Displays cooling set point, heating set point

or room temperature

Not

Used

Description of Buttons

Power

Decrease

Fan speed

(Lock)

Swing but-

ton (Swing

function not

available for

all indoor unit

models)

Conrm

Timer

Day Off/

Delete

Copy/

Follow me

Mode

Back/Turbo

Swing Timer

Day o/Del

Conrm Back/Turbo

Copy/

Follow me

Mode

Fan speed

(Lock)

-+Increase

Setup

Set the Current Day and Time

1. Press and hold the Timer button for 3 sec-

onds.

2. Use the + and - buttons to select the day. The

selected day will ash.

3. Press the Timer button to complete the date

setting.

4. Use the + and - buttons to set the current time.

NOTE – the controller uses a 24-hour clock.

5. Press the Timer button to complete the time

setting.

Select Fahrenheit or Celsius for display

Press and hold the Back/Turbo button and the

Copy/Follow me button simultaneously for 3 sec-

onds to toggle between displaying degrees Fahr-

enheit or degrees Celsius.

To Set Room Temperature Sensor Location

Press the Copy/Follow me button to toggle be-

tween having the room temperature sensed by

the indoor unit or by the controller. NOTE - The

Follow me indicator will display on the screen

when the room temp is being sensed by the con-

troller.

Key Pad Tone (beep)

1. Press and hold the Swing button and the Tim-

er button simultaneously for 3 seconds to turn

off the key pad tone.

2. Press and hold the Swing button and the Tim-

er button simultaneously for 3 seconds again

to turn on the key pad tone.
