LEGRAND Mosaic Manuel utilisateur

MosaicTM

784 31

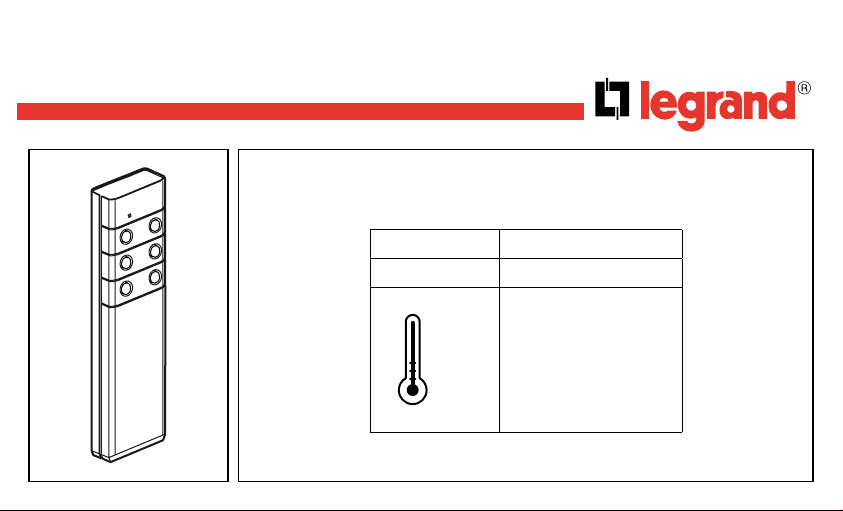

Offset infrared auxiliary control

LE01977AA_EN

Characteristics

Power supply 1 x 9 V, type 6 F 22

Range 5 m

- 5°

+ 40°

- 5° C to + 40° C

Connection

Green transmission indicator LED

Description

LEARN button

LEARN indicator

light

Control button

Key

The indicator light

is switched off

The indicator light blinking

slowly

The indicator light blinking

fast

The indicator light

ﬂashing

Learning the scenario

Step 1: start the learning on the remote control







Press

LEARN

Press

LEARN

Press

LEARN

Step 2: on the receiver

Step 3: save the scenario on the remote control

Press the remote control button that will

control the scenario

Press the button to be associated with

the remote control

The indicator lights on all products go out (remote control

and receivers).

The scenario has been saved.

Modifying a scenario

 

 





Step 1: on the remote control: open the scenario

Press

LEARN

Press

LEARN

Press

LEARN

Step 2: modify the state of a scenario receiver

Step 3: save the scenario on the remote control

Press the control button

that pilots the scenario

To delete the product from the scenario,

go to Step 3

The indicator lights of all the products go out

(remote control and receivers).

The scenario has been saved.

Press

LEARN

The indicator lights of all the scenario

products blink

Press the control button that you

want to link

036 60/71

Cancelling a scenario

Delete a scenario linked to the control button on the remote control

Cancelling scenarios

Delete the state of a scenario actor on the remote control.



Modifying a scenario

Etape 1 : cancelling a scenario p. 22

Etape 2 : learning the scenario p. 20

784 30

Press

LEARN

Press the control button

and hold for 10 secs.

The scenario is deleted

5 secs

Press

LEARN

Press LEARN

and hold for 10 secs

5 secs

Product goes back to factory

conﬁguration.

Operation

> 2 s

036 60/71 784 30

Safety instructions

This product should be installed in line with installation rules, preferably by a qualiﬁed electrician. Incorrect installation and

use can lead to risk of electric shock or ﬁre.

Before carrying out the installation, read the instructions and take account of the product’s speciﬁc mounting location.

Do not open up, dismantle, alter or modify the device except where speciﬁcally required to do so by the instructions. All Le-

grand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised

opening or repair completely cancels all liabilities and the rights to replacement and guarantees.

Use only Legrand brand accessories.
