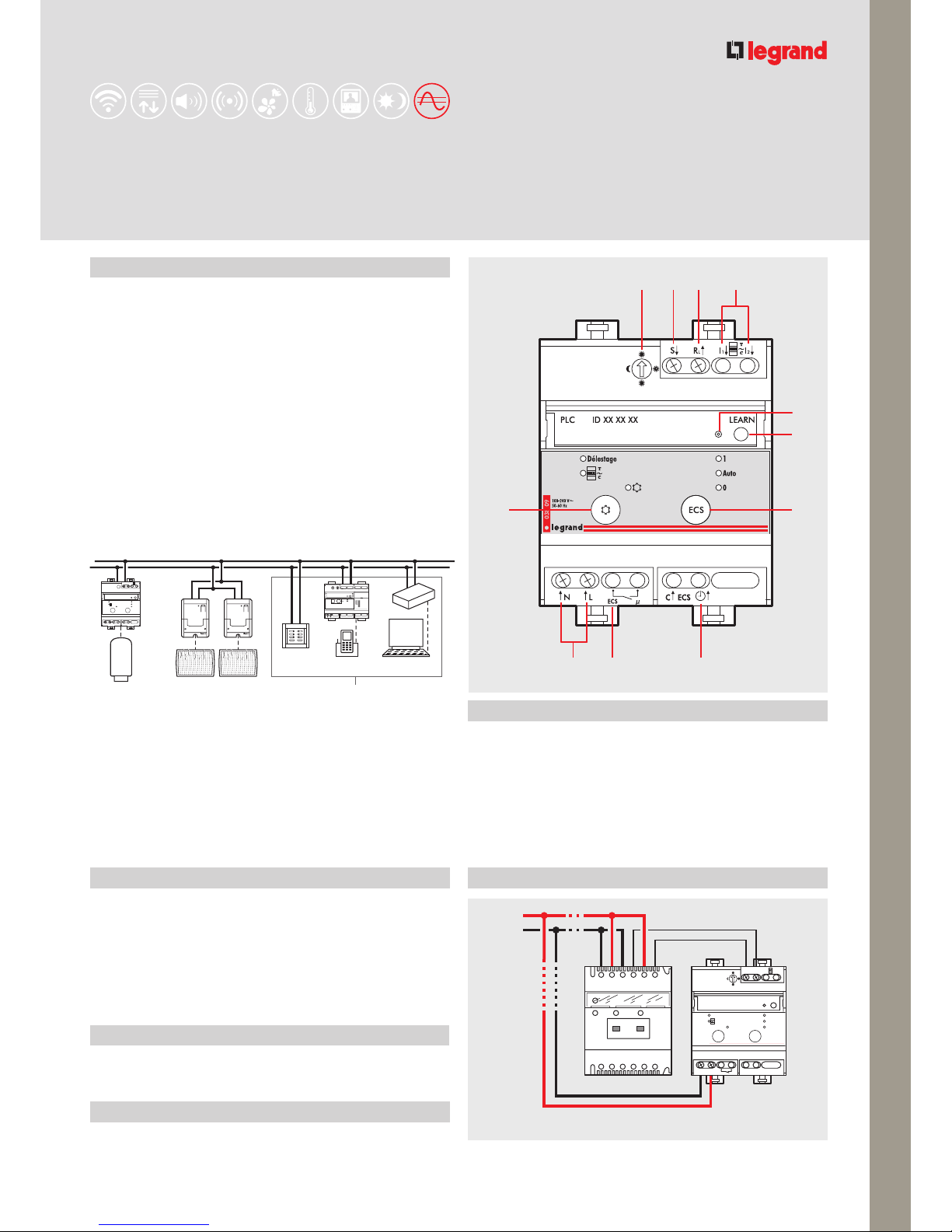

LEGRAND 038 09 Guide de démarrage rapide

CÉLIANE TECHNICAL GUIDE

PLC SYSTEM

LG00173-a-UK

038 09

Description

This load shedding device constantly monitors the total home consumption and

automatically sheds non priority circuits loads (convectors, SHW), should the public

Electricity Provider contract limits be exceeded.

By managing consumptions, it enables the user to subscribe to a lower lever

Electricity Provider contract, whilst avoiding sudden trips of the Electricity Provider

disconnector.

It performs:

- control of up to 32 electric heating devices, grouped into zones. These control wire

convectors are controlled by cable output receivers, 845 30,

- the operation of the SHW (Sanitary Hot Water) installation.

The no-freezing pushbutton is used to avoid any freezing occurring across the whole

installation. The overriding of the automatic mode is possible using:

- the selector switch, item 845 29,

- the Axiophone (036 19), for switching from auto to no-freezing mode, and vice versa,

- the Omizzy™ habitat internet server,

- the off-set clock, item 037 44, for the SHW circuit.

SHW Convectors

Selector switch Axiophone Omizzy TM

Overriding

Technical data

Voltage: 230 Vac

Frequency: 50 – 60 Hz

Self-extinguishing: 30 s @ 650 °C

Storage and operating temperatures: (-5) – (+45) °C

Standards, Certification, Marks

Standard reference: EN 50065 – IEC 60669-2-1

Dimensional data

4 DIN modules

1 2 3 4

910

Legend

Selection of the comfort level1.

Axiophone clamps: Remote control2.

input

Axiophone clamps: Control output3.

Reception of Electricity Provider data4.

LEARN LED5.

LEARN key6.

SHW manual control7.

Clock connection8.

230 V 1 A SHW contact9.

Power Supply10.

No-freezing control11.

Wiring diagram

Load shedding

Control by Axiophone 036 19.

PRODUCT TECHNICAL SHEETS

LG00173-a-UK

Wiring diagram

038 09

N L

S type subscription

disconnector

One-phase

multi tariff

electricity

meter

30 mA earth

leakage device

060 20

060 12

ECS

The connection to the

Electricity Provider supply

network is correct when the

remote info LED is on.

Cable output

receiver

845 30

Circuit protection

060 20

Circuit protection

060 20

Heating

control

845 29

Heating

control

845 29

Zone 1 Zone 2

Note:

The heating zones are defined by learning procedure and not by wiring

(see user guide).

Warning:

The device installation and the setting of the parameters must be

completed by a qualified installer.

Note:

The connection of

heating controls may be

performed at any point

of the installation.
