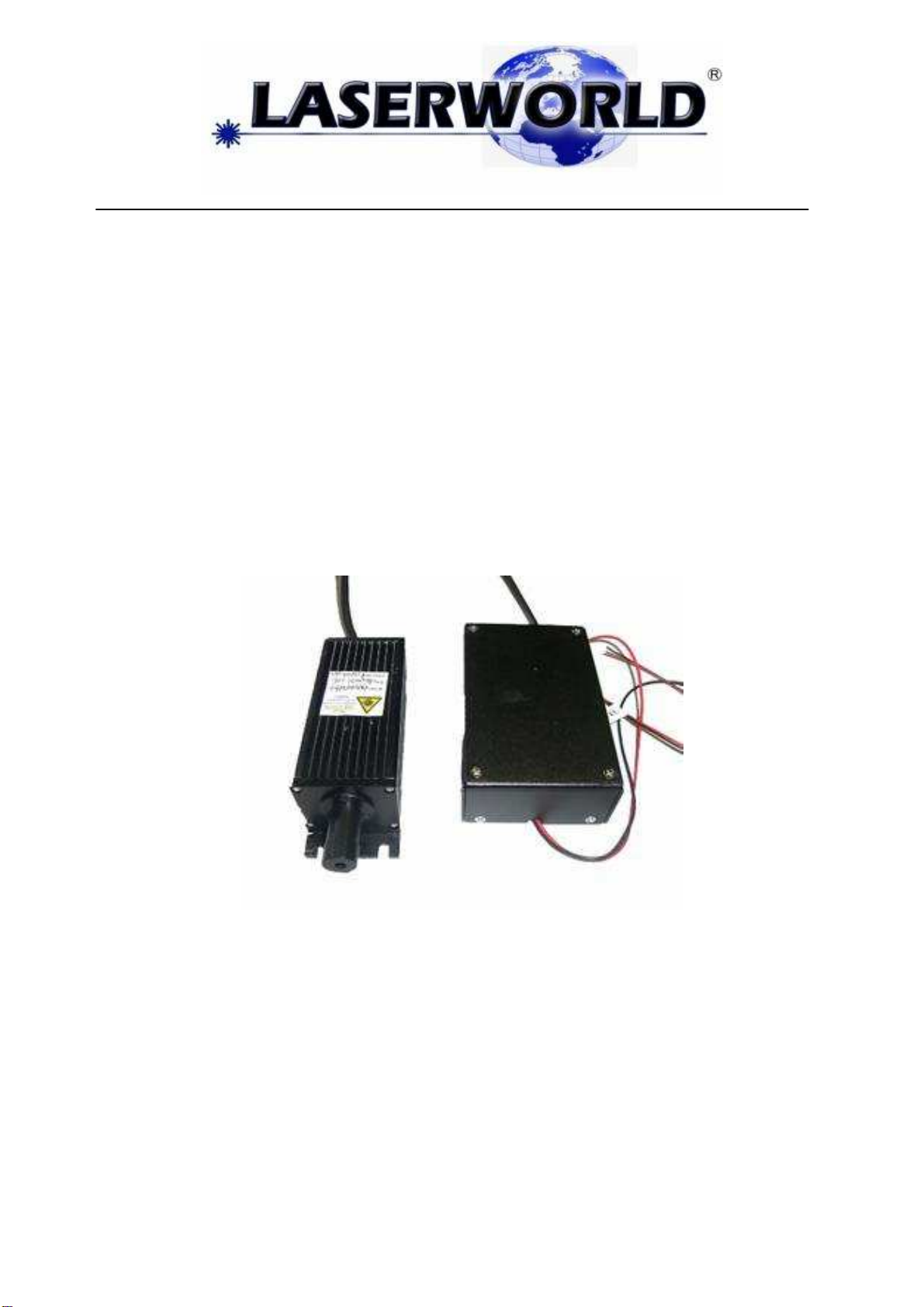

Laserworld GREEN-200A Manuel utilisateur

GREEN-200A

USER MANUAL

Please read this manual carefully before you initially start-up!

USER MANUAL: Laserworld GREEN-200A

Date: 01/2008

Page

DAN ER LASER RADIATION!

Avo d d rect eye exposure!

Laser rad at on can cause eye damage and/or sk n damage

All protect ve measures for a safe operat on of th s laser must be appl ed.

1. SAFETY INSTRUCTIONS

- If the dev ce has been exposed to drast c temperature fluctuat on, do not

sw tch t on mmed ately. The ar s ng condensat on water m ght damage your

dev ce. Leave the dev ce sw tched off unt l t has reached room temperature.

- The laser must only be used for shows. The operat on s only allowed f t s

controlled by a sk lled and well-tra ned operator.

- Never leave th s dev ce runn ng unattended and keep t away from ch ldren

and unauthor zed persons.

- Keep away from heaters and other heat ng sources. In order to safeguard

suff c ent vent lat on, leave 50 cm of free space around the dev ce.

- Never d rect the laser beam to people or an mals.

- CAUTION LASER DIODE: Never unscrew the hous ng!

There are no serv ceable parts ns de the dev ce. Ma ntenance and serv ce

operat ons shall only be carr ed out by author zed dealers.

- Always d sconnect from the ma ns when the dev ce s not n use or before

clean ng t.

- HEALTH HAZARD! Never look directly into the light source, as

sensitive persons may suffer an epileptic shock!

USER MANUAL: Laserworld GREEN-200A

Date: 01/2008

Page

reen diode pumped solid state lasers:

REEN-200A

Low cost solid state 532 green laser - used in collimation, laser medical

treatment, scientific experimentation, optics instrument, laser display, and

lighting etc.

Technical Specifications:

•

low cost laser diode with analogue modulated PSU

•

GREEN: guaranteed: 175mW/532nm; typical: 200mW/532nm

•

Wavelength (nm): 532

•

Operating mode: CW

•

Warm-up time (minutes): <1min

•

Power stability: <10%

•

Beam divergence, full angle (mrad): <1.5

•

Beam diameter at the aperture (mm): 1,5

•

Operating temperature: 10-35°C

•

Expected lifetime (hours): 5000

•

Net weight of laser head (kg): 0.2

•

Dimensions of laser head (mm): 46mm * 46mm * 100mm

•

Power Supply: 220V 50/60 Hz

•

TTL modulation: 5V

USER MANUAL: Laserworld GREEN-200A

Date: 01/2008

Page

EU- Declaration of Conformity

We hereby conf rm that the follow ng dev ce

Laserworld REEN-200A

compl es w th the essent al safety requ rements, la d down n the regulat ons of the

comm ttee to ass m late the prov s ons of law of all part c pat ng EU states on the

electromagnet c compat b l ty (98/336/EWG).

The dev ce has been class f ed cons der ng the follow ng EU-norms on

electromagnet c compat b l ty:

DIN EN 55103-1: 1996

DIN EN 55103-2: 1996

DIN EN 61000-3-2:2000 + A2: 2005

DIN EN 61000-3-3:1995 + A1: 2001

Assessment of compl ance of the product w th the requ rements relat ng to the Low Voltage

D rect ve (LVD) was based on the follow ng standards:

DIN EN 60065 : 2002

Th s declarat on s executed on behalf of the GREEN-200A Importer:

Laserworld (Switzerland) A

Oberstrasse 1

8274 Tägerw len

SWITZERLAND

Author zed person:

Superv sory board Ms Rhea Gössel

place of bus ness: 8274 Tägerw len / SWITZERLAND

company number: CH-440.3.020.548-6

Commerc al Reg stry Kanton Thurgau

www.laserworld.com

[email protected]

representat ve accord ng to EMVG:

Cleantech Europe GmbH

Manag ng D rector: Thomas Schulze

Fürkhofstr. 5

81927 München / DE
