Laserworld FX Series Manuel utilisateur

Manual / Bedienungsanleitung / Mode d‘emploi

FX Series

Please spend a few minutes to read this manual fully

before operating this laser!

Bitte lesen Sie diese Bedienungsanleitung sorgfältig

vor Inbetriebnahme dieses Showlasersystems!

Avant d’utiliser cet appareil pour la première fois nous vous recommandons

de lire cette notice d’utilisation!

English

Deutsch

Français

10/2021

Manual / Anleitung / Manuel: FX Series

page 2 / 4

Rechtlicher Hinweis:

Die Firma Laserworld (Switzerland) AG behält sich das Recht vor, Änderungen an ih-

ren Produkten vorzunehmen, die der technischen Weiterentwicklung dienen. Die-

se Änderungen werden nicht notwendigerweise in jedem Einzelfall dokumentiert.

Diese Betriebsanleitung und die darin enthaltenen Informationen wurden mit der

gebotenen Sorgfalt zusammengestellt. Die Firma Laserworld (Switzerland) AG über-

nimmt jedoch keine Gewähr für Druckfehler, andere Fehler oder daraus entstehende

Schäden. Die in dieser Bedienungsanleitung genannten Marken und Produktnamen

sind Warenzeichen oder eingetragene Warenzeichen der jeweiligen Eigentümer.

Achtung: Bei diesem Gerät handelt es sich um ein Showlasergerät für den gewerbli-

chen Einsatz. Dieses Gerät ist kein Laserpointer, nicht für Zeigezwecke geeignet und

darf auch nicht dafür verwendet werden.

Legal notice:

Thank you for purchasing this Laserworld product. Due to continual product deve-

lopments and technical improvements, Laserworld (Switzerland) AG reserves the

right to make modications to its products. This manual and its content have been

made with due care but Laserworld (Switzerland) AG cannot however, take any res-

ponsibility for any errors, omissions or any resulting damages forthwith. The brands

and product names mentioned in this manual are trade marks or registered trade

marks of their respective owners.

Attention: This device is a show laser device for commercial use. This device is not

a laser pointer, not suitable for pointing purposes and must not be used as a laser

pointer.

Information juridique :

L’entreprise Laserworld (Switzerland) AG se réserve le droit d’eectuer des modica-

tions concernant leurs produits et ainsi de répondre au développement technique.

Ces modications ne seront pas nécessairement annoncées en tout cas spécique.

Ce mode d’emploi et les informations contenues dedans ont été établis avec le soin

minutieux qui s’impose dans ce cas.

Laserworld (Switzerland) AG ne pourra pas être tenue responsable pour d’éventuelles

erreurs d’impression ou dommages en résultants.

En cas de doutes, veuillez toujours contacter Laserworld (Switzerland) AG . Les noms

de marques et de produits utilisés dans ce mode d’emploi sont des marques de fab-

rique ou des marques déposées.

L’utilisation est réservée à un usage professionnel selon décret n°2007-665 du

2 mai 2007 relatif à la sécurité des appareils à laser sortant!

Article 4 bis : « Les usages spéciques autorisés pour les appareils à laser sortant

d’une classe supérieure à 2 sont les usages professionnels suivants : (…)

9° Spectacle et achage : Toutes les applications de trajectoire, de visualisation, de

projection ou de reproduction d’images en deux ou trois dimensions. »

Attention : Cet appareil est un projecteur laser destiné à un usage commercial. Cet

appareil n‘est pas un pointeur laser, il ne convient pas pour le pointage et ne doit pas

être utilisé à cette n.

Manual / Anleitung / Manuel: FX Series

page 3 / 4

Front Panel | Frontplatte | Panneau frontal

A. Laser aperture warning label |

Warnhinweis Laseraustritt | Ouver-

ture de sortie laser

B. Laser aperture | Laseraustritts-

fenster | Ouverture laser

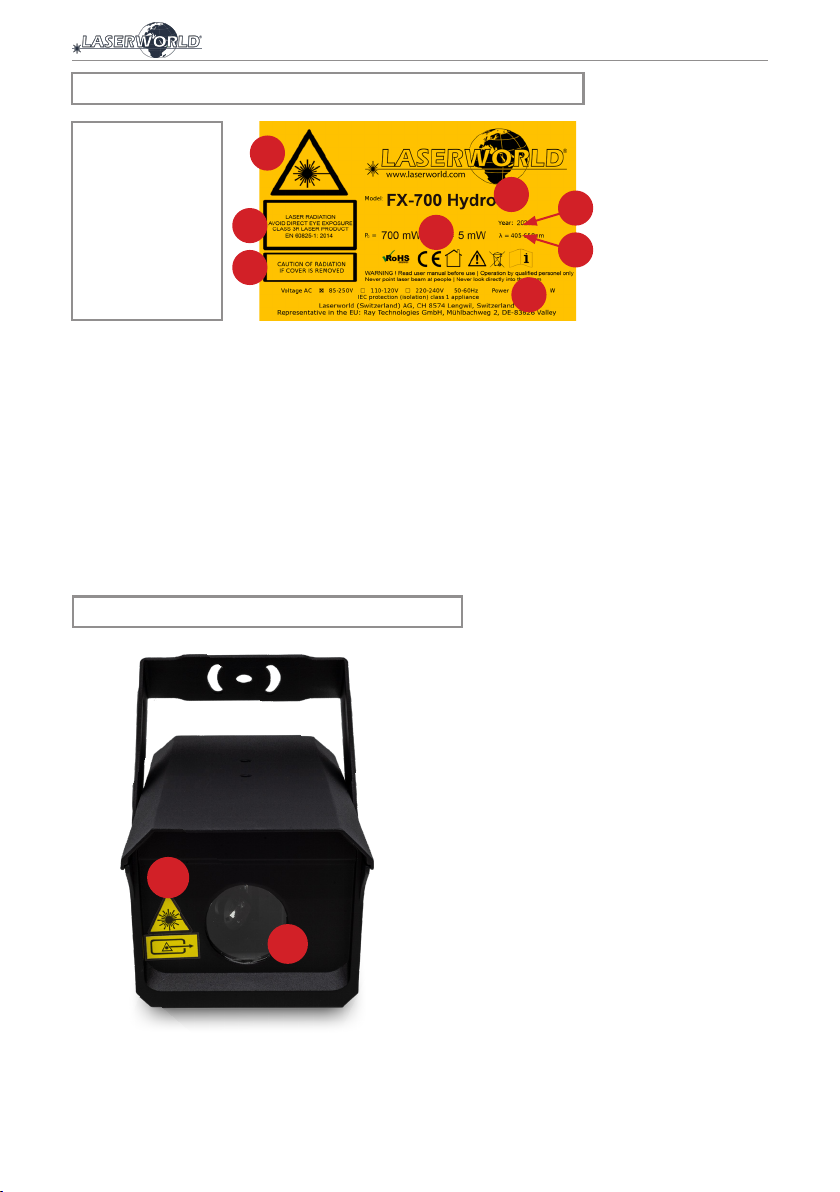

Security Label | Sicherheitsetikett | Étiquette de sécurité

1. Laser radiation! Avoid exposure to beam | Laserstrahlung! Nicht dem Strahl ausset-

zen. | Emission Laser! Evitez toute exposition directe ou indirecte des yeux et peau.

2. Laser class 3R | Laserklasse 3R | Classe Laser 3R

3. Caution of radiation if cover is removed | Laserstrahlung bei geönetem Gehäuse |

Attention : radiation laser si le couvercle est retiré

4. Model type | Produktname | Nom du produit

5. Output power | Ausgangsleistung | Puissance de sortie

6. Production year | Produktionsjahr | Année de production

7. Wavelength | Wellenlänge | Longueurs d‘ondes

8. Power supply & consumption | Stromversorgung und -verbrauch | Alimentation et

consommation électrique

Please read manual

before operation

----------------

Vor Inbetriebnahme

Bedienungsanleitung

lesen!

----------------

Merci de lire le mode

d’emploi avant l‘usage

de l‘appareil laser!

Manual / Anleitung / Manuel: FX Series

page 4 / 4

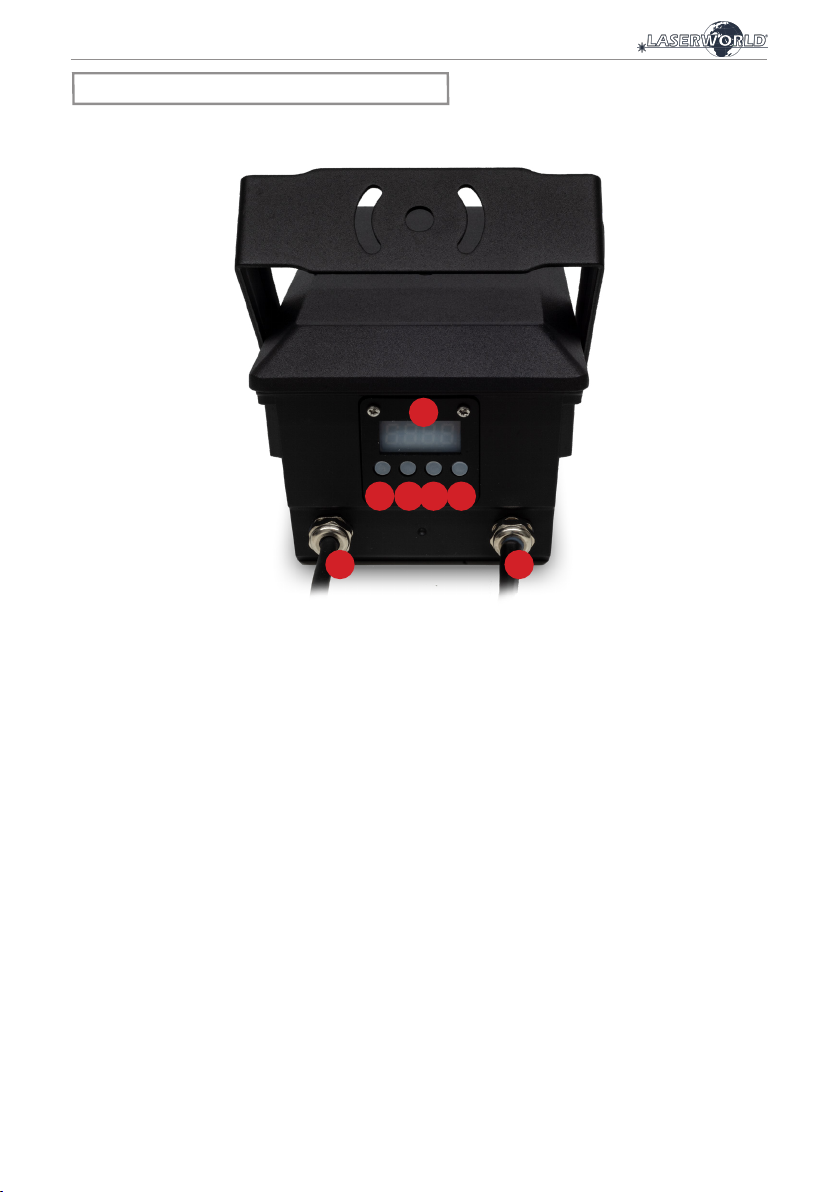

Back Panel | Rückwand | Panneau arrière

2 4

1. LED display | LED Display | Achage LED

2. Mode

3. Up

4. Down

5. Enter

6. DMX cable | DMX-Kabel | Câble DMX

7. Power cable | Stromkabel | Câble d‘alimentation secteur

3 5

Manual: FX Series

page 5 / 26

English

Content:

1. Product and package contents 6

2. Preliminary warning notices 6

3. Initial operations, safety instructions 6

4. Working on the device 7

5. Service notes 7

6. General Operation 8

Final statement 11

Technical data 26

Manual: FX Series

page 6 / 26 English

1. Product and package contents

Please check if all listed parts are included and undamaged. Included in delivery:

Laser system with power cable, mount, DMX cable, manual

3. Initial operations, safety instructions

1. Make sure to use correct voltage; see in-

formation on device & in this manual.

2. Make sure that the device is not connec-

ted to mains during installation.

3. Installation has to be done by technical

experienced and qualied persons ac-

cording to safety regulations of the res-

pective country.

4. Always ensure that maximum permis-

sible exposure (MPE) is not exceeded

in areas accessible to the public or mem-

bers of sta.

5. In some countries an additional ins-

pection by technical control institutes

could be necessary.

6. Connect an easily accessible circuit

breaker to the projector.

7. The power supply should be easily acces-

sible.

8. When installing the laser mount it with

a minimum distance of 15 cm from walls

and objects.

9. For safe setup e.g. on walls or ceilings

please use a safety cord. The safety cord

should be able to withstand tenfold the

weight of the device. Please follow the

accident prevention regulations of pro-

fessional associations and/or comparable

regulations for accident prevention.

10. If the device has been exposed to great

temperature changes, do not switch it

on immediately. Condensation (or any

moisture/water formed) may damage

this device.

11. Never use dimmer, RC or other electroni-

cally switched sockets. Whenever possib-

le, do not use the laser projector together

with large appliances (especially fog ma-

chines) on the same mains!

12. Ensure sucient ventilation and do not

place the device on any warm or heat ra-

diating surface. Especially the ventilati-

on openings must not be covered!

2. Preliminary warning notices

1. Please use this device only according to these operating instructions.

2. Do not use the device if there are any visible damages on housing, connector panels,

power supplies or power cords.

3. Never look directly into the light source of a laser projector. Danger of damage to the

eyes or even blindness in extreme circumstances!

4. This device must not be permanently connected to mains. Disconnect it from mains or use

the power button to switch if o if not in use.

Any warranty claims are void if the warranty label is removed or tampered

with in any way.

Manual: FX Series

page 7 / 26

English

13. Ensure that device does not get over-

heated. Make sure that the device is not

exposed to spotlights (especially moving

heads). Heat of spotlights could overheat

laser in a little while and leads to a degra-

dation of performance.

14. This unit is intended for indoor as well as

outdoor use.

5. Service notes

• Moisture and heat can reduce lifetime of

the laser system dramatically and expires

any warranty claim.

• Quick on/o switching of this device will

reduce durability of the laser diode dra-

matically.

• Avoid sharp knocks and shocks to this

device an endsure sucient protection

during transportation. Look after your

Laserworld product.

• To increase durability of your laser,

protect device against overheating:

-Always ensure sucient ventilation.

-Do not face spotlights (especially mo-

ving heads) to the device.

-Check temperature after approx. 30

minutes with each new installation.

If necessary install the projector at a

place with dierent temperatures.

-Switch o device when it is not nee-

ded. Diodes are switched on and can

wear out even if there is no visible la-

ser output.

• Please ensure the fans and heatsinks are

clear from dust and debris otherwise the

risk of overheating may occur. If the unit

or air inlets appear to be blocked, please

contact a qualied service engineer to

maintain and service the product.

• Removal of the warranty label as well

as damages to the device caused by

improper handling, neglect of the sa-

fety instructions and service notes will

void the warranty.

4. Working on the device

1. This product has no user serviceable parts inside and should

only be maintained and serviced by a qualied engineer.

2. Be sure that the mains plug is not connected to the power

supply while installing the device.

3. Take o all reecting things like rings, watches, etc.

before starting to work with or at the projector.

4. Only use non-reecting tools to work on device.

5. Wear protective clothing (like goggles, gloves etc.) according to laser power and wave-

length of the laser.

Manual: FX Series

page 8 / 26 English

6. General Operation

1. Power

Connect device power plug to the mains. Make sure that your device is provided with the

correct voltage. Wrong voltage could lead to irreparable damages. Please nd the correct

voltage data in the synoptical table at the end of this manual. Make sure that the device

is not directed to people or inammable objects during installation. To start the device

just switch it on.

2. Modes / Functions

The dierent operation modes can be selected via the four buttons next to the„Set-

tings“ display.

„Mode“ button allows navigation through menu. Press once to jump to next menu

point.

„Up“ /„Down“ allows for changing values.

„Exit“ conrms a selection.

2.1. MENU DESCRIPTION

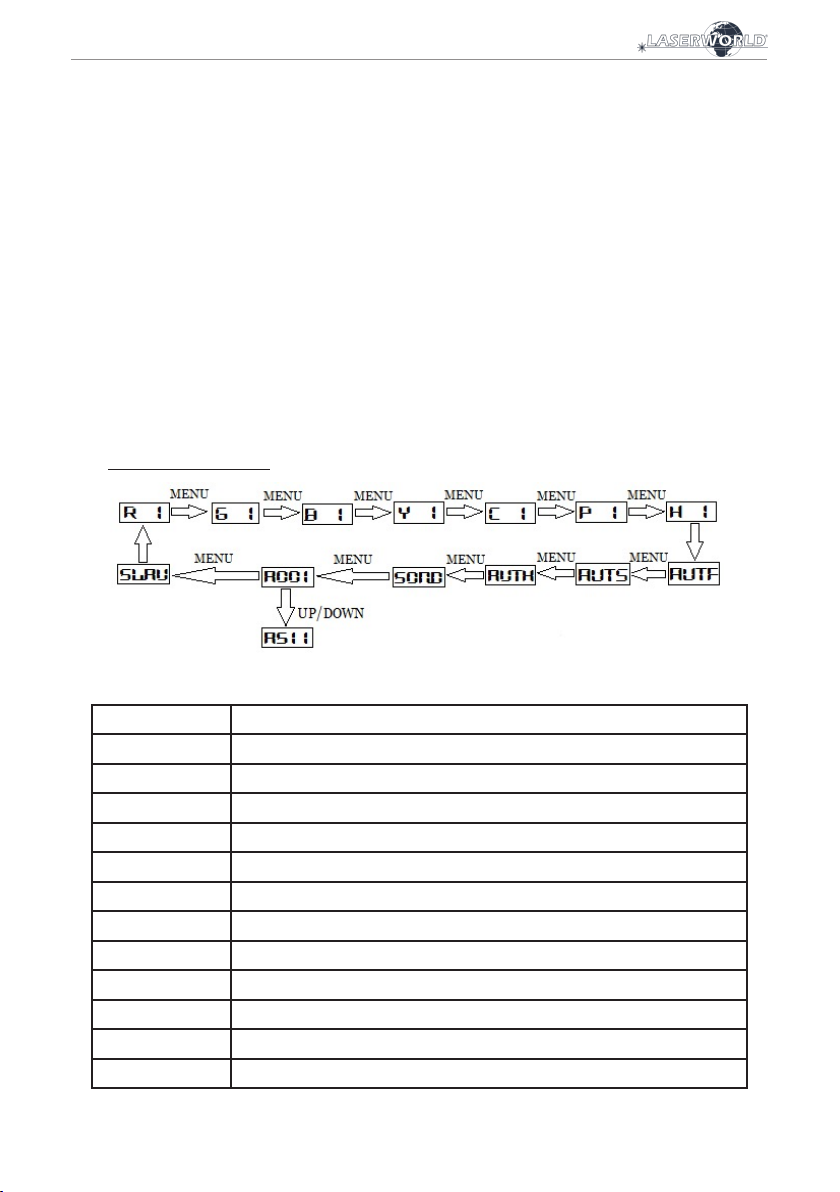

LED Display Description

R 1 Single Red, the number shows the current rotation speed

G 1 Single Green, the number shows the current rotation speed

B 1 Single Blue, the number shows the current rotation speed

Y 1 Single Yellow, the number shows the current rotation speed

C 1 Single Cyan, the number shows the current rotation speed

P 1 Single Purple, the number shows the current rotation speed

H 1 Single White, the number shows the current rotation speed

AUTF Auto mode with fast run

AUTS Auto mode with slow run

AUTH Auto mode with slow run for white color laser

A001 DMX mode, DXM address range from 1 to 511

SLAV Slave mode

Manual: FX Series

page 9 / 26

English

2.2. AUTO

Auto operation allows to random playback the internal sequences. They are played back

according to the internal system settings.

Select„AUTF“ for fast run by navigating with the„Up“ /„Down“ buttons and conrm with

„Enter“.

Select„AUTS“ for slow run by navigating with the„Up“ /„Down“ buttons and conrm with

„Enter“.

Select„AUTH“ for slow run for white color by navigating with the„Up“ /„Down“ buttons and

conrm with„Enter“.

2.3. DMX 512

The DMX mode requires a DMX controller or a Master laser (see 2.4. Master-Slave operation)

to be connected to the laser.

To switch to DMX mode, select„A001“ by navigating with the„Up“ /„Down“ buttons. Use the

„Up“ /„Down“ buttons to set the desired DMX address and conrm with„Enter“.

DMX Chart

The laser uses 7 DMX channels, so make sure that the next device uses an address that doesn’t

overlap with this range.

Channel Value Function

1Operation mode 0 - 49 Laser o󰀨

50 - 99 AUTO Fast Mode, seven-color laser e󰀨ect

100 - 149 AUTO Slow Mode, seven-color laser e󰀨ect

150 - 199 AUTO White Mode, white color laser e󰀨ect

200 - 255 DMX Manual Mode, CH2~CH7 valid

2Red Laser Dimmer 0 - 255 Dimmer laser output power from 0% to 100%

3Green Laser Dimmer 0 - 255 Dimmer laser output power from 0% to 100%

4Blue Laser Dimmer 0 - 255 Dimmer laser output power from 0% to 100%

5Strobe 0 - 4 No strobe

5 - 255 Strobe from fast to slow

6Rotation Speed 0 - 255 Speed from fast to slow, 255 is stop

7Rotation Direction 0 - 99 Clockwise rotation

100 - 199 No rotarion

200 - 255 Counter clockwise rotation

Manual: FX Series

page 10 / 26 English

2.4. MASTER-SLAVE

This laser is Master-Slave capable. This means that the Master laser system can hand on a

control signal to one or more Slave lasers, so all do the same.

Master-Slave only works with lasers of the same product series of the same product genera-

tion.

A: Link lasers with DMX cable

To use Master-Slave operation, link the Master with the Slave lasers with DMX cables. Make

sure to use the„DMX out“ port on the Master and the„DMX in“ on the Slave lasers. If several

Slave lasers are used, link the rst one to the Master laser and daisy-chain the control signal

from the rst Slave laser to the second etc..

B: Establish link to Slave lasers

The Slave units must be set to SLAVE („SLAV“) mode.

C: Activate Master Laser

The Master laser needs to be set as control source. To do that simply select„A001“ by naviga-

ting with the„Up“ /„Down“ buttons. Conrm with„Enter“.

D: Set Auto mode on Master laser

To use the Master-Slave operation: set the Master to Auto mode (2.2.).

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Laserworld Équipement d'éclairage

Laserworld

Laserworld Ecoline Series Manuel utilisateur

Laserworld

Laserworld GREEN-600 Manuel utilisateur

Laserworld

Laserworld CS-4000RGB FX MK2 Manuel utilisateur

Laserworld

Laserworld GREEN-150A Manuel utilisateur

Laserworld

Laserworld GREEN-8000 Manuel utilisateur

Laserworld

Laserworld Pro-300B-473 Manuel utilisateur

Laserworld

Laserworld Club Series Manuel utilisateur

Laserworld

Laserworld Ecoline Series Manuel utilisateur

Laserworld

Laserworld GREEN-300E Manuel utilisateur

Laserworld

Laserworld PRO-7000R/640 Manuel utilisateur

Laserworld

Laserworld GREEN-5000C Manuel utilisateur

Laserworld

Laserworld Ecoline Series Manuel utilisateur

Laserworld

Laserworld Ecoline Series Manuel utilisateur

Laserworld

Laserworld GREEN-100 Manuel utilisateur

Laserworld

Laserworld Club Series Manuel utilisateur

Laserworld

Laserworld LED-18MH Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Laserworld

Laserworld RTI-Piko Series Manuel utilisateur

Laserworld

Laserworld Garden Series Manuel utilisateur

Laserworld

Laserworld CS-2000RGB Manuel utilisateur

Laserworld

Laserworld PL-1200G MH Manuel utilisateur

Laserworld

Laserworld Evolution ES-600B Manuel utilisateur

Laserworld

Laserworld Proline PRO-800RGB Manuel utilisateur

Laserworld

Laserworld Ecoline EL-200RGB Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur

Silvair

Silvair MESH-CEDRP Manuel utilisateur
