Laserworld HIGH PRO-OEM Manuel utilisateur

HIGH PRO-OEM

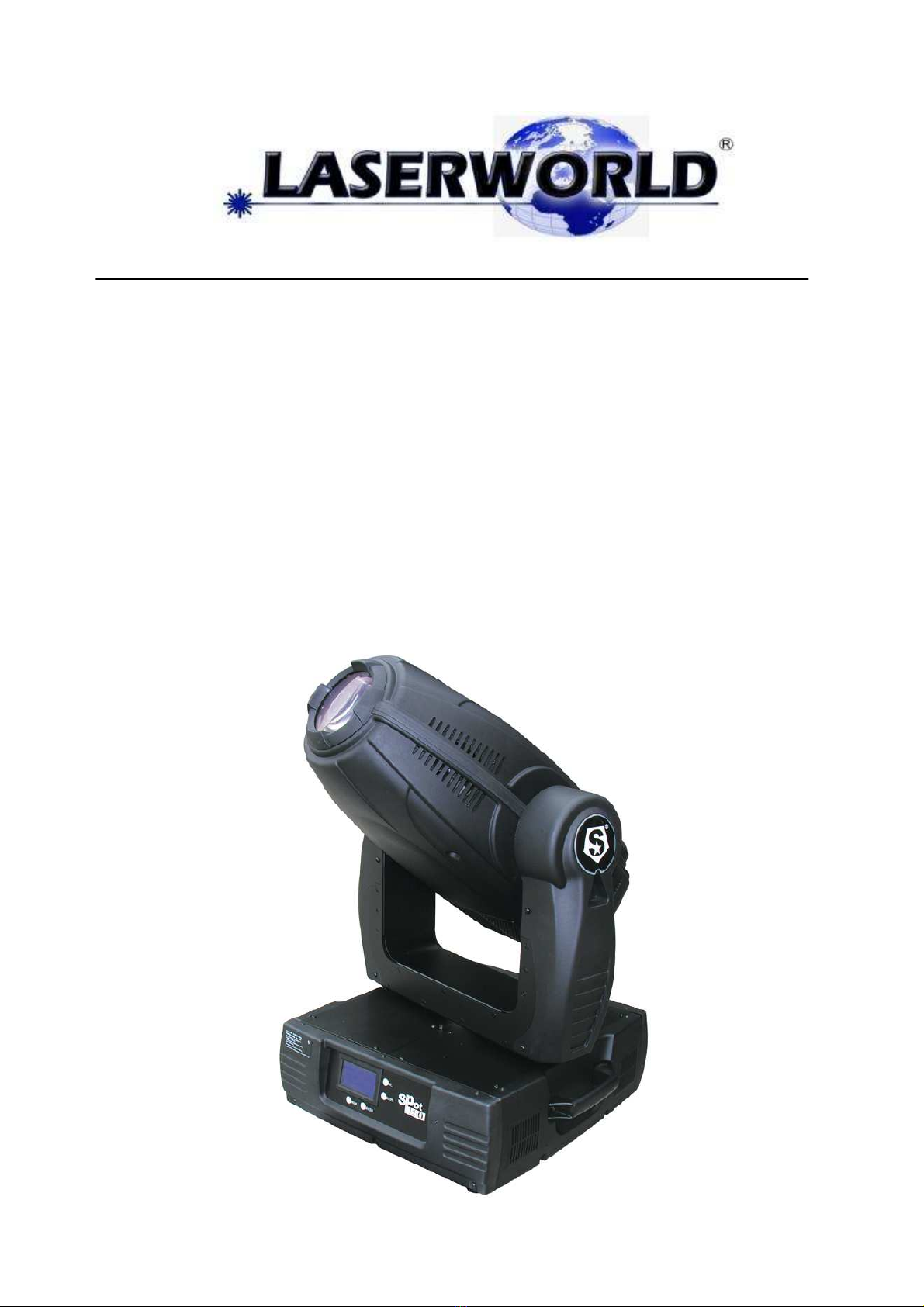

OEM housing without laser sources

USER MANUAL

USER MANUAL: Laserworld Mo ing Head HIGH PRO-OEM

Date: 09/2010

Page

Please read this manual carefully before use!

Table of contents

Page

1. SAFETY INSTRUCTIONS 3

2. OPERATING THE LASER 4

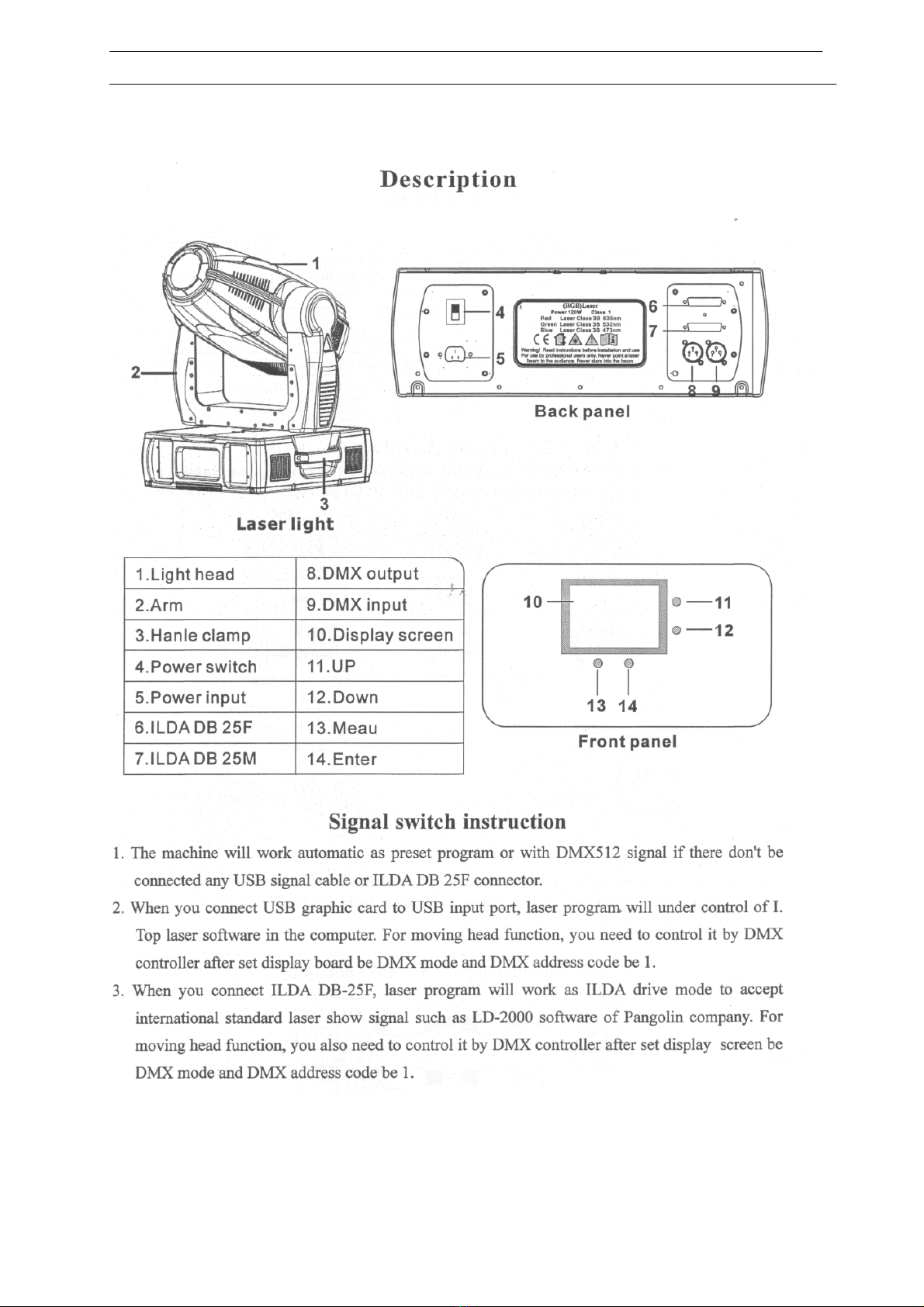

3. DESCRIPTION 5

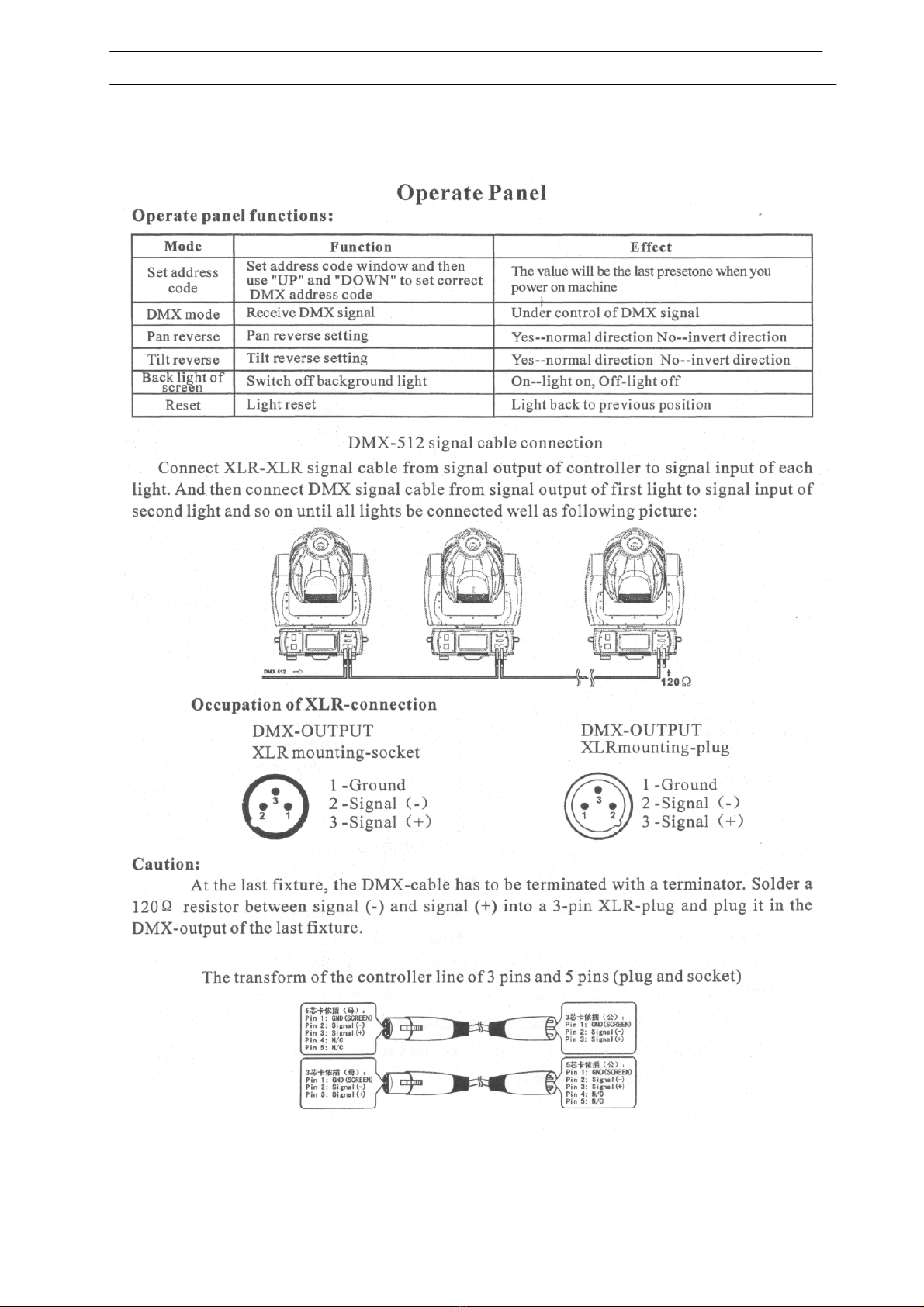

4. OPERATE PANEL 6

5. DMX512 OPERATION 7

6. MAINTENANCE 8

7. TECHNICAL SPECIFICATIONS 8

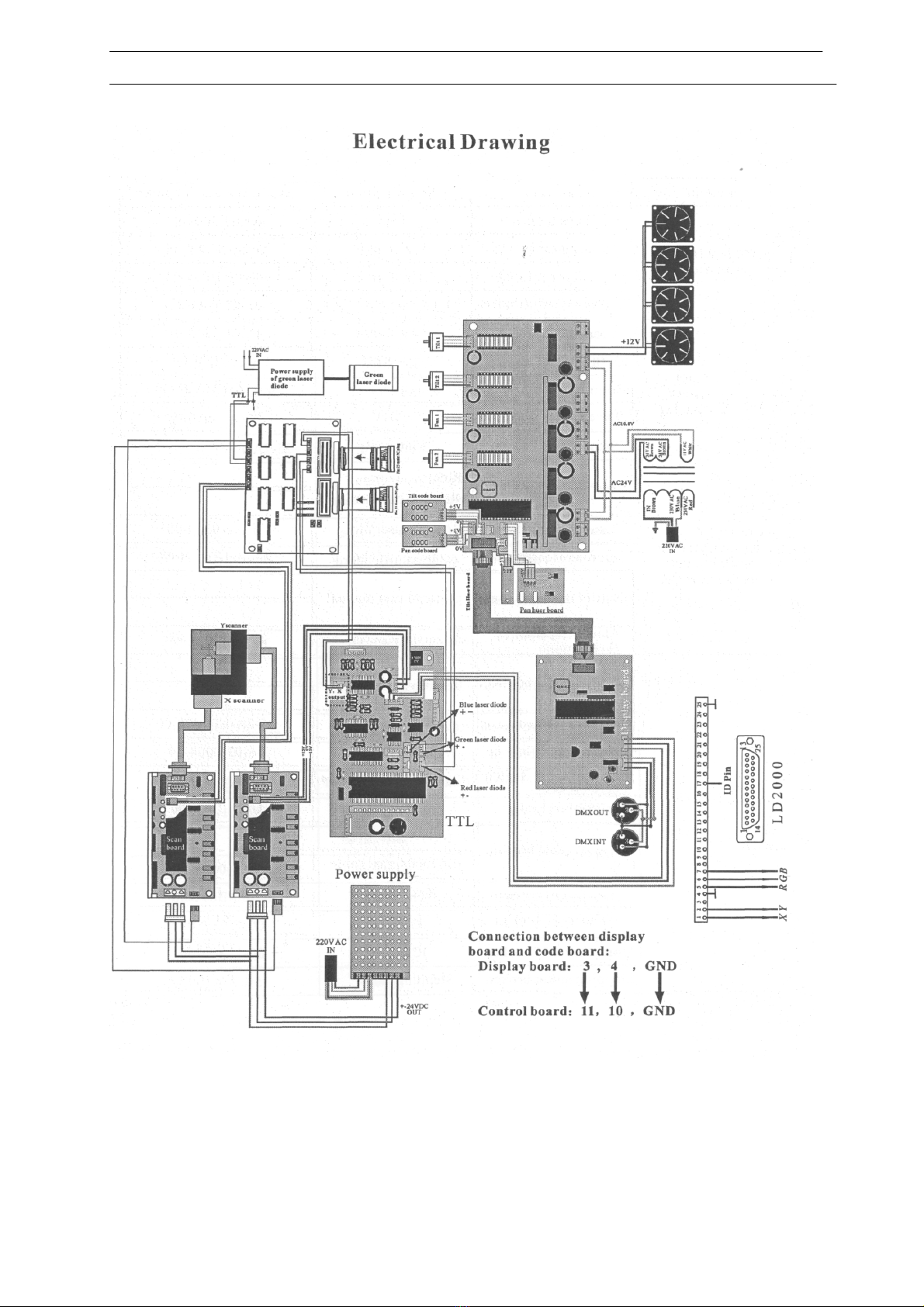

8. ELECTRICAL DRAWING 9

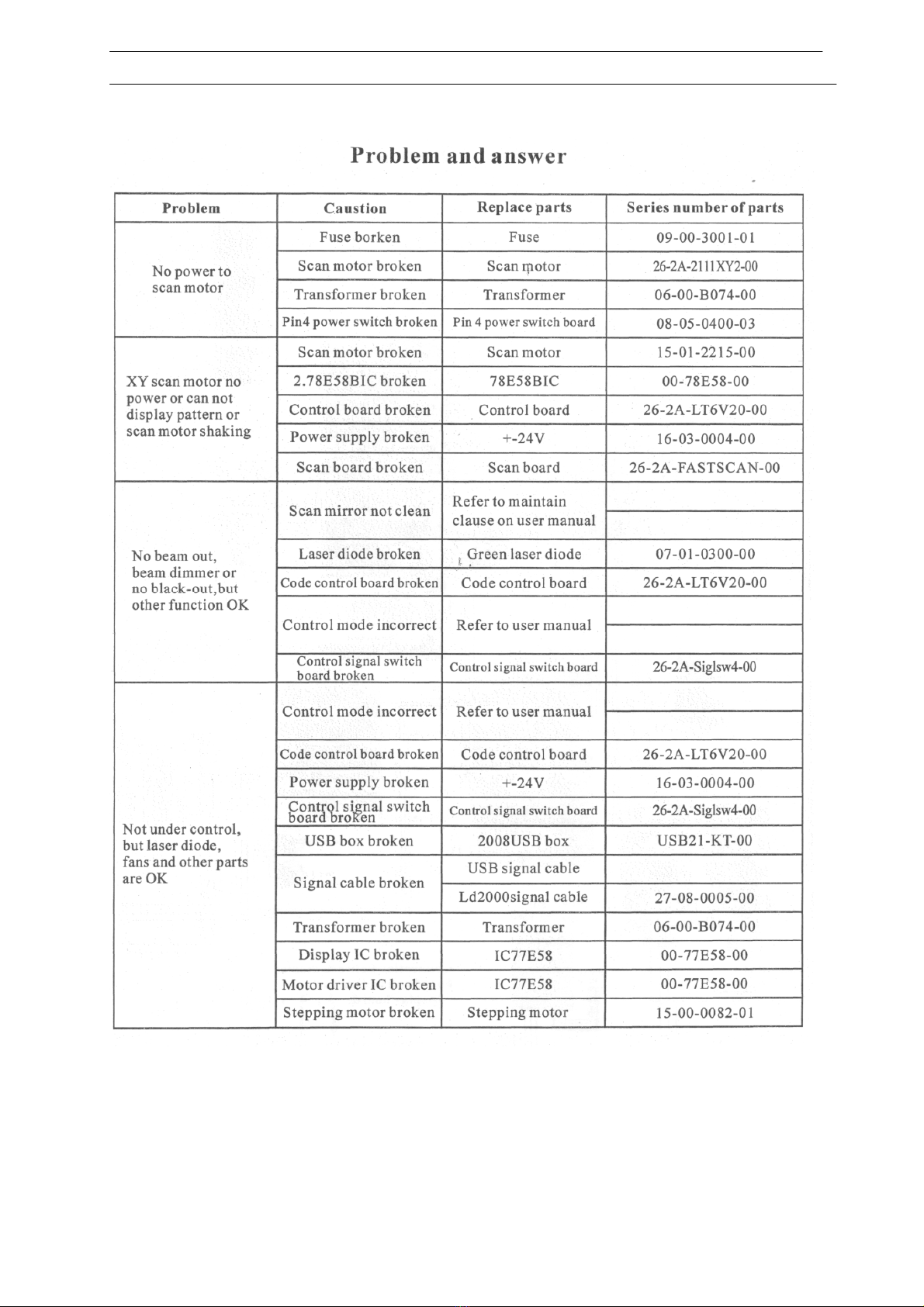

9. PROBLEM AND ANSWER 10

10. APPENDIX ILDA PINOUTS 11

11 EU DECLARATION OF CONFORMITY 12

hecking Parts

Please check if the following parts are included:

1 x HIGH PRO-OEM Laser

1 x Power cable

1 x User manual

USER MANUAL: Laserworld Mo ing Head HIGH PRO-OEM

Date: 09/2010

Page

SAFETY INSTRU TIONS

If the de ice has been exposed to great temperature changes, do not switch it on

immediately. Condensation water may damage your de ice. Lea e the de ice

switched off until it has reached room temperature.

The laser must only be used for shows. Any operation has to be attended and

super ised by a skilled and well-trained operator.

Ne er lea e this de ice running unattended and keep it away from children and

unauthorized persons.

Keep away from heaters and other heat sources. In order to safeguard sufficient

entilation, lea e 50 cm of free space around the de ice.

Ne er direct the laser beam to people or animals.

CAUTION LASER DIODE: If you open the de ice for cleaning, always disconnect from

mains!

-HEALTH HAZARD! Never look directly into the light source, as

sensitive persons may suffer an epileptic shock!

These lasers are considered a definite eye hazard,

particularly at the higher power le els, which WILL cause

eye damage. So these laser series models supplied with a

key switch to pre ent unauthorized use, warning labels

and aperture labels affixed to the laser.

Installation safety

Prior to installation and operation of the laser, the paths of the

beams and effects should be considered, particularly with

respect to how they will reach the audience. If direct audience scanning is desired, then the

laser energy in the effects needs to be considered to decide if the effects are safe for direct

iewing. Always ensure, that the maximum permissible exposure (MPE) is not exceeded in

the area accesible to the public. So install the laser in such a way, that minimum distances

and heights ensure the MPE is ne er exceeded in the public area.

OPERATING THE LASER

The operator has to make sure that laser radiation – also reflected laser radiation – higher

than the maximum permissible le el is a oided by technical or organisational measures.

(Especially with respect to the MPE, see abo e.)

Make sure to use the correct oltage

If the de ice is used in a flying installation, the mounting brackets and an appropriate safety-

rope must be fixed.

In some countries, the operator must notify the accidence insurance and the authority for

industrial safety, before operating a laser. For more information, contact the rele ant

authorities.

Please consider that unauthorized modifications on the de ice are strictly forbidden due to

safety reasons!

If this de ice will be operated in any way differently than described in this manual, the

product may suffer damages and the guarantee becomes oid. Furthermore, any other

operation may lead to dangers like short-circuit, burns, electric shock, etc.

Keep surrounding dry and clean. This unit should be keep dry, do not use in the rain or

damp and dusty en ironment. Projector should be put in a water-proof housing when

operated outside.

Regularly open the de ice (see “cleaning” further down) to check for dust inside, or if fog

fluid condenses in the housing (if so rearrange hazer and/or laser position).

USER MANUAL: Laserworld Mo ing Head HIGH PRO-OEM

Date: 09/2010

Page

Operating temperature is 10~35°C. In a new installation, check after some 15-30 minutes

whether the outlet air gets too warm. Regularly check the inside for dust deposits, especially

around the fans. Let laser cool off 10minutes after 2 hours of operation,to ensure maximum

lifetime for the diode.

Distance between laser aperture and projection screen should be not less than 1 meter.

Do not turn de ice on and immediately off again frequently.

Do not look into the laser beam directly, especially not with optical instruments.

Do not touch the de ice with wet hands.

When the laser diode becomes dim or broken, please contact your dealer timely.

When returning laser to dealer/manufacturer always use original packaging.

Maintenance should be performed e ery 15-day period. See “cleaning” further down.

USER MANUAL: Laserworld Mo ing Head HIGH PRO-OEM

Date: 09/2010

Page

USER MANUAL: Laserworld Mo ing Head HIGH PRO-OEM

Date: 09/2010

Page

USER MANUAL: Laserworld Mo ing Head HIGH PRO-OEM

Date: 09/2010

Page

5. DMX 512 operation

The de ice is controlled by 24 DMX channels. The customized ersion is equipped with a

memory (SD) ILDA playback card. Channel 6 switches between the internal control and the

ILDA playback card.

Channel

Value

Internal

SD C

ard

0..255

Pan

0..255

Pan fine

0..255

Tilt

0..255

Tilt fine

0..252

Pan&tilt speed

253..255

Reset

0..127

Switc

h to intern

128..255

Switch to SD card

0..255

Bank

0..255

Pat

tern

Frame

0..255

Size

0..255

Colourgroup

0..255

Intensity blue

0..255

Intensity green

0..255

Intensity red

0..255

Master intensity

0..255

roll

0..255

roll

0..255

roll

0..255

mo e

0..255

mo e

0..255

stretch

0..255

stretch

0..255

stretch

0..255

Drawspeed

0..255

Pointspeed

Point

speed

USER MANUAL: Laserworld Mo ing Head HIGH PRO-OEM

Date: 09/2010

Page

6. MAINTENAN E

Always disconnect from mains before cleaning/opening the laser. Remo e the co er of the

mo ing head, and the top co ers of the base to perform cleaning.

Regularly clean the interior from dust, especially ensure operation of the fans. To clean the

mirrors, ideally use acetone and lens cleaning paper (fold paper to get an edge with which to

clean the mirrors). If not a ailable, you can also use window cleaner, and a paper towel. Be

careful, e en light scratches reduce the output power of the laser; always clean with strokes

in one direction, to minimize the effect of scratches. Mirrors need cleaning, when a “halo” is

noticeable around the beam, or an unusual high amount of diffuse light can be seen inside

the de ice.

When fog fluid condenses in the de ice, clean all traces, and rearrange the position of hazer

and/or laser.

Never look directly into the light source.

Always disconnect from the mains when the device is not in use or before

cleaning it.

7. TE HNI AL SPE IFI ATIONS

Power supply: AC 220V-240V, 50/60 Hz

DMX 512: 24 channels

ondition temperature: 10°C ~ +35°C

Input signal bandwidth: 0~1000Hz

X/Y axes beam scanning optical angle: 0 ~ ±30° (max)

Power consumption: 200W

Working mode: ILDA, DMX512, automatic mode (sound, stand-alone programmes)

Weight: 60 kg, 91 kg incl. flightcase

Dimensions: 535 x 510 x 845 mm (L x W x H)

Loudness: <70dB

Errors and omissions expected.

PLEASE NOTE

This de ice has left our premises in absolutely perfect condition. In order to maintain this

condition and to ensure a safe operation, it is absolutely necessary for the user to follow the

safety instructions and warning notes written in this user manual.

Laserworld cannot be made liable for damages caused by incorrect installations and unskilled

operation!

For ser ice please contact your dealer, or see http://en.laserworld.com/en/reclamation-

ser ice.html. Only use Laserworld spare parts.
