Laserworld EL-150B Manuel utilisateur
Manual / Bedienungsanleitung
Ecoline Series
EL-150B
Please read this manual carefully prior to product operation!
Bitte lesen Sie diese Bedienungsanleitung vor Inbetriebnahme des Produkts!
rev. 07/2013
English
Deutsch
Manual: Ecoline Series EL-150B
page 2 / 17
Rechtlicher Hinweis:
Die Firma Laserworld AG behält sich das
Recht vor, Änderungen an ihren Produkten
vorzunehmen, die der technischen Weiter-
entwicklung dienen. Diese Änderungen wer-
den nicht notwendigerweise in jedem Einzel-
fall dokumentiert.
Diese Betriebsanleitung und die darin ent-
haltenen Informationen wurden mit der ge-
botenen Sorgfalt zusammengestellt. Die Fir-
ma Laserworld AG übernimmt jedoch keine
Gewähr für Druckfehler, andere Fehler oder
daraus entstehende Schäden.
Die in dieser Bedienungsanleitung genann-
ten Marken und Produktnamen sind Waren-
zeichen oder eingetrageneWarenzeichen der
jeweiligen Titelhalter.
Legal notice:
Laserworld AG reserves the right to make
modications to its products, attending to
further technical developments. These modi-
cations do not necessarily have to be recor-
ded in each case.
This manual and its information have been
made with due care. Laserworld AG cannot,
however, take any responsibility for errata,
bugs, or the resulting damages.
The brands and product names mentioned
in this manual are trade marks or registered
trade marks of their respective owners.
Manual: Ecoline Series EL-150B
page 3 / 17
Content:
1. Scope of delivery & details
2. Preliminary warning notices
3. Initial operations, safety instructions
4. Working on the device
5. Service notes
6. Warnings and other notices on the device
7. Device connections
8. Operation
Final statement
Technical data sheet
Laser specications
Manual: Ecoline Series EL-150B
page 4 / 17
1. Scope of delivery & details
Please check if all listed parts are included and undamaged. Included in delivery:
1 x laser projector 1 x power cable
1 x manual
3. Initial operations, safety instructions
1. Make sure to use correct voltage; see in-
formation on device & in this manual.
2. Make sure that the device is not connec-
ted to mains during installation.
3. Installation has to be done by technical
experienced and qualied persons ac-
cording to safety regulations of the res-
pective country.
4. Always ensure that maximum permissib-
le exposure (MPE) is not exceeded in are-
as accessible to the public.
5. In some countries an additional ins-
pection by technical control institutes
could be necessary.
6. Connect an easily accessible inter-
lock connector or circuit breaker
to the projector.
7. The power supply should be easily acces-
sible.
8. When installing the laser, mount it with
a minimum distance of 15 cm from walls
and objects.
9. For safe setup e.g. on walls or ceilings
please use a safety cord. The safety cord
should be able to withstand tenfold the
weight of the device. Please follow the
accident prevention regulations of pro-
fessional associations and/or comparable
regulations for accident prevention.
10. If the device has been exposed to great
temperature changes, do not switch
it on immediately. Condensation water
may damage device.
2. Preliminary warning notices
1. Please use this device only according to these operating instructions.
2. Do not use the device if there are any visible damages on housing, connector panels,
power supplies or power cords.
3. Never look directly into the light source of a laser projector. Danger of blindness!
4. Do not operate the device at high humidity, in the rain or in dusty environments.
5. Protect device against dripping or splashing water. Do not place any liquid lled
containers at the device.
Warranty claim expires with removal of warranty label.
Manual: Ecoline Series EL-150B
page 5 / 17
11. Never use dimmer, RC or other electroni-
cally switched sockets. Whenever possib-
le, do not use the laser projector together
with large appliances (especially fog ma-
chines) on the same mains!
12. Ensure sucient ventilation and do not
place the device on any warm or heat ra-
diating surface. Especially the ventilati-
on openings must not be covered!
13. Ensure that device does not get over-
heated. Make sure that the device is not
exposed to spotlights (especially moving
heads). Heat of spotlights could overheat
laser in a little while and leads to a degra-
dation of performance.
4. Working on the device
1. Be sure that the mains plug is not connected to the power sup-
ply while installing or opening the device (e.g. for cleaning).
2. Take o all reecting things like rings, watches etc. before
starting to work with or at the projector.
3. Only use non-reecting tools to work on device.
4. Wear protective clothing (like goggles, gloves etc.) accor-
ding to laser power and wavelength of the laser.
5. Service notes
• Moisture and heat can reduce lifetime of
the laser system dramatically and expires
any warranty claim.
• Quick on/o switching of device can re-
duce durability of the laser diode drama-
tically.
• Avoid concussions during transport.
• To increase durability of your laser,
protect device against overheating:
-Always ensure sucient ventilation.
-Do not face spotlights (especially mo-
ving heads) to the device.
-Check temperature after approx. 30
minutes with each new installation.
If necessary install the projector at a
place with dierent temperature.
-Keep the device dry. Protect it from
moisture, rain and damp.
-Switch o device when it is not nee-
ded. Diodes are switched on and can
wear o even if there is no visible la-
ser output.
• Open the device at regular intervals and
remove any dust, particularly around fans
and laser. Otherwise the risk of overhe-
ating is imminent and will void the war-
ranty.
• If there are traces of fog uid in the pro-
jector, clean it and change the position of
the fog machine.
• The devices of Ecoline, Evolution and
Club-Series are not meant for professio-
nal applications. After approx. one hour
of
Manual: Ecoline Series EL-150B
page 6 / 17
• operation, the device should cool down
for about 15 minutes.
• As for troubleshooting, please check the
FAQ on our website www.laserworld.com
• Removal of the warranty label as well
as damages to the device caused by
improper handling, neglect of the sa-
fety instructions and service notes will
void the warranty.

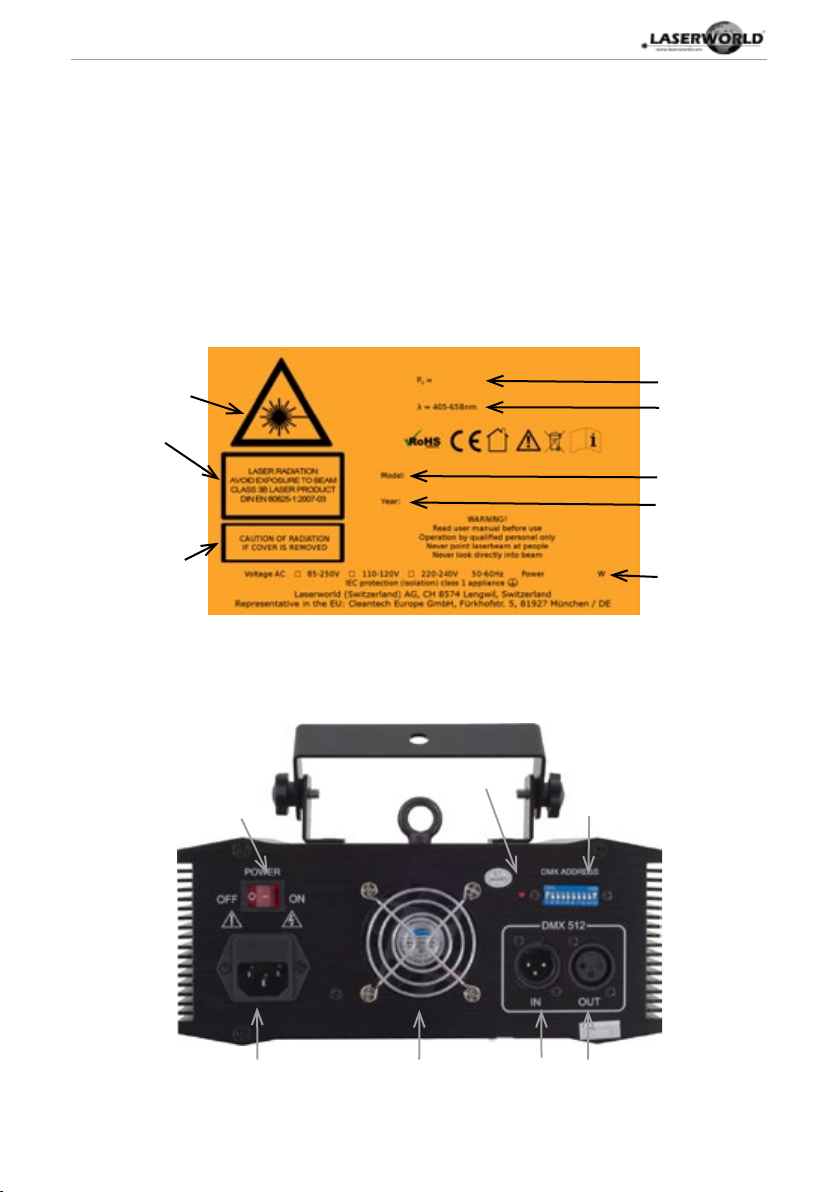

6. Warnings and other notices on the device
Laser radiation!
Avoid exposure
to beam.
Laser class 3b
Caution of
radiation if cover
is removed power supply
& consumption
model type
wavelength
Output power
production
year
Please read manual before operation
Use in enclosed spaces only!
7. Device connections
connection for
power supply
DMX addresspower switch
DMX outDMX in
LED signal
fan
Manual: Ecoline Series EL-150B
page 7 / 17

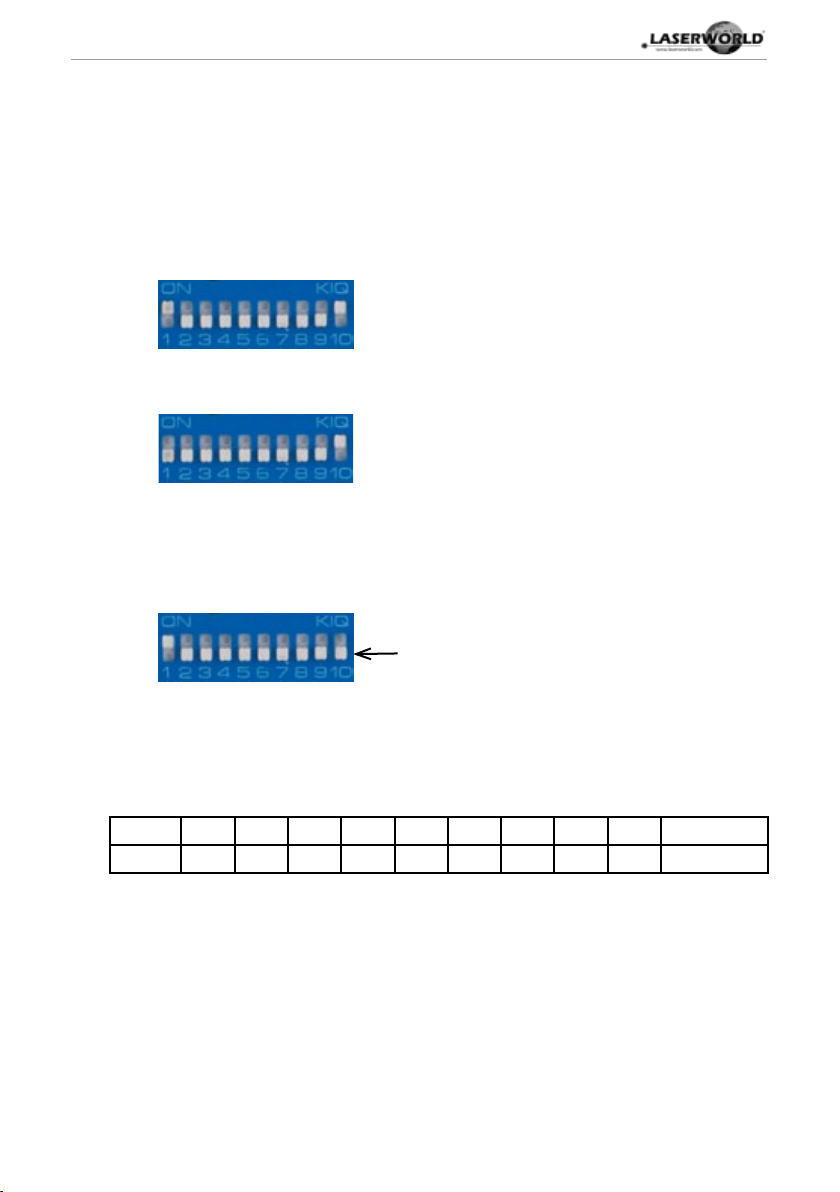

8. Operation
1. Connect the power cable to the device and then to the mains
2. Press‚ON‘ to switch on your device
3. Your device runs in auto mode:
4. Your device runs in music mode:
5. Control the music-sensitivity by the trim pot at the front side of the device. The LED is
ashing when the device is triggered.
6. Your device runs in DMX mode if ‘10‘ is switched o:
7. Connect a DMX controller to operate the laser.
8. Use the switches 1 - 9 to set the DMX address of the laser. Each switch represents a num-
ber. To dene a number use the preceding number and multipy it by 2:
The laser uses 11 DMX channels, so make sure that the next device uses an address that doesn’t
overlap with this range.
Switch 12345678910
Number 1 2 4 8 16 32 64 128 256 Mode Switch
Manual: Ecoline Series EL-150B
page 8 / 17
Channel Value Function
1 0 - 70 Laser o
72 - 142 Sound mode
143 - 214 Automatic mode
215 - 255 DMX mode
2 0 - 255 Patterns / Animations
3 0 - 255 Eect channel: Strobe
4 0 - 255 Point movement
5 0 - 255 Horizontal movement
6 0 - 255 Vertical movement
7 0 - 255 Decrease/Increase size, manual/auto
8 - -
9 0 - 255 Rotation X - Axis clockwise, automatic
10 0 - 255 Rotation Y - Axis clockwise, automatic
11 0 - 255 Rotation
9. Please note that not each pattern can be combined with each eect.
10. To turn o the device switch it o and disconnect the power cable from the mains.
Manual: Ecoline Series EL-150B
page 9 / 17
Final statement
Product and package leaving warehouse without faults. Users have to follow the local safety
regulations and warnings of this manual. Damages through inappropriate use do not unterlie
the sphere of inuence of manufacturer or dealer. Therefore no liability or warranty will be
taken over. We cannot inform you in case of changes of this manual. If you have any questions,
please contact your dealer.
For service please contact your dealer or Laserworld. Please use only spare parts of Laserworld.
Subject to change without notice. Because of the vast amount of data we cannot guarantee
any correctness of given information.
Laserworld (Switzerland) AG
Kreuzlingerstrasse 5
8574 Lengwil-Oberhofen
SWITZERLAND
Registered oce:
8574 Lengwil-Oberhofen / Switzerland
Company number: CH-440.3.020.548-6
Commercial Registry Kanton Thurgau
CEO: Martin Werner
VAT no. (Switzerland): 683 180
UID (Switzerland): CHE-113.954.889
VAT no. (Germany): DE258030001
WEEE-Reg.-No. (Germany): DE 90759352
www.laserworld.com
representative according to EMVG:
Cleantech Europe GmbH
Managing Director: Thomas Schulze
Fürkhofstr. 5
81927 München / GERMANY
Manual: Ecoline Series EL-150B
page 10 / 17
Inhaltverzeichnis:
1. Lieferumfang & Hinweise
2. Einleitende Warnhinweise
3. Schritte zur Inbetriebnahme, Sicherheitshinweise
4. Sicherheitshinweise für Arbeiten am Gerät
5. Pege- und Wartungshinweise
6. Warnhinweise und Spezikationen am Gerät
7. Geräteanschlüsse & Bedienelemente
8. Bedienung
Abschließende Erklärung
Technische Daten
Laserleistungsdaten
Ce manuel convient aux modèles suivants
1
Table des matières
Langues :
Autres manuels Laserworld Équipement d'éclairage
Laserworld
Laserworld BeamBar 10R-638 Manuel utilisateur
Laserworld
Laserworld GREEN-3000 Manuel utilisateur
Laserworld
Laserworld Club Series Manuel utilisateur
Laserworld
Laserworld Evolution Series ES-400RGB Manuel utilisateur
Laserworld
Laserworld tarm Series Manuel utilisateur
Laserworld
Laserworld PL-20.000RGB CT Manuel utilisateur
Laserworld
Laserworld GREEN-1000 Manuel utilisateur
Laserworld
Laserworld PL-4500 RGB US Manuel utilisateur
Laserworld
Laserworld Club Series Manuel utilisateur
Laserworld
Laserworld GREEN-8000 Manuel utilisateur
Laserworld
Laserworld Ecoline Series Manuel utilisateur
Laserworld
Laserworld GREEN-300E Manuel utilisateur
Laserworld
Laserworld RS 800 G US Manuel utilisateur
Laserworld
Laserworld Club Series Manuel utilisateur
Laserworld
Laserworld Garden Series Manuel utilisateur
Laserworld
Laserworld Pro-4000RGB Manuel utilisateur
Laserworld
Laserworld Diode Series Manuel utilisateur
Laserworld
Laserworld GREEN-8000C Manuel utilisateur
Laserworld
Laserworld Garden Star Series Manuel utilisateur
Laserworld
Laserworld Diode Series Manuel utilisateur
Manuels Équipement d'éclairage populaires d'autres marques
Commercial Electric
Commercial Electric 54568141 Manuel utilisateur
CREE LIGHTING
CREE LIGHTING 304 Series Manuel utilisateur
Goobay
Goobay 49867 Manuel utilisateur
ECOMAN ITALIA
ECOMAN ITALIA LED T8 Manuel utilisateur
Alkalite
Alkalite Krypton KT-81 Manuel utilisateur
Clas Ohlson
Clas Ohlson GU10 Manuel utilisateur
