Laserworld RTI-Piko Series Manuel utilisateur

Manual / Bedienungsanleitung

RTI-Piko Series

Please spend a few minutes to read this manual fully

before operating this laser!

Bitte lesen Sie diese Bedienungsanleitung sorgfältig

vor Inbetriebnahme dieses Showlasersystems!

rev. 01/2014

English

Deutsch

Manual: RTI Piko Series

page 2 / 23

Rechtlicher Hinweis:

Die Firma Laserworld AG behält sich das

Recht vor, Änderungen an ihren Produkten

vorzunehmen, die der technischen Weiter-

entwicklung dienen. Diese Änderungen wer-

den nicht notwendigerweise in jedem Einzel-

fall dokumentiert.

Diese Betriebsanleitung und die darin ent-

haltenen Informationen wurden mit der ge-

botenen Sorgfalt zusammengestellt. Die Fir-

ma Laserworld AG übernimmt jedoch keine

Gewähr für Druckfehler, andere Fehler oder

daraus entstehende Schäden.

Die in dieser Bedienungsanleitung genann-

ten Marken und Produktnamen sind Waren-

zeichen oder eingetrageneWarenzeichen der

jeweiligen Titelhalter.

Legal notice:

Thank you for purchasing this Laserworld

product. Due to continual product develop-

ments and technical improvements, Laser-

world (Switzerland) AG reserves the right to

make modications to its products.

This manual and its content have been

made with due care but Laserworld (Switzer-

land) AG cannot however, take any responsi-

bility for any errors, omissions or any resulting

damages forthwith.

The brands and product names mentioned

in this manual are trade marks or registered

trade marks of their respective owners.

Manual: RTI Piko Series

page 3 / 23

Content:

1. Product and package contents

2. Preliminary warning notices

3. Steps for setup, safety instructions

4. Safety instructions for work on the device

5. Service notes

6. Warnings and other notices on the device

7. Device connections

8. Operation

9. Remote Control Pad

10. Cleaning

Final statement

Technical data sheet

Laser specications

Manual: RTI Piko Series

page 4 / 23

1. Scope of delivery & details

Please check if all listed parts are included and undamaged. Included in delivery:

1 x laser projector 1 x key for remote control pad

1 x power cable 1 x patch cable

1 x detachable remote pad with cable connection 1 x manual

3. Initial operations, safety instructions

1. Make sure to use correct voltage; see in-

formation on device & in this manual.

2. Make sure that the device is not connec-

ted to mains during installation.

3. Installation has to be done by technical

experienced and qualied persons ac-

cording to safety regulations of the res-

pective country.

4. Always ensure that maximum permis-

sible exposure (MPE) is not exceeded

in areas accessible to the public or

members of sta.

5. In some countries an additional ins-

pection by technical control institutes

could be necessary.

6. Connect an easily accessible inter-

lock connector or circuit breaker

to the projector.

7. The power supply should be easily acces-

sible.

8. When installing the laser mount it with

a minimum distance of 15 cm from walls

and objects.

9. For safe setup e.g. on walls or ceilings

please use a safety cord. The safety cord

should be able to withstand tenfold the

weight of the device. Please follow the

accident prevention regulations of pro-

fessional associations and/or comparable

regulations for accident prevention.

2. Preliminary warning notices

1. Please use this device only according to these operating instructions.

2. Do not use the device if there are any visible damages on housing, connector panels,

power supplies or power cords.

3. Never look directly into the light source of a laser projector. Danger of damage to the

eyes or even blindness in extreme circumstances!

4. Do not operate the device at high humidity, in the rain or in dusty environments.

5. Protect device against dripping or splashing water. Do not place any liquid lled

containers near to this device.

Any warranty claims are void if the warranty label is removed or tampered

with in any way.

Manual: RTI Piko Series

page 5 / 23

10. If the device has been exposed to great

temperature changes, do not switch it

on immediately.

11. Never use dimmer, RC or other electroni-

cally switched sockets. Whenever possib-

le, do not use the laser projector together

with large appliances (especially fog ma-

chines) on the same mains!

12. Ensure sucient ventilation and do not

place the device on any warm or heat ra-

diating surface. Especially the ventilati-

on openings must not be covered!

13. Ensure that device does not get over-

heated. Make sure that the device is not

exposed to spotlights (especially moving

heads). Heat of spotlights could overheat

laser in a little while and leads to a degra-

dation of performance.

4. Working on the device

1. This product has no user serviceable parts inside and should

only be maintained and serviced by a qualied engineer.

2. Be sure that the mains plug is not connected to the power

supply while installing the device.

3. Take o all reecting things like rings, watches etc. befo-

re starting to work with or at the projector.

4. Only use non-reecting tools to work on device.

5. Wear protective clothing (like goggles, gloves etc.) according to laser power and wave-

length of the laser.

5. Service notes

• Moisture and heat can reduce lifetime of

the laser system dramatically and expires

any warranty claim.

• Quick on/o switching of this device will

reduce durability of the laser diode dra-

matically.

• Avoid sharp knocks and shocks to this

device and ensure sucient protection

during transportation. Look after your La-

serworld product.

• To increase durability of your laser,

protect device against overheating:

-Always ensure sucient ventilation.

-Do not face spotlights (especially mo-

ving heads) to the device.

-Check temperature after approx. 30

minutes with each new installation.

If necessary install the projector at a

place with dierent temperature.

-Keep the device dry. Protect it from

moisture, rain and damp.

-Switch o device when it is not nee-

ded. Diodes are switched on and can

wear out even if there is no visible la-

ser output.

• As for troubleshooting, please check the

FAQ on our website www.laserworld.com

• Removal of the warranty label as well

as damages to the device caused by

improper handling, neglect of the sa-

fety instructions and service notes will

void the warranty.

Manual: RTI Piko Series

page 6 / 23

6. Warnings and other notices on the device

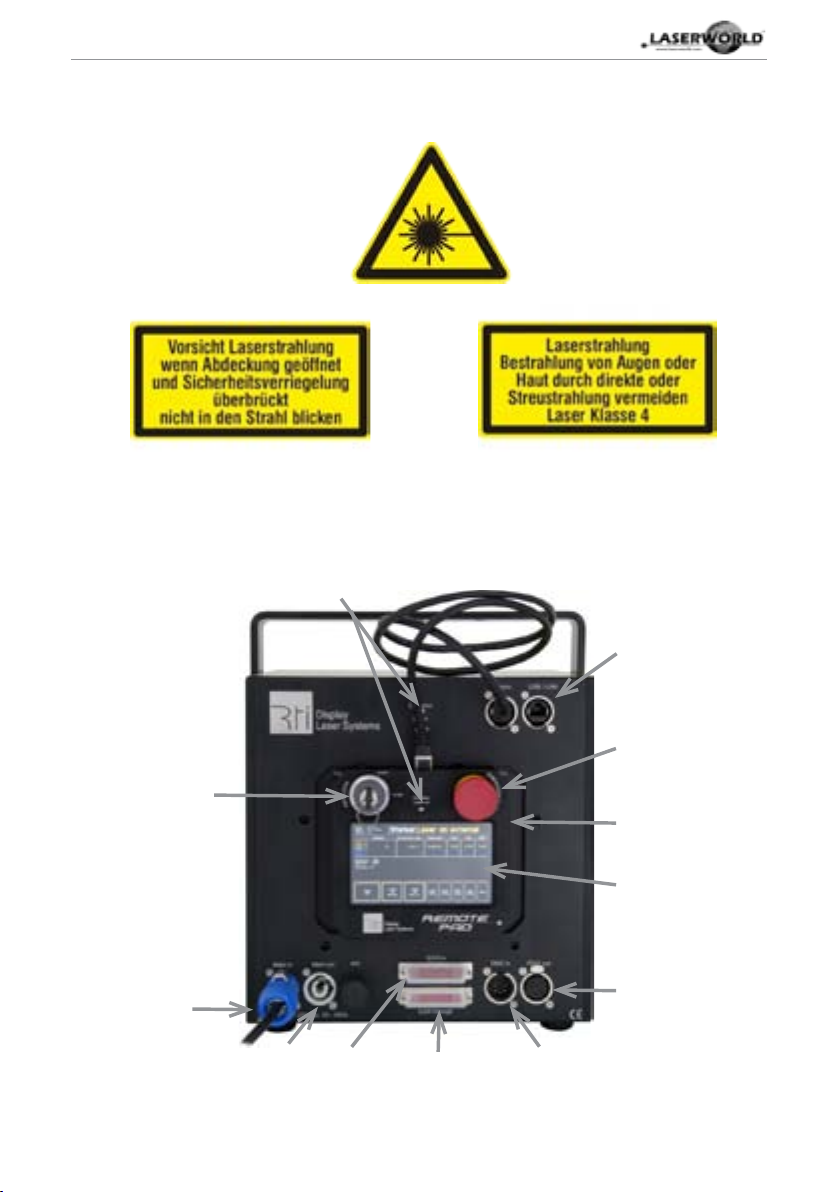

7. Device connections

connection for

power supply

power out

240V

ILDA in

detachable

remote control pad

touchscreen

Emergency stop

key switch

ILDA out

USB/LAN

Emission LED

DMX out

DMX in

Laser radiation!

Avoid exposure to beam

Laser class 4

Caution of radiation if cover is

removed. Don‘t look into the beam.

Manual: RTI Piko Series

page 7 / 23

8. Operation

Please note that when the ‘Emission LED’ is on, the laser is enabled and may emit laser light.

There is one LED on the remote control pad, one on the rear side and one on the front side of

the device. The LED on the device ashes if the device is connectect to the power supply. The

LED on the control pad ashes if the device is switched on.

8.1 Power supply

Please make sure that the power supply is connected to an overload and a ground fault (earth

leakage) protection. Make sure to use correct voltage; see information at the end of this ma-

nual.

8.2 ILDA control

To control your device connect it via ILDA cables to an interface/controller. The pinout and

maximum voltages for the ILDA standard Sub-D connectors are:

Pin Signal Voltage

1 X + (horizontal) + 5.0 V

2 Y + (vertical) + 5.0 V

4 Interlock A -

5 Red + + 2.5 V

6 Green + + 2.5 V

7 Blue + + 2.5 V

13 Shutter + 5.0 V

14 X – (horizontal) - 5.0 V

15 Y – (vertical) - 5.0 V

17 Interlock B -

18 Red - - 2.5 V

19 Green - - 2.5 V

20 Blue - - 2.5 V

25 Ground -

After connecting select„LASER ON - ILDA IN“ on the Remote Control Pad.

8.3 External Interlock

The Remote Control Pad has a built-in emergency stop. If there is the need for an external

interlock, please disconnect the Remote Control Pad and use the ‚Control‘ connection (RJ-48

connector) to connect it with an external interlock. Pins 7 and 8 are the emergency stop.

Manual: RTI Piko Series

page 8 / 23

9. Remote Control Pad

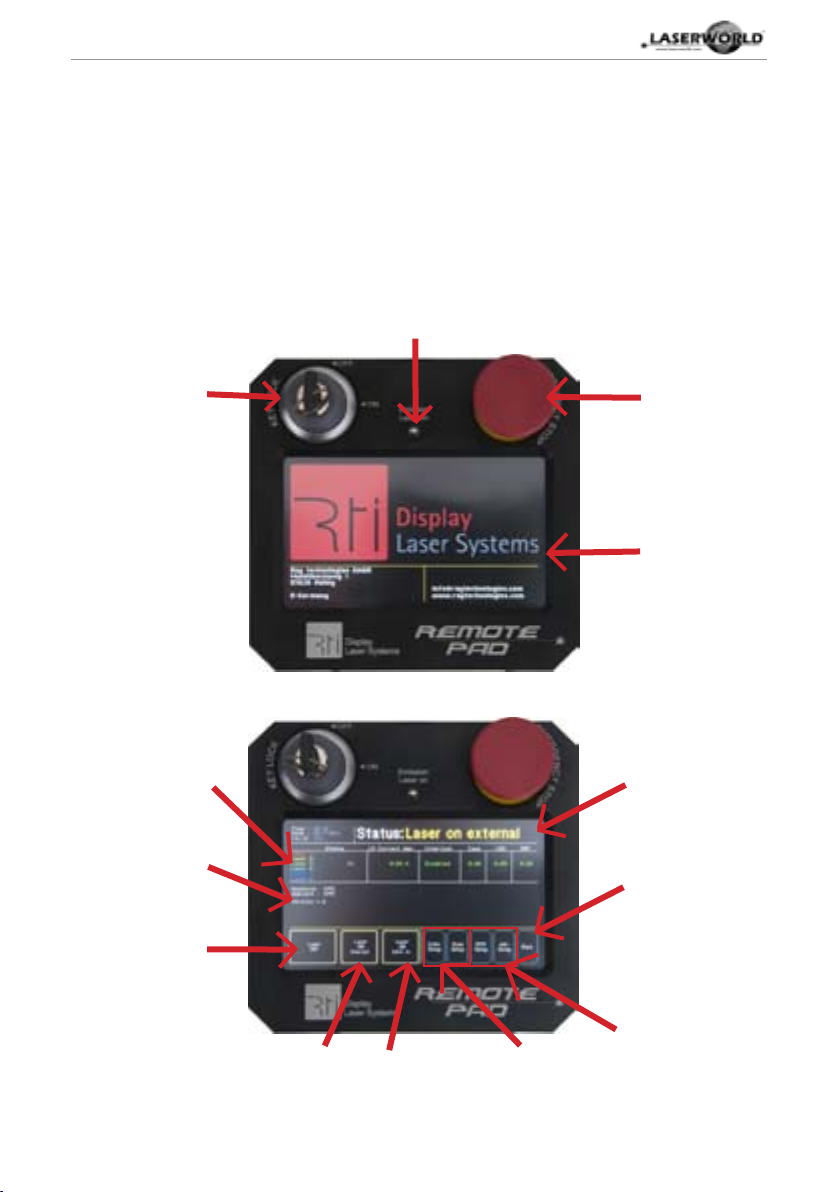

Your device is equipped with a detachable remote control pad. The following images explain

the use of the pad. Touch the screen to change the settings.

Starting sequence

Emergency Stop

button:

Press button to inter-

rupt laser output

Emission Laser on button:

The device is enabled if the

diode is lit.

Touchscreen

Key switch with key:

Insert key and turn it to

‚on‘ to start the device.

Laser on / o:

Device is enabled /

disabled

Version and tempera-

ture display

Laser status, amperage

& interlock status

display

Laser on / internal:

The internal access

to an e.g. SD-card is

enabled

Laser on / ILDA in:

The external access

through ILDA is ena-

bled

Color & Scan Setup:

Use these buttons for co-

lor or scan settings

DMX, Adv. and Setup:

Use these buttons for the

color or scan settings.

Adv. Setup only for factory

defaults!

Back:

Use this button to return

back.

Status display

Main Menu

Manual: RTI Piko Series

page 9 / 23

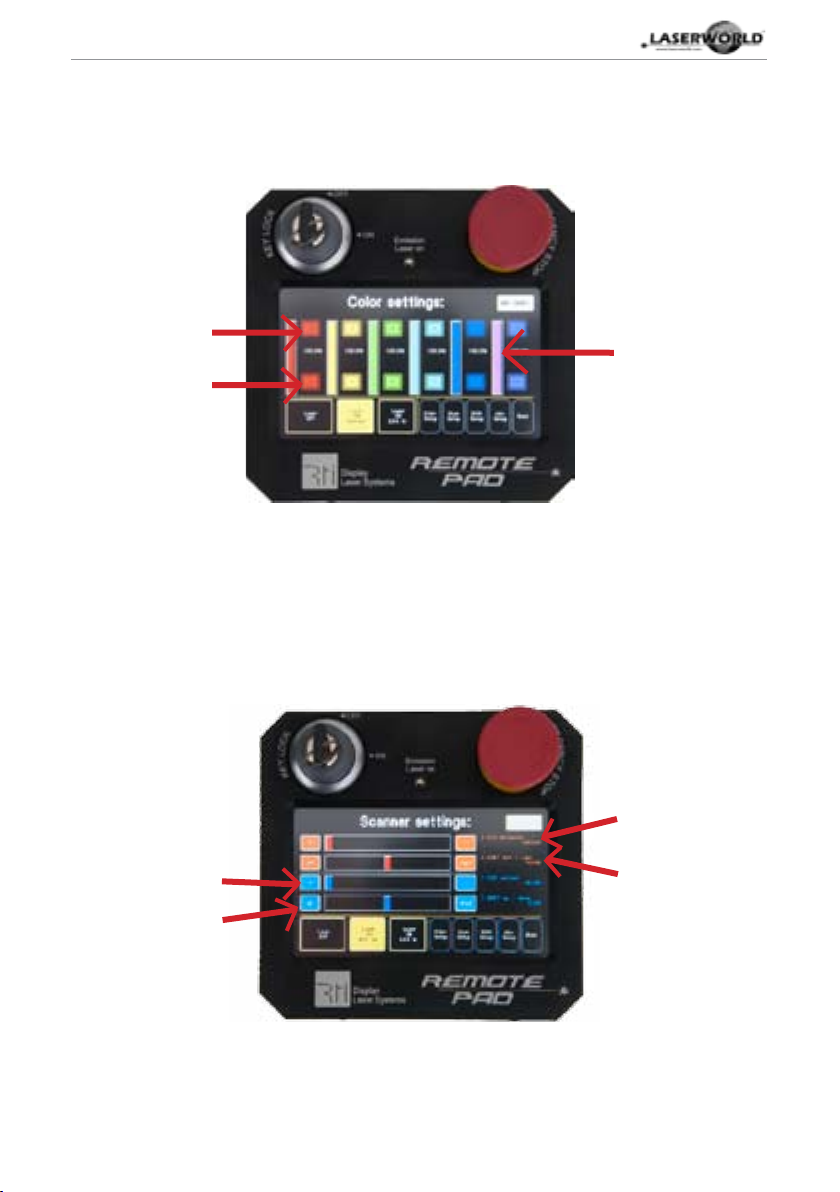

Color Settings:

Scanner Settings:

+ / -:

Use these buttons to

change the color inten-

sity

Colors:

Please note that

only implemented laser

sources can be changed in

their itensity. If there is e.g.

no yellow laser source in-

stalled in your device you

can‘t change the itensity

of the yellow color.

The intensity change

only applies per single

laser source and does

not change mixed colors.

Please use your software

to change mixed color in-

tensities.

X Size horizontal:

Use these buttons to

change the horizontal

size of the output

Y Size vertical:

Use these buttons to

change the vertical size of

the output

Y Shift up/down:

Use these buttons to

change the vertical shift

of the output

X Shift left/right:

Use these buttons to

change the horizontal

shift of the output

Manual: RTI Piko Series

page 10 / 23

10. Cleaning

Do not use water or any other liquids to clean the xture.

Use a damp cloth to clean the housing.

To maintain adequate cooling, fans have to be cleaned periodically.

To clean the fan and air vents:

1. Disconnect the data and power cables and allow the device to cool for at least 5 minutes.

2. Remove dust and dirt from the fan blades, vent grill and heatsink using a soft brush, cot-

ton swab, vacuum or compressed air.

Autres manuels pour RTI-Piko Series

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Laserworld Équipement d'éclairage

Laserworld

Laserworld GREEN-150A Manuel utilisateur

Laserworld

Laserworld BLUE-5000-445 F Manuel utilisateur

Laserworld

Laserworld GREEN-300E Manuel utilisateur

Laserworld

Laserworld Diode Series Manuel utilisateur

Laserworld

Laserworld Pro-150B-473 Manuel utilisateur

Laserworld

Laserworld RB-1.5 Manuel utilisateur

Laserworld

Laserworld PL-4000RGB Manuel utilisateur

Laserworld

Laserworld EL-400RG Manuel utilisateur

Laserworld

Laserworld BLUE-4500-445 Manuel utilisateur

Laserworld

Laserworld PRO-600R-640 Manuel utilisateur

Laserworld

Laserworld CS-4000RGB FX MK2 Manuel utilisateur

Laserworld

Laserworld Ecoline Series Manuel utilisateur

Laserworld

Laserworld GREEN-150E Manuel utilisateur

Laserworld

Laserworld CS-150G Manuel utilisateur

Laserworld

Laserworld RS 800 G Manuel utilisateur

Laserworld

Laserworld GREEN-50 Manuel utilisateur

Laserworld

Laserworld BLUE-1300-445 Manuel utilisateur

Laserworld

Laserworld Ecoline Series Manuel utilisateur

Laserworld

Laserworld Pro-6000 RGB Manuel utilisateur

Laserworld

Laserworld Club Series Manuel utilisateur

Laserworld

Laserworld PL-18000RGB Manuel utilisateur

Laserworld

Laserworld Club Series Manuel utilisateur

Laserworld

Laserworld GREEN-2000 Manuel utilisateur

Laserworld

Laserworld Evolution ES-800S RGB 3D Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur

Silvair

Silvair MESH-CEDRP Manuel utilisateur
