Larson Electronics EPL-BS-70-100 Manuel

EPL-BS-70-100

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

1of 2

Portable Explosion Proof Light

Instruction Guide

Thank you for your purchase of the Larson Electronics EPL-BS-70-100 series light. This light is completely assembled,

tested and ready for use when shipped from factory. The light is shipped preconfigured with selected lamp type. Images

shown in this manual may not reflect your specific configuration. Please follow the steps below in order to operate and

maintain this product.

IMPORTANT

READ CAREFULLY BEFORE OPERATING THIS LIGHT. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. IF UNSURE

ABOUT ANY PART OF THESE INSTRUCTIONS, CONSULT A QUALIFIED ELECTRICAL PROFESSIONAL. THE EPL-BS-70 MUST

BE OPERATED IN ACCORDANCE WITH NATIONAL ELECTRICAL CODE AND ALL APPLICABLE LOCAL CODES. PROPER

GROUNDING IS REQUIRED FOR SAFETY.

FOR PERSONAL SAFETY, ALWAYS CONFIRM THE RATING OF ANY KNOWN HAZARDOUS OR POTENTIALLY HAZARDOUS

LOCATION WHERE THE LIGHT IS TO BE USED.

WARNING: OPERATE ONLY AT THE VOLTAGE LISTED ON THE PRODUCT LABEL.

WARNING: TO PREVENT IGNITION OF A HAZARDOUS ATMOSPHERE, THE SUPPLY CIRCUIT SHOULD BE DISCONNECTED

WHEN INSTALLING OR PERFORMING ANY MAINTENANCE ON THIS UNIT.

WARNING: WHEN INSTALLING THIS LIGHT IN HAZARDOUS LOCATIONS, CHECK THE OPERATING TEMPERATURE LIMITS

PRIOR TO INSTALLATION TO BE SURE IT CONFIRMS TO THE ENVIRONMENTAL TEMPERATURE RESTRICTIONS AND NEC

CLASSIFICATIONS. CHECK THE FIXTURE’S METAL NAMEPLATE FOR TEMPERATURE (T) RATINGS.

WARNING: DO NOT SCRATCH OR CHIP THE FRONT LENS. TURN THE POWER OFF BEFORE STARTING INSTALLATION OR

REPAIR.

WARNING: OPERATE THIS FIXTURE ONLY AT THE VOLTAGE OF YOUR SPECIFIC SUPPLY CIRCUIT. FAILURE TO DO SO

WILL RESULT IN DAMAGE TO THE FIXTURE.

WARNING: SUBSTITUTE COMPONENTS MAY IMPAIR EXPLOSION PROOF SAFETY.

INSTALLATION

•Before operation, confirm that the power source will provide the correct voltage

indicated on the product nameplate. Ensure the receptacle will accept the cord

cap attached to the light.

•Check product nameplate for Ratings and Approvals.

•Place the light in the desired location and run its power cord to a power source.

oFixture is portable by default but can be secured with screws.

oPre-drilled holes allow the fixture to be permanently mounted to flat

surfaces. Ensure surface can support the load before finalizing

installation. Light may be mounted in any direction as long as the power

cord can reach a receptacle.

•Ensure all safety requirements are followed for the hazardous area.

•This light is instant-on and will illuminate once energized.

This light is to be powered via

Voltage: 120V AC 60Hz

ADJUSTMENT

•Loosen the adjustment screw on side of the light to make vertical adjustments. Tighten hand screw once desired

angle is achieved.

•The light can be mounted in any direction to a sturdy surface. Ensure the mounting surface can withstand the

weight.

•Use the handle on top for easy maneuverability.

MAINTENANCE

1. Perform visual, electrical, and mechanical inspections on a regular basis. The environment and frequency of use

should determine this. However, it is recommended that checks be made at least once a year. We recommend an

Electrical Preventive Maintenance Program as described in the National Fire

2. Protection Association Bulletin NFPA No. 70B: Recommended Practice For Electrical Equipment Maintenance

(www.nfpa.org).

EPL-BS-70-100

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

2of 2

3. The lens should be cleaned periodically to ensure continued lighting performance. To clean, wipe the lens with a

clean, damp cloth. If this is not sufficient, use a mild soap or a liquid cleaner such as Collinite NCF or Duco #7. Do

not use an abrasive, strong alkaline, or acid cleaner. Damage may result.

4. Visually check for undue heating evidenced by discoloration of wires or other components, damaged parts, or

leakage evidenced by water or corrosion in the interior. Replace all worn, damaged, or malfunctioning

components, and clean gasket seals before putting the luminaire back into service.

5. Electrically check to make sure that all connections are clean and tight.

6. Mechanically check that all parts are properly assembled.

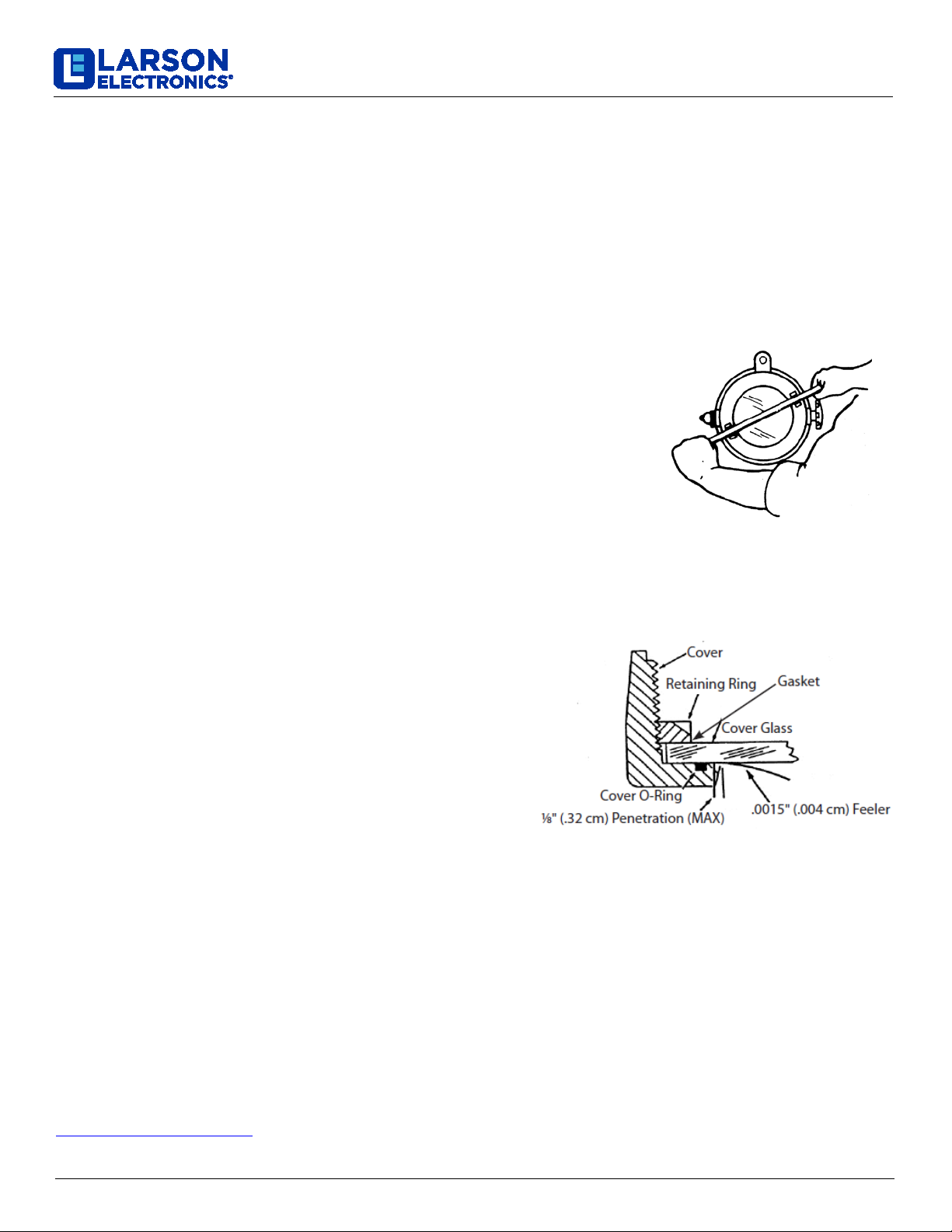

REMOVAL AND REPLACEMENT OF COVER

In most cases, a rectangular steel bar about can be placed between the lugs

provided on the face of the cover and rotated counterclockwise to accomplish

the removal. See figure below. Excessive force must not be used as bar may

slip and cause injury.

Before replacing the cover, thoroughly clean the threads in both the cover and

shell, then lubricate threads with thin film of a

non-drying grease or petrolatum. This will enable the cover to be turned more

easily and will facilitate its removal later.

Thread the cover onto the shell by hand until the cover contacts the shell o-ring. Use the rectangular steel bar

to rotate the cover another 1/12 to 1/10 of a turn or between 2.50 inches (64 mm) and 3.00 inches (76 mm)

measured on the outside diameter.

COVER GLASS REPLACEMENT

To replace the cover glass, first loosen the retaining ring by

turning it counterclockwise with a hammer and drift punch

applied to the lugs on the ring. Once loose, it may be rotated

out by hand. Remove the cover glass and cover o-ring which

should also be replaced.

Threads in the cover, the retaining ring and the shell should

be thoroughly cleaned and then lubricated liberally with a

non-drying grease or petrolatum to facilitate assembly and

disassembly and to inhibit corrosion. After replacement of the

cover, o-ring and the cover glass, the retaining ring must be

tightened against the glass with the hammer and the drift punch until the clearance between the cover glass

and the cover is such that a 0.0015 inch (0.04 mm) feeler will not enter the joint more than 1/8 inch (3 mm) at

any point.

TROUBLESHOOTING

Refer to the guide below or contact the manufacturer if the fixture does not function properly.

Is the correct line voltage being supplied to the fixture?

Is the fixture properly grounded?

Make sure installed power switch is functioning properly (if applicable).

THESE INSTRUCTIONS MAY NOT COVER ALL DETAILS OR VARIATIONS OF THIS PRODUCT FOR YOUR EQUIPMENT OR INSTALLATION REQUIREMENTS.

SHOULD FURTHER INFORMATION NOT COVERED BY THESE INSTRUCTIONS BE REQUIRED, PLEASE CONTACT LARSON ELECTRONICS BY EMAIL AT

SALES@LARSONELECTRONICS.COM OR BY PHONE AT 1-800-369-6671 FOR FURTHER ASSISTANCE.

PLEASE VISIT LARSONELECTRONICS.COM FOR WARRANTY AND RETURN INFORMATION.
