Lanzar OPTIHC 3502 Manuel utilisateur

OPTIHC3502

OPTIHC5002

OPTIHC2004

OPTIHC3004

INTRODUCTION & FEATURES

FEATURES & CONTROLS

2 Channel(OPTIHC 3502/5002)

4 Channel(OPTIHC 2004/3004)

SYSTEM WIRING

2 Channel stereo configuration

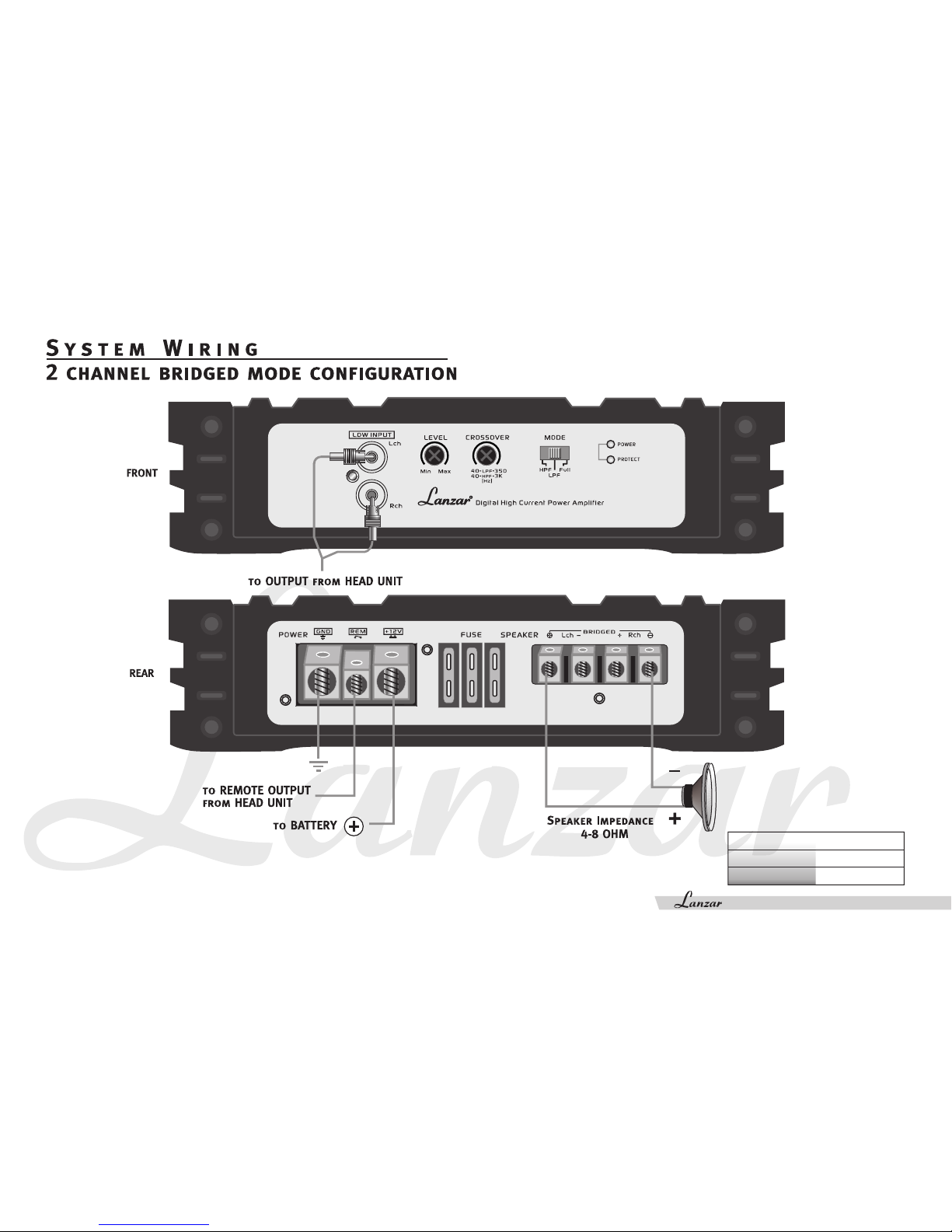

2 Channel bridged mode configuration

2 Channel tri-mode configuration

4 Channel stereo configuration

4 Channel bridged mode configuration

4 Channel tri-mode configuration

TROUBLESHOOTING

WIRING

2~3

6~11

INSTALLATION & PRECAUTIONS

SPECIFICATIONS

Congratulations on your purchase of a Lanzar OPTI amplifier. You have purchased a quality product designed

and engineered to give you many years of uncompromised musical service. OPTI amplifiers are designed with

the latest technology available, incorporating a DC to DC Switching Power Supply, which provides headroom for

even the most demanding peaks and dynamic ranges found on modern CD's and recordings.

Features

MOSFET switches maintain rated power over a wide range of battery voltages

Stiffly regulated PWM- type power supplies

2 Ohm Full Range Stable Stereo operation

Variable input level controls for each pair of channels

Variable high and low pass crossover controls

Thermal and speaker short protection circuitry

Power and Protection LED indicators

Stereo, Bridge Mode and Tri-Mode System Application Compatible

Nickel plated power, RCA and speaker connectors

High-efficiency, heavy aluminum heatsink

OPTI OWNER'S MANUAL-1

Digital High Current Power Amplifier

High Technology SMD Circuit

OPTIHC 3502/5002

OPTI OWNER'S MANUAL-2

1234

OPTIHC 2004/3004

4.Power & Protection Indicators- Provide instant information on status of amplifier,

including short-circuit and thermal overload alerts.

1. Input RCA Jacks - These inputs are for signal cables from the source.

Always use high quality shielded RCA cables.

2.Level Control- Enables the matching of input levels to the output levels from

the head unit(or other signal source).

3.Crossover Mode Selector- Determines the mode of built-in crossover:

low pass(permits only low frequency signals to pass to speakers), high pass(permits only high

frequency signals to pass to speakers),or flat.

OPTI OWNER'S MANUAL-3

OPTI OWNER'S MANUAL-4

Frequency Response

S/N Ratio

Channel Separation

Crossover (Low Pass Filter)

Crossover (High Pass Filter)

Dimensions:WxHxL(inches)

Fuse(s)

MAX at 4 Ohms

At 4 Ohms Bridged

RMS at 2 Ohms

Min. Speaker Impedance

T.H.D

RMS at 4 Ohms

10Hz~30KHz, -3dB

>100dB

>60dB

40Hz~350Hz

40Hz~3KHz

8.11" x 1.97" x 11.4"

30A x 2

350W x 2

680W x 1

330W x 2

2 Ohm

0.1%

OPTIHC 3502

220W x 2

30A x 3

500W x 2

980W x 1

480W x 2

2 Ohm

OPTIHC 5002

320W x 2

10Hz~30KHz, -3dB

>100dB

>60dB

40Hz~350Hz

40Hz~3KHz

8.11" x 1.97" x 12.2"

0.1%

30A x 3

300W x 4

620W x 2

280W x 4

2 Ohm

150W x 4

10Hz~30KHz, -3dB

>100dB

>60dB

40Hz~350Hz

40Hz~3KHz

8.11" x 1.97" x 12.2"

0.1%

Input Sensitivity(LOW) 130mV~7V 130mV~7V 130mV~7V

OPTIHC 2004 OPTIHC 3004

100W x 4

200W x 4

380W x 2

160W x 4

2 Ohm

0.1%

10Hz~30KHz, -3dB

130mV~7V

>100dB

>60dB

40Hz~350Hz

40Hz~3KHz

8.11" x 1.97" x 11.4"

30A x 2

OPTI OWNER'S MANUAL-5

OPTIHC 3502/5002

MODEL

OPTIHC3502

OPTIHC5002

FUSES

30A x 2

30A x 3

OPTI OWNER'S MANUAL-6

OPTIHC 3502/5002

MODEL

OPTIHC3502

OPTIHC5002

FUSES

30A x 2

30A x 3

OPTI OWNER'S MANUAL-7

OPTIHC 3502/5002

OPTI OWNER'S MANUAL-8

MODEL

OPTIHC3502

OPTIHC5002

FUSES

30A x 2

30A x 3
