SET UP GUIDE

MODEL: 513-1417CHv2

Atomic Digital Wall Clock

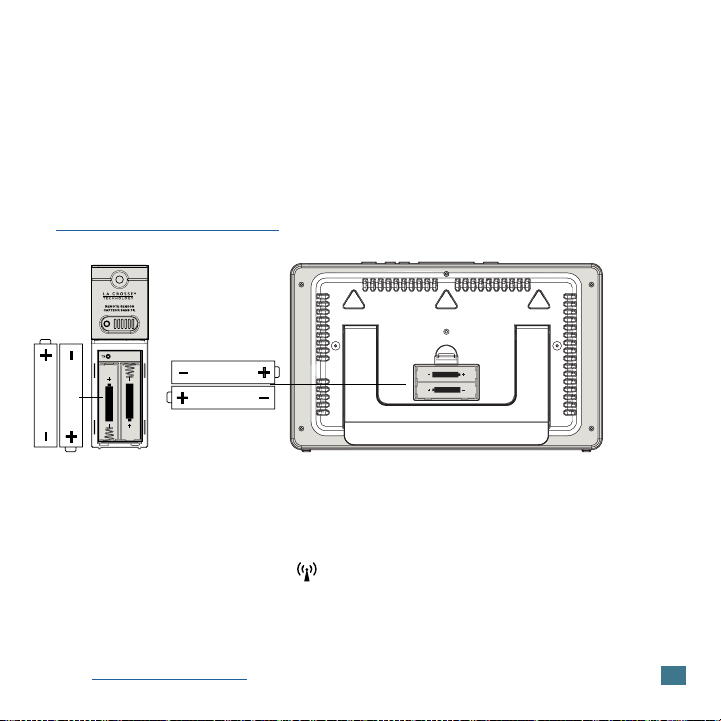

1. Insert 2-AA batteries into your Outdoor Sensor.

2. Insert 2-AA batteries Into your Clock.

3. Enter the Settings Menu to adjust your time and date.

4. Once the sensor is reading to your clock, place the sensor outside in a

shaded location. View our sensor mounting video here:

bit.ly/th_sensor_mounting

POWER UP

Atomic Clock

513-1417CHv2

Outdoor Sensor

TX141-B

(all versions)

Atomic Time Signal

• The clock will search for the Atomic Time Signal at power up and at UTC

7:00, 8:00, 9:00, 10:00, and 11:00.

• The Atomic Time Signal Icon will ﬂash while searching and be solid

when it has connected.

• From the normal time display, press the SET button to manually start or

stop a search for the WWVB time signal. For information about WWVB

visit: bit.ly/atomic_time.

SETTINGS MENU

Language: Whichever language is selected, the following instructions and

weekday will be presented in that language.

Weekday: Your weekday display will adjust automatically once you

have your Year, Month, and Date settings set correctly.

1. Hold the SET button until the display changes to enter the Settings

Menu. Press and release the + or - buttons to adjust values. Hold to

adjust quickly.

2. Press and release the SET button to conﬁrm values and move to the

next setting.

3. Press and releas the SNOOZE button at any time to exit.

Settings Menu Order:

• Language English | Spanish

• Beep ON | OFF

• Atomic ON | OFF

• DST ON | OFF (Daylight Saving Time)

• Time Zone

• Hour

• Minutes

• Year

• Month

• Date

• Fahrenheit | Celsius

TIME ZONES

Atlantic: ZONE-AST

Eastern: ZONE-EST

Central: ZONE-CST

Mountain: ZONE- MST

Paciﬁc: ZONE-PST

Alaska: ZONE-AKT

Hawaii: ZONE-HAT

Silence a Sounding Alarm: Press any button except SNOOZE to silence the

alarm for 24 hours.

Activate/Deactivate Alarm:

• Press and release the ALARM button to view the Alarm Time. Press

and release again to activate or deactivate the alarm.

• The Alarm Icon will show when alarm is active.

Snooze: When the alarm is active, press the SNOOZE button to silence

the alarm for 10 minutes. The alarm Icon will flash while snoozing.

Note: The alarm will sound with increasing frequency for two minutes,

then shut off automatically if not silenced.

Set Alarm:

1. Hold the ALARM button to enter alarm setting mode. ALARM will show

and the hour will ﬂash. Press and release the + or - buttons to choose the

hour.

2. Press and release the ALARM to conﬁrm and move to the minutes. The

minutes will ﬂash. Press and release the + or - buttons to choose the

minutes.

3. Press and release the ALARM button to conﬁrm and exit.

4. Press and release the SNOOZE button at any time to exit.

TIME ALARM

MOON PHASE

The moon phase is based on the Lunar Calendar and the year, month, and date

settings.

Full Moon

New Moon

Small Waning

Crescent

Large Waxing

Gibbous

Large Waning

Crescent

Small Waxing

Gibbous

Last Quarter

First Quarter

Small Waning

Gibbous

Large Waxing

Crescent

Large Waning

Gibbous

Small Waxing

Crescent

HI / LO TEMPERATURE

High and Low Temperature Records will automatically reset daily at

midnight.

• Press and release the + (PLUS) button once to view High Indoor and

Outdoor Temperatures.

• Press and release the + (PLUS) button twice to view Low Indoor and

Outdoor Temperatures.

• Press again to return to normal time display.

Manually Reset Records:

• Hold the + (PLUS) button to manuall reset the High and Low records.

TEMPERATURE TREND ARROWS

Both the Indoor and Outdoor Temperature values have Trend Arrows to

indicate changes (1°C / 2°F or more) over the past three hour period.

Temperature has risen over the past three hours.

Temperature has been steady over the past three hours.

Temperature has fallen over the past three hours.

SEARCH FOR OUTDOOR SENSOR

If you are seeing NO for your outdoor readings, please try the

following steps:

1. Hold the - (MINUS) button to search for your outdoor sensor. The

Reception Indicator will begin to animate.

2. If after 3 minutes the sensor still isn’t connected, bring the sensor inside

next to the display and remove power from both the sensor and clock.

3. Press any button on the clock 20 times and leave the parts sit for a few

moments with the power o.

4. Install a new set of alkaline batteries into the sensor, then into your clock.

For additional help visit: bit.ly/basic_restart

LOW BATTERY INDICATOR

Low Battery Icon by Outdoor Temperature, replace batteries in the

Outdoor Sensor.

Low Battery Icon by the Time, replace batteries in the Clock.

Designed in La Crosse, Wisconsin •Made in China •Printed in China •DC 022823

CA WARNING:

This product can expose you to chemicals including acrylonitrile, butadiene, and styrene,

which are known to the State of California to cause cancer and birth defects or other

reproductive harm. For more information, go to: www.P65Warnings.ca.gov

If you require additional assistance, get in touch with our

friendly customer support team based in La Crosse, WI.

Self Help: bit.ly/513-1417chv2_support

Online: bit.ly/contact_techsupport

Phone: 1.608.782.1610

Our knowledgable customer support team is available:

Mon-Fri 8am-6pm CST

We’re Here to Help SCAN HERE

Additional Info

and Support

Ask questions, watch setup videos, and provide feedback on our social media

outlets. Follow La Crosse Technology on YouTube, Twitter, Facebook and Instagram.

Stay in Touch!

SPECIFICATIONS

Atomic Clock (513-1417v2)

Temperature Range: 32°F to 122°F (0°C to 50°C)

Update Interval: About every 51 seconds

Power: 2-AA, IEC, LR6 batteries (not included)

Battery Life: Over 12 months

Outdoor Sensor (TX141-B (all versions))

Temperature Range: -40°F to 140°F (-40°C to 60°C)

Transmission Range: Over 330 ft. open air

(100 meters) RF 433MHz

Update Interval: About every 51 seconds

Power: 2-AA, IEC, LR6 batteries (not included)

Battery Life: Over 12 months

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is

no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to

try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and

receiver.

Connect the equipment into an outlet on a circuit dierent

from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician

for help.

This device complies with Part 15 of the FCC Rules. Operation

is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received,

including interference that may cause undesired operation.

Caution!

Any changes or modiﬁcations not expressly approved by

the party responsible for compliance could void the user’s

authority to operate the equipment.

in any form, even in part, or duplicated or processed using

electronic, mechanical or chemical process without the

written permission of the publisher.

This booklet may contain errors or misprints. The information

it contains is regularly checked and corrections are included

in subsequent editions. We disclaim any responsibility for

any technical error or printing error, or their consequences.

All trademarks and patents are recognized.

FCC Statment

Warranty & Patents

La Crosse Technology, Ltd. provides a 1-year

limited time warranty (from date of purchase) on

this product relating to manufacturing defects in

materials & workmanship.

La Crosse Technology, Ltd,

2830 S. 26th St.

La Crosse, WI 54601

For Full Warranty Details, Visit:

www.lacrossetechnology.com/pages/warranty

Patents:

www.lacrossetechnology.com/pages/patents

Battery Replacement Instructions

When batteries of dierent brand or type are used together,

or new and old batteries are used together, some batteries

may be over-discharged due to a dierence of voltage or

capacity. This can result in venting, leakage, and rupture and

may cause personal injury.

•Always purchase the correct size and grade of battery

most suitable for the intended use.

•Always replace the whole set of batteries at one time,

taking care not to mix old and new ones, or batteries of

dierent types.

•Clean the battery contacts and also those of the device

prior to battery installation.

•Ensure the batteries are installed correctly with regard to

polarity (+ and -).

•Remove batteries from product during periods of non-use.

Battery leakage can cause corrosion and damage to this

product.

•Remove used batteries promptly.

•For recycling and disposal of batteries, and to protect the

environment, please check the internet or your local phone

directory for local recycling centers and/or follow local

government regulations.

Care & Maintenance

DOUBLE YOUR WARRANTY

Scan Here

Scan the QR Code or visit:

bit.ly/513-1417chv2_register

to register your product and double the

standard 1-year warranty for free by opting

to recieve occasional product emails.

Table des matières

Autres manuels La Crosse Technology Horloge

La Crosse Technology

La Crosse Technology WT-3181PLx1 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-8001U Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3161BK Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-8005U Manuel utilisateur

La Crosse Technology

La Crosse Technology Radio Controlled Projection Alarm WT-5110 Manuel utilisateur

La Crosse Technology

La Crosse Technology S74870 Dimensions

La Crosse Technology

La Crosse Technology WT-8002U Manuel utilisateur

La Crosse Technology

La Crosse Technology 519-1416 Dimensions

La Crosse Technology

La Crosse Technology WT-3102B Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-8157U-A Manuel utilisateur

La Crosse Technology

La Crosse Technology L78359v2 Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3126H Manuel

La Crosse Technology

La Crosse Technology WT-3161BK Manuel utilisateur

La Crosse Technology

La Crosse Technology 404-3451 Manuel utilisateur

La Crosse Technology

La Crosse Technology 513-1211 Manuel utilisateur

La Crosse Technology

La Crosse Technology W79752 Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3181X1 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-8115U Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3143A Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3129B Manuel utilisateur

La Crosse Technology

La Crosse Technology 513-1919 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-6118 Manuel utilisateur

La Crosse Technology

La Crosse Technology 404-4450 Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3181PLX1 Dimensions

Manuels Horloge populaires d'autres marques

Silicon Laboratories

Silicon Laboratories SI5324 Manuel utilisateur

Heathkit

Heathkit GC-1005 Manuel utilisateur

Oregon Scientific

Oregon Scientific PRYSMA RMR221P Manuel utilisateur

Andrew O'Malley

Andrew O'Malley DOTKLOK Manuel utilisateur

ALGE-Timing

ALGE-Timing ASC3 Manuel utilisateur

Bodet

Bodet Profil 960 Manuel utilisateur

Nixie Clock

Nixie Clock Divergence Meter Manuel utilisateur

Mini Gadgets

Mini Gadgets MCPro Manuel utilisateur

Casio

Casio TMR-200 Manuel utilisateur

Progetti

Progetti ILTEMPOSTRINGE Manuel

BVItech

BVItech BV-101 Manuel utilisateur

Progetti

Progetti KALIMERO Manuel

Sharp

Sharp SPC900 Manuel utilisateur

Datexx

Datexx DF0063 Manuel utilisateur

LG LEC-005 Manuel utilisateur

IKEA

IKEA ROTBLÖTA Manuel utilisateur

U-Line

U-Line Н-2811 Manuel utilisateur

Digiview

Digiview RC305EL Manuel utilisateur
