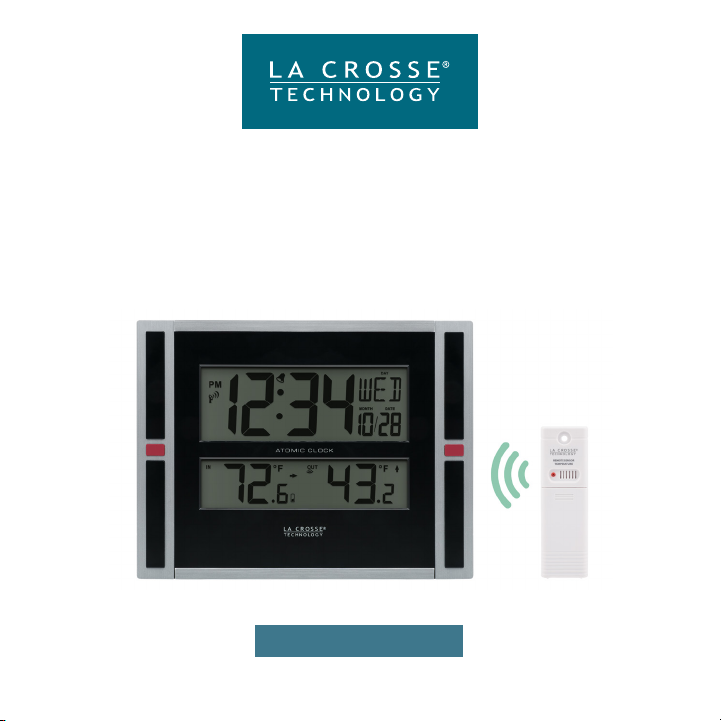

La Crosse Technology 513-149V2 Manuel utilisateur

SET UP GUIDE

MODEL: 513-149v2

ATOMIC DIGITAL

WALL CLOCK

1. Insert 2-AA batteries into your Temperature Sensor.

2. Insert 2-AA batteries into your Atomic Clock.

3. Once the sensor is reading your Clock, place the sensor outside.

Watch our sensor mounting video: bit.ly/th_sensor_mounting

TH Sensor

TX141 (all versions)

Power Up

Atomic Clock

513-149v2

The buttons are located at the top of your clock.

Buttons

ºF/ºC Hold to enter the Settings Menu.

Press to select Fahrenheit or Celsius Temperature display.

+ PLUS Settings Menu: Press to increase value. Hold to increase quickly.

Hold to search for Sensor

 MINUS Settings Menu: Press to decrease value. Hold to decrease quickly.

Hold to start or stop Atomic Time Signal search.

SNOOZE Press to Snooze Alarm for 10 minutes.

The Snooze Icon Zz will show.

ALARM Hold to enter Alarm Settings. Press to activate/deactivate alarm.

Alarm Icon will show when alarm is active.

Settings Menu

1. Hold the °F/°C button until the display changes to enter the Settings

Menu.

2. Press and release the +or -button to adjust values.

3. Pressand release the °F/°C button to confirm and move to next item.

4. Press the SNOOZE button anytime to exit.

Settings Menu Order:

•WWVB Reception

•Time Zone

•Daylight Saving Time ON/OFF

•12/24 Hour Time Format

•Hour

•Minutes

•Year

•Month

•Date

WWVB OFF: When WWVB OFF is selected, you will skip to 12/24 Hour

Time setting

Weekday: The Weekday will set automatically when your Year, Month and

Date are set.

Time Zones

AST = Atlantic

EST = Eastern

CST = Central

MST = Mountain

PST = Paciﬁc

AKT = Alaska

HAT = Hawaii

Atomic Time

Fahrenheit or Celsius

Press and release the °F/°C button to select Fahrenheit or Celsius

Temperature Display.

•Your Clock will automatically search for the Atomic Time Signal at UTC

7:00, 8:00, 9:00, 10:00, and 11:00.

•Press the MINUS (-) button to manually start or stop search for the WWVB

Atomic Time Signal.

•While searching, the Tower Icon will ﬂash. The Tower Icon will be solid

when the WWVB Signal is received by your clock.

•For information about WWVB Atomic Time visit: bit.ly/atomic_time

TIME ALARM

Set Alarm:

1. Hold the ALARM button to enter the Alarm Settings Menu. “AL” will show

in the weekday area.

2. Use the + or - button to adjust the ﬂashing values.

3. Press the ALARM button to conﬁrm and move forward.

Activate/Deactivate Alarm:

1. Press the ALARM button to view alarm time.

2. Press and release the ALARM button again to activate or deactivate the

alarm. The Alarm Icon will show only when alarm is active.

Silence a sounding alarm:

Press any button except SNOOZE to silence alarm for 24 hours.

Snooze:

When the alarm sounds, press the SNOOZE button to silence the alarm

for 10 minutes. Zz will show next to the Bell Icon.

Note: The alarm will sound with increasing frequency for two minutes,

then shut off completely if not deactivated.

The arrows next to the temperature readings indicate if the temperature or

humidity is rising, falling. This will update every 30 minutes. Arrow changes

every 2 degrees Fahrenheit.

Temperature & Humidity Trend Arrows

Temperature rose over

the past 3 hours

Temperature is unchanged

over the past 3 hours

Temperature fell over

the past 3 hours

Low Battery Icons

Low Battery Icon by Indoor Temperature, replace batteries in the Clock.

Low Battery Icon by Outdoor Temperature, replace batteries in the

Outdoor Sensor.

If you are seeing dashes for any sensor readings, please try the

following steps:

1. Hold the PLUS (+) button to search for your outdoor sensor.

The Reception Indicator will begin to animate.

2. If after 3 minutes the sensor still isn’t connected, bring the sensor inside

next to the display and remove power from the sensor and station.

3. Press any button on the station 20 times and leave the parts sit for a few

moments with the power o.

4. Install a new set of alkaline batteries into the sensor, then power up your

station again.

5. If your sensor data is still not appearing after these steps, please contact

our support sta. For additional help visit: bit.ly/basic_restart

Search for Sensors

Sensor Placement & Mounting

For Accurate Temperature/Humidity Measurements

•Insert a mounting screw through the hole at the top to securely mount

the sensor. It can also hang from the back using a nail.

•Mount the sensor vertically in a protected well-shaded area. Keeping

it out of direct weather elements such as sunlight, rain, snow, etc. will

help avoid inaccurate readings.

•For additional protection against weather elements, a Sensor Weather

Shield: bit.ly/weather-shield can be purchased separately.

•The maximum wireless transmission range to the station is up to 330ft

(100m) in open air. This does not include walls, ﬂoors, or other large

obstructions.

•For online video instructions, visit: bit.ly/th_sensor_mounting

Atomic Clock (513-149v2)

Temperature Range: 32ºF to 122ºF (0ºC to 50ºC)

Update Interval: About every 30 seconds

Power: 2-AA, IEC, LR6 batteries (not included)

Speciﬁcations

Temp. Sensor (TX141 all versions)

Temperature Range: -40°F to 140°F (-40°C to 60°C)

Transmission Range: Over 330 feet (100 meters) in

open air RF 433MHz

Update Interval: About every 51 seconds

Power: 2-AA, IEC, LR6 batteries (not included)

Battery Life: Over 12 months

If you require additional assistance, get in touch with our

friendly customer support team based in La Crosse, WI.

Self Help: bit.ly/513-149v2_support

Online: bit.ly/contact_techsupport

Phone: 1.608.782.1610

Our knowledgable customer support team is available:

Mon-Fri 8am-6pm CST

We’re Here to Help SCAN HERE

Additional Info

and Support

Ask questions, watch setup videos, and provide feedback on our social media

outlets. Follow La Crosse Technology on YouTube, Twitter, Facebook and Instagram.

Stay in Touch!

Warranty & Patents

La Crosse Technology, Ltd. provides a 1-year limited time warranty

(from date of purchase) on this product relating to manufacturing defects in materials

& workmanship.

La Crosse Technology, Ltd, 2830 S. 26th St., La Crosse, WI 54601

For Full Warranty Details, Visit:

www.lacrossetechnology.com/pages/warranty

Patents: www.lacrossetechnology.com/pages/patents

Designed in La Crosse, Wisconsin •Made in China •Printed in China •DC021723

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

Caution!

Any changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user’s authority

to operate the equipment.

mechanical or chemical process without the written permission of the publisher. This booklet may contain errors or misprints.

The information it contains is regularly checked and corrections are included in subsequent editions. We disclaim any

responsibility for any technical error or printing error, or their consequences. All trademarks and patents are recognized.

The manufacturer is not responsible for any radio or TV interference caused by unauthorized changes or modiﬁcations to this

equipment. Such changes or modiﬁcations could void the user authority to operate the equipment.

FCC Statement

Care & Maintenance

When batteries of dierent brand or type are used together, or new and old batteries are used together, some batteries may

be over-discharged due to a dierence of voltage or capacity. This can result in venting, leakage, and rupture and may cause

personal injury.

•Do not mix Alkaline, Lithium, standard, or rechargeable battteries.

•Always purchase the correct size and grade of battery most suitable for the intended use.

•Always replace the whole set of batteries at one time, taking care not to mix old and new ones, or batteries of dierent

types.

•Clean the battery contacts and also those of the device prior to battery installation.

•Ensure the batteries are installed correctly with regard to polarity (+ and -).

•Remove batteries from product during periods of non-use. Battery leakage can cause corrosion and damage to this

product.

•Remove used batteries promptly.

•For recycling and disposal of batteries, and to protect the environment, please check the internet or your local phone

directory for local recycling centers and/or follow local government regulations.

This product can expose you to chemicals including acrylonitrile, butadiene, and styrene, which are known to the State of

California to cause cancer and birth defects or other reproductive harm. For more information, go to:

www.P65Warnings.gov

CA WARNING:

DOUBLE YOUR WARRANTY

Scan Here

Scan the QR Code or visit:

bit.ly/513-149v2_register

to register your product and double the

standard 1-year warranty fo free by opting

to recieve occasional product emails.
