La Crosse Technology WS-8236U-AL Manuel utilisateur

Hanging holes

WS-8236U

ATOMIC CLOCK WITH TEMPERATURE, HUMIDITY AND

MOON PHASE

Instruct on Manual

FEATURES:

ATOMIC CLOCK:

• WWVB Radio controlled time with manual time setting

• Time display: hour, minute, second

• Alarm setting with snooze function

• omplete calendar display

• Weekday display (3 languages to choose from: English, French and Spanish)

• Time zone setting

• Daylight savings time ON/OFF option (DST)

• Indoor temperature display

• Indoor humidity display

• Wall mount or freestanding

• Moon phase display

L D2

display

L D1

display

Function keys

Foldable stands

Battery cover

TO INSTALL AND REPLACE BATTERIES IN THE ATOMIC CLOCK

The atomic clock uses 3 x AA, 1.5V batteries. To install and replace the batteries, please follow

the steps below:

1. Pull down on the tab at the top of the battery cover and lift up to remove the cover.

2. Insert batteries observing the correct polarity (see marking inside battery compartment).

3. Replace compartment cover.

DO NOT SET THE CLOCK.

SETTING UP:

Alkal ne batter es are recommended for use. Avo d us ng rechargeable

batter es.

1. Place batteries in the atomic clock. DO NOT PRESS ANY BUTTONS FOR 15 MINUTES.

2. After 15 minutes the indoor area on your clock should have a temperature and humidity

showing. If not, remove batteries, wait 15 minutes and repeat step one.

3. After the clock receives the WWVB time code reception will automatically start. This

reception typically takes between 5-10 minutes in good conditions. If after 15 minutes the

WWVB time has not been received, use the “SET” key to manually enter the set-up mode

and change either the time or date in order to activate the WWVB reception (see manual

settings below). The clock will then automatically attempt to receive the WWVB time from

12:00 am through 6:00 am each day (attempts WWVB reception every full hour within this

time frame). When this is successful, the received time will override the manually set time.

The date is also updated with the received time (Please refer to notes on “Rad o controlled

t me” and “Manual t me sett ng”).

4. After the time signal has been received or the search mode has been manually stopped the

indoor temperature will be displayed.

Note:

When changing batteries in the unit, ensure that the batteries do not spring free from the contacts.

Always wait at least 15 minutes after removing the batteries before reinserting, otherwise start up

problems may occur.

FUNCTION KEYS

The atomic clock has four easy to use keys:

SET key : To enter into the set mode for the following functions: L D contrast, time zone,

DST ON/OFF (daylight saving time), radio-controlled time ON/OFF, language,

hour, minute, year, month and date.

Indoor humidity

and temperature

Second

Display

+ key : To change any values in manual set mode or alarm set mode

ALM key : To enter into the alarm set mode

To set the alarm ON/OFF

To display the alarm time in normal mode display

To exit the setting modes

SNZ key : To activate the snooze function during alarm

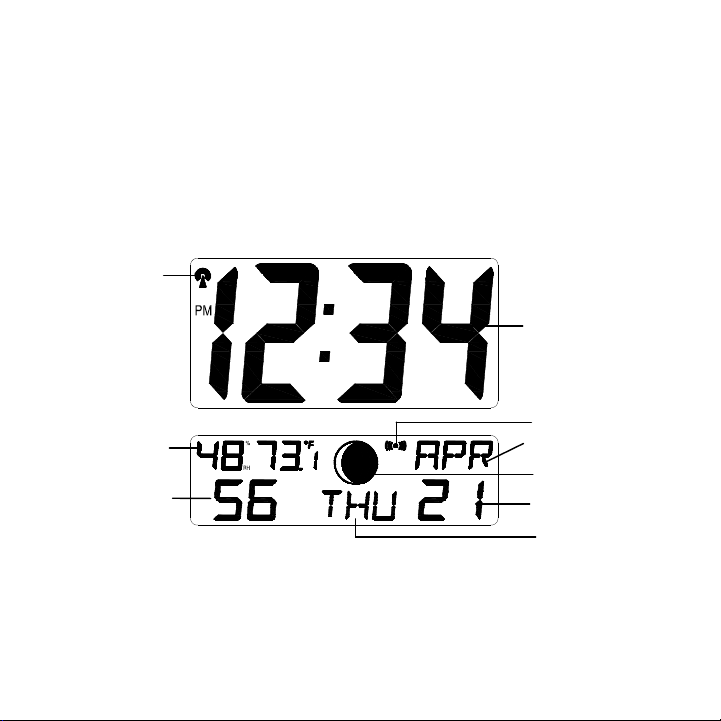

ATOMIC CLOCK LCD SCREEN DESCRIPTIONS

The atomic clock's L D is divided into 2 sections and once the batteries are inserted, all the

segments will light up briefly before displaying the information for time, date, indoor temperature,

indoor humidity, and second.

MANUAL SETTINGS

Note:

If the atom c clock has already successfully rece ved the WWVB t me s gnal and d splays

the correct t me and date, then the Manual sett ngs can be sk pped.

WWVB time

Radio

reception icon

Weekday

Date

Alarm icon

Month

Moon Phase Display

After completion of the above described procedures in “Sett ng up” the manual setting modes

can be entered by pressing and holding the SET key for 5 seconds. The following settings can

now be programmed:

Default (Factory) Setting

• L D contrast setting 4

• Time zone setting -5 (Eastern Standard Time)

• DST ON/OFF ON

• Radio-controlled time ON/OFF ON

• Language display setting ENG (English)

• Manual time setting (Hour then Minute) 12 (hour), 00 (minute)

• Year setting 2004

• Month setting Jan (January)

• Date setting 1

LCD CONTRAST SETTING

After entering the manual setting mode as described above, the L D contrast can be set between

0 and 7.

1. Press and hold the SET key for 5 seconds.

2. L D will be displayed in the lower display and a number will flash to the right of the word

L D.

3. Press and release the + key to select the desired L D contrast.

4. Press and release the SET key to confirm the L D contrast and continue to the Time Zone

setting.

TIME ZONE SETTING

The time zone can be set between the –1 to –12 hour or Greenwich Mean Time (GMT) range.

1. The time zone will start flashing (Default setting "-5h“) in the lower L D display.

2. Press and release the + key to select the desired time zone.

3. Press and release the SET key to confirm the time zone setting and continue to the DST

(Daylight Saving Time) setting.

Note: The time zones from –4 to –10 hours will be displayed with 3 characters abbreviations:

• -4 ATL (Atlantic time),

• -5 EST (Eastern time; default time zone),

• -6 ST ( entral time),

• -7 MST (Mountain time),

• -8 PST (Pacific time),

• -9 ALA (Alaska time),

• -10 HAW (Hawaii time).

• "GMT” will be displayed if set to GMT (0).

DST SETTING (dayl ght sav ng t me)

1. The word ON will start flashing in the lower L D display.

2. Press and release the + key to select DST ON or OFF.

3. Press and release the SET key to confirm the DST setting and continue to the Radio-

controlled time setting.

Note: The DST default is “ON”, meaning that the WWVB will automatically change the time

according to Daylight Saving Time in the spring and fall. For areas that do not recognize

DST changes (Arizona and parts of Indiana) turn the DST “OFF”.

RADIO-CONTROLLED TIME SETTING

1. The word ON will start flashing in the lower L D display.

2. Press and release the + key to select radio-controlled time ON or OFF.

3. Press and release the SET key to confirm the radio-controlled time setting and continue to

the Language setting.

Note: Turn off the radio-controlled time feature only if you DO NOT want the clock to

automatically update itself.

LANGUAGE SETTING

The weekdays can be displayed in L D2 with the pre-set languages: US English (ENG), French

(FRA) and Spanish (ESP).

1. LAN will be displayed in the lower L D along with one of the three letter language

abbreviations.

2. Press and release the + key to select the desired language.

3. Press and release the SET key to confirm the language setting and enter the Manual Time

setting mode.

MANUAL TIME SETTING

In case the atomic clock is not able to detect the WWVB-signal (disturbances, transmitting

distance, etc.), the time can be manually set. The clock will then work as a normal Quartz clock.

1. The hour digits will start flashing in the upper L D.

2. Select the desired hours by pressing and releasing the + key.

3. Press and release the SET key to advance to the minutes setting.

4. Now the minute digits will start flashing.

5. Select the desired minutes by pressing and releasing the + key. If the + key is held, the units

will increase by 5.

6. Press and release the SET key to confirm the Time setting and continue to the Year setting.

Note:

The unit will still try to receive the signal every day despite it being manually set. When it does

receive the signal, it will change the manually set time into the received time. During reception

attempts the WWVB tower icon will flash. If reception has been unsuccessful, then the WWVB

tower icon will not appear but reception will still be attempted the following hour.

WWVB time reception takes place from 12:00 am through 6:00 am each day (attempts WWVB

reception every full hour within this time frame). When the time signal is received for example at

1:00 am, the atomic clock will not attempt to receive the WWVB signal for the remaining hours

until 6:00 am. Therefore, the next signal attempt will take place between 12:00 am and 6:00 am

the next day. The other times WWVB reception takes place, are upon setup and after manual time

set exiting mode. Reception is generally not possible during daylight hours due to the interference

of the sun.

YEAR SETTING

The year can be selected sequentially from 2003 to 2029 and will then start over again (default

setting 2004). None of the digits of the year will be visible on the lower L D display however the

year must be correct as it affects the day of the week display.

1. The year digits will start flashing in the lower L D.

2. Press and release the + key to select the desired year.

3. Press and release the SET key to confirm the Year setting and continue to the Month

setting.

MONTH SETTING

1. The month digits on L D2 will start flashing.

2. Press and release the + key to select the desired month.

3. Press and release the SET key to confirm the Month setting and continue to the Date

setting.

DATE SETTING

1. The digits for the date will start flashing in the lower L D (Default setting 1).

2. Press and release the + key to select the desired date.

3. Press and release the SET key to confirm the Date setting and exit the manual setting

mode.

Note: The date can only be set in conjunction with the selected month. For example, it is not

possible to set the date 30 if the month of February is selected.

EXIT THE MANUAL SETTING MODES

• To return to the normal display mode from anywhere in manual setting mode simply press

the ALM key at anytime.

•

If no keys are pressed for at least 15 seconds in setting mode, the atomic clock will

automatically switch back to normal display mode.

ALARM SETTING

To enter into the alarm setting mode:

1. Hold the ALM key for 5 seconds. The hour digits start flashing.

2. Press and release the + key to set the hour.

3. Press and release the ALM key to continue to the minutes setting.

4. The minute digits start flashing.

5. Press and release the + key to set the minutes.

6. Press and release the ALM key to exit the Alarm setting mode or wait for 15 seconds for the

clock to automatically timeout and return to the standard display mode.

TO DEACTIVATE THE ALARM:

The alarm will be automatically switched ON when the alarm time is set. To deactivate the alarm

(OFF), press and release once the ALM key in normal mode display. The alarm icon will

disappear, the alarm is now off.

SNOOZE SETTING

The snooze can only be activated during alarm time for a snooze duration of 10 minutes by

pressing the SNZ key.

Alarm icon (((

•

))) (ON)

WWVB RADIO CONTROLLED TIME

The NIST radio station, WWVB, is located in Ft. ollins, olorado and transmits the exact time

signal continuously throughout the United States at 60 kHz. The signal can be received up to

2,000 miles away through the internal antenna in the atomic clock. However, due to the nature of

the Earth’s Ionosphere, reception is very limited during daylight hours. The atomic clock will

search for a signal every night when reception is best. The WWVB radio station derives its signal

from the NIST atomic clock in Boulder, olorado. A team of atomic physicists continually

measures every second of every day to an accuracy of ten billionths of a second a day. These

physicists have created an international standard, measuring a second as 9,192,631,770

vibrations of a esium 133 atom in a vacuum. This atomic clock regulates the WWVB transmitter.

The WWVB tower icon in the clock display will start flashing in the top center of the L D. This

indicates that the clock has detected a radio signal and is trying to receive it. When the time code

is received, the WWVB tower becomes permanently lit and the time will be displayed.

If the tower icon flashes, but does not set the time or the WWVB tower does not appear at all, then

please take note of the following:

• Recommended distance to any interfering sources like computer monitors or TV sets is a

minimum of 6 feet (2 meters).

• Within ferro-concrete rooms (basements, superstructures), the received signal is naturally

weakened. In extreme cases, please place the unit close to a window and/ or point its front or

back towards the Fort ollins, olorado, transmitter.

• During nighttime, the atmospheric disturbances are usually less severe and reception is

possible in most cases. A single daily reception is adequate to keep the accuracy deviation

below 1 second.

Note:

In case the atomic clock is not able to detect the WWVB-signal (disturbances, transmitting

distance, etc.), the time can be manually set (please refer to notes on Manual t me sett ng).

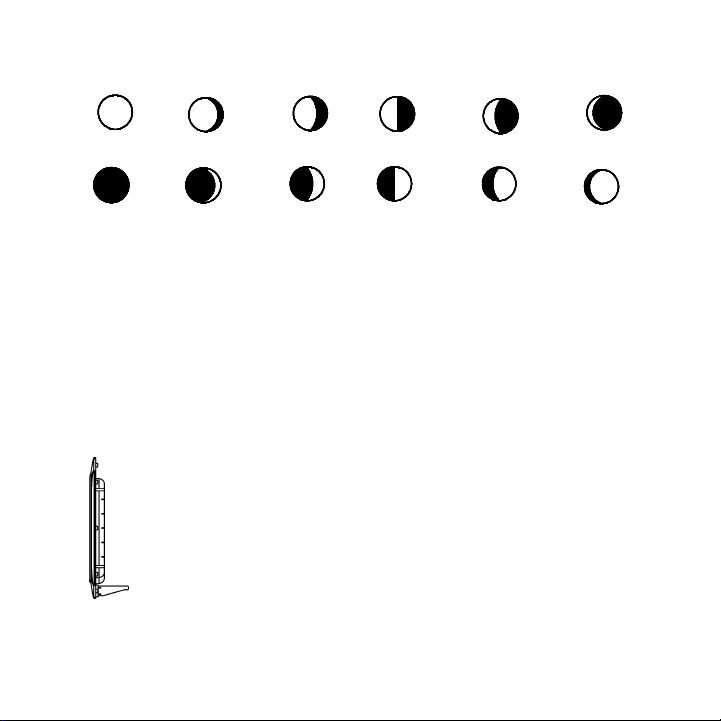

MOON PHASE

The moon phases appear in the middle of the lower L D. There are 12 visible Moon Phases that

will show in the L D:

MOON PHASES FOR THE WS-8236U

New Moon Small Wax ng Large Wax ng F rst Quarter Small Wax ng Large Wax ng

Crescent Crescent G bbous G bbous

Full Moon Large Wan ng Small Wan ng Last Quarter Large Wan ng Small Wan ng

G bbous G bbous Crescent Crescent

POSITIONING

Before permanently mounting ensure that the atomic clock is able to receive WWVB signals from

the desired location. Also, extreme and sudden changes in temperature will decrease the

accuracy of the atomic clock, and changes in elevation will result with inaccurate temperatures

readings for the next 12 to 24 hours. These changes will require a 12 to 24 hour wait before

obtaining reliable data.

POSITIONING THE ATOMIC CLOCK:

There are two possible ways to mount the atomic clock:

• use of the foldout table stands, or

• wall mounting

FOLDOUT TABLE STAND

The foldout table stand legs are located on the backside, at the lower corners, just

below the battery cover. The hinges are towards the edges of the atomic clock, and

the ends (with no hinge) need to be folded out towards the edge. Once the foldout

table stands are extended, place the atomic clock in an appropriate location.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels La Crosse Technology Horloge

La Crosse Technology

La Crosse Technology WT-3181PL-Q Manuel utilisateur

La Crosse Technology

La Crosse Technology 404-1225 Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3181 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-8017U-MAH Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3161 Guide d'installation

La Crosse Technology

La Crosse Technology 513-1417V2 Dimensions

La Crosse Technology

La Crosse Technology WS-8157U-IT Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-6002U Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-8002UV2 Dimensions

La Crosse Technology

La Crosse Technology 513-1918B Manuel utilisateur

La Crosse Technology

La Crosse Technology 404-1220 Manuel utilisateur

La Crosse Technology

La Crosse Technology 513-1417ALv4 Manuel utilisateur

La Crosse Technology

La Crosse Technology 404-1235UA-PL Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-8001U Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3132LCD Manuel utilisateur

La Crosse Technology

La Crosse Technology C86279 Manuel d'utilisation et d'entretien

La Crosse Technology

La Crosse Technology WT-3181PLX1 Dimensions

La Crosse Technology

La Crosse Technology WT-5120 433 Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3161WH Manuel utilisateur

La Crosse Technology

La Crosse Technology 404-3942 Manuel utilisateur

La Crosse Technology

La Crosse Technology Payton 404-3015CC Manuel utilisateur

La Crosse Technology

La Crosse Technology 404-3051 Manuel utilisateur

La Crosse Technology

La Crosse Technology 83193-BHG Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-8002U-B Dimensions

Manuels Horloge populaires d'autres marques

Silicon Laboratories

Silicon Laboratories SI5324 Manuel utilisateur

Heathkit

Heathkit GC-1005 Manuel utilisateur

Oregon Scientific

Oregon Scientific PRYSMA RMR221P Manuel utilisateur

Andrew O'Malley

Andrew O'Malley DOTKLOK Manuel utilisateur

ALGE-Timing

ALGE-Timing ASC3 Manuel utilisateur

Bodet

Bodet Profil 960 Manuel utilisateur

Nixie Clock

Nixie Clock Divergence Meter Manuel utilisateur

Mini Gadgets

Mini Gadgets MCPro Manuel utilisateur

Casio

Casio TMR-200 Manuel utilisateur

Progetti

Progetti ILTEMPOSTRINGE Manuel

BVItech

BVItech BV-101 Manuel utilisateur

Progetti

Progetti KALIMERO Manuel

Sharp

Sharp SPC900 Manuel utilisateur

Datexx

Datexx DF0063 Manuel utilisateur

LG LEC-005 Manuel utilisateur

IKEA

IKEA ROTBLÖTA Manuel utilisateur

U-Line

U-Line Н-2811 Manuel utilisateur

Digiview

Digiview RC305EL Manuel utilisateur
