SET UP GUIDE

MODEL: 616-1410 / 616-12667

616-1410v2 / 616-12667v2

Atomic Projection Clock

with Indoor/Outdoor Temperature

AAA

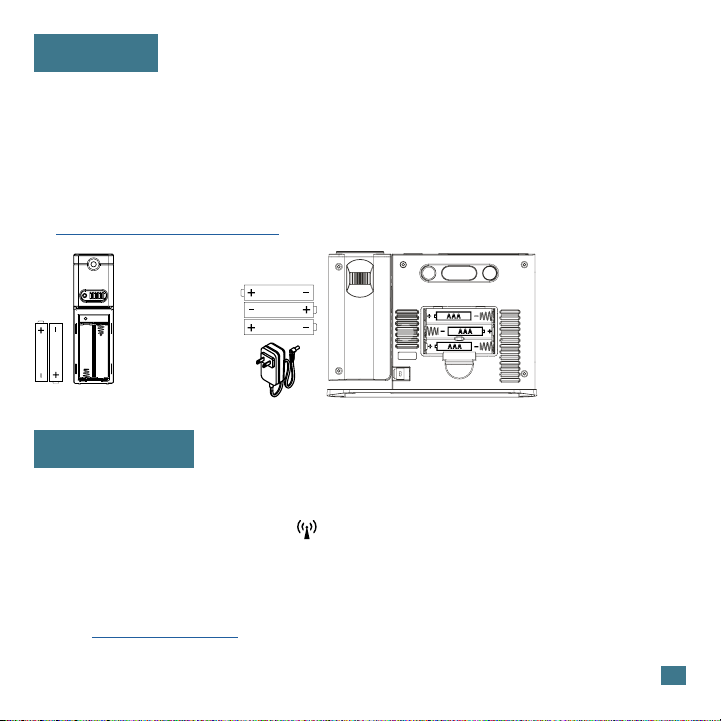

1. Insert 2-AA batteries into your Outdoor Sensor.

2. Insert the 5 volt power cord into an outlet, then into your Projection

Clock. Optional: Insert 3-AAA batteries for backup.

3. Set time, date, etc.

4. Once the sensor is reading to your clock, place the sensor outside in a

shaded location. View our sensor mounting video here:

bit.ly/th_sensor_mounting

• The clock will search for the Atomic Time Signal at power up and at UTC

7:00, 8:00, 9:00, 10:00, and 11:00.

• The Atomic Time Signal Icon will ﬂash while searching and be solid

when it has connected.

• From the normal time display, press the SET button to manually start or

stop a search for the WWVB time signal. For information about WWVB

visit: bit.ly/AtomicTime

Note: The Backlight will be o temporarily while searching for the WWVB time signal.

Power Up

Atomic Time

TX141-Bv3

or TX141-Bv4

Outdoor Sensor

616-1410 / 616-12667

616-1410v2 / 616-12667v2

Projection Clock

Settings Menu

TIME ZONE

ATLANTIC

EASTERN

CENTRAL

MOUNTAIN

PACIFIC

ALASKA

HAWAII

IMPORTANT: Only press or hold one button at a time.

1. Hold the SET button until the display changes to enter the Settings

Menu.

2. Press and release the +/- buttons to adjust values.

3. Press and release SET to conﬁrm values.

4. Press and release the SNOOZE/LIGHT button at any time to save and

exit.

Settings Menu Order:

• Language (English, Spanish, French, German)

• Beep ON/OFF

• Atomic ON/OFF

• DST Settings:

DST AUTO ON (Changes Spring and Fall)

DST ALWAYS OFF (No change in Spring)

DST ALWAYS ON (No change in Fall)

• Time Zone

• 12/24 Format

• Hour

• Minutes

• Year

• Month

• Date

• Month/Date or Date/Month

• Fahrenheit/Celsius

Backlight

• Press the SNOOZE/LIGHT button to adjust the backlight to adjust the

backlight intensity. There are 4 levels, plus an o option.

Auto Dim

Program your display to automatically dim during preselected times.

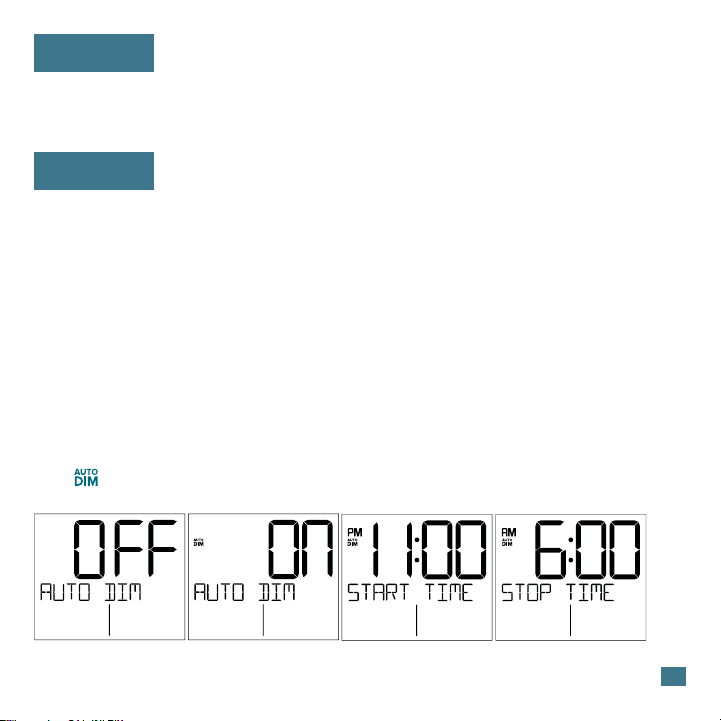

1. Hold the SNOOZE/LIGHT button to enter the Auto-Dim Settings Menu.

2. Press the +/- buttons to turn the Auto-Dim feature on or o. Press

SNOOZE/LIGHT to conﬁrm.

3. Press the +/- buttons to adjust the starting hour. Press SNOOZE/LIGHT to

conﬁrm.

4. Press the +/- buttons to adjust the stopping hour. Press SNOOZE/LIGHT

to conﬁrm and exit.

The icon will appear on the LCD when the Auto-Dim feature activated.

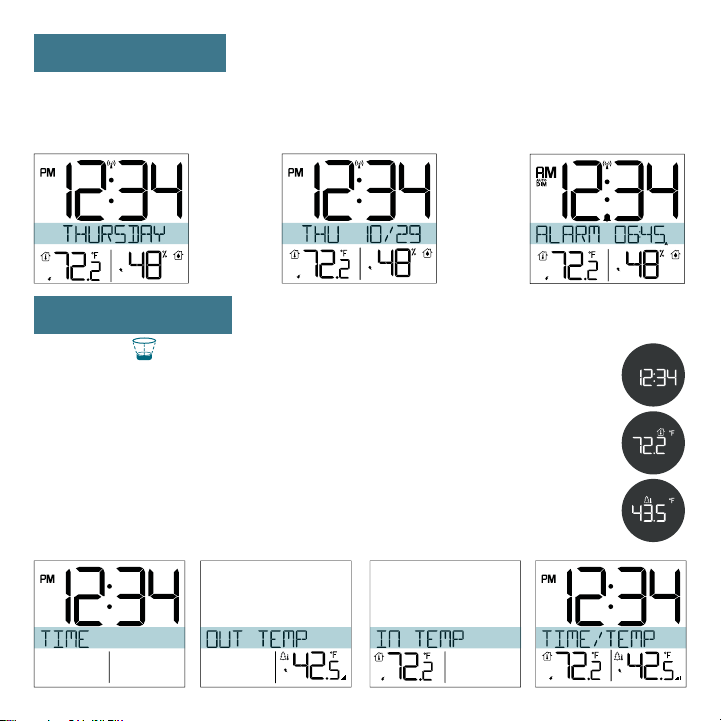

Custom Display

Press the CALENDAR button to change the middle section of your display.

Choose between full weekday, abbreviated weekday with date, or alarm

time.

Projection Image

1. Hold the button to enter the Projection Settings

2. Use the +/- buttons to change projection selection.

3. Projection image will stay on last option selected.

Projection Options:

• Time only

• Indoor Temp only

• Outdoor Temp only

• Alternate Time + Indoor Temp + Outdoor Temp

Projection Brightness & Rotation

Brightness:

Press the button to change the Projection Brightness (High, Low, or O).

Rotation:

Use the Rotation Wheel on the back of the projection arm

to change the projection orientation 270 degrees.

Tilt The Projection Arm:

The Projection Arm can tilt forward and backward to adjust the

location of the projection image on a wall or ceiling.

Time Alarm

Set Alarm:

1. Hold the ALARM button to enter the Alarm Settings Menu.

2. Use the +/- buttons to adjust the ﬂashing values.

3. Press the ALARM button to conﬁrm and move forward.

Note: The alarm will activate after being set, indicated by the Alarm Icon .

The Alarm Time will also remain on screen until the CALENDAR button is

used to switch back to a calendar display.

Activate/Deactivate Alarm:

Press the ALARM button to activate or deactivate the alarm and view your

alarm time. The Alarm Icon will show only when alarm is active. 6

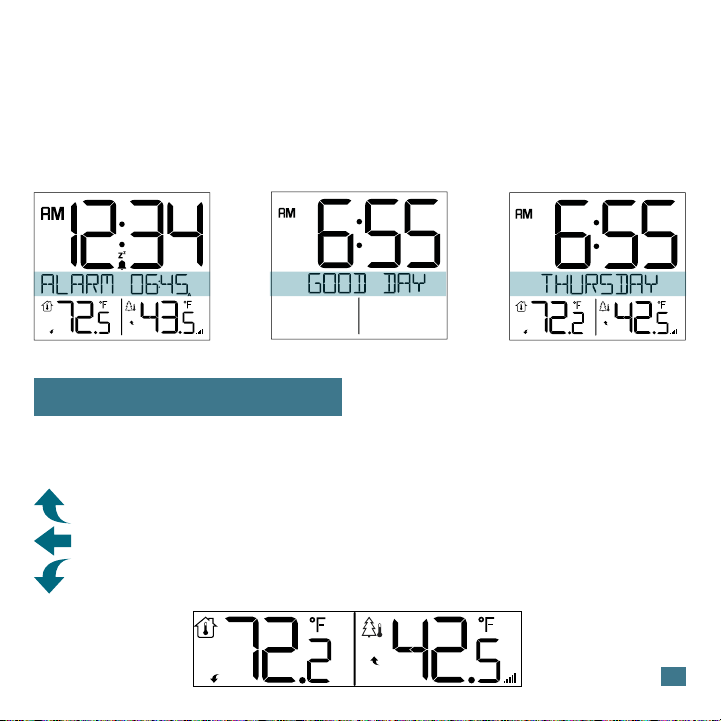

Snooze:

• When alarm sounds, press the SNOOZE button to silence alarm for 10

minutes. The Snooze Icon Zz will ﬂash.

• Press any button except SNOOZE to silence the alarm for 24 hours.

• When alarm ends by button press or time out after 2 minutes, GOOD DAY

will show brieﬂy then return to normal time display.

Temperature Trend Arrows

Both the Indoor and Outdoor temperature have Trend Arrows to indicate

temperature changes (2°F / 1°C) over the past one hour period.

Temperature has risen over the past one hour.

Temperature has been steady over the past one hour.

Temperature has fallen over the past one hour.

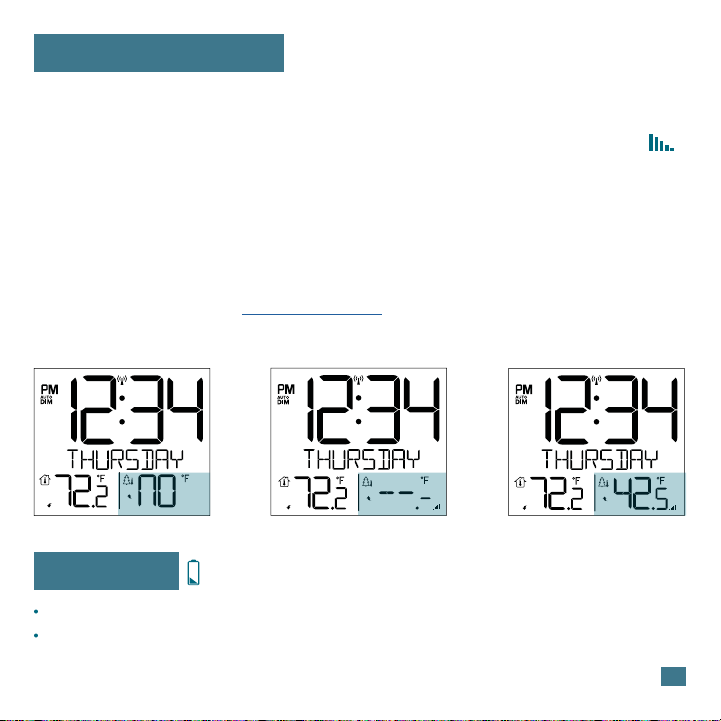

Outdoor Temperature

If you are seeing NO or dashes for your outdoor readings, please try the following

steps:

1. Hold the +button to search for your outdoor sensor. The Reception Indicator

will begin to animate.

2. If after 3 minutes the sensor still isn’t connected, bring the sensor inside next to

the display and remove power from both the sensor and clock.

3. Press any button on the clock 20 times and leave the parts sit for a few moments

with the power o.

4. Install a new set of alkaline batteries into the sensor, then into your clock.

For additional help visit: bit.ly/basic_restart

5. If your outdoor data is still not appearing after these steps, please contact our

support sta via the links below

Low Battery

By the Indoor Temp, replace clock batteries.

By the Outdoor Temperature, replace sensor batteries.

Speciﬁcations

Projection Clock (616-1410/616-12667) or

(616-1410v2/61612667v2)

Temperature Range: 32°F to 99°F

(0°C to 37°C)

Power Requirements: 5 volt Power cord

AC6: GPU280500150WAOO

Optional: 3-AAA LR3, IEC, batteries for

backup (not included)

The plug on the power adapter is intended to serve as the

disconnect device, the socket-outlet shall be installed near

the equipment and shall be easily accessible.

Dimensions: 5.83” L x 1.61” L x 4.06” H

(14.8cm L x 4.1cm W x 10.3cm H)

Outdoor Sensor (TX141-Bv3 or TX141-Bv4)

Temperature Range: -40°F to 140°F

(-40°C to 60°C)

Transmission Range: Over 330 ft. open air

(100 meters) RF 433MHz

Update Interval: About every 51 seconds

Power: 2-AA, IEC, LR6 batteries

(not included)

Battery Life: Over 12 months

Dimensions: 1.57” L x 0.79” W x 5.12” H

(4.0cm L x 2.0cm W x 13.0 H cm)

Designed in La Crosse, Wisconsin •Made in China •Printed in China •DC 060122
