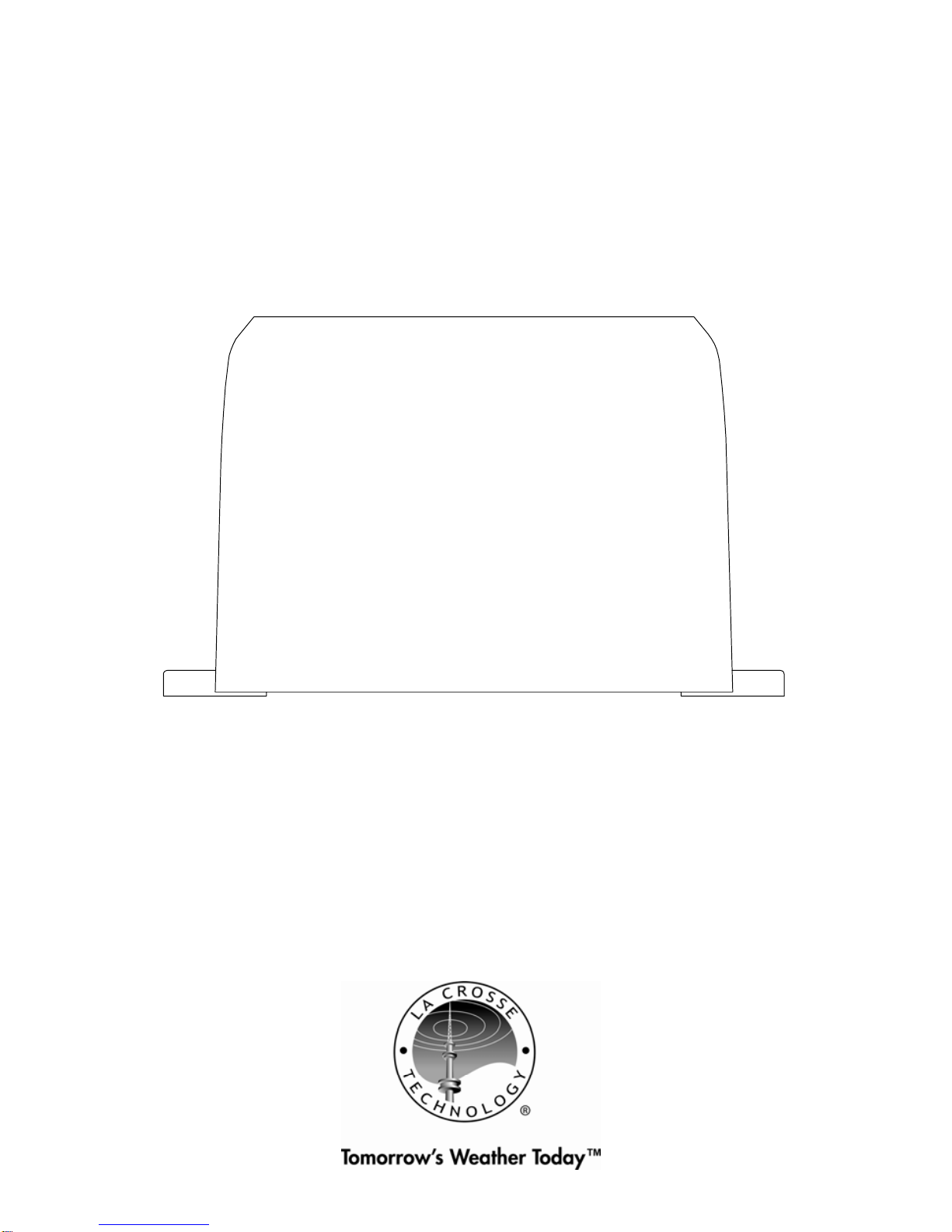

La Crosse Technology TX24U Manuel utilisateur

TX24U

915MHz

WIRELESS RAIN GAUGE

INSTRUCTION MANUAL

SETTING UP

Hint: Use good quality Alkaline Batteries; avoid rechargeable

batteries.

1. Have the receiver and the rain gauge 3 to 5 feet apart.

2. Place the batteries into the rain gauge FIRST and next into

the receiver. Observing the correct polarization, insert 2 “AAA”

Alkaline Batteries into the compartment at the back of the rain

gauge and replace the cover. Follow the same guidelines for

the receiver.

Rain Gauge

Cove

Press tabs back to

unlock Rain Gauge cover

Lift Rain Gauge cover to

access battery compartment

Remove battery cover

and insert batteries

3. DO NOT PRESS ANY BUTTONS FOR 15 MINUTES.

4. Place the rain gauge in an appropriate location. The rain

gauge should be placed in a secure and flat location where it

can properly collect properly rain quantity without obstruction.

The rain gauge has a range of 330 feet. Keep in mind that the

330 feet is in open air with no obstructions and that radio

waves DO NOT curve to go around objects. Real-world

transmission range will vary depending on what is in the path

of the signal. Each obstruction (roof, walls, floors, ceilings,

thick trees, etc.) will effectively cut signal range in half.

Example: A wireless rain gauge receiver with a 330 feet

range is mounted on an interior wall, so that the signal has to

pass through one interior wall, one exterior wall, and across

the 10 feet width of the room between the 2 walls. The first

wall will reduce the range to 165 feet, and the second wall will

reduce the range to 87 feet. Factoring in the 10 foot room, this

leaves a maximum of 77 feet of remaining signal range.

This allowance is typically enough for a frame wall with non-

metallic siding; however certain materials can reduce range

even further. Metal siding, stucco, and some types of glass

can reduce signal range by as much as ¾ or more, compared

to the ½ reduction typical of most obstructions. It is possible to

receive a signal through these materials, however maximum

range will be much less due to their tendency to absorb or

reflect a much larger portion of the sensor’s signal.

Note:

When opening the battery cover make sure that the batteries do

not spring free from the contacts since this will cause start and

transmission problems.

Battery Change:

It is recommended to replace the batteries in the unit

approximately every 3 years to ensure optimum accuracy.

MOUNTING

Positioning the Rain Gauge

Position the connected rain gauge outdoor to collect rainfall data.

Ensure that the rain gauge is placed in a secure and flat location

where it can properly collect properly rain quantity without

obstruction. Ensure also that the rain gauge is securely mounted

at the appropriate location otherwise it may not transmit accurate

rainfall data.

The rain gauge must be level to transmit correct readings. It is

recommended to mount the rain gauge 3 feet or higher off of the

ground. Screw the rain gauge down snugly in the holes provided

(but not too tight as this will affect the accuracy of the gauge).

MAINTENANCE

•Avoid placing the units in locations prone to extreme

temperatures, vibration and shock since these may cause

damage and inaccurate readings.

•When cleaning the display and casing of the Wireless Rain

Gauge, use a soft damp cloth only. Do not use solvents or

scouring agents as they may mark the casing and LCD.

Holes

for screws

View

Side View

•Do not submerge the Wireless Rain Gauge in water.

•Immediately remove all low powered batteries to avoid leakage

and damage. Replace only with new batteries of the

recommended type.

•Please do not make any attempt to make any repairs to the

units. Return them to their original point of purchase for repair

by qualified personnel. Opening and tampering with the units

will invalidate the warranty.

LIABILITY DISCLAIMER

•The manufacturer and supplier cannot accept any

responsibility for any incorrect readings and any

consequences occurring should an inaccurate reading take

place.

•This product is not to be used for medical purposes or for

public information.

•This product is designed for strict home use as an indication of

rain quantities and is not 100% accurate. Readouts given by

this product should be taken only as an indication and not as

being totally accurate.

•The specifications of this product may change without prior

notice.

•This product is not a toy. Keep out of the reach of children.

•No part of this manual may be reproduced without written

consent of the manufacturer.

WARRANTY INFORMATION

La Crosse Technology, Ltd provides a 1-year limited warranty on this product against

manufacturing defects in materials and workmanship.

This limited warranty begins on the original date of purchase, is valid only on products purchased

and used in North America and only to the original purchaser of this product. To receive warranty

service, the purchaser must contact La Crosse Technology, Ltd for problem determination and

service procedures. Warranty service can only be performed by a La Crosse Technology, Ltd

authorized service center. The original dated bill of sale must be presented upon request as proof

of purchase to La Crosse Technology, Ltd or La Crosse Technology, Ltd’s authorized service

center.

La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as

stipulated herein, with new or reconditioned parts or products if found to be defective during the

limited warranty period specified above. All replaced parts and products become the property of La

Crosse Technology, Ltd and must be returned to La Crosse Technology, Ltd. Replacement parts

and products assume the remaining original warranty, or ninety (90) days, whichever is longer. La

Crosse Technology, Ltd will pay all expenses for labor and materials for all repairs covered by this

warranty. If necessary repairs are not covered by this warranty, or if a product is examined which is

not in need or repair, you will be charged for the repairs or examination. The owner must pay any

shipping charges incurred in getting your La Crosse Technology, Ltd product to a La Crosse

Technology, Ltd authorized service center. La Crosse Technology, Ltd will pay ground return

shipping charges to the owner of the product to a USA address only.

Your La Crosse Technology, Ltd warranty covers all defects in material and workmanship with the

following specified exceptions: (1) damage caused by accident, unreasonable use or neglect

(including the lack of reasonable and necessary maintenance); (2) damage occurring during

shipment (claims must be presented to the carrier); (3) damage to, or deterioration of, any

accessory or decorative surface; (4) damage resulting from failure to follow instructions contained in

your owner’s manual; (5) damage resulting from the performance of repairs or alterations by

someone other than an authorized La Crosse Technology, Ltd authorized service center; (6) units

used for other than home use (7) applications and uses that this product was not intended or (8) the

products inability to receive a signal due to any source of interference.. This warranty covers only

actual defects within the product itself, and does not cover the cost of installation or removal from a

fixed installation, normal set-up or adjustments, claims based on misrepresentation by the seller or

performance variations resulting from installation-related circumstances.

LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME LIABILITY FOR INCIDENTAL,

CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES ASSOCIATED WITH

THE OPERATION OR MALFUNCTION OF THIS PRODUCT. THIS PRODUCT IS NOT

TO BE USED FOR MEDICAL PURPOSES OR FOR PUBLIC INFORMATION. THIS

PRODUCT IS NOT A TOY. KEEP OUT OF CHILDREN’S REACH.

This warranty gives you specific legal rights. You may also have other rights specific to

your State. Some States do no allow the exclusion of consequential or incidental

damages therefore the above exclusion of limitation may not apply to you.

For warranty work, technical support, or information contact:

La Crosse Technology, Ltd

190 Main Street

La Crescent, MN 55947

Phone: 507.895.7095

Fax: 507.895.2820

e-mail:

support@lacrossetechnology.com

(warranty work)

sales@lacrossetechnology.com

(information on other products)

web:

www.lacrossetechnology.com

Questions? Please see:

www.lacrossetechnology.com/9004

processed using electronic, mechanical or chemical procedures without written permission of the publisher.

This handbook may contain mistakes and printing errors. The information in this handbook is regularly checked

and corrections made in the next issue. We accept no liability for technical mistakes or printing errors, or their

consequences.

All trademarks and patents are acknowledged.
