WS-2310-15 Wind Sensor

The WS-2310-15 wind sensor is used in conjunction with the WS-2310-16 rain sensor and WS-

2310-25 temperature/ humidity sensor to gather and transmit information to the WS-2300 series

wireless weather station. The WS-2310-15 wind sensor measures the wind speed and direction

and sends the information to the WS-2310-25 temperature/ humidity sensor. This sensor then

transmits all outdoor weather information from the three outdoor sensors to the display indoors.

INVENTORY OF CONTENTS

1. WS-2310-15 wind sensor

2. Mounting bracket

3. Mounting hardware

4. Instruction manual and warranty card

SETTING UP

First, choose to use the adaptor (included in this set) or batteries for operation. Both these

methods allow for operation using wireless 433MHz transmission or cable connection between

the base station and the sensors and setting up for both methods is as follows:

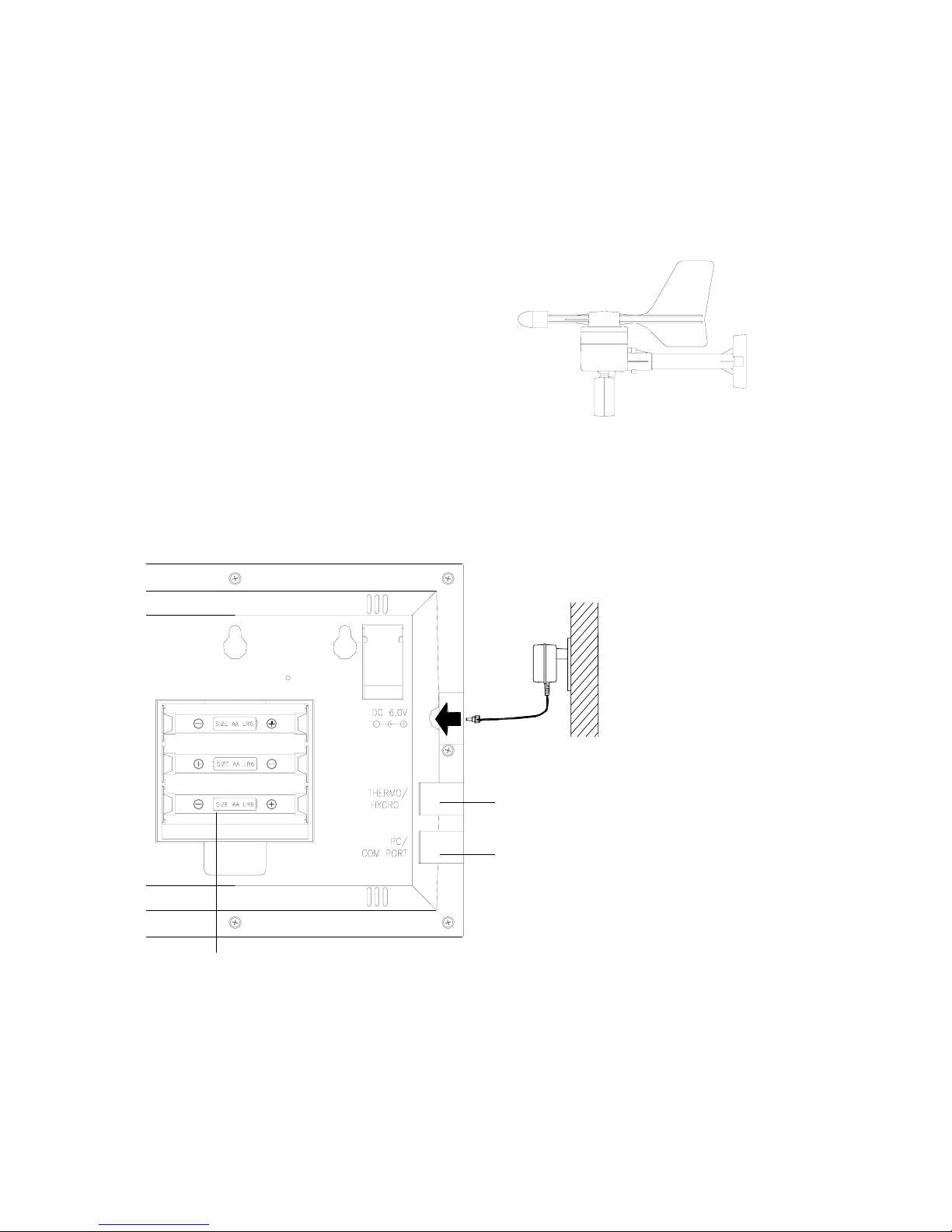

Base Station:

Battery compartment

Socket for

Thermo-Hygro

Sensor

Socket for

Adaptor

PC COM

Port

Setting up using batteries:

Important: To avoid operating problems, please take note of battery polarity if inserting any

batteries. Also do not press any buttons after start up until all sensor information has

been displayed and the radio controlled time has set. Doing so may interrupt

communication between the sensors and display or interrupt the WWVB time

reception.

1) Pull away the rain cover of the thermo-hygro sensor to reveal the

three sockets (for the wind sensor, rain sensor and the base

station)

2) Connect the attached cables of wind and rain sensors to the

corresponding sockets of the thermo-hygro sensor by clicking

them into place

3) Open the battery cover of the thermo-hygro sensor located

below the three sockets and insert 2 x AA, IEC LR6, 1.5V

batteries and close the cover

4) Open the base station’s battery cover located at the back of the

unit and insert 3 x AA, IEC LR6, 1.5V batteries into the battery

compartment and close the battery cover

Setting up using the AC adaptor:

1) Power up all the sensors as described in setting up using batteries above

2) Using the AC adaptor (included), plug it into the mains outlet and power up the base

station by inserting the adaptor jack into the DC 6.0V socket located on the side of the

base station

Every time the thermo-hygro sensor is powered up (for example after a change of batteries), a

random security code is transmitted and this code must be synchronized with the base station to

receive weather data.

When the base station is powered up, a short beep will sound and all LCD segments will light up

for about 5 seconds before it enters into a 15 minute learning mode to learn the sensors security

code. After the learning mode (or by pressing the MIN/MAX key at anytime), the base station will

start the WWVB radio controlled time reception.

Note for WWVB Radio Controlled Time:

The time and date display is based on the signal provided by the highly accurate government

operated atomic clock in Ft. Collins, Colorado. This radio-controlled clock does not only provide

for the weather station’s time and date display but also functions as the time and date source for

all of this weather station’s memory and history values using time and date information.

Sensor sockets

Thermo-Hygro Senso

Battery Cove

Battery

Compartment

Mounting the wind sensor onto a mast

Mast

Wind-vane

Wind-fan

First, check that the wind-fan and the wind-vane can rotate freely before mounting the unit. For

correct and accurate readings it is important to mount the sensor so that the front (marked E) is

pointing in East-West direction. The wind sensor should now be mounted using the screws

provided onto a mast to allow the wind to travel around the sensor unhindered from all directions

(ideal mast size should be from Ø.63” – Ø1.3”).

Once the wind sensor is fixed onto the mast, connect the cable to the corresponding thermo-

hygro sensor socket so that operating power can be supplied and data can be transmitted to the

base station.

MAINTENANCE AND CARE

1. Extreme temperatures, vibrations, and shock should be avoided to prevent damage to the

units

2. Clean displays and units with a soft, damp cloth. Do not use solvents or scouring agents, they

may mark the displays and casings

3. Do not submerge in water.

4. Do not subject the units to unnecessary heat or cold by placing them in the oven or freezer.

5. Opening the casings invalidates the warranty. Do not try to repair the unit. Contact La Crosse

Technology for repairs.

SPECIFICATIONS

Wind Speed 0 to 111.8 mph

Resolution 0.1 mph

Wind Direction Graphic Resolution

22.5 Degrees,

Numerical Resolution,

Letter format

Cable Length 32 feet

Power source Supplied from

temperature/humidity

sensor

Dimensions 2.5” x 7.75” x 11.5”

LIABILITY DISCLAIMER

1. The manufacturer and supplier cannot accept any responsibility for any incorrect readings

and any consequences occurring should an inaccurate reading take place.

2. This product is not to be used for medical purposes or for public information.

3. The specifications of this product may change without prior notice

4. This product is not a toy. Keep out of children’s reach.

5. No part of this manual may be reproduced without written consent of the manufacturer.

CONTACT INFORMATION

La Crosse Technology

190 Main St

La Crescent, MN 55947

Phone (507) 895-7095

Fax (507) 895-8000

e-mail

support@lacrossetechnology.com

Web

www.lacrossetechnology.com

2003 La Crosse Technology

duplicated or processed using electronic, mechanical or chemical procedures without written

permission of the publisher.

This handbook may contain mistakes and printing errors. The information in this handbook is

regularly checked and corrections made in the next issue. We accept no liability for technical

mistakes or printing errors, or their consequences.

All trademarks and patents are acknowledged.

415

FCC DISCLAIMER

This device complies with part 15 of the FCC rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause

undesired operation.
