Welcome!

This User’s Guide explains how to use, maintain, monitor, and troubleshoot your TracVision HD7 system.

For installation and advanced conﬁguration information, please refer to the Installation Guide.

1. Press the Power button on the ACU to turn on the TracVision HD7 system.

2. Wait three minutes for system startup.

3. Turn on your receiver(s) and/or DVR(s).

KVH TracVision®HD7 User’s Guide

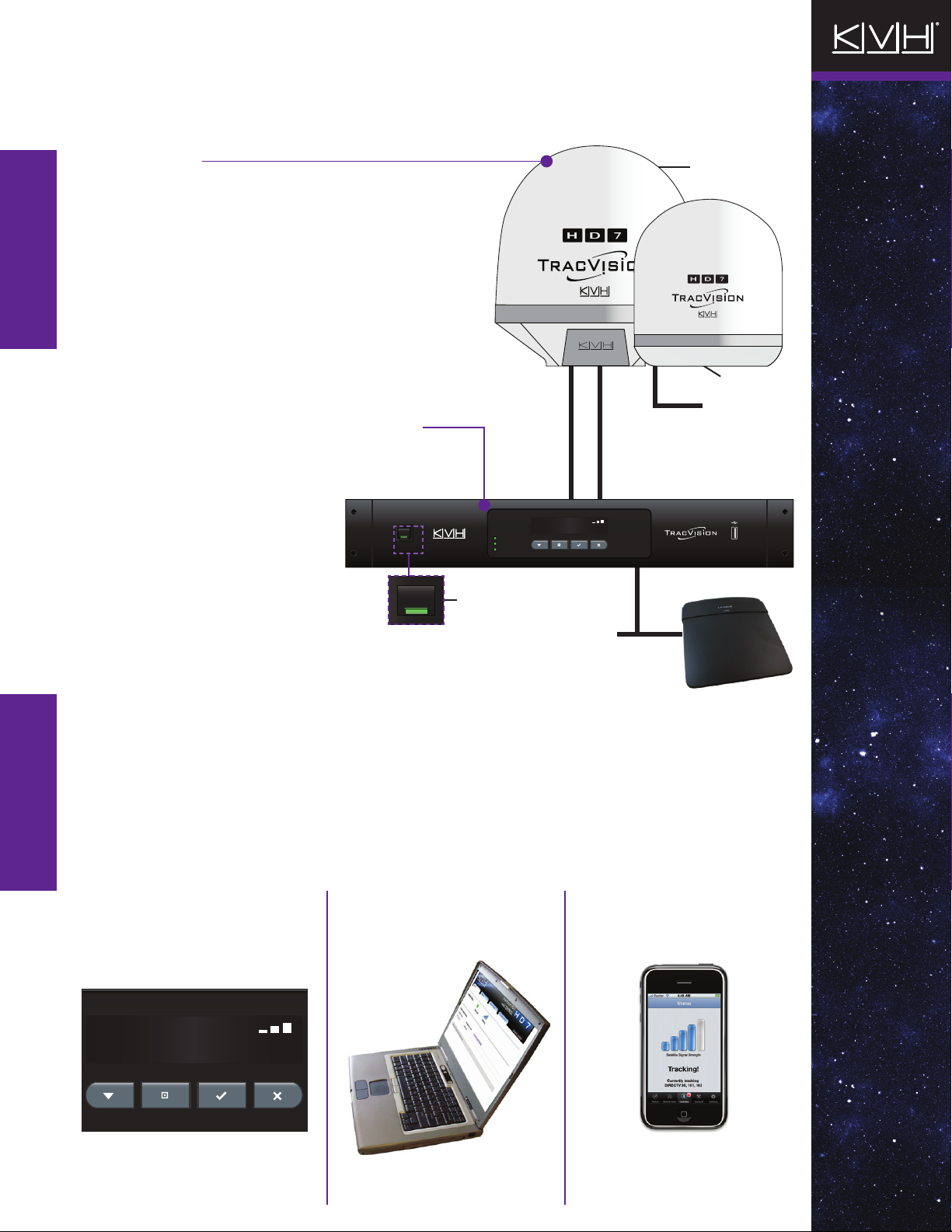

Operation Overview

Baseplate

Power

Cable

Data

Cable

Ethernet

Power Button

Vessel Network

(optional)

Antenna

The antenna is mounted abovedecks where it collects both

high-deﬁnition (HD) and standard-deﬁnition satellite TV

signals from your selected satellites.

• For best results, the antenna needs a clear view of the

sky. Objects such as bridges and boat masts can block

the satellite signals and impair signal quality.

• Wash the exterior of the radome periodically. Excessive

dirt or residue can degrade system performance.

• Always keep the radome installed to protect the antenna.

The ACU is mounted belowdecks

and supplies power and controls the

TracVision HD7 system.

• Displays system status and

current settings

• Allows you to make changes to

system settings.

RF Cable(s)

Carrying TV

Signals to

Receivers/

Components

Antenna Control Unit (ACU)

Watching Television (tracks DIRECTV®99,101 & 103 satellites, by default)*

Option C

Use the TracVision iPhone®App

on an iPhone or iPod touch®.

Option B

Access the web interface using

your web browser.

Option A

Use the LCD display and buttons

on the front panel of the ACU.

Download the FREE KVH TracVision HD7

App for iPhone/iPod touch from the Apple

iTunes store.

TMENU CHANGE ACCEPT EXIT

MENU CHANGE ACCEPT EXIT

TRACKING SATS

DIRECTV 99/101/103

Accessing System Status & Settings

*Other satellite services (DISH Network™, Bell TV, DIRECTV LA) are available on the HD7. See the Installation Guide for details.

WiFi

Radome

(Two sizes)

Wireless Router

(optional)

KVH TracVision HD7 User’s Guide

Operation

Maintenance

KVH Industries, Inc., 50 Enterprise Center, Middletown, RI 02842-5279 U.S.A.

Phone: 1-401-847-3327 • Email: [email protected] • Internet: www.kvh.com

54-0661 Rev. D

Troubleshooting

Perform the following checks if you encounter a problem with the TracVision HD7 system:

• Ensure the antenna’s view of the satellites is not obstructed. Common causes of blockage include

bridges, buildings, masts, and other equipment. Inclement weather can also degrade signal quality.

• Check for error messages. Error messages displayed on the iPhone/iPod touch, web interface, and

ACU screen may identify a speciﬁc problem.

If you are unable to ﬁx the problem, please call or visit a KVH-certiﬁed technician near you, or contact

KVH Technical Support.

To locate a technician near you, visit:

www.kvh.com/wheretogetservice

KVH Technical Support:

[email protected]

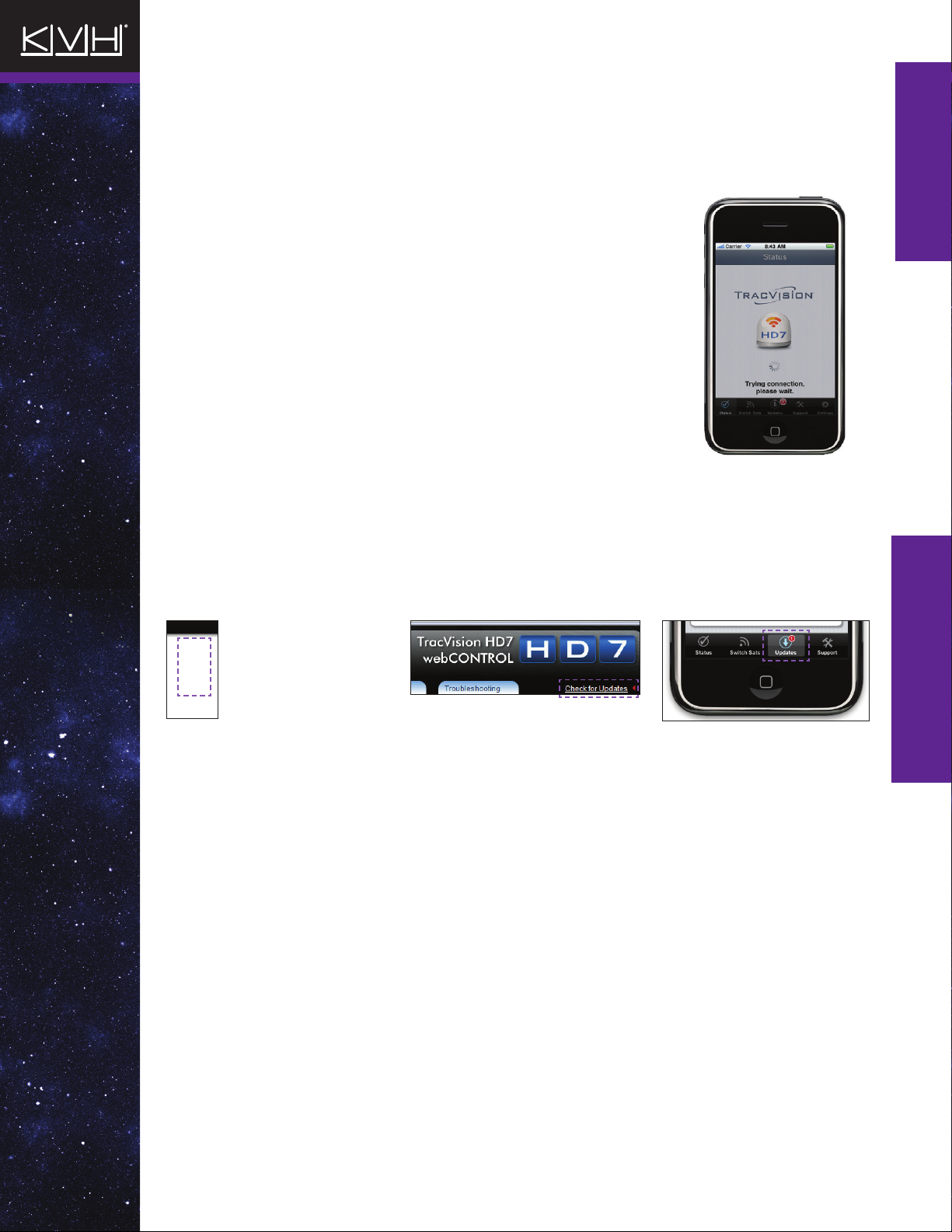

Using the iPhone App

While connected to the Internet,

choose “Updates”. Then follow

the onscreen instructions.

Using the Web Interface

While connected to the Internet,

choose “Check for Updates”.

Then follow the onscreen

instructions.

Using a USB Flash Drive

If you saved a software

update (.kvh) ﬁle onto

a ﬂash drive, plug

the ﬂash drive into

the ACU’s USB port

then follow the ACU’s onscreen

instructions to update your

system.

Checking for Software Updates

Be sure to check for software updates periodically to ensure optimal performance of your TracVision HD7.

Please restart the TracVision system before updating software.

Connecting to Your TracVision HD7 System

Make sure that your onboard computers, smartphones, and/or iPhone/iPod touch are connected to the

same network as the TracVision HD7.

Using the iPhone App

1. Using your iPhone/iPod touch, connect to

the same network as

the HD7.

2. Navigate to iPhone/

iPad Settings >

System and disable

Bonjour.

3. Open the TracVision

App. Then tap

Settings and enter

HD7-<ACU serial

number>.local in the

Hostname ﬁeld to

connect.

Using the Web Interface

1. Using a computer or smartphone connected

to the same network as the HD7, enter the

ACU’s IP address into your web browser’s

address bar.

Tip: You can view the IP address, serial number,

and other settings on the ACU display. Press the

ACU’s MENU button then follow the onscreen

menus to view network settings in the “About

System” menu.

2. Log into the web interface using the

username and password below:

username: admin password: password

iPhone, iPad, and iPod touch are registered trademarks of Apple, Inc; all other trademarks are the property of their respective companies
