Kreg Jig HD Manuel utilisateur
SafetyGuidelines
Read this manual and these safety guidelines. Learn the applications and limitations of the
tool as well as the hazards specic to it. Operating the tool before understanding safe and
proper use could result in personal injury. SAVE THIS MANUAL.
•Always wear eye, hearing, and respiratory protection specically designed and certied
as safety equipment.
•Keep the work area well-lit, un-cluttered, and clean.
•The drill bit is sharp. Handle with care.
•Avoid awkward hand positions where a sudden slip could cause contact with the
rotating bit.
•Properly secure your workpiece before drilling.
•Do not attempt to hold the drill guide in place by hand. Always use a clamp.
•Follow your drill manufacturer’s safety guidelines.
•An electric drill equipped with a three-prong plug must be plugged into a grounded
three-hole electrical receptacle. Never modify the provided plug in any way.
•Do not use power tools in damp or wet locations, or expose them to rain.
•Do not operate any tool while under the inuence of drugs, alcohol, or medications.
•Do not modify and/or use this tool for any application other than that for which it
was designed.
•Do not allow familiarity gained from frequent use of your tools to replace safe work
practices. A moment of carelessness is sufcient to cause severe injury.
DrillGuide
StopBlock
KregJig®HDDrillBit
KregJig®HDDriverBit
HDScrewSamplePack
StopCollarandHexWrench
A
B
C
D
E
F
A
E
F
B
C
D
Parts
Introduction
OwningaKregJig®HDopensupnewoutdoorprojectpossibilities.This
manualshowsyouhowtoadjustyourjiganddrillpocketholes.Youmay
nd the following resources helpful:
Railings
InternationalResidentialCodeGuardrailRequirements
Whether manufactured or site-built, guardrail systems must be constructed and
installed to meet International Residential Code (IRC) live-load requirements. To be
compliant, guardrails must withstand a 200-lb. (91-kg) load applied in any direction.
Compared to manufactured guardrail systems, site-built guardrails constructed of
typical dimensional lumber are not as easy to build with certainty that the live-load
requirement is met. The Code sets performance standards but does not provide
proscriptive detailing for guardrail design. It is the responsibility of the designer,
builder, and local code ofcial to verify if a given guardrail design meets the
requirements.
Guardrail connections of the three styles shown here, constructed using the Kreg
Jig® HD and Kreg Jig® HD Screws, meet the live load requirements specied in
the IRC. (Testing covers only the connection of railing members to posts, not the
connection of the posts to the deck structure.) To meet requirements, builders
must execute these connections exactly as shown and use only structurally sound
materials. Materials with splits or excessive knots must not be used.
Guardrail materials and fasteners are exposed to the weather and are subject
to degradation over time. It is the homeowner’s responsibility to periodically
inspect the guardrail and perform any maintenance required to ensure continued
compliance with IRC live-load requirements.

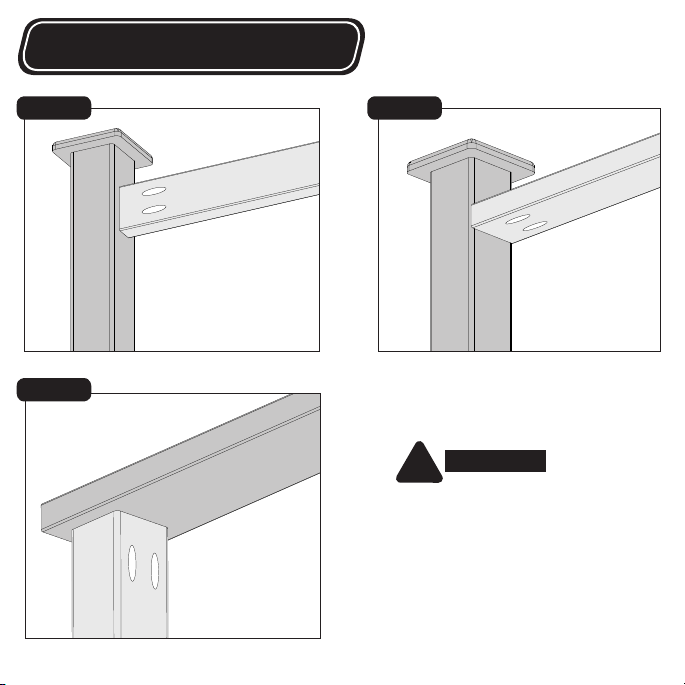

Railings
Style1 Style2
Style3
Drill holes with the
Kreg Jig® HD centered
on the workpiece.
2x4 rail on
edge attached
to 4x4 post 2x4 rail at
attached to
4x4 post
4x4 post
attached to
2x6 rail
Pocket-holes drilled on
outside face.
!
ATTENTION
Setup
1
AdjusttheStopCollar
Bit Shoulder
Tocreatestrongjointsin1½"[38mm]-thick
material, set up your jig in three simple steps:
43⁄4"
(121mm)
Setup
AttachtheStopBlock
Kreg Wood Project Clamp (not included)
2
3
ChecktheBitSetting
When using a Kreg Wood Project Clamp (not
included), slide the large clamp pad into the T-slot
recess on the back of the drill guide and lock it in
place with the end stop. When using an F-style
clamp or C-clamp, simply install the end stop.
These clamps do not lock onto the drill guide.
!
ATTENTION
3⁄8"
(10mm)
Pocket-HolePlacement
3½" [89mm]-wide material
1" 1" 1"1" 2-5/8"
1" 1"
For strong joints, space your pocket holes
evenly across the workpiece.
7¼" [184mm]-wide material
5½" [140mm]-wide material
2x4
2x6 2x8
DrillingPocket-holes
For best results, follow these steps:
Place the stop block against the end of the board, position the drill
guide, and clamp it in place. For 2x4s, simply center the drill guide
on the width of the workpiece. You’ll use both bit guides when
drilling the pocket holes. For 2x6s and wider material, mark pocket-
hole centerlines far enough from the end of the board to clear the
end of the drill guide (about 6" [152mm]). When drilling the pocket
holes, you’ll align one bit guide with each marked centerline.
Before turning on the drill, insert the drill bit into the drill guide until
the tip of the bit touches the workpiece. Withdraw the bit about ¼"
[6mm].
Turn on the drill and feed the bit into the workpiece, withdrawing
the bit as necessary to clear the chips.
Stop drilling when the stop collar contacts the drill guide. Wait until
the drill stops rotating to withdraw the bit.
1
2
3
4
