Kramer FC-101Net Manuel utilisateur

FC-101NET Quick Start (P/N: 2900-300861QS REV 1)

P/N:

2900- 300861QS

Rev:

Scan for full manual

FC-101NET Quick Start Guide

This guide helps you install and use your FC-101NET for the first time.

Go to www.kramerav.com/downloads/FC-101NET to download the latest user manual and check if

firmware upgrades are available.

Step 1: Check what’s in the box

FC-101NET Dual Dante Interface

1 Bracket set

Double-sided adhesive dual lock tape

1 Quick start guide

Step 2: Get to know your FC-101NET

Feature

Function

ON LED

Lights green when the device receives power.

SYS LED

Lights green when Dante network is available; red if an error has occurred.

SYNC LED

Lights green for digital audio normal operation; red if an error has occurred.

Dante PoE RJ-45 Port

Connect to the Dante audio source via the Network and provide Power over Ethernet

(PoE) to the device.

By default, DHCP is enabled.

DEF Push Button

To reset/reboot the device, press and release the button.

To reset to factory settings, press and hold the button for 30 seconds.

OUTPUTS 1 and 2 5-pin Terminal

Block Connector

Connect to a single balanced stereo audio output or two separate mono outputs

(+, –, G).

RS-232 3-pin Terminal Block

Connector

Connect to a serial controller to control this device.

Step 3: Install FC-101NET

Install FC-101NET using one of the following methods:

Attach one side of the adhesive dual lock tape to the metallic surface of the device

and the other to a flat surface.

Fasten a bracket (included) on each side of the unit and attach it to a flat surface.

For more information go to www.kramerav.com/downloads/FC-101NET.

Mount the unit in a rack using an optional RK-4PT rack adapter.

Step 4: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your FC-101NET. For best results, we recommend that you

always use Kramer high-performance cables to connect AV equipment to FC-101NET.

Step 5: Connect the power

Once connected, PoE is provided via the Dante port.

Safety Instructions

Caution:

There are no operator serviceable parts inside the unit.

Warning:

Disconnect the power before installing.

See www.KramerAV.com for updated safety information.

Step 6: Operate FC-101NET

Operate FC-101NET via:

Remotely, RS-232 serial

commands transmitted by a touch

screen system, PC, or other serial

controller.

RS-232

Baud Rate:

115200

Parity:

None

Stop Bits:

Data Bits:

Command Format:

ASCII

Example: (set the volume output to -6dB): #AUD-LVL 2,1,-6<CR>

Technical Specifications

Outputs

1 Balanced Stereo Audio/2 Mono Audio

On a 5-pin terminal block

Port

1 Dante

On an RJ-45 connector

Control

Dante IP control matrix and Kramer Protocol 3000

Power

Consumption

48V DC, 100mA

Source

48V DC (PoE)

Cooling

Convection Ventilation

Environmental Conditions

Operating Temperature

0° to +40°C (32° to 104°F)

Storage Temperature

-40° to +70°C (-40° to 158°F)

Humidity

10% to 90%, RHL non-condensing

Regulatory Compliance

Safety

Environmental

RoHs, WEEE

Enclosure

Size

Pico TOOL

Type

Aluminum

General

Net Dimensions (W, D, H)

6.2cm x 5.2cm x 2.4cm (2.4” x 2” x 1”) W, D, H

Shipping Dimensions (W, D, H)

15.7 cm x 12cm x 8.7cm (6.2” x 4.7” x 3.4”) W, D, H

Net Weight

0.08kg (0.2lb)

Shipping Weight

0.23kg (0.5lb)

Accessories

Included

Bracket set, double-sided adhesive dual lock tape

Optional

RK-4PT rack adapter

Specifications are subject to change without notice at www.kramerav.com

Autres manuels pour FC-101Net

Ce manuel convient aux modèles suivants

Autres manuels Kramer Convertisseur de média

Kramer

Kramer FC-332 Manuel utilisateur

Kramer

Kramer KDS-EN5 Manuel utilisateur

Kramer

Kramer VM-24HC Manuel utilisateur

Kramer

Kramer KDS-EN7 Manuel utilisateur

Kramer

Kramer VP-715 Manuel utilisateur

Kramer

Kramer VP-439 Manuel utilisateur

Kramer

Kramer FC-7501 Manuel utilisateur

Kramer

Kramer VP-721DS Manuel utilisateur

Kramer

Kramer VP-424 Manuel utilisateur

Kramer

Kramer VP-434 Manuel utilisateur

Kramer

Kramer PIP-400 Manuel utilisateur

Kramer

Kramer FC-4001 Manuel utilisateur

Kramer

Kramer VM-100C Manuel utilisateur

Kramer

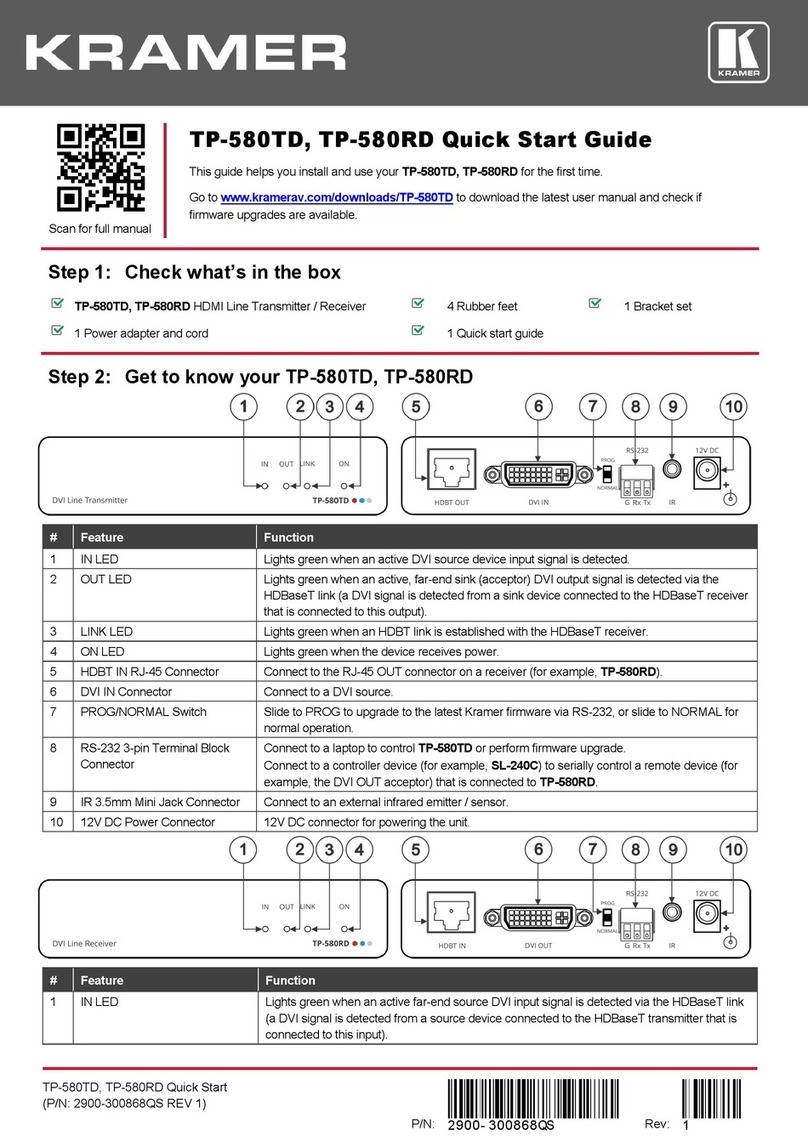

Kramer TP-580TD Manuel utilisateur
