Kramer VM-2DP Manuel utilisateur

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

VM-2DP

1:2 DisplayPort Distributor

P/N: 2900

-000769 Rev 1

1. Connect the power.

2. Connect the output(s) from which you want to acquire the EDID.

3. Press and hold the EDID SETUP button to select the desired EDID.

The OUT LEDs illuminate in the following cycle: OUT 1, OUT 2 and both blink (default).

4. Release the button when reaching the desired set up.

The EDID is now acquired.

Step 1: Check what’s in the box

VM-2DP Quick Start Guide

Step 2: Install the VM-2DP

Step 3: Connect the inputs and outputs

Mount the machine in a rack (using the RK-3T, RK-6T or RK-9T rack adapters) or place

on the table.

This page guides you through a basic installation and first-time use of your .

For more detailed information, see

VM-2DP

the user manual. You can download the latest

Kramer user manuals at for detailed instructions.

VM-2DP

http://www.kramerelectronics.com

It's a good idea to save the original box and packaging materials in case

your Kramer product needs to be returned to the factory for service.

Computer Graphics

Source (PC)

Always switch OFF the power on each device before connecting it to your .VM-2DP

For best results, we recommend

that you always use Kramer high-

performance cables to connect

your AV equipment to the VM-2DP.

The 1:2 DisplayPort Distributor

1 power adapter (5V DC input)

VM-2DP

4 rubber feet

1 Quick start sheet

1 User Manual

Display

Step 4: Connect the power

Connect the 5V DC power adapter to the power socket and connect the adapter to the mains

electricity.

After connecting your , connect its power and then switch on the power on

each device.

VM-2DP

Step 5: Operate the VM-2DP

Acquire the EDID

To restore the default EDID, disconnect the outputs and repeat the above procedure

VM-2DP – Contents i

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

3Overview 3

3.1 About DisplayPort 3

3.2 About HDCP 4

3.3 Defining EDID 4

4Your VM-2DP 1:2 DisplayPort Distributor 5

5Connecting the VM-2DP 1:2 DisplayPort Distributor 6

5.1 Acquiring the EDID 7

6Technical Specifications 8

Figures

UFigure 1: VM-2DP 1:2 DisplayPort DistributorU5

UFigure 2: Connecting a VM-2DP 1:2 DisplayPort DistributorU6

VM-2DP - Introduction 1

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront the video, audio, presentation, and broadcasting

professional on a daily basis. In recent years, we have redesigned and upgraded

most of our line, making the best even better! Our 1,000-plus different models now

appear in 11 groups that are clearly defined by function.

Our 1,000-plus different models now appear in 11 groups that are clearly defined by

function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix

Switchers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters;

GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;

GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors;

GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters;

GROUP 11: Sierra Products

Congratulations on purchasing your Kramer DigiTOOLS®VM-2DP1:2 DisplayPort

Distributor.The VM-2DP is ideal for:

•Home theater, presentation and multimedia applications

•Rental and staging

The package includes the VM-2DP 1:2 DisplayPort Distributor together with those

items described in the check what’s in the box section of the quick start and listed in

the Accessories spec.

2 VM-2DP - Getting Started

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

•Review the contents of this user manual

•Use Kramer high-performance high-resolution cables

•Use only the power cord that is supplied with this machine

date user-to-to check for uphttp://www.kramerelectronics.comGo to

manuals, application programs (where appropriate), and to check if

firmware upgrades are available.

2.1 Achieving the Best Performance

To achieve the best performance:

•Use only good quality connection cables to avoid interference, deterioration

in signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

•Avoid interference from neighboring electrical appliances that may adversely

influence signal quality and position your Kramer VM-2DP away from

moisture, excessive sunlight and dust

Caution:

No operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning:

Disconnect the power and unplug the unit from the wall

before installing

VM-2DP - Overview 3

3 Overview

The high-quality VM-2DP 1:2 DisplayPort Distributor takes a DisplayPort (DP) input

signal and distributes it to two DisplayPort (DP) outputs. In particular, the VM-2DP

features:

•One DisplayPort (DP) input, two DisplayPort (DP) outputs, two output status

LEDs, an active input status LED, as well as an EDID select button

•Up to 2.7Gbps bandwidth per lane

•A maximum resolution of 2560x1600 pixels and a total maximum bandwidth

of 10.8Gbps over four lanes

•I-EDIDPro™ Kramer Intelligent EDID Processing™, an intelligent EDID

handling and processing algorithm that ensures Plug and Play operation for

DisplayPort systems

•Compliance to HDCP

•High-resolution and rich colors and transports audio and multiple video

streams

•5V DC power

3.1 About DisplayPort

DisplayPort (DP) is a digital display interface standard for the PC industry. It

delivers the highest resolutions and sound quality.

In addition, DisplayPort:

•Provides a simple interface between a PC and a display, projector or TV

•Supports 1 to 4 data pairs ("lanes") at a transfer rate of 1.62Gb or 2.7Gb per

second

•Has a maximum length of 15 meters for video transmission, at a resolution of

1080p/60Hz and 3 meters for full bandwidth transmission

•Video specs include a video path that supports 6 to 16 bits per color channel,

a maximum resolution of 2560x1600 pixels and a total maximum bandwidth

of 10.8Gbps over four lanes

•Is backward-compatible with HDMI, DVI (Digital Visual Interface) and VGA,

via an appropriate adapter

4 VM-2DP - Overview

•Version 1.1 supports HDCP (see section 3.2)

•Supports two-way communication over its auxiliary channel between the

video source (for example, a PC) and the digital display, enabling new

functionality such as automatic configuration and one-button play

•Replaces the interface needed between the PC and an external display, as

well as the low voltage differential signaling (LVDS) interface in notebook

computers, monitors, to connect to LCD panels

3.2 About HDCP

The High-Bandwidth Digital Content Protection (HDCP) standard developed by Intel

protects digital video and audio signals transmitted over DVI or HDMI connections

between two HDCP-enabled devices to eliminate the reproduction of copyrighted

material. To protect copyright holders (such as movie studios) from having their

programs copied and shared, the HDCP standard provides for the secure and

encrypted transmission of digital signals.

3.3 Defining EDID

The Extended Display Identification Data (EDID) is a data-structure provided by a

display, to describe its capabilities to a graphics card (that is connected to the

display’s source). The EDID enables the VM-2DP to “know” what kind of monitor is

connected to the output. The EDID includes the manufacturer’s name, the product

type, the timing data supported by the display, the display size, luminance data and

(for digital displays only) the pixel mapping data.

EDID is defined by a standard published by the Video Electronics Standards

Association (VESA).

VM-2DP - Your VM-2DP 1:2 DisplayPort Distributor 5

4 Your VM-2DP 1:2 DisplayPort Distributor

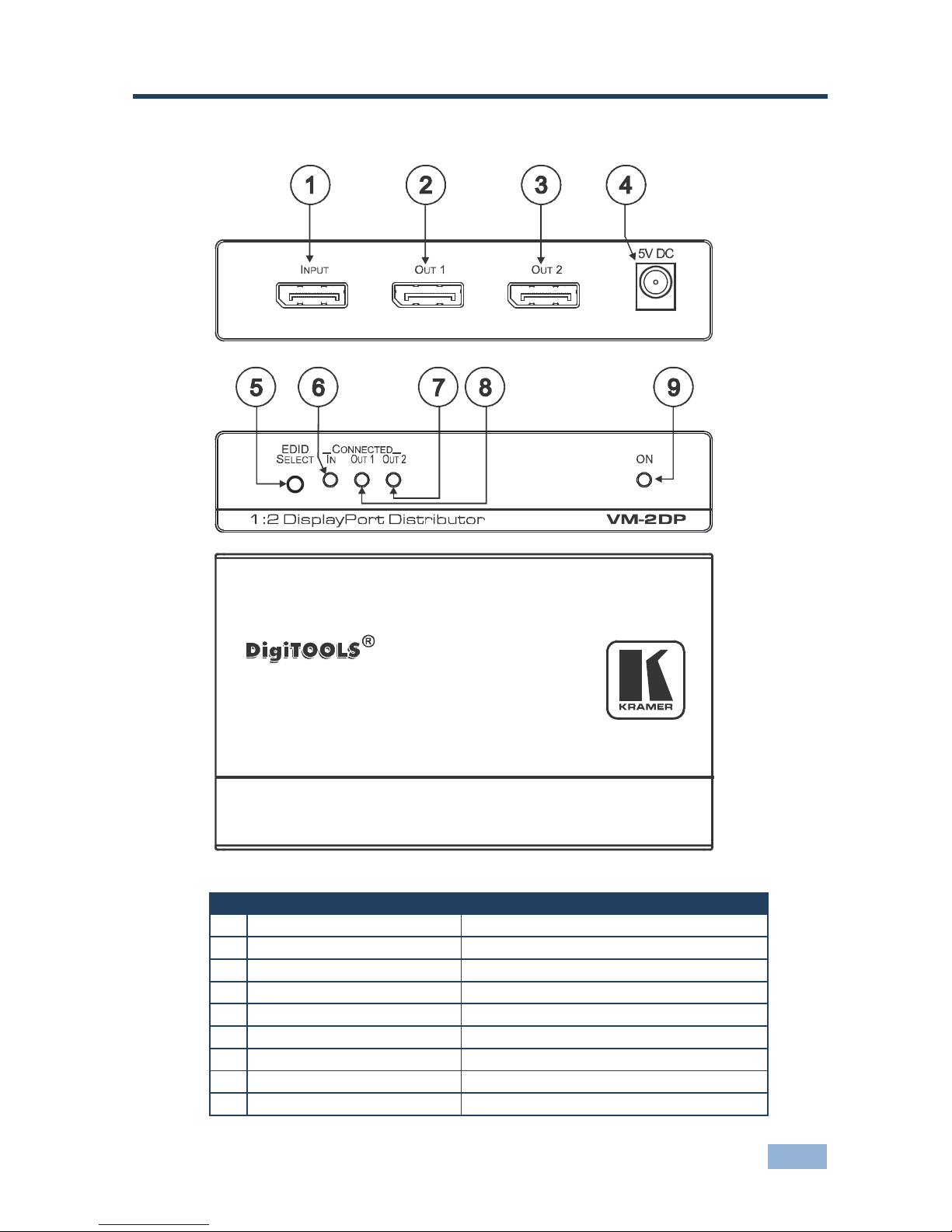

Figure 1: VM-2DP 1:2 DisplayPort Distributor

Feature

Function

1 INPUT DisplayPort Connector Connects to the DP source

2 OUT 1 DisplayPort Connector Connects to the DP acceptor 1

3 OUT 2 DisplayPort Connector Connects to the DP acceptor 2

4 5V DC +5V DC connector for powering the unit

5 EDID SELECT Button Press to select the EDID

6 IN LED Illuminates green when the input is selected

7 OUT 2LED Illuminates green when output 2 is selected

8 OUT 1LED Illuminates green when output 1 is selected

9 ON LED Illuminates green when receiving power

6 VM-2DP - Connecting the VM-2DP 1:2 DisplayPort Distributor

5 Connecting the VM-2DP 1:2 DisplayPort

Distributor

Always switch OFF the power on each device before connecting it to

your VM-2DP. After connecting your VM-2DP, connect its power and

then switch on the power on each device.

To connect the VM-2DP, as the example in Figure 2 shows, do the following:

1. Connect the DP source (for example, a PC with a DP output) to the INPUT

DP connector.

2. Connect the DP OUT connectors to up to two acceptors, as follows:

DP OUT 1 connector to a display

DP OUT 2 connector to a display

3. Connect the 5V DC power adapter to the power socket and connect the

adapter to the mains electricity.

Figure 2: Connecting a VM-2DP 1:2 DisplayPort Distributor

Display

Port

Computer

Graphics

Source Display 1 Display 2

Display

Port

Display

Port

VM-2DP - Connecting the VM-2DP 1:2 DisplayPort Distributor 7

5.1 Acquiring the EDID

Initially, the VM-2DPoperates with the factory default EDID (the VM-2DP reads the

EDID, which is stored in its non-volatile memory). This lets you connect the power

before connecting one of the acceptors or sources.

The EDID is usually acquired once, when the machine is being set up in an

installation. Once acquired, the EDID is saved in non-volatile memory and further

acquisition is not necessary.

You can acquire the EDID from:

•One output (the relevant output blinks)

•The default EDID (both output LEDs blink)

When pressing the EDID SETUP button momentarily, the OUT LEDs indicate which

type of EDID was last acquired. If the:

•OUT 1 LED illuminates, the OUT 1 EDID is stored in the non-volatile memory

•OUT 2 LED illuminates, the OUT 2 EDID is stored in the non-volatile memory

•OUT 1 and OUT 2 LEDs illuminate, the default EDID is stored in the non-

volatile memory

To acquire the EDID, do the following:

1. Connect the power.

2. Connect the output or outputs from which you want to acquire the EDID.

3. Press and hold the EDID SELECT button to select the desired EDID.

The OUT LEDs illuminate in the following cycle: OUT 1, OUT 2 and both

OUT 1 and OUT 2 blink (default).

4. Release the button when reaching the desired set up.

The EDID is now acquired.

If you set the machine to acquire the EDID from an output that is not

connected, the default EDID is acquired.

Table des matières

Autres manuels Kramer Convertisseur de média

Kramer

Kramer TOOLS VP-100 Manuel utilisateur

Kramer

Kramer VM-2Hxl Manuel utilisateur

Kramer

Kramer PIP-400 Manuel utilisateur

Kramer

Kramer WP-EN6 Manuel utilisateur

Kramer

Kramer WP-SW2-EN7 Manuel utilisateur

Kramer

Kramer 401C Manuel utilisateur

Kramer

Kramer VM-3A Manuel utilisateur

Kramer

Kramer FC-46 Manuel utilisateur

Kramer

Kramer VP-439 Manuel utilisateur

Kramer

Kramer VM-1110xl Manuel utilisateur

Kramer

Kramer FC-31xl Manuel utilisateur

Kramer

Kramer VA-256XL Manuel utilisateur

Kramer

Kramer KDS-EN6 Manuel utilisateur

Kramer

Kramer DigiTOOLS 7508 Manuel utilisateur

Kramer

Kramer KDS-SW3-EN7 Manuel utilisateur

Kramer

Kramer VP-434 Manuel utilisateur

Kramer

Kramer VM-8H Manuel utilisateur

Kramer

Kramer FC-14 Manuel utilisateur

Kramer

Kramer VM-4UX Manuel utilisateur

Kramer

Kramer VM-50AN Manuel utilisateur

Kramer

Kramer KDS-EN5 Manuel utilisateur

Kramer

Kramer VS-411UHD Manuel utilisateur

Kramer

Kramer DigiTOOLS 7408 Manuel utilisateur

Kramer

Kramer KDS-EN6 Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
