Kramer VS-6464DN Manuel utilisateur

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

VS-6464DN

64x64 Digital Matrix Switcher

P/N: 2900-300045 Rev 3

VS-6464DN – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3Overview 4

3.1 About the Power Connect™ Feature 5

3.2 Redundant Power Supplies 6

3.3 Defining the VS-6464DN 64x64 Digital Matrix Switcher 6

3.4 Using the IR Transmitter 10

4Installing in a Rack 11

5Connecting the VS-6464DN 12

5.1 Port Numbering 13

5.2 Connecting to the VS-6464DN via RS-232 15

5.3 Connecting to the VS-6464DN via Ethernet 15

6Operating Your Video Matrix Switcher 18

6.1 Startup Display 18

6.2 Using the Selector Buttons 19

6.3 Confirming Actions 20

6.4 Switching Actions 21

6.5 Locking the Front Panel Buttons 24

7Using the Configuration Menu 25

7.1 Using the Setup Menu 25

7.2 Using the Config Menu 30

8Configuring the Number of Installed Input and Output Ports 37

9Using the Video Generator to Troubleshoot Video Problems 38

9.1 Installing the Video Generator 38

9.2 Setting the Resolution of the Generated Video 39

9.3 Setting the Pattern of the Generated Video 39

9.4 Using the Video Generator to Troubleshoot Video Problems 40

10 I/O Card Hardware Installation Instructions 42

11 Power Supply Installation 44

12 Upgrading the VS-6464DN Firmware 45

13 Technical Specifications 46

14 Default Communication Parameters 47

15 Factory Default EDID 48

15.1 DVI Input Card 48

15.2 DVI (HDCP) Input Card 49

16 Communication Protocols 51

Figures

Figure 1: VS-6464DN 64x64 Digital Matrix Switcher 6

Figure 2: VS-6464DN Front Panel Numeric Keypad 8

Figure 3: VS-6464DN 64x64 Digital Matrix Switcher Rear Panel Showing DVI Cards 9

VS-6464DN - Introduction

Figure 4: Connecting the VS-6464DN 12

Figure 5: Sample Port Numbering 14

Figure 6: Local Area Connection Properties Window 16

Figure 7: Internet Protocol (TCP/IP) Properties Window 17

Figure 8: Default Startup Status Display Sequence 18

Figure 9: Resolution DIP-switch 39

Figure 10: Signal Paths for Isolating problems 40

Figure 11: Inserting the Card into a Slot 42

Figure 12: Card Handles 43

VS-6464DN - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 14 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:

Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and

GROUP 14: Collaboration.

Congratulations on purchasing your Kramer VS-6464DN 64x64 Digital Matrix

Switcher, which is ideal for the following typical applications:

Professional display systems requiring video signal routing

Broadcast, presentation and production facilities, as well as monitoring in

large duplication systems

Rental/staging applications

Note: Throughout this user manual the chassis configuration is shown with 64 DVI

inputs and 64 DVI outputs as a representation only. The following cards are

available and may be mixed in the same chassis:

DVI

DVI (HDCP)

DVI (over 4LC fiber optic cable)

VS-6464DN - Getting Started

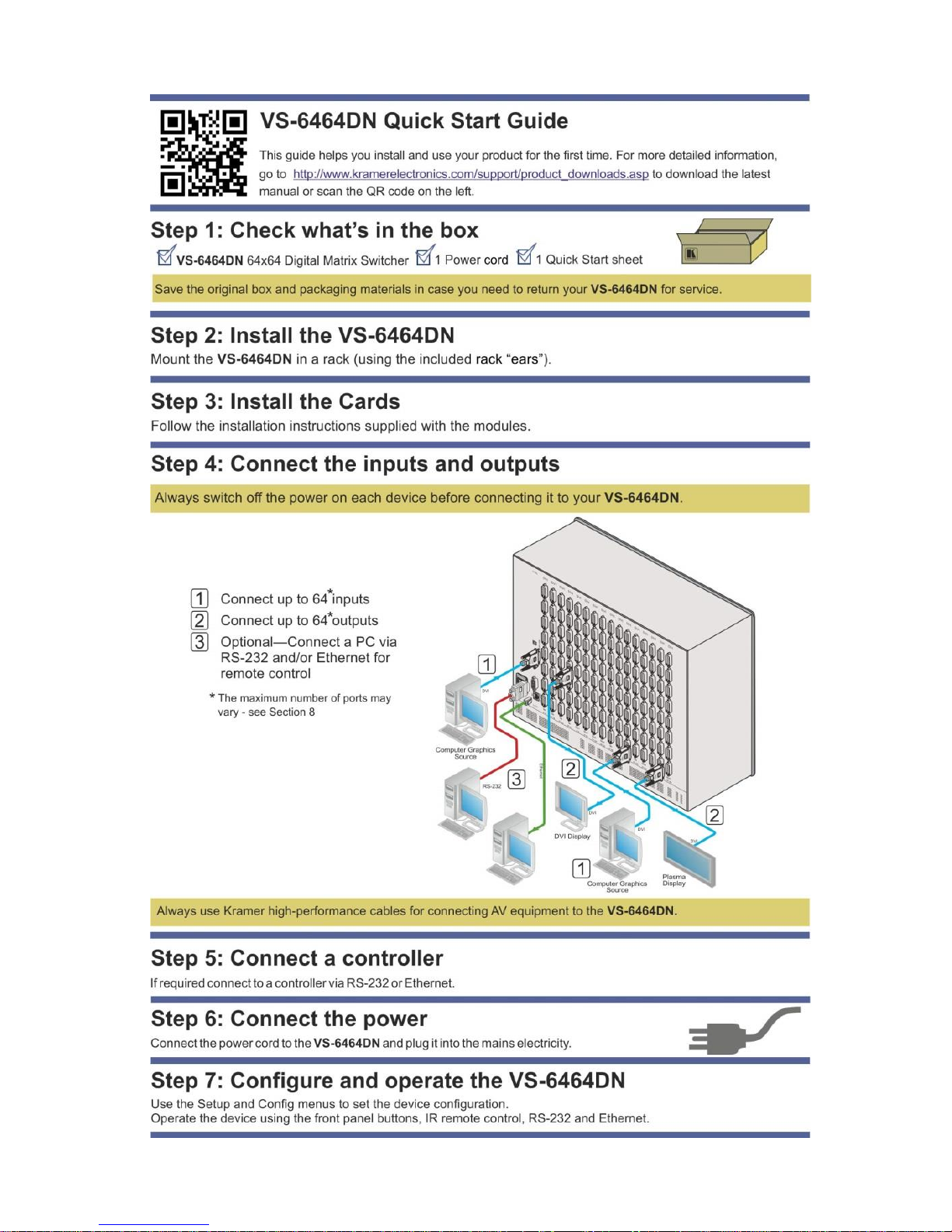

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check if

firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer VS-6464DN away from moisture, excessive sunlight

and dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

VS-6464DN - Getting Started

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the power cord that is supplied with the unit

Warning:

Do not open the unit. High voltages can cause

electrical shock! Servicing by qualified personnel only

Warning:

Disconnect the power and unplug the unit from the wall

before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

VS-6464DN - Overview

3 Overview

The Kramer VS-6464DN is a high performance matrix switcher chassis that

supports up to 64 x 64 ports (it can also be configured for other sizes (up to a

maximum of 64 x 64)) for various signals (depending on the type of cards

installed). It features a very high bandwidth of up to 3.2Gbps (for the chassis only,

effective bandwidth of the system depends on the I/O cards) that ensures

transparent performance even in the most critical applications. The cards re-clock

and equalize the signals and the chassis can route any or all inputs to any or all

outputs simultaneously.

For maximum bandwidth supported by each card type see Technical Specifications in

Section 13

The VS-6464DN is highly configurable–you can add or remove inputs and outputs

independently in groups of eight and mix different types of input/output cards in the

same chassis. For example, you can configure a device as an 8 x 24 or a 64 x 8

matrix switcher to exactly suit your needs.

The VS-6464DN features:

Full 64 x 64 non-blocking matrix array to switch any of the 64 input digital

signals to any or all of the 64 outputs (with limitations, see Section 5.1)

Easy access to 59 preset memory locations for quick access to user-defined

setups

The Kramer 2000 Protocol for serial control

A 40 character by 2 line LCD that shows the operational status or the

configuration menu

A lock function to prevent tampering with the front panel

A default EDID (Extended Display Identification Data) for each input

I-EDIDPro™ Kramer Intelligent EDID Processing™ –Intelligent EDID

handling and processing algorithm ensures plug and play operation for

DVI/HDMI systems

Non-volatile EDID storage

VS-6464DN - Overview

Kramer Core™—FLEXIBLE INFRASTRUCTURE CONVERSION! Copper,

fiber or Twisted Pair–all can be used at the same time according to

input/output module selection. The matrix receives signals from compatible

Kramer transmitters, automatically converts between available infrastructure

options and sends the signals to compatible Kramer receivers

Equalization and re-clocking on all card types

Support for redundant power-supplies

You can operate the VS-6464DN via the front panel buttons or remotely via:

RS-232 serial commands transmitted by a touch screen system, PC or other

serial controller

Ethernet over a LAN

The infrared remote control transmitter

The VS-6464DN is a sophisticated device but has been designed to be as simple as

possible to operate. Due to space limitations on the front panel, 128 input/output

selector buttons are instead substituted by a keypad. For details of how to route inputs

to outputs, see Section 6.2.

The VS-6464DN is housed in a 19" rack-mountable enclosure.

3.1 About the Power Connect™ Feature

The Power Connect™ feature here means that the VS-6464DN can supply power

to the TP transmitters and receivers (for example, the TP-573 and TP-574) as long

as the devices are within 90m (270ft) of each other. The Power Connect™ feature

applies as long as the cable can carry power and the distance does not exceed

90m on standard CAT 5 cable. For longer distances, heavier gauge cable should

be used. (TP cable is still suitable for the video/audio transmission, but not for

feeding the power at these distances).

VS-6464DN - Overview

3.2 Redundant Power Supplies

The VS-6464DN is supplied with three power supplies accessible from the front of

the device (see Figure 1) that are held in place with thumb-screws. The power

supplies operate in a redundant mode whereby the failure of any one power

supply does not cause the device to stop operating.

Note: The device must have at least two working power supplies to operate

correctly.

3.3 Defining the VS-6464DN 64x64 Digital Matrix Switcher

This section defines the VS-6464DN.

Figure 1: VS-6464DN 64x64 Digital Matrix Switcher

Note: Buttons 12, 13 and 14 function as the TAKE, MENU and LOCK buttons

respectively.
