USER MANUAL

Model:

VS-1616D

16x16 Digital Matrix Switcher

Contents

1Introduction 1

2Getting Started 2

2.1 Quick Start 2

3Overview 4

3.1 Recommendations for Best Performance 5

3.2 Safety Instructions 5

3.1 Shielded Twisted Pair/Unshielded Twisted Pair 6

3.2 About the Power Connect™ Feature 6

3.3 About Fast Switching 6

3.4 About HDBaseT™ Technology 6

3.5 Recycling Kramer Products 7

4Defining the VS-1616D 16x16 Digital Matrix Switcher 7

4.1 Using the IR Transmitter 11

5Installing the VS-1616D in a Rack 12

6Connecting the VS-1616D 16x16 Digital Matrix Switcher 13

6.1 Port Numbering 14

6.1.1 EDID Numbering Examples 15

6.2 Serial Data Flow on DGKat Plus RS-232 Cards 15

6.3 Connecting to the VS-1616D via RS-232 16

6.4 Connecting to the VS-1616D via Ethernet 16

6.4.1 Connecting the Ethernet Port Directly to a PC 16

6.4.2 Connecting the Ethernet Port via a Network Hub or Switch 19

7Operating Your Video Matrix Switcher 20

7.1 Startup Display 20

7.1.1 Viewing the Display 21

7.2 Using the Selector Buttons 21

7.3 Confirming Actions 22

7.3.1 Toggling between the At Once and Confirm Modes 22

7.3.2 Confirming a Switching Action 22

7.4 Switching Actions 23

7.4.1 Switching one Input to one Output 23

7.4.2 Switching Several Inputs to Several Outputs 23

7.4.3 Turning an Output Off 24

7.4.4 Turning Off Several Outputs 24

7.4.5 Recalling the Default Setup 24

7.5 Locking the Front Panel Buttons 25

8Using the Configuration Menus 25

8.1 Using the Setup Menu 27

8.1.1 Setup Menu—1: inXX=>ALL, Switching one Input to all Outputs 27

8.1.2 Setup Menu—3: outXX=>OFF, Turning an Output Off 27

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Contents

8.1.3 Setup Menu—7: EDID, Assignment to an Input 28

8.1.4 Setup Menu—9: Delay, Setting for an Output 29

8.1.5 Setup Menu—4: store setup XX, Storing the Setup in a Preset 29

8.1.6 Setup Menu—6: recall setup XX, Recalling a Preset 30

8.2 Using the Config Menu 31

8.2.1 Config Menu—Input Signal Detection Display 32

8.2.2 Config Menu—Setting Input Port Parameters 32

8.2.3 Config Menu—Output Load Detection Display 36

8.2.4 Config Menu—Setting Output Port Parameters 36

8.2.5 Config Menu—Interface Configuration 41

8.2.6 Config Menu—Interface Reply Configuration 42

8.2.7 Config Menu—Protocol Switching 42

8.2.8 Config Menu—Store Default Setup 43

8.2.9 Config Menu—Total Matrix Reset 44

8.2.10 Config Menu—Display Firmware Versions 45

9Configuring the Number of Installed Input and Output Ports 45

10 Installing and Using the Test Module to Troubleshoot Video Problems 46

10.1 Installing the Test Module 46

10.2 Setting the Resolution of the Generated Video 47

10.3 Setting the Pattern of the Generated Video 48

10.4 Using the Test Module to Troubleshoot Video Problems 48

10.4.1 Testing the Projector Output 48

10.4.2 Testing the Output Signal Path to the Projector 49

10.4.3 Testing the Input and Output Signal Path to the Projector 49

11 I/O Card Hardware Installation Instructions 49

12 Upgrading the VS-1616D Firmware 51

13 Technical Specifications 52

14 Default Communication Parameters 54

15 Factory Default EDID 54

15.1 DVI Input Card 54

15.2 HDCP Input Card 55

15.3 HDMI Input Card 57

15.4 HDMI plus Audio Input Card 59

15.5 DVI Dual Channel Input Card 61

15.6 DGKat Input Card 62

15.7 HDBaseT Input Card 64

15.8 VGA Input Card 66

16 Communication Protocols 67

16.1 Protocol 3000 67

16.1.1 Kramer Protocol 3000 Syntax 67

16.1.2 Device Message Format 68

16.1.3 Command Terms 68

16.1.4 Entering Commands 69

Contents

iii

16.1.5 Command Forms 69

16.1.6 Chaining Commands 69

16.1.7 Maximum String Length 69

16.1.8 Table of Protocol 3000 Commands 70

16.1.9 Parameters 88

16.2 Protocol 2000 94

Figures

Figure 1: VS-1616D 16x16 Digital Matrix Switcher Front Panel 8

Figure 2: VS-1616D Front Panel Numeric Keypad 9

Figure 3: VS-1616D 16x16 Digital Matrix Switcher Rear Panel Showing DVI cards 10

Figure 4: Connecting the VS-1616D 13

Figure 5: Sample Port Numbering 14

Figure 6: EDID Numbering Assignment 15

Figure 7: DGKat Card Serial Data Transmission 16

Figure 8: Local Area Connection Properties Window 17

Figure 9: Internet Protocol Version 4 Properties Window 18

Figure 10: Internet Protocol Version 6 Properties Window 18

Figure 11: Internet Protocol Properties Window 19

Figure 12: Default Startup Status Display Sequence 20

Figure 13: Menu Tree 26

Figure 14: Resolution DIP-switch 47

Figure 15: Signal Paths for Isolating problems 48

Figure 16: Inserting the Card into a Slot 50

Figure 17: Card Handles 51

Tables

Table 1: VS-1616D 16x16 Digital Matrix Switcher Front Panel Features 9

Table 2: VS-1616D Front Panel Numeric Keypad Labels 9

Table 3: VS-1616D 16x16 Digital Matrix Switcher Rear Panel Features 11

Table 4: Port Numbering 14

Table 5: EDID Configuration Requests and Results 15

Table 6: Available PC Resolutions for Generated Video (Jumper off) 47

Table 7: Available HD Resolutions for Generated Video (Jumper on, default) 47

Table 8: Technical Specifications of the 16x16 Digital Matrix Switcher 52

Table 9: Technical Specifications of VS-1616D Compatible Cards 53

Table 10: Default Communication Parameters for the VS-1616D 54

Table 11: Hex Table (IN 1-16 to OUT 1-16) 94

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront the video, audio, presentation, and broadcasting

professional on a daily basis. In recent years, we have redesigned and upgraded

most of our line, making the best even better! Our 1,000-plus different models now

appear in 11 groups

that are clearly defined by function.

Congratulations on purchasing your Kramer VS-1616D 16x16 Digital Matrix

Switcher. This product is ideal for the following typical applications:

Professional display systems requiring video signal routing

Broadcast, presentation and production facilities, as well as monitoring in

large duplication systems

Rental/staging applications

The package includes the following items:

VS-1616D 16x16 Digital Matrix Switcher

Power cord

Kramer RC-IR3infrared remote control transmitter (including the required

batteries and a separate user manual2)

This user manual

Note: Throughout this user manual the chassis configuration is shown with 16 DVI

inputs and 16 DVI outputs as a representation only. The following cards are

available and may be mixed in the same chassis:

DGKat plus RS-232

DVI

DVI dual link

DVI (HDCP)

DVI (over 4LC fiber optic cable)

HDMI (over fiber optic cable) with 670 module (HDCP)

HDBaseT plus IR, RS-232 and Ethernet

HDBaseT light, plus IR and RS-232

HDMI (HDCP)

HDMI plus analog audio (HDCP)

HDMI plus digital audio (HDCP)

GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems; GROUP 4: Format/Standards

Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan Converters and Scalers;

GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra

Products

Download up-to-date Kramer user manuals from http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

HDMI plus RS-232 (HDCP)

VGA

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

2.1 Quick Start

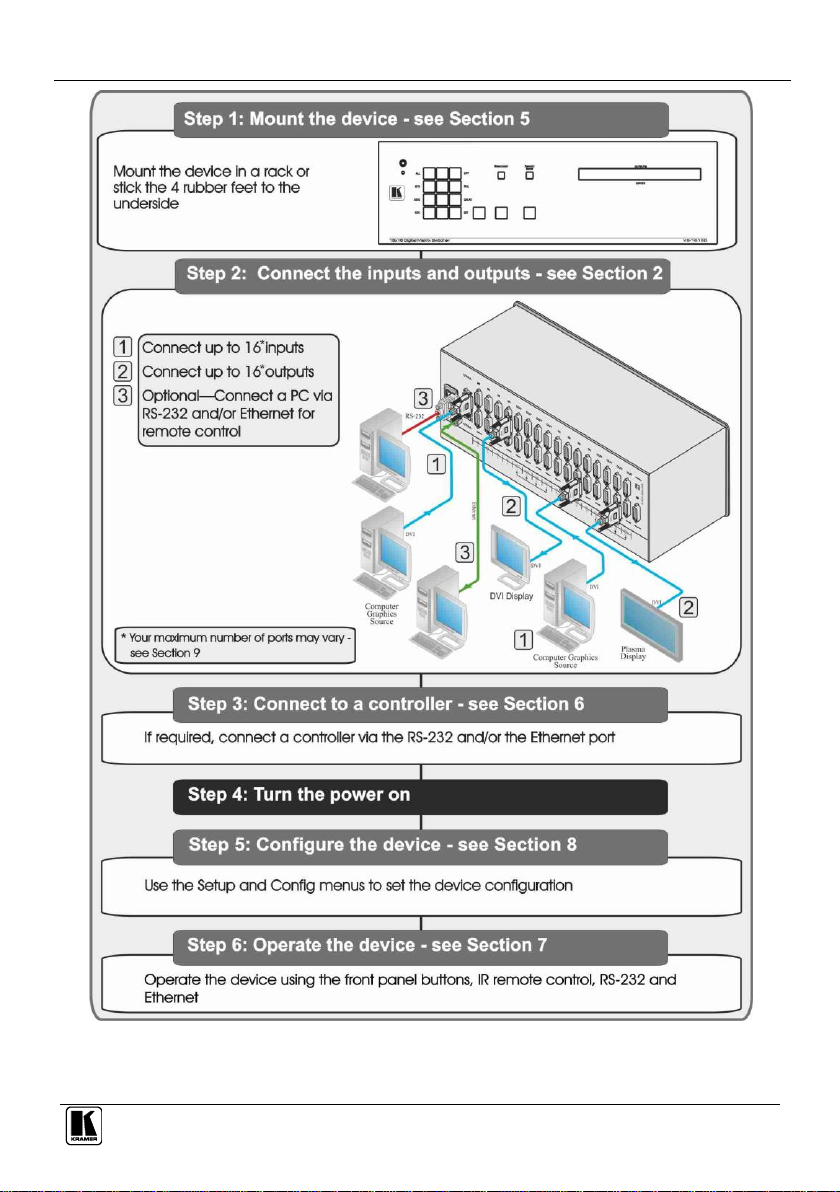

The following quick start chart summarizes the basic setup and operation steps.

Getting Started

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Overview

3 Overview

The Kramer VS-1616D is a high performance matrix switcher chassis that supports

up to 16 x 16 ports

for various signals (depending on the type of cards installed).

It features a very high bandwidth

of up to 3.2Gbps (for the chassis only, effective

bandwidth of the system depends on the I/O cards) that ensures transparent

performance even in the most critical applications. The cards re-clock and equalize

the signals and the chassis can route any or all inputs to any or all outputs

simultaneously.

The VS-1616D is highly configurable–you can add or remove inputs and outputs

independently in groups of two and mix different types of input/ouput cards in the

same chassis. For example, you can configure a device as a 4 x 12 or a 16 x 8

matrix switcher to exactly suit your needs.

The VS-1616D features:

Full 16 x 16 non-blocking matrix array to switch any of the 16 input digital

signals to any or all outputs (see Section 6)

Easy access to 59 preset memory locations for quick access to user-defined

setups

Fast switching on outputs to reduce or remove switching delay

The Kramer 2000 Protocol for serial control

A 40 character by 2 line LCD that shows the operational status or the

configuration menu

A lock function to prevent tampering with the front panel

A default EDID (Extended Display Identification Data) for each input

EDID Capture –Copies and stores the EDID from a display device

EDID PassThru –Passes EDID/HDCP signals from source to display

Non-volatile EDID storage

Kramer Core™—flexible infrastructure conversion. Copper, fiber or

Twisted Pair, all can be used at the same time according to input/output

module selection. The matrix receives signals from compatible Kramer

transmitters, automatically converts between available infrastructure options

and sends the signals to compatible Kramer receivers

Equalization and re-clocking on all card types

Can also be configured for other sizes (up to a maximum of 16 x 16)

For maximum bandwidth supported by each type of card see the Technical Specifications in Section 13

Overview

You can operate the VS-1616D via the front panel buttons

or remotely via:

RS-232 serial commands transmitted by a touch screen system, PC or other

serial controller

Ethernet over a LAN

The infrared remote control transmitter

Kramer K-Router Plus software application

The VS-1616D is housed in a 19" rack-mountable enclosure.

To achieve the best performance:

Connect only good quality connection cables, thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise

levels (often associated with low quality cables)

Avoid interference from neighboring electrical appliances that may

adversely influence signal quality and position your Kramer VS-1616D in a

location free from moisture and away from excessive sunlight and dust

3.1 Recommendations for Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise

levels (often associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances and position your

VS-1616D away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

3.2 Safety Instructions

Caution:

No operator serviceable parts inside the unit

Warning:

You use only the power cord that is supplied with the

unit. Do not open the unit. High voltages can cause

electrical shock! Servicing by qualified personnel only.

Warning:

Disconnect the power and unplug the unit from the wall

before installing

The VS-1616D is a sophisticated device but has been designed to be as simple as possible to operate. Due to space limitations on the

front panel 32 input/output selector buttons are instead substituted by a keypad. For details of how to route inputs to outputs, see

Section 7.4

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Overview

3.1 Shielded Twisted Pair/Unshielded Twisted Pair

Kramer engineers have developed special twisted pair cables to best match our

digital twisted pair products; Kramer's BC-DGKat524, BC-DGKat623/

BC-HDKat6a and BC-DGKat7a23 shielded twisted pair (STP) cables. These

specially built cables significantly outperform regular CAT 6 and CAT 7a cables.

3.2 About the Power Connect™ Feature

The Power Connect™ feature here means that the VS-1616D can supply power to

the TP transmitters and receivers (for example, the PT-573 and PT-574).

3.3 About Fast Switching

Older display devices require a longer time between the loss of one digital signal

and the introduction of another, as well as a physical disconnection of the

interconnecting cable in order to be able to detect and adjust to the new video

attributes and parameters. Normal switching, therefore, introduced a 5V signal

disconnection along with a delay in switching. Many newer display devices,

however, are now capable of accepting “on-the-fly” switching.

Depending on the display device in use, the VS-1616D allows for fast switching

(minor reset and the connection kept alive) and extra fast switching (no reset and

the connection kept alive), see Section 8.2.4. Using the fast and extra fast

switching modes allows for fraction-of-a-second switching times when using high

performance display devices or when using a scaler on the video output.

3.4 About HDBaseT™ Technology

HDBaseT™ is an advanced all-in-one connectivity technology (supported by the

HDBaseT Alliance). It is particularly suitable in the consumer home environment

as a digital home networking alternative where it enables you to replace numerous

cables and connectors by a single LAN cable used to transmit, for example,

uncompressed full high definition video, audio, IR, as well as various control

signals.

The products described in this user manual are HDBaseT certified.

Autres manuels pour VS-1616D

Table des matières

Autres manuels Kramer Commutateur matriciel

Kramer

Kramer VS-48HDCPxl Manuel utilisateur

Kramer

Kramer VS-44HDMI Manuel utilisateur

Kramer

Kramer Sierra Pro XL 1616V5S Manuel utilisateur

Kramer

Kramer VS-402XL Manuel utilisateur

Kramer

Kramer VS-2042 Manuel utilisateur

Kramer

Kramer VP-4x8 Manuel utilisateur

Kramer

Kramer VS-61YC Manuel utilisateur

Kramer

Kramer VS-44HD Manuel utilisateur

Kramer

Kramer VS-1616DN-MD Manuel utilisateur

Kramer

Kramer BC/VS-2216 Manuel utilisateur

Kramer

Kramer VS-62H Manuel utilisateur

Kramer

Kramer Sierra Video 3248V5Sxl Manuel utilisateur

Kramer

Kramer VS-8 Series Manuel utilisateur

Kramer

Kramer VP-88ETH Manuel utilisateur

Kramer

Kramer Sierra Video 1616V5 Manuel utilisateur

Kramer

Kramer VP-729 Manuel utilisateur

Kramer

Kramer VS-211H Manuel utilisateur

Kramer

Kramer VS-162V Manuel utilisateur

Kramer

Kramer VS-1604 Manuel utilisateur

Kramer

Kramer VP-719DS Manuel utilisateur

Kramer

Kramer VS-42HN Manuel utilisateur

Kramer

Kramer XL 1616S Manuel utilisateur

Kramer

Kramer Sierra Viddeo 84V3S Manuel utilisateur

Kramer

Kramer VS-1616V Manuel utilisateur

Manuels Commutateur matriciel populaires d'autres marques

Broadcast Tools

Broadcast Tools SS 8.2 Manuel utilisateur

Altimium

Altimium MATF32 Manuel utilisateur

ALFAtron

ALFAtron ALF-MUK44N Manuel utilisateur

Monoprice

Monoprice Blackbird 15377 Manuel utilisateur

PTN

PTN FMX12 Manuel utilisateur

CYP

CYP nT15GX01 Manuel utilisateur

TESmart

TESmart HMA0402A40 Manuel utilisateur

Octava

Octava HD4XSTPMX Manuel utilisateur

Intelix

Intelix FLX-88 Mode d'emploi

Roland

Roland XS-1HD Manuel utilisateur

Atlona

Atlona AT-HDMI-22M Manuel utilisateur

Link

Link HD8X8 Manuel utilisateur

AMX

AMX AVS-OP-2020-117 Instructions et recettes

Lindy

Lindy 38042 Manuel utilisateur

Extron electronics

Extron electronics MTPX Plus Series Manuel utilisateur

Key Digital

Key Digital Champion KD-16x16CS Manuel utilisateur

Shinybow USA

Shinybow USA SB-8811 Manuel utilisateur

Optimus

Optimus Compact Manuel utilisateur
