Kramer VS-3232Vxl Manuel utilisateur

Kramer Electronics, Ltd.

USER MANUAL







Model:

VS-3232Vxl

32x32 Video Matrix Switcher

Contents

Introduction 1

Getting Started 1

2.1

Quick Start 1

Overview 3

Your Video Matrix Switcher 4

4.1

Using the IR Transmitter 9

Installing the VS-3232Vxl on a Rack 10

Connecting the Video Matrix Switcher 11

6.1

Connecting the VS-3232Vxl as a Composite Video Switcher 11

6.2

Assembling a Multi-channel Video Switcher 13

6.2.1

Configuring a 32x32 Y/C Switcher (Two Units) 14

6.2.2

Configuring a 32x32 YUV/RGB Switcher (Three Units) 15

6.2.3

Configuring a 32x32 RGBS Switcher (Four Units) 16

6.3

Dipswitch Settings 16

6.3.1

Setting the MACHINE # 17

6.3.2

Understanding the System Mode 17

6.3.3

Understanding the Slave Mode 18

6.3.4

The System Mode versus the Master/Slave Mode 19

6.4

Connecting a Control Interface 19

6.4.1

Connecting the RS-232 Control Interface 20

6.4.2

Connecting the RS-485 Control Interface 22

6.5

Configuring the Sync 25

6.6

Controlling via the ETHERNET 26

6.6.1

Connecting the ETHERNET Port directly to a PC (Crossover Cable) 26

6.6.2

Connectingthe ETHERNET Port via a Network Hub (Straight-Through Cable) 27

6.6.3

Control Configuration via the Ethernet Port 27

Operating Your Video Matrix Switcher 28

7.1

Startup Display 28

7.1.1

Viewing the Display 29

7.2

Using the Selector Buttons 29

7.3

Confirming Actions 29

7.3.1

Toggling between the At Once and Confirm Modes 30

7.3.2

Confirming a Switching Action 30

7.4

Switching Options 30

7.4.1

Switching one Input to one Output 31

7.4.2

Switching several Inputs to several Outputs 31

7.4.3

Switching one Input to all Outputs 32

7.4.4

Clearing an Output 32

7.4.5

Clearing several Outputs 32

7.4.6

Clearing all Outputs 32

7.5

Storing and Recalling Setups 33

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Contents

7.5.1

Storing Setups 33

7.5.2

Recalling Setups 33

7.6

Using the DEFAULT SETUP Button (Unity Setting) 34

7.7

Choosing the FOLLOW or the BREAKAWAY Modes 35

7.8

Using the LOCK Button 36

The MENU Commands 37

8.1

Selecting the SYNC Configuration 39

8.2

Selecting the INTERFACE Configuration 39

8.3

Selecting the Interface REPLY Configuration 40

8.4

Selecting the PROTOCOL Configuration 40

8.5

Selecting the DEFAULT Setup Configuration 40

8.6

Selecting the store DEFAULT Setup Configuration 40

8.7

The Main Firmware Version 41

8.8

Selecting the TOTAL RESET Option 41

Flash Memory Upgrade 42

9.1

Switcher Flash Memory Upgrade 42

9.1.1

Downloading from the Internet 42

9.1.2

Connecting the PC to the RS-232 Port 42

9.1.3

Upgrading Firmware 43

9.2

Ethernet Flash Memory Upgrade 47

9.2.1

Downloading from the Internet 47

9.2.2

Connecting the PC to the RS-232 Port 47

9.2.3

Upgrading Firmware 48

Technical Specifications 49

Communication Protocols 50

11.1

The Kramer 2000 Communication Protocol 50

11.2

ASCII Protocol: General 55

11.2.1

ASCII Protocol: Description 55

Figures

Figure 1: VS-3232Vxl 32x32 Video Matrix Switcher Front Panel 5

Figure 2: VS-3232Vxl 32x32 Video Matrix Switcher Rear Panel 7

Figure 3: Configuring the VS-3232Vxl for Composite Video 12

Figure 4: Configuring a 32x32 s-Video (YC) Switcher with two VS-3232Vxl Switchers 14

Figure 5: Configuring a 32x32 YUV (RGB) Switcher with three VS-3232Vxl Switchers 15

Figure 6: Dipswitches 16

Figure 7: Connecting a PC to Three VS-3232Vxl Units 20

Figure 8: RS-485 Connector PINOUT 22

Figure 9: Connecting the RS-485 Connectors between two VS-3232Vxl Units 23

Figure 10: RS-485 Control Interface and SYNC Connections for Component Switcher 24

Figure 11: Local Area Connection Properties Window 26

Figure 12: Internet Protocol (TCP/IP) Properties Window 27

Figure 13: Default Startup Status Display Sequence 28

Figure 14: Setting the SYNC Configuration (an example) 38

Contents

iii

Figure 15: Splash Screen 43

Figure 16: Atmel – Flip Window 43

Figure 17: Device Selection Window 44

Figure 18: Device Selection window 44

Figure 19: Loading the Hex 45

Figure 20: RS-232 Window 45

Figure 21: Atmel – Flip Window (Connected) 46

Figure 22: Atmel – Flip Window (Operation Completed) 46

Figure 23: The KFR-Programmer Window 48

Tables

Table 1: Front Panel VS-3232Vxl 32x32 Video Matrix Switcher Features 6

Table 2: Rear Panel VS-3232Vxl 32x32 Video Matrix Switcher Features 8

Table 3: Dipswitch Definitions 16

Table 4: Machine # Dipswitch Settings 17

Table 5: The System Mode versus the Slave Mode 19

Table 6: SYNC Configuration Menu 39

Table 7: INTERFACE Configuration Menu 39

Table 8: Interface REPLY Configuration Menu 40

Table 9: PROTOCOL Configuration Menu 40

Table 10: DEFAULT Setup Configuration Menu 40

Table 11: Total Reset Menu 41

Table 12: Technical Specifications of the VS-3232Vxl Video Matrix Switcher 49

Table 13: Hex Table (IN 1-32 to OUT 1-16) 51

Table 14: Hex Table (IN 1-32 to OUT 17-32) 53

Introduction

1 Introduction

Welcome to Kramer Electronics (since 1981): a world of unique, creative and

affordable solutions to the infinite range of problems that confront the video, audio

and presentation professional on a daily basis. In recent years, we have redesigned

and upgraded most of our line, making the best even better! Our 500-plus different

models now appear in 8 Groups

, which are clearly defined by function.

Congratulations on purchasing your Kramer VS-3232Vxl 32x32 Video Matrix

Switcher. This product is ideal for the following typical applications:

Professional display systems requiring video signal routing

Broadcast, presentation and production facilities, as well as monitoring in

large duplication systems

Rental/staging applications

The package includes the following items:

VS-3232Vxl 32x32 Video Matrix Switcher

Power cord and null-modem adapter

Windows®-based Kramer control software

Windows®-based Ethernet Configuration Manager and Virtual Serial Port

Manager

Kramer RC-IR2 Infra-red remote control transmitter (including the

required batteries and a separate user manual

) and this user manual

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Use Kramer high performance high resolution cables

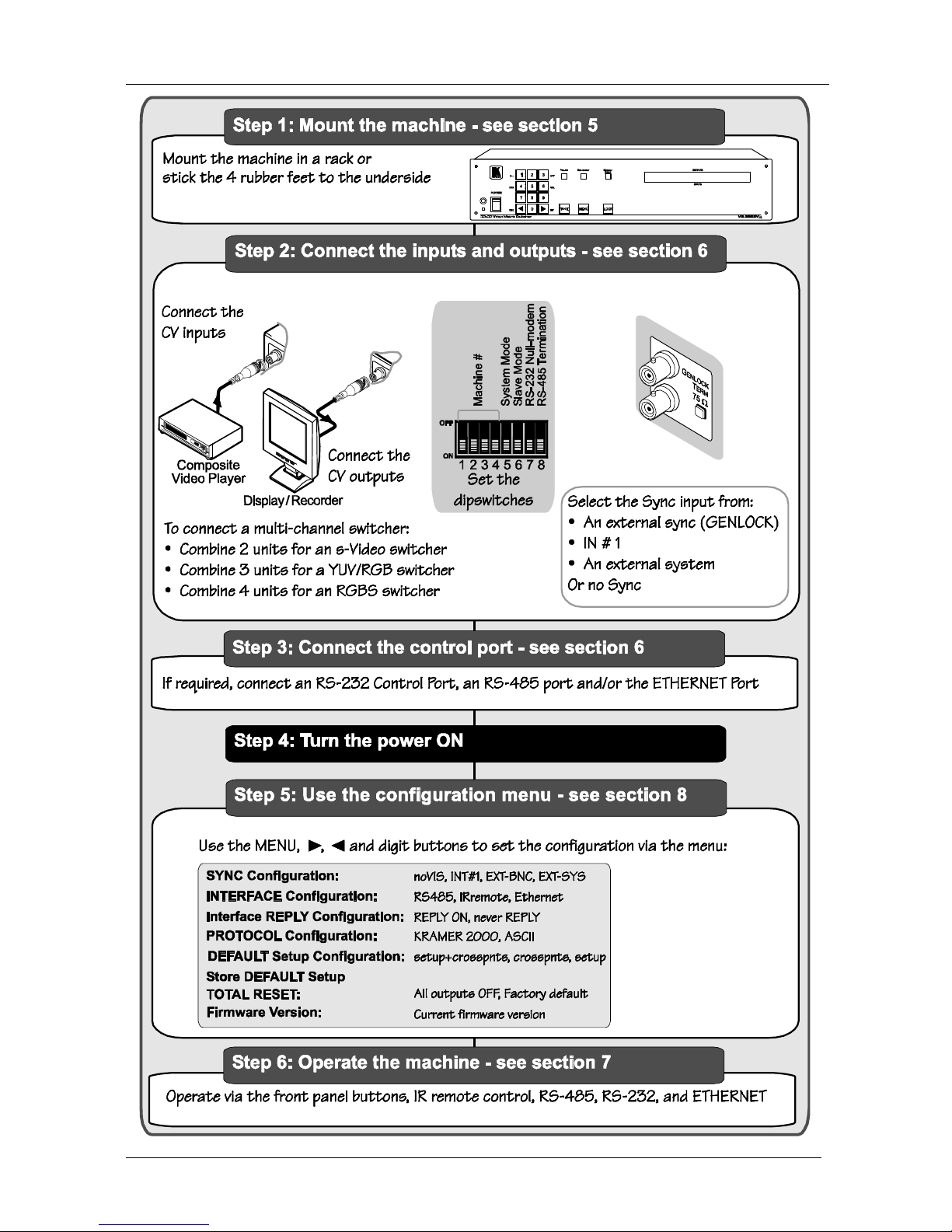

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:

Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;

GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors

2 Downloadable from our Web site at http://www.kramerelectronics.com

3 Download up-to-date Kramer user manuals from our Web site: http://www.kramerelectronics.com

4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

Overview

3 Overview

The Kramer VS-3232Vxl is a very high performance, superior x32 vertical

interval matrix switcher for composite video signals on BNC connectors. It

features a video bandwidth of over 500MHz that ensures transparent

performance even in the most critical applications. Three SYNC switching

options make the VS-3232Vxl appropriate for a wide range of glitch-free

transition applications. The VS-3232Vxl can be used as a standalone unit, or

configured as a part of a multi-signal Kramer switcher system, in which all

units switch simultaneously.

The VS-3232Vxl features:

Full 32x32 non-blocking matrix array to switch any of the 32 input video

signals to any or all outputs

A video bandwidth of over 500MHz at 3dB along with 0.1dB flatness to

50MHz

Four switching options, one for immediate switching and three for SYNC

switching

59 preset memory locations for quick access to user-defined special

configurations

Fast access to a preprogrammed default preset configuration (UNITY setting)

Two communication protocols – the Kramer 2000 and the limited Sierra

ASCII

Easy upgrading of the firmware via the Internet

An 80x2 symbol LCD panel with user-friendly information and a

configuration menu

Optional connection to several switchers in one multi-signal video-audio

control system

A LOCK button/remote function to prevent tampering with the front panel

Control the VS-3232Vxl via the front panel buttons, or:

Remotely, by RS-232 or RS-485 serial commands transmitted by a touch

screen system, PC, or other serial controller

Via the ETHERNET

Via the infra-red remote control transmitter

Via an external remote IR Receiver (optional), see section 4.1

The VS-3232Vxl is housed in a 19" 2U rack mountable enclosure.

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your Video Matrix Switcher

To achieve the best performance:

Connect only good quality connection cables, thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise

levels (often associated with low quality cables)

Avoid interference from neighboring electrical appliances that may

adversely influence signal quality and position your Kramer VS-3232Vxl

in a location free from moisture and away from excessive sunlight and

dust

4 Your Video Matrix Switcher

Figure 1 and Figure 2 illustrate the front and rear panels of the VS-3232Vxl,

respectively. Table 1 and Table 2 define the front and rear panels of the

VS-3232Vxl, respectively.

Your Video Matrix Switcher

TAKE LOCK

2 3

Figure 1: VS-3232Vxl 32x32 Video Matrix Switcher Front Panel

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your Video Matrix Switcher

Table 1: Front Panel VS-3232Vxl 32x32 Video Matrix Switcher Features

# Feature Function

1 ESC Press to exit the current operation

2 STO

Press to store the current setting in the non-volatile memory

3 ALL

Press ALL followed by an input number to connect that input to all the

outputs

4 OFF

Press OFF followed by an output number to disconnect that output

5 RCL

Press to recall a setup from the non-volatile memory

Menu Buttons

ENT Press to complete the input-output setup when using a one-digit number

instead of two digits

Press to enter the options in a setup menu

7 (Forward) Press to shift the content of the display to the left

8 (Backward) Press to shift the content of the display to the right

Double-function Selector Buttons Area

Button

Labels

Digits from

0 to 9 Select the output to which the input is switched and select the input to

switch to the output

10 FOLLOW Button Press to enter the Follow mode in the multi-switcher configuration

11 BREAKAWAY Button Press to enter the Stand-Alone mode in the multi-switcher configuration

12 DEFAULT SETUP Button Press to recall the default setup (UNITY setting), see section 8.5

13 INPUTS/OUTPUTS LCD

Display Displays the outputs (in the upper row, below the OUTPUTS label)

switched to the selected inputs (in the lower row, above the INPUTS

label).

Displays user interface messages and configuration menu items

14 LOCK Button Toggle

to lock/unlock the front panel buttons

15 MENU Button Press once to enable the ALL, OFF STO and RCL buttons

Press twice to enter the configuration menu

When in the configuration menu, press to browse through the menu items

16 TAKE Button Used to confirm and complete setup and switching

17 Power Switch Illuminated switch for turning the unit ON or OFF

18 IR Receiver The red LED is illuminated when receiving signals from the Kramer Infra-

red remote control transmitter

1 This button is enabled and illuminated after pressing the MENU button

2 For example, to enter input 5, you can either press 0, 5 or 5, ENT

3 Since the LCD display is large enough to show only 13 cross-points out of a total of 32

4 Press and hold the LOCK button for about two seconds to toggle

Table des matières

Autres manuels Kramer Commutateur matriciel

Kramer

Kramer XL 1204V4S Manuel utilisateur

Kramer

Kramer VS-808TP Manuel utilisateur

Kramer

Kramer VS-88H Manuel utilisateur

Kramer

Kramer Sierra Video 1608V5S Manuel utilisateur

Kramer

Kramer Sierra Video 6448V5xl Manuel utilisateur

Kramer

Kramer VS-1616D Manuel utilisateur

Kramer

Kramer VS-84H Manuel utilisateur

Kramer

Kramer VP-773A Manuel utilisateur

Kramer

Kramer Sierra Pro XL 1204V5 Manuel utilisateur

Kramer

Kramer VP-719DS Manuel utilisateur

Kramer

Kramer VS-3232V Manuel utilisateur

Kramer

Kramer XL 1616VS Manuel utilisateur

Kramer

Kramer VS-1616AD Manuel utilisateur

Kramer

Kramer VP-727 Manuel utilisateur

Kramer

Kramer VS-44HDCP Manuel utilisateur

Kramer

Kramer VP-747 Manuel utilisateur

Kramer

Kramer XL 1208VS Manuel utilisateur

Kramer

Kramer Sierra Viddeo 84V3S Manuel utilisateur

Kramer

Kramer VS-42H2 Manuel utilisateur

Kramer

Kramer VS-88HC Manuel utilisateur

Kramer

Kramer VS-6464DN Manuel utilisateur

Kramer

Kramer VS-808TP Manuel utilisateur

Kramer

Kramer 3216HD Manuel utilisateur

Kramer

Kramer VS-1616D-MD Manuel utilisateur

Manuels Commutateur matriciel populaires d'autres marques

Broadcast Tools

Broadcast Tools SS 8.2 Manuel utilisateur

Altimium

Altimium MATF32 Manuel utilisateur

ALFAtron

ALFAtron ALF-MUK44N Manuel utilisateur

Monoprice

Monoprice Blackbird 15377 Manuel utilisateur

PTN

PTN FMX12 Manuel utilisateur

CYP

CYP nT15GX01 Manuel utilisateur

TESmart

TESmart HMA0402A40 Manuel utilisateur

Octava

Octava HD4XSTPMX Manuel utilisateur

Intelix

Intelix FLX-88 Mode d'emploi

Roland

Roland XS-1HD Manuel utilisateur

Atlona

Atlona AT-HDMI-22M Manuel utilisateur

Link

Link HD8X8 Manuel utilisateur

AMX

AMX AVS-OP-2020-117 Instructions et recettes

Lindy

Lindy 38042 Manuel utilisateur

Extron electronics

Extron electronics MTPX Plus Series Manuel utilisateur

Key Digital

Key Digital Champion KD-16x16CS Manuel utilisateur

Shinybow USA

Shinybow USA SB-8811 Manuel utilisateur

Optimus

Optimus Compact Manuel utilisateur
