USER MANUAL

MODEL:

VS-44H2A

4K HDMI 4x4 Matrix Switcher

DRAFT

VS-44H2A–Contents

Contents

Introduction 1

Getting Started 1

Overview 2

Typical Applications 3

Controlling your VS-44H2A 3

Defining VS-44H2A 4K HDMI 4x4 Matrix Switcher 4

Mounting VS-44H2A 6

Connecting VS-44H2A 7

Connecting to VS-44H2A via RS-232 8

Connecting VS-44H2A via ETHERNET Port 8

Operating VS-44H2A via Front Panel Buttons 11

Powering On VS-44H2A 11

Understanding Illuminated Buttons and LEDs 11

Locking/Unlocking Control Panel Buttons 12

Routing an AV Output to an Input 12

Routing All Outputs to a Single Input 13

Muting an Output 13

Muting All Outputs 13

Storing and Recalling a Routing Setup 14

Copying an EDID 14

Firmware Upgrade 16

Using Embedded Web pages 17

Browsing Web Pages 18

Switching and Setting Ports 19

Changing Device Settings and Upgrading Firmware 26

Managing EDID 27

Managing Web page Security 30

Setting Timeout 31

Displaying OSD Information 32

Setting Step-In Devices 33

Viewing About Page 34

Technical Specifications 35

Default Communication Parameters 35

Default Parameters 36

Protocol 3000 37

Understanding Protocol 3000 37

Protocol 3000 Commands 38

Result and Error Codes 45

DRAFT

KramerElectronicsLtd.

VS-44H2A–Introduction

Introduction

Welcometo KramerElectronics! Since1981, KramerElectronics has been providing a world

of unique, creative,and affordablesolutions to the vast range of problems that confrontthe

video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we

have redesigned and upgraded most of our line, makingthe best even better!

Getting Started

We recommendthat you:

•Unpack the equipment carefullyand save the original box and packaging materials for

possible future shipment.

•Reviewthe contents of this user manual.

Go to www.kramerav.com/downloads/VS-44H2Atocheck forup-to-date user manuals,

application programs, and to check if firmwareupgrades are available (where appropriate).

Achieving Best Performance

•Use only good quality connection cables (we recommendKramerhigh-performance,

high-resolution cables) to avoid interference, deterioration in signal quality due to poor

matching, and elevated noise levels (oftenassociated with low quality cables).

•Do not secure the cables in tight bundles or roll the slack into tight coils.

•Avoid interferencefrom neighboring electrical appliances that may adversely influence

signal quality.

•Position your Kramer VS-44H2A away from moisture, excessive sunlight and dust.

Safety Instructions

Caution:

•This equipment is to be used only inside a building. It may only be connected to other

equipment that is installed inside a building.

•For products with relay terminals and GPI\O ports, please referto the permitted rating

foran external connection, located next to the terminal or in the User Manual.

•There are no operator serviceable parts inside the unit.

Warning:

•Use only the power cordthat is supplied with the unit.

•Disconnect the power and unplug the unit from the wall before installing.

•Do not open the unit. High voltages can cause electrical shock! Servicingby qualified

personnel only.

•To ensure continuous risk protection, replace fuses only according to the rating

specified on the product label which located on the bottom of the unit.

DRAFT

KramerElectronicsLtd.

VS-44H2A–Introduction

Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE)Directive2002/96/EC aims to reduce

the amount of WEEEsent fordisposal to landfill or incineration by requiring it to be collected

and recycled.To comply withthe WEEEDirective,KramerElectronics has made

arrangements with the European AdvancedRecyclingNetwork (EARN)and will coverany

costs of treatment, recyclingand recovery of waste Kramer Electronicsbranded equipment on

arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular

country go to our recyclingpages at www.kramerav.com/support/recycling.

Overview

Congratulations on purchasing your Kramer VS-44H2A.

VS-44H2A is a high-performance4x4 matrix switcher for18G 4K@60Hz (4:4:4) HDR HDMI™

signals. It and equalizes the signals and canroute any one of four HDMI,HDCP-compliant

sources (selectable) to any or all outputs simultaneously.

The VS-44H2A provides exceptional quality, advanced and user-friendly operation, and

flexible control.

Exceptional Quality

•High-PerformanceAVMatrix –Switches 4 4K@60Hz (4:4:4) HDR HDMI

HDCP-compliantsignals to 4 18G 4K@60Hz (4:4:4) HDR HDMIHDCP-compliant

outputs at up to 18G data rate. Signals are HDCP 2.2/1.4 compliant, supporting HDR10,

CEC, color, Dolby /DTS-HD MasterAudio, 3D Video as specified in HDMI2.0.

•Features Kramer Equalization & ™ Technology – Rebuilds the digital signal to travel

longer distances.

Advanced and User-friendly Operation

•Easy Step-In Collaboration Function –When used with a KramerStep-In enabled

switcher, just plug in your deviceand press the Step-In button. Your devicebecomes the

activesignal on the main display.

•EDIDManagement –Individual EDIDmanagement per input. Captures and stores the

EDID from a display device.

•Quick Accessto CommonConfigurations –Saveup to four preset configurations.

•Convenient Unit Control and Configuration Options –Local control via frontpanel

switching, memory,lock andEDID buttons, Input/Output LEDdisplay and IRremote

control. Distance control via user-friendly embedded web pages viathe Ethernet,

Protocol 3000 API,and RS-232 serial commandstransmitted by a PC, touch screen

system or other serial controller.

•Cost-EffectiveMaintenance–IRand Input Selection indicators facilitate easy local

maintenance and troubleshooting. Firmwareupgrade via Ethernet or USB using a

user-friendly softwareupgrade tool.

DRAFT

KramerElectronicsLtd.

VS-44H2A–Introduction

Flexible Connectivity

•Analog and Digital Audio De-embedding (Extraction) –De-embeds the audio signal and

outputs it as balanced analog audio with separate volume control on each of the outputs

and S/PDIFdigital audio.

•Flexible Content Protection –Selectable HDCPper input.

•Easy Installation –19” enclosure for rack mounting a unit in a 1U rack space with

included rack ears and universal 100–240V AC power connection.

Typical Applications

The VS-44H2A is ideal for the following typical applications:

•Control rooms with multiple displays.

•Presentation and multimedia applications.

•Systemsthat require automatic HDMIrouting.

Controlling your VS-44H2A

Control your VS-44H2A directly via the front panel push buttons, or:

•By RS-232 serial commandstransmitted by a touch screen system,PC, or other serial

controller.

•Via the Ethernet using built-in user-friendly web pages.

DRAFT

KramerElectronicsLtd.

VS-44H2A–Defining VS-44H2A4KHDMI 4x4 Matrix Switcher

Defining VS-44H2A 4K HDMI 4x4

Matrix Switcher

This section defines the VS-44H2A.

Front Panel

Figure 1: VS-44H2A4K HDMI 4x4 Matrix Switcher Front Panel

The behavior of the frontpanel buttons and the 7-segment display changes along with the

operation modes. For furtherdetails see Operating VS-44H2Avia Front Panel Buttons on

page 11.

Feature

Function

IR Sensor

Receives signals from the infrared remote-control transmitter.

IR LED

Lights yellow when receiving an IR signal.

ALL Button

Press to perform an actionon all outputs.

For switching, press ALL and then a specific INPUTbutton to route the

selected input to all outputs. For example, press ALL and then IN 2 to route

input 2 to all the outputs (see Routing All Outputs to a Single Input

on page 13).

OFF Button

Press afterpressing an OUT Button (1 to 4) to disconnect theselected

output from the inputs.

To disconnect all the outputs, press ALL followed by OFF (see Muting All

Outputs on page 13).

IN Buttons (1 to 4)

Press to select the input to switch afterselecting an output (also used for

storing machine setups in the STO-RCL (see Storing and Recalling a

Routing Setup on page 14).

OUT Buttons

(1 to 4)

Press to select an output (1 to 4) to which the input is routed. Also used for

storing machine presets.

STO Button

Press STO followed by an IN button (1 to 4) to store the current switching

configuration to the location corresponding to that INPUT number

(see Storing and Recalling a Routing Setup onpage 14).

RCL Button

Press RCL followed by the corresponding INbutton (1 to 4) to recall the

preset switching configuration saved in that location (see Storing and

Recalling a Routing Setup onpage 14).

LOCK Button

Press and hold to toggle between locking and releasing the front panel

buttons.

EDID Button

Press EDID + STO buttons to enter the EDID mode (see Copying an

EDID onpage 14).

OUTPUT/INPUT

7-segment LED

Display

Displays the selected inputs switched to the outputs (marked above each

input).

DRAFT

KramerElectronicsLtd.

VS-44H2A–Defining VS-44H2A4KHDMI 4x4 Matrix Switcher

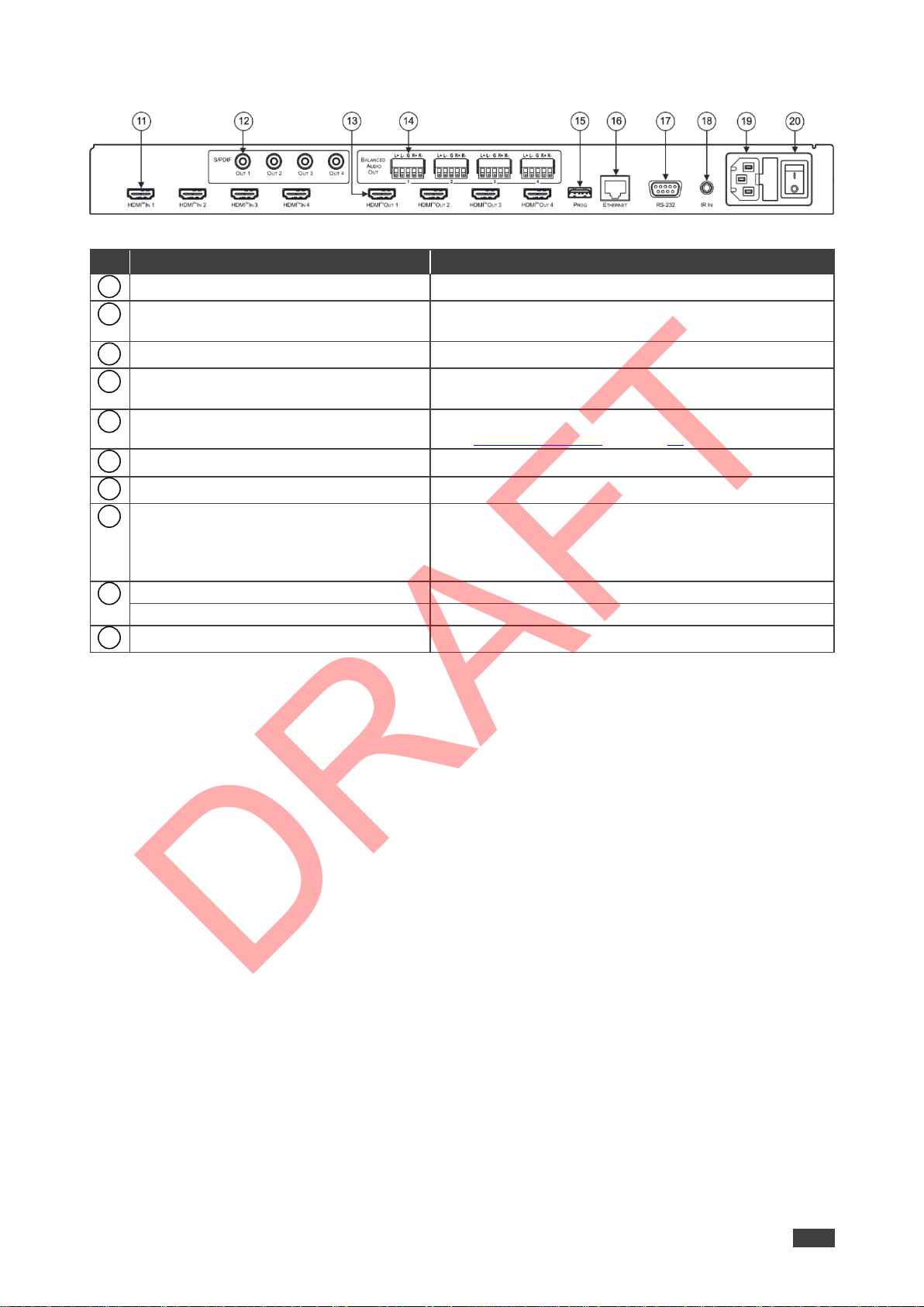

Back Panel

Figure 2: VS-44H2A4K HDMI 4x4Matrix SwitcherRear Panel

Feature

Function

HDMI IN Connectors (1 to 4)

Connect to up to 4 HDMI sources.

S/PDIF OUT (coaxial) RCA Connectors

(1 to 4)

Connect to up to 4 digital audio acceptors.

HDMI OUT Connectors (1 to 4)

Connect to up to 4 HDMI acceptors.

BALANCED AUDIO OUT Terminal Block

Connectors (1 to 4)

Connect to up to 4 balanced stereo audio acceptors.

PROG USB Connector

Connect to a USB stick to perform firmware upgrades

(see Firmware Upgrade onpage 16).

ETHERNET RJ-45 Connector

Connect to a PC via a LAN.

RS-232 9-pin D-sub Connector

Connect to a PC/serial controller.

IR IN 3.5mm Mini Jack Connector

Connect to an external IR receiver for controlling the

device via IR remote controller

Covered by a cap. The 3.5mm jack at the end of the

internal IR connection cable fits into this opening.

Mains Power Connector and Fuse

Plug in the power cord.

Mains Power Fuse

Fuse forprotecting thedevice.

Power Illuminated Switch

Turn the device on and off.

DRAFT

KramerElectronicsLtd.

VS-44H2A–Mounting VS-44H2A

Mounting VS-44H2A

This section provides instructions formounting VS-44H2A.Beforeinstalling, verify thatthe

environment is within the recommendedrange:

•Operation temperature –0to 40C (32 to 104F).

•Storage temperature –-40to +70C (-40 to +158F).

•Humidity –10% to 90%, RHLnon-condensing.

Caution:

•Mount VS-44H2A before connecting any cables or power.

Warning:

•Ensure that the environment(e.g., maximum ambienttemperature & air flow)is

compatible forthe device.

•Avoid uneven mechanicalloading.

•Appropriate consideration of equipment nameplate ratings should be used foravoiding

overloading of the circuits.

•Reliable earthing of rack-mountedequipment should be maintained.

Tomount VS-44H2A in a rack

Attach both rack ears by removing the screws from eachside of the

machine and replacing those screwsthrough the rack ears or place

the machine on a table.

For more informationgo to www.kramerav.com/downloads/VS-44H2A

DRAFT

KramerElectronicsLtd.

VS-44H2A–ConnectingVS-44H2A

Connecting VS-44H2A

Always switchoff the power to each devicebefore connecting it to your VS-44H2A.After

connecting your VS-44H2A,connectits power and then switch on the power to eachdevice.

Figure 3: Connectingtothe VS-44H2ARear Panel

Toconnect VS-44H2A as illustrated in the example in Figure 3:

1. Connect up to four video sources to the HDMIinputs (from HDMIIN1 to HDMIIN 4).

For example, connect:

▪A laptop to the HDMIIN1 and another laptop to HDMIIN4 using HDMIconnectors.

▪Blu-ray players to the HDMIIN2 and HDMI IN 3 using HDMIconnectors.

2. Connect the four video HDMIoutputs (from HDMIOUT1to HDMI OUT4) to up to

fouracceptors. For example:

▪Connect HDMIOUT 1 HDMIconnectorto a projector.

▪Connect HDMIOUT 2, HDMI OUT3 and HDMIOUT 4 HDMIconnectorseach to a

display.

3. Connect the power cord .

We recommendthat you use only the power cord that is supplied with this machine.

4. Connect ETHERNETport to a system controller.

5. Connect RS-232 3-pin terminal block connector to a system controller.

6. If required, connect the PROG USB Connector (5V/2A)to a deviceto charge it.

DRAFT

KramerElectronicsLtd.

VS-44H2A–ConnectingVS-44H2A

Connecting to VS-44H2A via RS-232

You can connectto the VS-44H2A via an RS-232connection using, forexample, a PC.

Connect the RS-232 terminal block on the rear panel of the VS-44H2A to a PC/controller, as

follows:

RS-232 Device

VS-44H2A

9-pin D-sub Female Connector (from PC)

Figure 4: RS-232 Connection

Connecting VS-44H2A via ETHERNET Port

You can connectto VS-44H2A via Ethernet using either of the following methods:

•Directly to the PC using a crossovercable (see Connecting the Ethernet Port Directly to

aPC on page 8).

•Via a networkhub, switch, or router, using a straight-through cable (see Connecting the

Ethernet Port viaa Network Hubor Switchon page 10).

If you want to connect via a router and yourIT system is based on IPv6, speak to your IT

department for specific installation instructions.

Connecting the Ethernet Port Directly to a PC

Youcanconnectthe Ethernet port of the VS-44H2A directly to the Ethernet port on your PC

using a crossover cable with RJ-45 connectors.

This type of connection is recommendedforidentifying the VS-44H2A with the factory

configured default IP address.

Afterconnecting the VS-44H2A to the Ethernet port, configureyour PC as follows:

1. Click Start > ControlPanel > Networkand Sharing Center.

2. Click Change Adapter Settings.

3. Highlight the network adapter you want to use to connect to the device and click Change

settings of this connection.

The Local Area Connection Properties window forthe selected network adapter appears

as shown in Figure 5.

PIN 5 Connectedto Ground

PIN 3 Connectedto Rx

PIN 2 Connectedto Tx

Pin 5

Pin 3

Pin 2

Ground

DRAFT

Autres manuels pour VS-44H2A

Table des matières

Autres manuels Kramer Commutateur matriciel

Kramer

Kramer 21-70686010 Manuel utilisateur

Kramer

Kramer VP-26 Manuel utilisateur

Kramer

Kramer VS-88HDCPxl Manuel utilisateur

Kramer

Kramer Sierra Video 3232V5S Manuel utilisateur

Kramer

Kramer VS-62H Manuel utilisateur

Kramer

Kramer VP-32K Manuel utilisateur

Kramer

Kramer Sierra Pro XL 1208V3 Manuel utilisateur

Kramer

Kramer VP-1608 Manuel utilisateur

Kramer

Kramer Sierra Video 1608V5S Manuel utilisateur

Kramer

Kramer LASSEN XL 3216S Manuel utilisateur

Kramer

Kramer VS-6YC Manuel utilisateur

Kramer

Kramer Sierra Video 3232SXL Manuel utilisateur

Kramer

Kramer 1616DS Manuel utilisateur

Kramer

Kramer MTX3-34-M Manuel utilisateur

Kramer

Kramer Sierra Video 6448V5xl Manuel utilisateur

Kramer

Kramer VS-42HDCP Manuel utilisateur

Kramer

Kramer Sierra Pro XL 1616V3S Manuel utilisateur

Kramer

Kramer VS-88H2 Manuel utilisateur

Kramer

Kramer VP-778 Manuel utilisateur

Kramer

Kramer LASSEN XL 3232S Manuel utilisateur

Kramer

Kramer VP-8x8 Manuel utilisateur

Kramer

Kramer VP-725DS Manuel utilisateur

Kramer

Kramer VS-84H Manuel utilisateur

Kramer

Kramer SD-7308 Manuel utilisateur

Manuels Commutateur matriciel populaires d'autres marques

Broadcast Tools

Broadcast Tools SS 8.2 Manuel utilisateur

Altimium

Altimium MATF32 Manuel utilisateur

ALFAtron

ALFAtron ALF-MUK44N Manuel utilisateur

Monoprice

Monoprice Blackbird 15377 Manuel utilisateur

PTN

PTN FMX12 Manuel utilisateur

CYP

CYP nT15GX01 Manuel utilisateur

TESmart

TESmart HMA0402A40 Manuel utilisateur

Octava

Octava HD4XSTPMX Manuel utilisateur

Intelix

Intelix FLX-88 Mode d'emploi

Roland

Roland XS-1HD Manuel utilisateur

Atlona

Atlona AT-HDMI-22M Manuel utilisateur

Link

Link HD8X8 Manuel utilisateur

AMX

AMX AVS-OP-2020-117 Instructions et recettes

Lindy

Lindy 38042 Manuel utilisateur

Extron electronics

Extron electronics MTPX Plus Series Manuel utilisateur

Key Digital

Key Digital Champion KD-16x16CS Manuel utilisateur

Shinybow USA

Shinybow USA SB-8811 Manuel utilisateur

Optimus

Optimus Compact Manuel utilisateur
