Kora Pro 3D PC Manuel utilisateur

Quickstart Guide

Kora Pro 3D PC

Printer

Rev001/01/2018 Kora Pro PC

General Precautions and Advice

Only use original accessories from or approved by the manufacturer

Always read the manual before initial operation

The product should only be used for applications as described by the manufacturer

The manufacturer cannot be held liable for damage resulting from errors, unintended

or incorrect use of the device

Do not disassemble, modify or alter this device or its operating system(s) in any way

without specific written instruction to do so by the manufacturer

Do not operate or store the product outdoors or in any place where it might become damp

or wet

Do not operate or store the product in any place that might be exposed to

extreme heat or cold (Ideal environment temperatures between 10 - 32C (50 -

89F)

Keep the product out of reach of unsupervised children

Disconnect the device from all power sources before cleaning

Remove the plug from the power outlet during storms, lightning and whenever the

product will not be used for a longer period of time

Only install the product as indicated in this manual and/or as instructed in writing by the

manufacturer

If in doubt, consult a recognized technician and always take account of local

installation codes of practice and regulations

The product must not be disposed of as unsorted municipal waste; it should be

disposed of in accordance with local Waste Electrical and Electronic Equipment

(WEEE) Regulations. Please check the options in your region for disposing of electrical

/ electronic equipment

Whilst this product has several built-in safety features to avoid hazardous operating

conditions developing, it is not recommended to operate

any

3D Printing device whilst

unattended - unless installed in a suitable safety enclosure or safety cabinet. Check

with the manufacture for suitable 3D Printer safety enclosures and cabinets

It is recommended that a 3D Printer has a regular service safety check - contact the

manufacturer for further details

Always retain all the outer packaging supplied with your 3D Printer to ensure safe

transportation, should this be required in the future

See also

'Kora Pro 3D PC Printer Firmware Manual

' for detailed operation of the machine

via the built-in LCD Screen and Jog Wheel controller.

This file is located on the USB

Stick Drive supplied with the machine

in the sub-directory /Kora/Instructions

Rev001/01/2018 Kora Pro PC

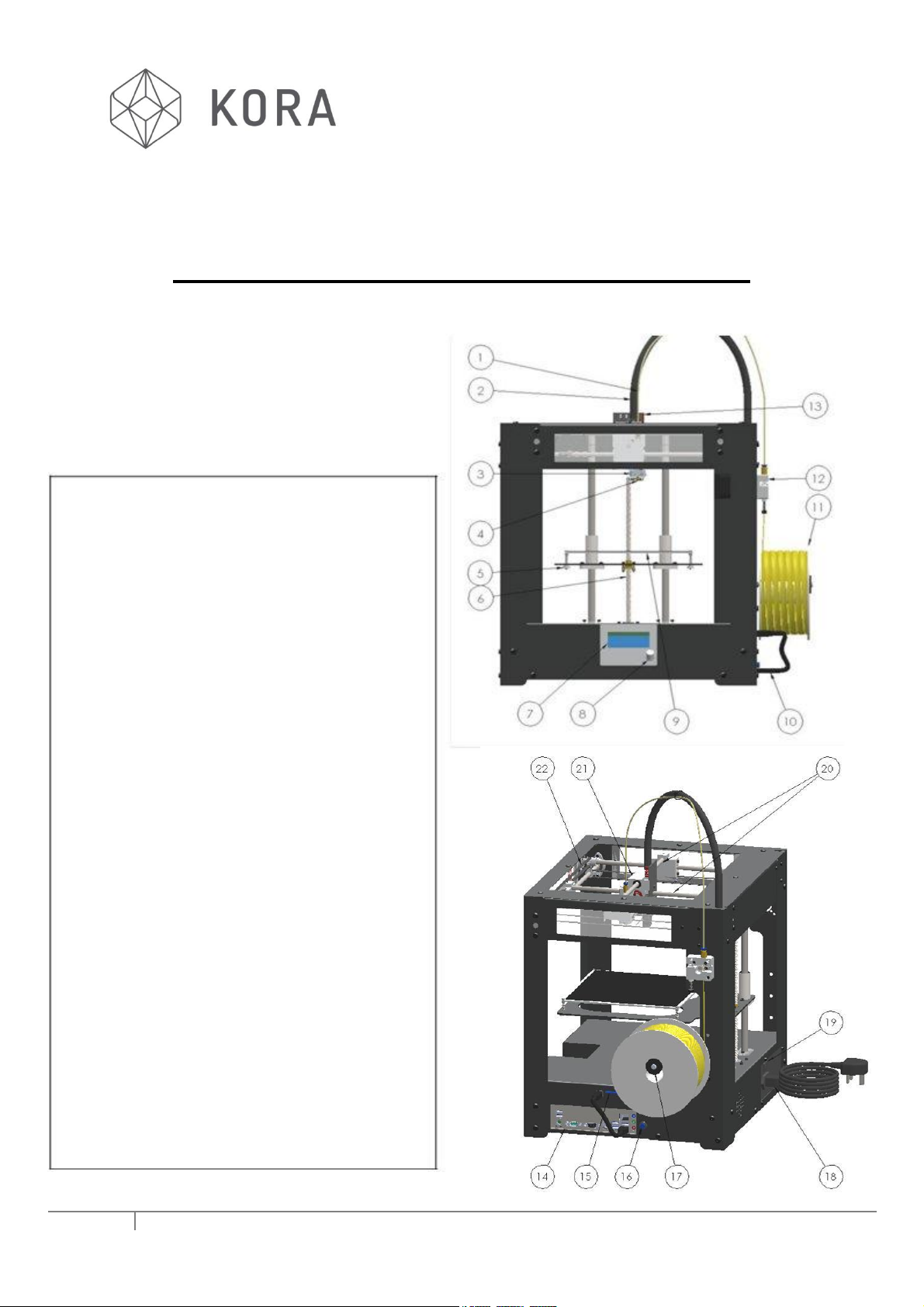

MACHINE OVERVIEW

1. PTFE Filament Feeder Tube

2. Electrical Umbilical Cord

3. Heater Block

4. Nozzle

5. Thumb Screws

6. Bed 'Lead' Screw

7. Control Panel

8. Jog Wheel

9. Printer Bed

10. USB Cable

11. Filament Reel

12. Filament Extruder

13. Control LED's

14. CPU Motherboard

15. SD Card Slot

16. CPU Power 'ON/OFF' Button

17. Filament Spool Holder

18. Power Supply Cable

19. Power Supply Switch

20. Mechanism Support Rods

21. Main HOT END Block

22. Drive Belts

Rev001/01/2018 Kora Pro PC

REMOVING THE PACKAGING

Having taken delivery of your brand new Kora Pro 3D PC Printer, carefully remove the reusable packaging. The 3D

Printer should ALWAYS be repackaged as received when transporting - the manufacturer or supplier cannot be

held responsible for any damage caused during transportation of a machine not correctly repackaged in

its original packaging.

WARNING: Only lift the Kora Pro 3D PC by the metal frame, NEVER lift by the printing mechanism, support rods,

conduit wiring loom or toothed belts. See ‘Removal Guide Sheet’ Supplied with the machine packaging.

Once all the outer packaging has been removed and stored for future use, place the 3D printer on a stable and level

surface for example a table or bench, in a well ventilated area.

1. Taking care not to interfere with the Drive Belts, carefully cut the two cable ties holding the Main Printer Head

Block in place during transportation.

2. Slightly raise the Printer Bed by twisting the rear Bed Lead Screw clockwise with your fingers.

3. Remove cardboard Accessory Box and check contents according to the checklist enclosed in the box.

Rev001/01/2018 Kora Pro PC

INITIAL SET UP

1. Use the shorter USB Cable to connect 3D printer control board to PC Mother Board as shown.

2. Now connect - if PC functionality is required ** (ancillary parts not supplied as standard).

A Monitor (VGA or HDMI)



A Keyboard (USB wired or wireless*)



A Mouse (USB wired or wireless*)

(*Keyboard and Mouse connection can be made via a wireless USB dongle).

3. Insert supplied USB Stick Drive into any available USB port on PC Mother Board connection panel.

4. Attach Mains Power Cable, as shown below and turn on Printer Power Supply Switch then press and release

the CPU Power Button located to the right of the CPU panel (shown above in blue or green).

Rev001/01/2018 Kora Pro PC

** If PC functionality is not required at this stage - simply press and hold the CPU Power Button and operate the 3D Printer as described from

8. below.

5. Follow instructions on monitor to load and configure Windows 10 from the previously inserted USB Drive. YOU

MUST ONLY SELECT WINDOWS 10 HOME EDITION - otherwise your software key supplied with your Windows

10 Disk inside the box will be invalid.

6. Once Windows 10 has completed the installation, connect to the Internet following the Windows 10 on screen

instructions (you may require a cable connection from the PC Motherboard your Internet router or use a USB wireless

Internet dongle, if your router offers wireless connectivity).

7. Once connected to the Internet, download and install the free Open Source Arduino IDE and Repetier-Host

Software programs from the links below.

Arduino IDE - https://www.arduino.cc/en/Main/Software

Repetier-Host (optional donation) - https://www.repetier.com/download-software/

Repetier-Host (no donation) - https://www.repetier.com/download-now/

For users unfamiliar with Repetier-Host, full details of Repetier-Host set-up for the Kora Pro 3D PC please

refer to the document ‘Instructions_RepetierHost_KoraPro3DPC_Rev01.pdf’ - located on the USB Stick Drive

supplied with the machine in the sub-folder /Kora/Instructions.

8. Attach Filament Spool Holder as shown below.

9. Take a reel of filament and remove from packaging, taking care to save the plastic bag and bag of silicon for

storing filament after use (It is recommended not to store filament for a prolonged period in any kind of moist/damp

environment).

You will notice the free end of the filament is held in the hole on the reel. It is important to ensure the filament is able

to unravel freely from the spool, without being knotted or snagged. Keeping track of the filament end is good practice

and should be returned to the hole when the spool is not in use.

Place filament spool on to the spool holder as shown overleaf.

Rev001/01/2018 Kora Pro PC

LOADING THE FILAMENT

To insert (or to change) the filament, the machine Hot End extruder must be heated first. This can be done in

two ways, either using the Repetier-Host software or via the onboard LCD control panel.

Using the control panel go into 'Quick Settings' by turning the jog wheel and select 'Preheat PLA/ABS' (depending

on which filament you are using) and press the jog wheel.

WARNING: 'Preheat PLA/ABS' heats the printer hot end assembly and the print bed to the required

appropriate temperatures - use caution not to touch either whilst heating or hot (between 50 and 260⁰C)

Select 'Back' on the control panel to return to the 'Main Menu'. This will show you the current Extruder and Heated

Bed actual temperatures (to the left) and target temperatures (to the right) after heating is complete. Once the target

temperatures have been achieved, the extruder is ready to take filament.

Make sure the end of the filament is cleanly cut and straighten 40mm using your fingers. This will make it easier

to feed the filament through the filament feeder mechanism.

With one hand gently squeeze/pinch the filament extruder arm as shown below, and carefully feed the filament up

through the 'rectangular nipple' past the filament drive gear and up into the PTFE feeder tube. Do not over

squeeze/pinch the filament extruder during filament loading as this will make feeding the filament more difficult.

Rev001/01/2018 Kora Pro PC

While still squeezing/pinching, continue feeding the filament through the PTFE Feeder Tube until melted filament is

extruded from the HOT Nozzle. Note that the printer bed must be away from the Nozzle tip to allow the filament to be

extruded freely. The Printer Bed height can be adjusted at this point away from the nozzle by manually rotating the

Bed Lead Screw anti-clockwise - (the long threaded rod at the rear/centre of the machine), using finger and thumb.

Once about 60mm of filament has been extruded from the Nozzle, release your squeeze/pinch to engage the 'filament gear'

and 'bearing' on to the filament. Trim the excess extruded filament from the Nozzle with tweezers or scissors, making sure

not to touch the HOT Nozzle or the aluminium Heater Block directly above the nozzle. This block and

the nozzle can reach temperatures in excess of 260⁰C.

The filament is now loaded.

PLEASE NOTE -

NEVER shut down the built in PC or turn off the Mains Power Supply if the Nozzle temperature is showing

above 60⁰C on the Printer LCD screen - failure to follow this instruction can cause a machine Nozzle

blockage. If this is done in error - immediately restoring the power will avoid possible Nozzle blockage.

Rev001/01/2018 Kora Pro PC

LEVELING THE HEATED

PRINT BED

It cannot be stressed enough that levelling the printer bed correctly is essential to achieve good adhesion between

the printer bed and the first layer of all your 3D prints.Only VERY LIGHT contact is required between the tip of the

nozzle and the printer bed, ideally NO "gap" should be present. However, a sheet of standard 80 gram printer paper

can be used to gauge when the nozzle is very close to the printer bed during adjustment, by feeling friction on the

paper as the nozzle starts to squeeze the paper against the printer bed.

Although so called 'automatic printer bed levelling' could be easily installed on this machine, only manual printer bed

levelling has been installed on this machine. This is much more consistent and accurate and after a little practice,

proves a far better levelling method than any 'automatic' alternatives. Future additional Bed Levelling is only required

if the first print layer appears too close (nozzle scraping on the print bed) or too far away (first print layer does not

adhere sufficiently) from the print bed.

It is good practice to level the Printer Bed after loading the filament with the Nozzle and Heated Bed at printing

temperature, before each print. This allows for the Nozzle to be clear of hardened filament - allowing accurate

judgement of light contact between Nozzle and Printer Bed.

It also allows, once bed levelling is complete, to proceed straight to printing without the risk of the interfering with

the levelled bed.

Experience in this procedure will be gained quickly, through practice.

There are several ways to ensure that the bed is level and ready to print.

Note: Before attempting to level the printer bed using method a. or b. (page 10) manually rotate the Bed Lead Screw

clockwise until the Nozzle lightly touches the printer bed. At this position the lowest LED on the Hot End PCB (Z home

limit switch indicator) should be illuminated. If it is not illuminated, turn all the thumb screws (x4, located at each

corner of the headed print bed) one full turn anticlockwise (to lower printer bed) and repeat test from 'Note:' (above).

Continue this procedure until the lowest LED on the hot end PCB illuminates when the nozzle is just touching the bed.

Rev001/01/2018 Kora Pro PC

a) MANUAL METHOD (preferred method)

1. Using Control Panel, press the Jog Wheel once and scroll down to 'Position' on the printers LCD screen,

press the Jog Wheel. Scroll down to 'Home Z' and select by pressing the Jog Wheel, the printing bed will rise

towards the Nozzle then stop in a locked position.

2. When it reaches the top, using the Mechanism Support Rods to manually move the main Hot End holder

block to all four corners of the printer bed - at each corner use the Thumb Screw below that particular corner

of the Printer Bed to adjust the printer bed up and down so that it lightly touches the brass tip of the Nozzle

in all positions.

3. When complete re-check all four corners again and finally check the middle of the Printer bed.

4. You have 6 minutes to complete the above process after selecting 'Home Z', after this time the Z motor will

time out and unlock - thus preventing accurate Printer Bed levelling - if this happens, simply repeat from step

a)1. above.

b) USING SD CARD (alternative 'Semi-Automatic Levelling')

1. Insert SD card (if already inserted remove and re-insert). On the file list shown on the Control Panel LCD

display scroll down and select the file named ‘Kora_levelling.gco’. The printer will home all axes, then

automatically move the Hot End holder block to far right hand corner slowly raising the Printer Bed

towards the Nozzle.

2. When the bed stops rising check that the Nozzle is lightly touching the Printer Bed surface. This is adjustable

using the Thumb Screw under the far right hand corner of the bed. You have 10 seconds after the bed has

stopped rising to make this adjustment correctly. After 10 seconds the bed will slightly lower and the Nozzle

will move to the far left hand corner to repeat the process.

3. The process will be repeated for the remaining corners, allowing for adjustment each time.

4. The Nozzle will then move to the centre for 5 seconds to check the adjustment.

5. The Control Panel will then display 'One Quick Check!' and will repeat everything from 2 above but this time

only pausing for 5 seconds (To allow final fine tuning).

6. The Nozzle will return to its home position (rear right hand corner).

7. You can repeat the process as often as you like, until completely satisfied that the Nozzle is lightly

touching the Printer Bed in all positions. To repeat if required, start again at step b)1.above.

Rev001/01/2018 Kora Pro PC

Autres manuels pour Pro 3D PC

Table des matières

Autres manuels Kora Imprimante 3D

Kora

Kora Pro 3D PC Manuel utilisateur

Manuels Imprimante 3D populaires d'autres marques

Ultimaker

Ultimaker S5 Material Station Manuel utilisateur

EcubMaker

EcubMaker TOYDIY Manuel utilisateur

AnyCubic

AnyCubic Kossel Plus Manuel utilisateur

ReDeTec

ReDeTec ProtoCycler Manuel utilisateur

Kywoo3D

Kywoo3D Tycoon IDEX Manuel utilisateur

CraftBot

CraftBot PLUS PRO Manuel utilisateur

3DGence

3DGence INDUSTRY F340 Manuel utilisateur

HP Jet Fusion 4200 Mode d'emploi

Rokit

Rokit AEP Series Manuel utilisateur

AnkerMake

AnkerMake M5 Manuel utilisateur

DIYElectronics

DIYElectronics PRUSA I3 Instructions de montage

Ackuretta

Ackuretta FreeShape 120 Manuel utilisateur

LONGER

LONGER LK5Pro Manuel utilisateur

Stratasys

Stratasys J850 Manuel utilisateur

MakerBot

MakerBot Replicator Manuel utilisateur

Stratasys

Stratasys FDM Vantage Series Manuel utilisateur

ZYYX

ZYYX Pro II Manuel utilisateur

FLASHFORGE 3D PRINTER

FLASHFORGE 3D PRINTER Creator Guide de l'utilisateur
