Konica Minolta Magicolor 4650EN Manuel

PARTS GUIDE MANUAL

APRIL 2008

pagepro 4650EN

A0DX011

10/22/2007

INFORMATION FOR PARTS GUIDE MANUAL

To find correct Parts No., refer to the “HOW TO MAKE THE BEST USE OF THIS MANUAL” in the following page.

HOW TO MAKE THE BEST USE OF THIS MANUAL

1 When you order, please check the proper figures beforehand that are on Our Parts Guide Manual, and order with the appropriate figures.

2 For screws, Nuts, Washers, retaining rings and Pins which are used in this model, one letter is shown on the Standard parts column of Parts list and

exploded diagrams.

3 In order to maintain safety of the product, some specific parts composed of this product are set up as "essential safety parts".

4 The assigned parts number for the "essential safety parts" is indicated as "SP00-****".

When replacing these parts, follow precautions for disassembling and installing which are listed in the Service Manual.

Do not use any parts that are not set up as

5 means that there are exclusive parts for each destination.

Please check the appropriate destination when you order.

6 Revision Mark

Marked as on the illustration shows that the revision has been made.

Use of this parts guide manual should be strictly supervised to avoid disclosure of confidential information.

pagepro 4650EN

SYSTEM OUTLINE

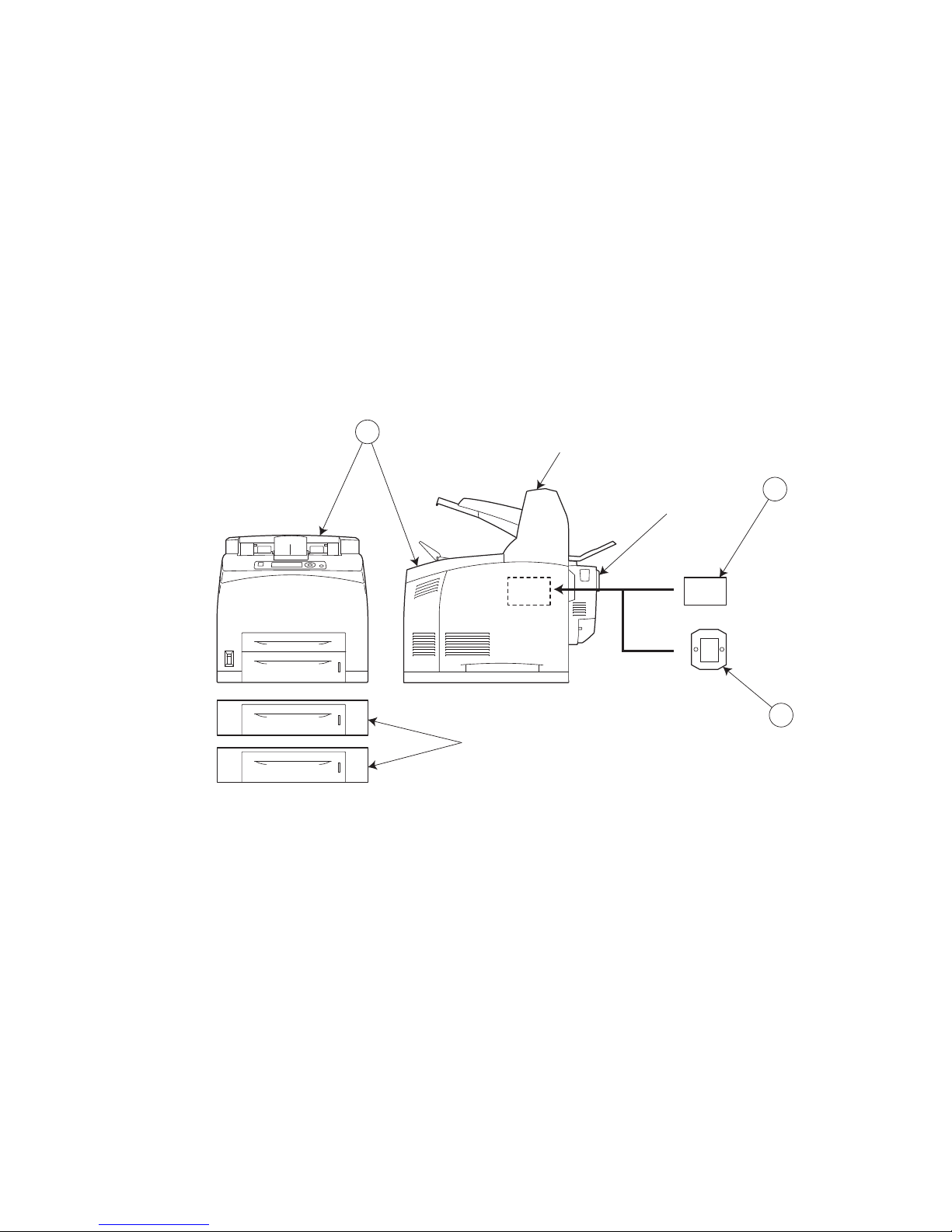

Parts Guide Manual "pagepro 4650EN" includes PF-505, AD-508 and SF-603.

OPTION PF-505

OPTION SF-603

OPTION AD-508

pagepro 4650EN

GENERAL CONTENTS

No. Description Model

1PRINTER B/W pagepro 4650EN

2PRINTER B/W pagepro 5650EN

3OTHER OPTION HD-512

4OTHER OPTION MK-717

pagepro 4650EN

DIAGRAM OF MAIN PARTS SECTION

pagepro 4650EN

CONTENTS

No. DESCRIPTION PAGE No.

1 EXTERNAL PARTS P1

2 150 PAPER CASSETTE P2

3 550 PAPER CASSETTE P3

4 PAPER FEED SECTION P4 P5

5 P/H FUSING SECTION P6

6 PAPER EXIT SECTION P7 P8

7 DRIVE SECTION P9

8 ELECTRICAL COMPONENTS P10

9 PF-505 P11 P12 P13

10 AD-508 P14

11 SF-603 P15

pagepro 4650EN

INDEX

Parts No. Page No.

A00F 9420 00 1-10

A0DX 9401 00 1-11

A0DX M710 05 10-6

A0DX M71A 01 1-1

A0DX PP00 00 11-5

A0DX PP01 00 2-5

A0DX PP02 00 12-4

A0DX PP03 00 5-8

A0DX PP06 00 5-1

A0DX PP07 00 5-7

A0DX PP08 00 15-2

A0DX PP09 00 3-3

A0DX PP09 00 13-3

A0DX PP0A 00 2-4

A0DX PP0B 01 15-12

A0DX PP0E 00 15-10

A0DX PP0F 00 15-4

A0DX PP0H 00 6-2

A0DX PP0J 00 8-1

A0DX PP0K 00 2-6

A0DX PP0M 00 3-4

A0DX PP0N 00 10-2

A0DX PP0P 01 10-2

A0DX PP0S 00 15-7

A0DX PP0T 00 10-3

A0DX PP0U 00 10-4

A0DX PP0V 00 11-3

A0DX PP0W 00 1-3

A0DX PP0Y 00 5-2

A0DX PP10 00 4-2

A0DX PP10 00 5-6

A0DX PP11 00 4-1

A0DX PP11 00 5-4

A0DX PP11 00 12-2

A0DX PP12 00 15-8

A0DX PP13 00 14-3

A0DX PP14 00 14-6

A0DX PP15 00 10-5

A0DX PP18 00 11-1

A0DX PP19 00 9-1

A0DX PP1A 00 15-6

A0DX PP1B 00 15-11

A0DX PP1C 00 6-5

A0DX PP1F 00 14-7

A0DX PP1G 00 4-5

A0DX PP1H 00 11-7

A0DX PP1J 00 15-5

A0DX PP1K 00 14-5

A0DX PP1M 01 15-1

A0DX PP1N 00 1-4

A0DX PP1P 00 9-2

A0DX PP1Q 00 4-7

A0DX PP1R 00 2-2

A0DX PP1R 00 3-2

A0DX PP1R 00 4-4

A0DX PP1R 00 5-5

A0DX PP1R 00 12-1

A0DX PP1R 00 13-2

A0DX PP1S 00 6-4

A0DX PP1T 00 6-4

A0DX PP20 00 2-1

A0DX PP20 00 3-1

A0DX PP20 00 13-1

A0DX PP21 00 1-9

A0DX PP22 01 15-3

A0DX PP23 00 1-7

A0DX PP24 00 1-5

A0DX PP25 00 11-6

A0DX PP26 01 14-4

A0DX PP27 01 14-1

A0DX PP28 01 14-2

A0DX PP29 01 14-8

A0DX PP2A 00 6-3

A0DX PP2C 00 2-3

A0DX PP2G 00 11-4

A0DX PP2H 00 4-3

A0DX PP2H 00 5-3

A0DX PP2H 00 7-2

A0DX PP2H 00 12-3

A0DX PP2H 00 15-9

Parts No. Page No.

A0DX PP2M 00 11-2

A0DX PP2N 00 6-1

A0DX PP2P 00 1-6

A0DX PP2Q 00 1-8

A0DX PP2S 01 10-1

A0DX PP2U 00 4-6

A0DX PP2X 01 1-2

A0DX PP2Y 00 7-1

A0DX PP31 00 7-3

A0DX PP33 00 10-8

A0DX PP38 01 10-1

A0FM 011 10-7

A0FM 0Y1 10-7

Parts No. Page No.

1/1

EXTERNAL PARTS

P 1

Please refer Page.10-Key.8 for parts described as "S" or "E".

SW3

pagepro 4650EN

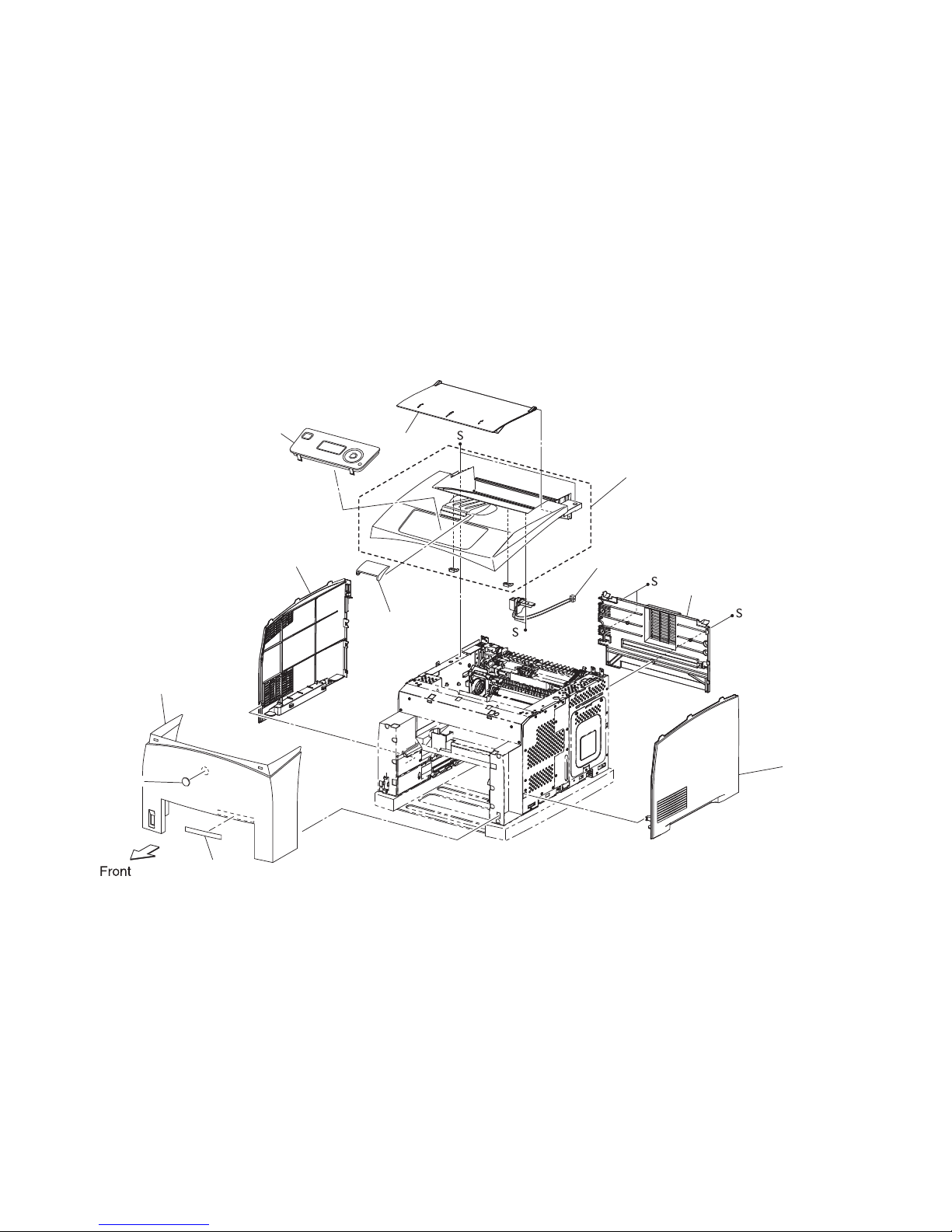

EXTERNAL PARTS

Key Part No. Description Destinations Class QTY Standard parts

1 A0DX M71A 01 OPERATION PANEL 34PPM I1

2 A0DX PP2X 01 KIT TOP COVER C1

3 A0DX PP0W 00 SWITCH I/L ASSY C1

4 A0DX PP1N 00 COVER REAR 34PPM C1

5 A0DX PP24 00 COVER RIGHT C1

6 A0DX PP2P 00 COVER FRONT C1

7 A0DX PP23 00 COVER LEFT C1

8 A0DX PP2Q 00 COVER STOPPER C1

9 A0DX PP21 00 COVER OPEN C1

10 A00F 9420 00 Label Logo Mark C1

11 A0DX 9401 00 Label pagepro4650 C1

Page. 1

150 PAPER CASSETTE

P 2

Please refer Page.10-Key.8 for parts described as "S" or "E".

pagepro 4650EN
