Introduction 1

Introduction

Thank you for contacting a technical support representative to obtain

information about returning your printer for warranty exchange. Follow these

instructions very carefully.

If you need additional assistance, refer to the General Information Guide

(included with the original printer) or printer.konicaminolta.com for worldwide

sources of service and support.

Attention

Failure to follow these instructions could result in voiding your

warranty.

Exchange Procedure

Each of these steps is explained in detail in this guide.

1Unpack and set up the exchange printer. See page 2.

2Prepare the original printer—turn it off, remove the

power cord, interface cables, output tray, and waste

toner bottle.

See page 6.

3Move the consumables (the four toner cartridges and

the transfer belt unit) from the original printer to the

exchange printer.

See page 8.

4Move any installed options (duplex option and/or lower

feeder unit) from the original printer to the exchange

printer.

See page 15.

5Plug in the exchange printer, attach the interface cables,

and turn it on.

See page 18.

6Repack the original printer, and call the shipper for

pickup.

See page 19.

Unpack the Exchange Printer2

Unpack the Exchange Printer

Attention

Use caution when unpacking the exchange printer, so the packaging

can be used to repack the printer to be returned.

Exchange

1Unpack the exchange

printer.

WARNING!

The printer weighs

approximately

66 lbs/30 kg without

consumables. Be

sure to have help

when lifting and

moving it.

Exchange

2Remove the tape from the outside of the exchange printer.

Unpack the Exchange Printer 3

Exchange

3Remove the tape and packing material from the inside of the

exchange printer.

Exchange

4Remove the fuser separators from the exchange printer.

C D

Unpack the Exchange Printer4

Exchange

5Remove the tape and packing materials from Tray 1.

Exchange

6Load media in Tray 1.

A B

C D

Unpack the Exchange Printer 5

Exchange

7Install the output tray.

Prepare the Original Printer6

Prepare the Original Printer

Original

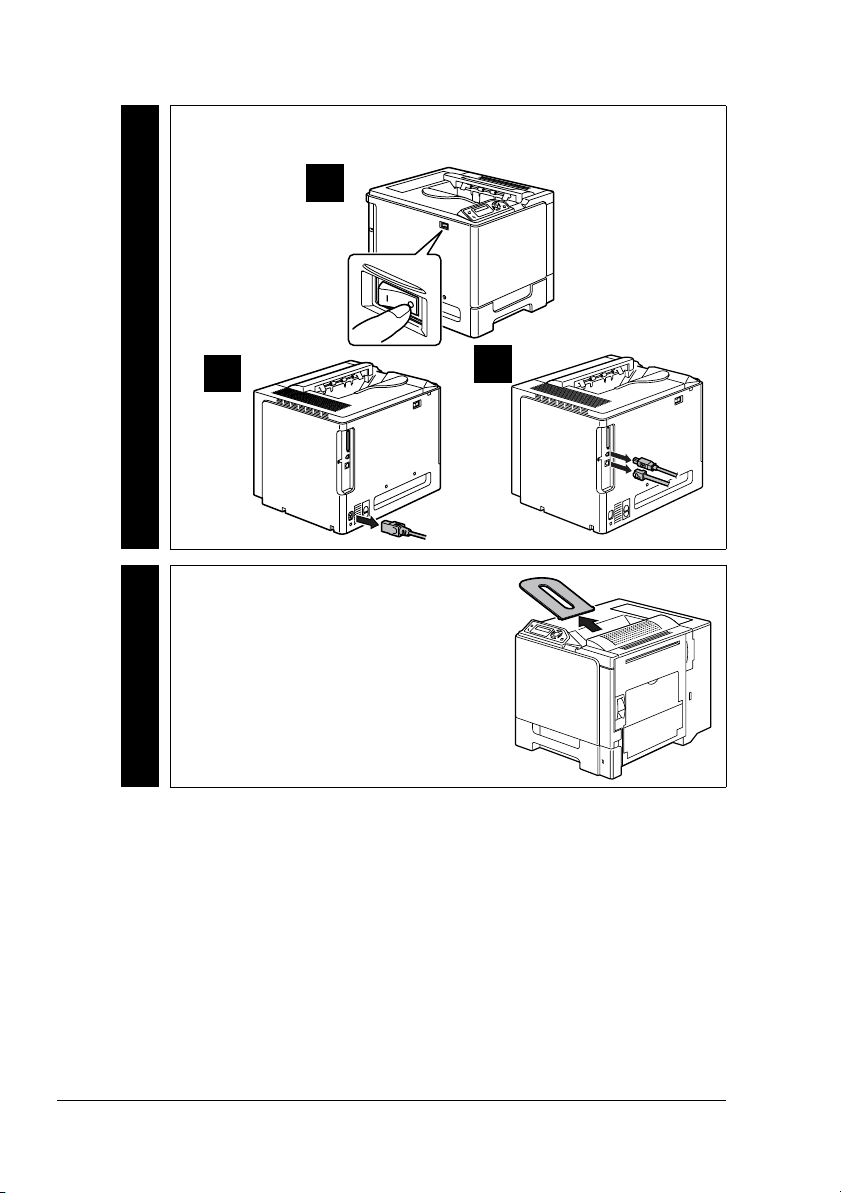

1Turn off the original printer, unplug the power cord, and remove

the interface cables.

Original

2Remove the output tray.

Prepare the Original Printer 7

Original

3Remove the waste toner bottle.

Original

4Dispose of the used waste toner bottle in accordance with your

local regulations.

!" It’s not necessary to keep the used waste toner bottle

because a new one is included in the exchange printer.

WARNING!

Do not dispose of the used waste toner bottle by

burning.

Lock Unlock

A B

C D

Move the Consumables8

Move the Consumables

Toner Cartridges

Original

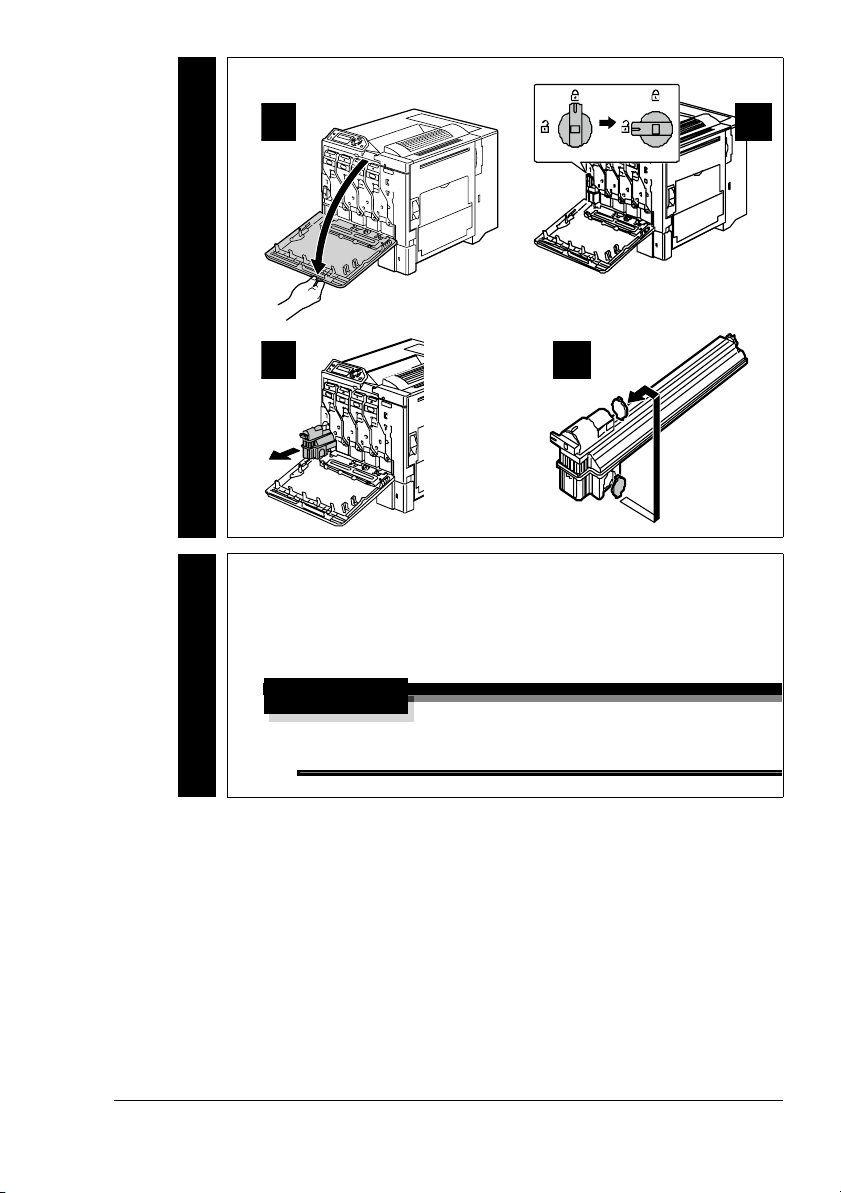

1Remove all four toner cartridges

from the original printer.

Exchange

2Partially insert the four toner cartridges in the exchange printer.

!" Do not push the toner cartridges all the way into the printer.

They have to remain about 4" (10 cm) out in order to install

the transfer belt unit later.

A B
