Installation Guide

Drop-In Baths

K-1107, K-1113, K-1115,

K-1127, K-1132, K-1142,

K-1145, K-1147, K-1149,

K-1155, K-1159, K-1161,

K-1163, K-1165, K-1183,

K-1193, K-1195, K-1197,

K-1199, K-1219, K-1227,

K-1229, K-1232, K-1242,

K-1247, K-1249, K-1259,

K-1262, K-1267, K-1377,

K-1417, K-1449, K-1454,

K-1468, K-11343

Mproduct numbers are for Mexico (i.e. K-12345M)

Los números de productos seguidos de Mcorresponden a México

(Ej. K-12345M)

Français, page “Français-1”

Español, página “Español-1”

1023730-2-F

Tools and Materials

Thank You For Choosing Kohler Company

We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before

you start installation. If you encounter any installation or performance problems, please don’t hesitate to

Company.

Before You Begin

CAUTION: Risk of product damage. Do not support the bath by the rim.

Observe all local plumbing and building codes.

Unpack and inspect the bath for damage. Return the bath to the carton until installation.

Before installation, ensure proper access to the ﬁnal plumbing connections.

Install the bath to an adequately supported, level subﬂoor.

This bath is designed for drop-in or raised-deck installation.

Provide properly dimensioned framing.

The basin area requires no additional support when the subﬂoor is level and square with the stud

framing. Consider using shims for additional support if the subﬂoor is uneven.

Verify adequate mounting and connection space for the faucet.

Conﬁrm adequate support for the faucet. Large deck-mount faucets that may be inadvertently used

as a means of support are not appropriate or safe for this installation.

This bath conforms to ANSI Standard Z124.1. All dimensions are nominal.

Illustrations shown may not represent your actual product.

Plus:

• Conventional woodworking tools and materials

• Drop cloth

• 2x4 or 2x6 lumber

• Construction adhesive (optional)

• Cement or mortar (optional)

• Water-resistant wall material

• Rags

Pencil

Square Knife

Level

Safety

Glasses Tape

Measure

Sealant

1023730-2-F 2 Kohler Co.

1. Prepare the Site

WARNING: Risk of product damage. Do not support the bath by the rim. Provide a 1/16″(2 mm) gap

between the ﬁnished deck/ﬂoor surface.

NOTICE: Adequate ﬂoor support must be provided. Consult the roughing-in sheet packed with your bath

for speciﬁc ﬂoor loading requirements.

Make sure the ﬂooring offers adequate support for your bath. Verify the subﬂoor is ﬂat and level.

NOTE: This bath should be installed in a drop-in or raised deck installation. If a deck-mounted faucet and

valving are planned, ensure that adequate space is available for their installation.

When constructing the framing, be sure to allow for the thickness of the ﬁnished wall materials.

Design and construct 2x4 or 2x6 stud framing for your particular installation. Frame the ﬂoor, or

construct a frame for a raised deck installation according to the roughing-in information. Ensure

there is a 1/16″(2 mm) gap between the ﬁnished deck/ﬂoor surface so the bath does not rest on the

rim.

Position the plumbing according to the roughing-in information. Cap the supplies and check for

leaks.

NOTE: For corner installations, cut a hole large enough to allow for the diagonal positioning of the drain.

Unless the bath is elevated for an above-ﬂoor drain installation, a hole will need to be cut to

accommodate the drain connections. Refer to the roughing-in information.

2. Prepare the Bath

Install the drain to the bath according to the drain manufacturer’s instructions. Do not connect the

trap at this time.

Position a clean drop cloth or similar material in the bottom of the bath. Be careful not to scratch the

surface of the bath.

3. Secure the Bath to the Subﬂoor – Models With Support Blocks Only

CAUTION: Risk of product damage. Do not support the bath by the rim.

Verify the subﬂoor is level. Shim the bath support blocks as necessary to achieve level.

Secure the bath to the subﬂoor using ″Option 1: Secure Using Cement or Mortar Bed″OR ″Option 2:

Secure Using Construction Adhesive.″

Option 1: Secure Using Cement or Mortar Bed

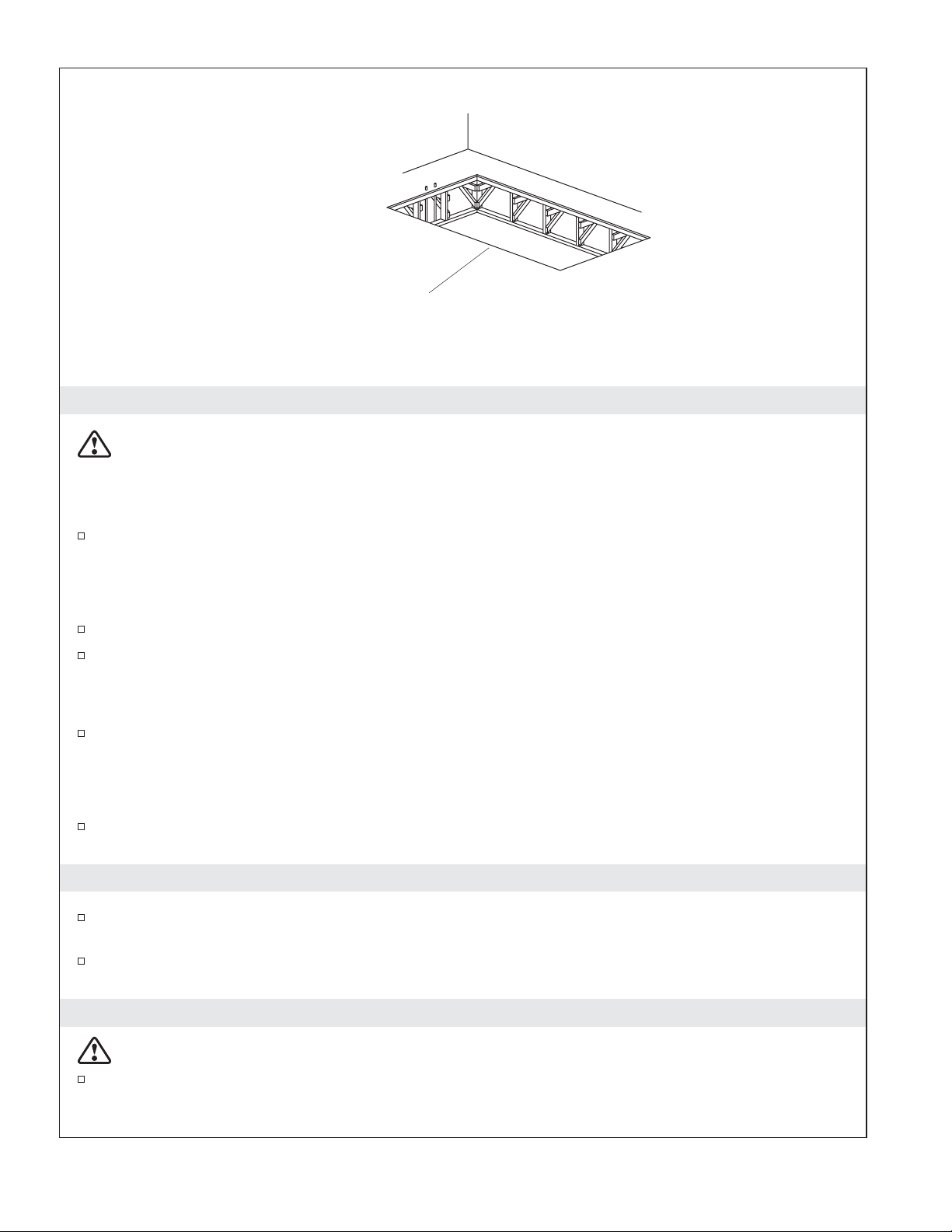

Frame the floor

according to the

roughing-in information.

Position

the rough

plumbing.

Verify that the subfloor

offers adequate support,

and is flat and level.

Provide a 1/16" (2 mm)

gap between the bath rim

and framing.

Construct 2x4 or

2x6 stud framing

according to the

roughing-in

information.

Kohler Co. 3 1023730-2-F

Secure the Bath to the Subﬂoor – Models With Support Blocks Only (cont.)

Spread a 2″(5.1 cm) thick layer of cement or mortar on the subﬂoor where the bath will be placed.

This will help secure, level and support the bath.

NOTE: The support blocks must rest directly on the support ﬂoor.

Clear all the material away from the support block locations.

NOTE: Do not use gypsum cement or drywall compound for this application, as they will not provide an

acceptable, durable bond.

Position a piece of plastic drop cloth or similar material over the cement or mortar bed.

With help, carefully lift the bath into place and make sure the support blocks do not rest in the bed

material. Verify that the bath is level and resting on all support blocks.

Insert the drain tailpiece into the trap.

Remove the protective tape from the bath rim.

Apply a continuous bead of silicone sealant around the entire rim of the bath.

Option 2: Secure Using Construction Adhesive

Apply a generous amount of high-quality construction adhesive to the bottom of the support blocks.

With help, carefully lift the bath into place and verify it is level and resting on all support blocks.

Insert the drain tailpiece into the trap.

Remove the protective tape from the bath rim.

Apply a continuous bead of silicone sealant around the entire rim of the bath.

1023730-2-F 4 Kohler Co.

4. Secure the Bath to the Subﬂoor – Models With Bath Base Only

CAUTION: Risk of product damage. Do not support the bath by the rim.

Verify the subﬂoor is level. Shim the bath support blocks as necessary to achieve level.

Secure the bath to the subﬂoor using ″Option 1: Secure Using Cement or Mortar Bed″OR ″Option 2:

Secure Using Construction Adhesive″.

Option 1: Secure Using Cement or Mortar Bed

Spread a 2″(5.1 cm) thick layer of cement or mortar on the subﬂoor where the bath will be placed.

This will help secure, level and support the bath.

NOTE: Do not use gypsum cement or drywall compound for this application, as they will not provide an

acceptable, durable bond.

Position a piece of plastic drop cloth or similar material over the cement or mortar bed.

With help, carefully lift the bath into place.

Verify the bath is level.

Insert the drain tailpiece into the trap.

NOTE: An access panel will simplify future maintenance.

Remove the protective tape from the bath rim.

Apply a continuous bead of silicone sealant around the entire rim of the bath.

Option 2: Secure Using Construction Adhesive

Apply a generous amount of high-quality construction adhesive to the bath base.

With help, carefully lift the bath into place.

Verify the bath is level.

Insert the drain tailpiece into the trap.

NOTE: An access panel will simplify future maintenance.

Remove the protective tape from the bath rim.

Apply a continuous bead of silicone sealant around the entire rim of the bath.

Spread a 2" (5.1 cm)

layer of cement or

mortar bed material.

Apply

construction

adhesive to

the bath base.

Kohler Co. 5 1023730-2-F

5. Prepare the Faucet Installation – Models K-1227 and K-1232 Only

NOTE: K-1232 will accept faucets with either 4″(10.2 cm) or 6″(15.2 cm) centers. K-1227 will only accept

faucets with 4″(10.2 cm) centers. A typical 4″(10.2 cm) centerset faucet roughing-in is shown in the

illustration.

Measure and cut a piece of 1/2″(1.3 cm) exterior grade plywood to act as a support for the faucets.

For K-1277, cut a 4″(10.2 cm) x 11-1/2″(29.2 cm) piece. For K-1232, cut a 4″(10.2 cm) x 15-1/2″

(39.4 cm) piece.

Position the faucet in the center of the ﬂat area on the bath rim. Refer to the faucet manufacturer’s

instructions.

Mark the faucet centerlines for drilling with a pencil. Do not drill at this time.

CAUTION: Risk of product damage. To avoid damage to the bath, position a thin piece of cardboard

on the ﬁnished surface of the bath and under the clamps before tightening the clamps.

Make sure the clamps do not make direct contact with the ﬁnished surface of the bath.

Place a thin piece of cardboard on the ﬁnished surface of the bath rim.

Position the plywood on the underside of the bath rim, then clamp the plywood into place. Make

sure the clamps do not make direct contact with the ﬁnished surface of the bath.

Refer to the installation instructions packed with the faucet to determine faucet hole size.

Carefully drill the faucet holes.

6. Install the Plumbing

CAUTION: Risk of personal injury. Bath rim-mounted faucets that may be inadvertently used as a

means of support are not appropriate or safe for this installation.

CAUTION: Risk of property damage. Make sure a watertight seal exists on all bath drain connections.

NOTE: Provide access to all plumbing connections to simplify future maintenance.

Connect the trap to the drain according to the drain manufacturer’s instructions.

Install the faucet valving according to the faucet manufacturer’s instructions. Do not install the

faucet trim at this time.

Open the hot and cold water supplies and check all connections for leaks.

Run water into the bath and check the drain connections for leaks.

Fill the bath to the overﬂow and check for leaks.

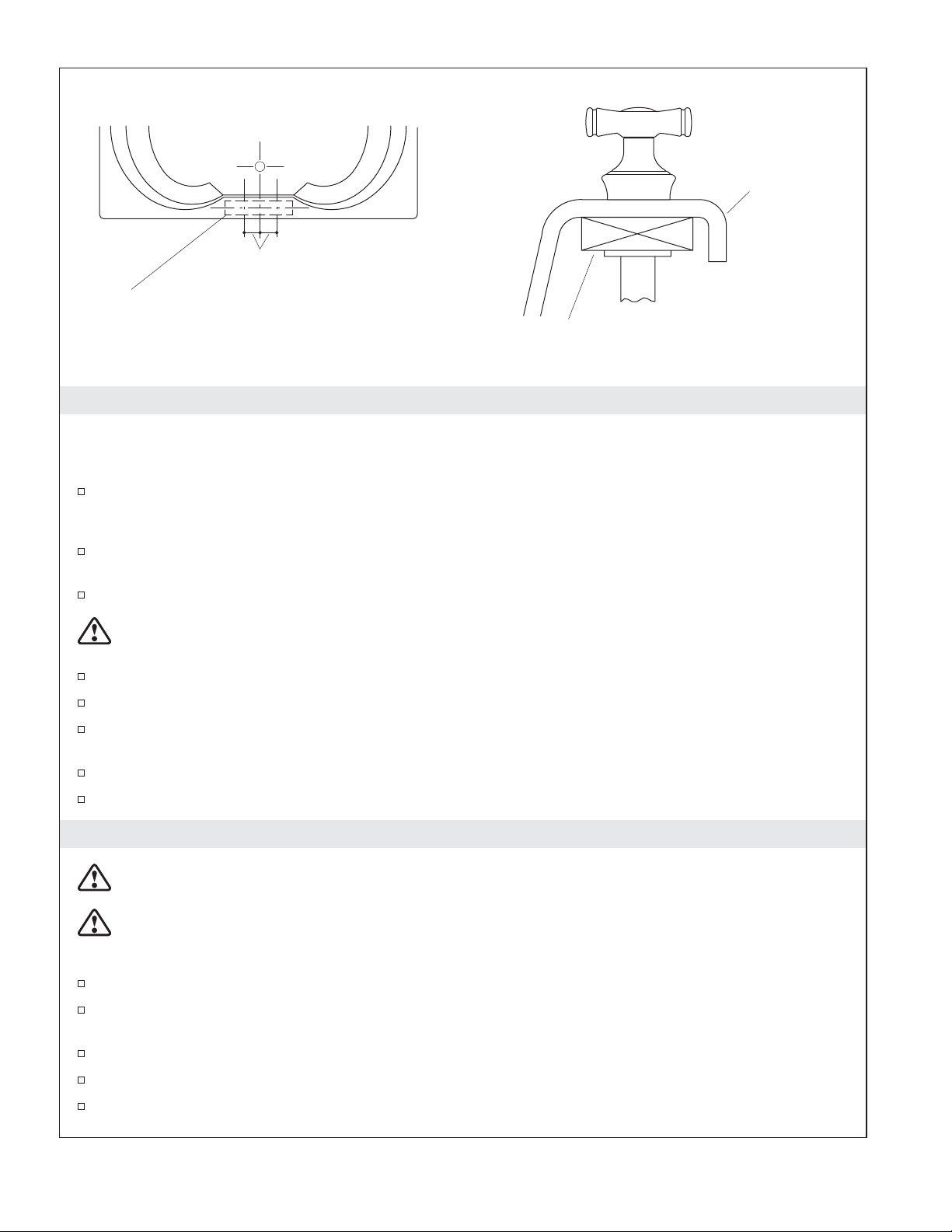

Bath Rim

Measure, cut, and drill a piece of 1/2" (1.3 cm)

exterior grade plywood 4" (10.2 cm) x 11-1/2"

(29.2 cm) for the K-1227, or 4" (10.2 cm) x 15-1/2"

(39.4 cm) for the K-1332.

4" (10.2 cm)

Install the faucet to the rim and plywood according to

the faucet manufacturer's instructions.

1023730-2-F 6 Kohler Co.

7. Complete the Installation

Carefully remove the protective tape from the bath rim.

Cover the framing with water-resistant wall material.

Seal the joints between the bath rim edges and the water-resistant wall material with silicone

sealant. Tape and mud the water-resistant wall material.

Install the ﬁnished wall. Seal the joints between the bath rim and the ﬁnished wall with silicone

sealant.

Install the faucet trim according to the faucet manufacturer’s instructions.

Clean-Up Procedures

CAUTION: Risk of product damage. Do not allow cleaners containing petroleum distillates to remain

in contact with the surface for long periods of time.

CAUTION: Risk of product damage. Do not use abrasive cleaners, as they may scratch and dull the

bath surface. Use warm water and a liquid, non-abrasive detergent to clean the surface.

CAUTION: Risk of product damage. Do not use metal scrapers, wire brushes, or other metal tools to

remove stains, paint, plaster, or tar. Use turpentine or paint thinner to remove stains, paint, or tar. Use

a powder-type detergent on a damp cloth to provide mild abrasive action to any residual plaster.

Clean and rinse the bath completely with water immediately after applying cleaners. Rinse and dry

any overspray that lands on nearby surfaces.

Bath

Framing

Apply silicone

sealant to the edges

of the water-resistant

deck material and

the finished deck.

Finished

Deck

Material

Water-Resistant

Deck Material

Silicone Sealant

Tiling-In Bead

Ledger Strip

Bath

2x4 Studding

Water-Resistant

Wall Material

Finished Wall Material

1/16" (2 mm)

Gap

Kohler Co. 7 1023730-2-F

Guide d’installation

Baignoires encastrées

Outils et matériels

Merci d’avoir choisi la compagnie Kohler

Nous apprécions votre engagement envers la qualité Kohler. Veuillez prendre s’il vous plaît quelques

minutes pour lire ce manuel avant de commencer l’installation. Ne pas hésiter à nous contacter en cas de

problème d’installation ou de performance. Nos numéros de téléphone et notre adresse du site internet sont

au verso. Merci encore d’avoir choisi la compagnie Kohler.

Avant de commencer

ATTENTION : Risque d’endommagement du produit. Ne pas soulever la baignoire par le rebord.

Respecter tous les codes de plomberie et de bâtiment locaux.

Déballer la baignoire et l’examiner soigneusement pour en déceler tout dommage. Remettre la

baignoire dans l’emballage jusqu’à l’installation.

Avant l’installation, s’assurer d’avoir suffisamment d’accès aux connexions ﬁnales de plomberie.

Cette baignoire doit avoir le support nécessaire sur un sol nivelé.

Cette baignoire est conçue pour une installation encastrée ou sur podium.

Prévoir un cadrage aux dimensions appropriées.

L’espace du bassin ne nécessite pas de support additionnel lorsque le plancher est nivelé et

d’équerre avec les montants du cadre. Considérer d’utiliser des cales pour un support additionnel si

le plancher n’est pas nivelé.

Vériﬁer le montage adéquat et l’espace de connexion pour le robinet.

Conﬁrmer le support adéquat pour le robinet. Les larges robinets montés sur comptoir ayant été

utilisés par inadvertance comme moyen de support ne sont pas appropriés ou sécurisés pour cette

installation.

Les dimensions de la baignoire sont nominales et conformes aux tolérances données par la norme

ANSI Z124.1.

Crayon à papier

Équerre Couteau

Matériau

d'étanchéité

Mètre

ruban

Lunettes de

protection Niveau à bulle • Outils conventionnels de

menuiserie et matériels

• Adhésif de construction optionnel

Plus:

• Toile de peintre

• Montants de 2 x 4 ou de 2 x 6

• Matériau hydrorésistant du mur

• Ciment ou mortier (optionnel)

• Chiffon

Kohler Co. Français-1 1023730-2-F

Avant de commencer (cont.)

Les illustrations peuvent être différentes de votre produit actuel.

Kohler Co. Français-2 1023730-2-F

1. Préparer le site

AVERTISSEMENT : Risque d’endommagement du produit. Ne pas soulever la baignoire par le

rebord. Fournir un espace de 1/16″(2 mm) entre la surface du comptoir ﬁni et du sol ﬁni.

AVIS : Un support adéquat doit être fourni. Consulter le plan de raccordement emballé avec votre

baignoire pour les spéciﬁcations de la préparation du sol.

S’assurer que le sol offre un support adéquat pour la baignoire. S’assurer que le plancher soit plat et

nivelé.

REMARQUE : Cette baignoire devrait être encastrée ou installée sur un podium. Si la pose d’un robinet et

des valves sur comptoir est prévue, prévoir suffisamment d’espace pour l’installation.

Pendant la construction du cadre, tenir compte de l’épaisseur des matériaux du mur ﬁni.

Concevoir et construire un cadrage de montants de 2x4 ou de 2x6 pour l’installation particulière.

Préparer le sol ou construire un cadre pour une installation sur podium, selon le plan de

raccordement. S’assurer qu’il y ait un espace de 1/16″(2 mm) entre la surface du comptoir/sol ﬁni

de manière à ce que la baignoire ne repose pas sur le rebord.

Positionner la plomberie selon l’information du plan du raccordement. Boucher les alimentations et

vériﬁer s’il y a des fuites.

REMARQUE : Pour des installations en angle, percer un oriﬁce large pour bien loger le drain en position

diagonale.

À moins que la baignoire soit élevée pour une installation de drain au-dessus du sol, un trou sera

nécessaire pour y accommoder les connexions du drain. Se référer au plan de raccordement.

2. Préparer la baignoire

Installer le drain à la baignoire selon les instructions du fabricant. Ne pas connecter le siphon à ce

moment.

Positionner un chiffon propre ou matière similaire à la base de la baignoire. Faire attention de ne

pas rayer la surface de la baignoire.

3. Sécuriser la baignoire au plancher - Modèles avec blocs de support

ATTENTION : Risque d’endommagement du produit. Ne pas soulever la baignoire par le rebord.

Vériﬁer que le plancher est nivelé. Caler les blocs de support de la baignoire selon le besoin pour

niveler.

Préparer le sol selon

les informations du plan

de raccordement.

Positionner la

plomberie.

Vérifier que le sous-

plancher peut supporter le

poids nécessaire qu'il soit

plat et nivelé.

Laisser un espacement

d'1/16" (2 mm) entre le

rebord de la baignoire et

l'encadrement.

Construire le cadre

avec des montants

de 2 x 4

ou de 2 x 6 selon

les informations du

plan de

raccordement.

1023730-2-F Français-3 Kohler Co.

Autres manuels pour K-1107

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Kohler Baignoire

Kohler

Kohler K-1114 Guide de démarrage rapide

Kohler

Kohler Lakewood K-1649 Instructions de montage

Kohler

Kohler K-1418 Guide de démarrage rapide

Kohler

Kohler K-1969-G Guide de démarrage rapide

Kohler

Kohler Mariposa K-1257-GHRAW Manuel utilisateur

Kohler

Kohler Maestro K-842-V-AB Manuel utilisateur

Kohler

Kohler K-824 Guide de démarrage rapide

Kohler

Kohler K-711-0 Guide de démarrage rapide

Kohler

Kohler Archer K-1122-GLAW Manuel utilisateur

Kohler

Kohler Escale K-11343-G Instructions de montage

Kohler

Kohler K-1232 Guide de démarrage rapide

Kohler

Kohler K-712 Guide de démarrage rapide

Kohler

Kohler K-1188-C1 Instructions de montage

Kohler

Kohler K-1122-XHGLA-7 Instructions de montage

Kohler

Kohler K-812 Guide de démarrage rapide

Kohler

Kohler Memoirs K-8333T-0 Instructions de montage

Kohler

Kohler K-837 Guide de démarrage rapide

Kohler

Kohler K-11195X Manuel utilisateur

Kohler

Kohler K-2593-VBW-0 Manuel utilisateur

Kohler

Kohler K-1201-HB Guide de démarrage rapide

Kohler

Kohler K-1257-LA Guide de démarrage rapide

Kohler

Kohler Sterling 7112 Series Instructions de montage

Kohler

Kohler K-1375-AH Instructions de montage

Kohler

Kohler K-895 Guide de démarrage rapide

Manuels Baignoire populaires d'autres marques

Agua

Agua BARTOLI-66 Manuel utilisateur

PAA

PAA PRELUDE Manuel utilisateur

BETTE

BETTE SILHOUETTE Manuel utilisateur

American Standard

American Standard Whirlpool/Bathing Pool 2748.XXXW Manuel utilisateur

Oliveri

Oliveri Naples Manuel utilisateur

Lyons

Lyons Elite ETLxx663219 Series Manuel utilisateur

Woodbridge

Woodbridge BJ500 Instructions de montage

Whirlpool

Whirlpool Ariel ARL-702 Manuel utilisateur

TEIKO

TEIKO EXCELLENT DUO Manuel utilisateur

American Standard

American Standard Colony 5-1/2' x 32" Manuel utilisateur

American Standard

American Standard 3052OD.X0X Guide de démarrage rapide

agape

agape MARSIGLIA AVAS1075 Manuel utilisateur

Kallista

Kallista P50045-G5 Instructions de montage

Ariel

Ariel AM Series Manuel utilisateur

Agua

Agua BAHLI-60 Manuel utilisateur

DURAVIT

DURAVIT XViu 700443 Manuel utilisateur

American Standard

American Standard Colony 2740 Series Manuel utilisateur

Rapsel

Rapsel OFURO Manuel
