Kogan KAMN24FG6LA Manuel utilisateur

24" FHD GAMING MONITOR

1920 x 1080, 165Hz

KAMN24FG6LA

Safety & Warnings 3

Components 4

Overview 5

Stand Assembly 6

VESA Mount 8

Connectivity 9

Operation 11

Cleaning & Care 17

Specifications 17

Notes 19

Ensure to read all instructions and warnings in this user guide prior to first use. Retain this

user for future reference.

•Do not position the monitor on unstable surfaces. If the monitor falls, it may lead to

damage and injuries to people around its vicinity.

•Do not place the monitor near heat sources (for example, heaters, stoves, fireplaces).

•Do not use the monitor in areas lacking adequate ventilation.

•Do not open the back panel of the monitor as it contains a high-voltage current even

when unplugged.

•Do not place heavy objects on the monitor, its power cord, or any other connected

cable.

•The back of this monitor is designed with ventilation holes. Do not cover or block them

as this may cause overheating and damage.

•Do not insert or spray anything into the vents of this monitor.

•Unplug the monitor if it will not be used for an extended period.

•Ensure the monitor is unplugged before cleaning.

•Do not use cleaning alcohol, ammonia-based liquids, or other harsh cleaners when

cleaning the monitor.

The terms HDMI and HDMI High-Definition Multimedia Interface,

and the HDMI Logo are trademarks or registered trademarks of

HDMI Licensing Administrator, Inc. in the United States, and other

countries.

SAFETY & WARNINGS

AMonitor (x1)

BStand stem (x1)

CStand base (x1)

Screw (x7)

Mount adapter (x1)

DisplayPort cable (x1)

GPower adapter (x1)

HUser guide (x1)

COMPONENTS

Ports

1 Up button

2 Power button

3 Left button

4 Down button

5 Right button

6 HDMI port

7 DisplayPort port

8 Audio output

9 Power port

OVERVIEW

1. Open the package and remove the foam to take out the stand stem (B) and stand

base (C). Place the components (B, C) on a flat surface. Ensure all components are

present before disposing of any packaging.

2.Carefully remove the monitor (A) and place it into the lower foam cover.

3.Use a screwdriver (not supplied) to install the stand stem (B) onto the back of the

monitor (A) with two screws (D).

STAND ASSEMBLY

4.Align the stand base (C) with the bottom of the stand stem (B). Use a screwdriver to

secure the stand base (C) with two screws (D).

5.Use both hands to place the monitor (A) upright.

Notes:

•There are x7 screws provided in this package – x4 are required if using the stand,

x2 are required if using a VESA mount, x1 is a spare.

•If you would like to switch from using the stand to using a VESA mount to hold

the monitor in the future, there are sufficient spare screws to use.

1. Open the package and remove the foam to take out the stand stem (B) and stand

base (C). Place the components (B, C) on a flat surface.

2.Carefully remove the monitor (A) and place it into the lower foam cover. Take out the

mount adapter (E) and using a screwdriver, secure the mount adapter (E) to the back

of the monitor (A) with two screws (D).

3.The monitor is now ready for mounting. Assemble the mount as detailed by the

instructions provided.

VESA MOUNT

Notes:

•The mounting hole distance for this monitor is 75 x 75mm.

•VESA mount and mounting accessories are not included.

Power adapter

Connect one end of the power adapter into the power port on the monitor, then connect the

other end into a power socket.

HDMI

For the monitor to receive HDMI signals from the computer, plug one end of an HDMI cable

(not included) into the HDMI port on the monitor. Connect the other end into a computer’s

HDMI output.

CONNECTIVITY

HDMI OUTPUT

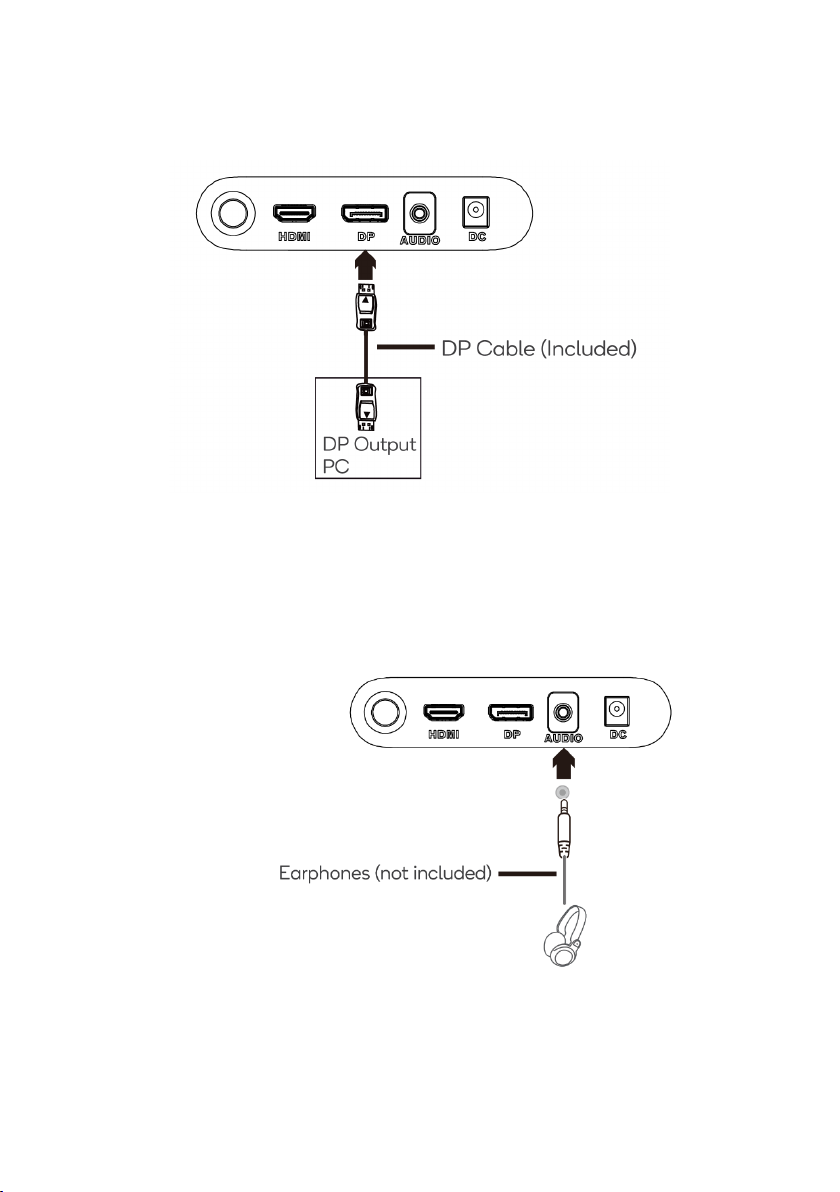

DisplayPort

For the monitor to receive DisplayPort signals from the computer, connect one end of the

DisplayPort cable into the DisplayPort port on the monitor. Connect the other end into the

DisplayPort output on the computer.

Earphones

Connect earphones (not included) into the audio output port on the monitor.

If your earphones are connected to the monitor and there are other audio devices plugged

into the computer, the audio devices will produce no sound.
