Kogan KAMN24F7VA Manuel utilisateur
24” FULL HD FREESYNC
FRAMELESS MONITOR
1920 x 1080, 75Hz
KAMN24F7VA
Ensure to read all instructions and warnings in this user guide prior to first use. Retain this
user guide for future reference.
•This monitor is designed with ventilation holes on the back of the casing. Do not cover
or block them.
•Avoid placing the monitor near heaters, stoves, fireplaces, or other heat sources.
•Do not place this monitor in rooms lacking adequate ventilation.
•Do not insert any objects or spray any liquids into the vents.
•Do not position the monitor in unsafe locations. If the monitor falls, it may be
damaged and cause injury to people within its vicinity.
•Do not place heavy objects on the monitor, its power cord, or any connected cables.
•Do not open the back panel of the monitor as it contains a high-voltage current even
when not plugged in.
•Unplug the monitor if it will not be used for an extended period.
•Ensure the monitor is unplugged before cleaning.
The terms HDMI and HDMI High-Definition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc. in the United States, and other
countries.
SAFETY & WARNINGS
A Monitor (x1)
B Stand stem (x1)
C Stand base (x1)
DStand stem plate (x1)
E M4 8mm screw (x3)
F M5 12mm screw (x1)
G Power cord (x1)
H HDMI cable (x1)
I User guide (x1)
COMPONENTS
1 Menu/select button 6 HDMI port
2 Exit/input menu button 7 VGA port
3 Up button 8 3.5mm audio port
4 Down button 9 Power port
5 Power button
OVERVIEW
1
2
3
4
5
6
7
8
9
1. With the display side facing down, lay the monitor (A) on a soft cloth to prevent
damage.
2. Clip the stand stem plate (D) into the
stand stem (B). Using a screwdriver (not
supplied), secure the M4 8mm screws (E)
through the holes on the stand stem
plate (D) to the stand stem (B).
3.Clip the stand stem (B) into the monitor
(A).
4.Align the stand base (C) with the stand
stem (B). Using a screwdriver, secure the
stand base (C) to the stand stem (B) with
the M5 12mm screw (F).
STAND ASSEMBLY
A
B
C
E
D
B
F
B
If mounting to a wall, ensure the stand base and stand stem are disconnected from the
monitor.
Consult a professional before mounting the monitor.
1. With the display side facing down, lay the monitor on a soft cloth to prevent damage.
2.Identify the four wall mounting screws on the back of the monitor.
3.Mount the monitor as desired with the steps provided with your VESA mount.

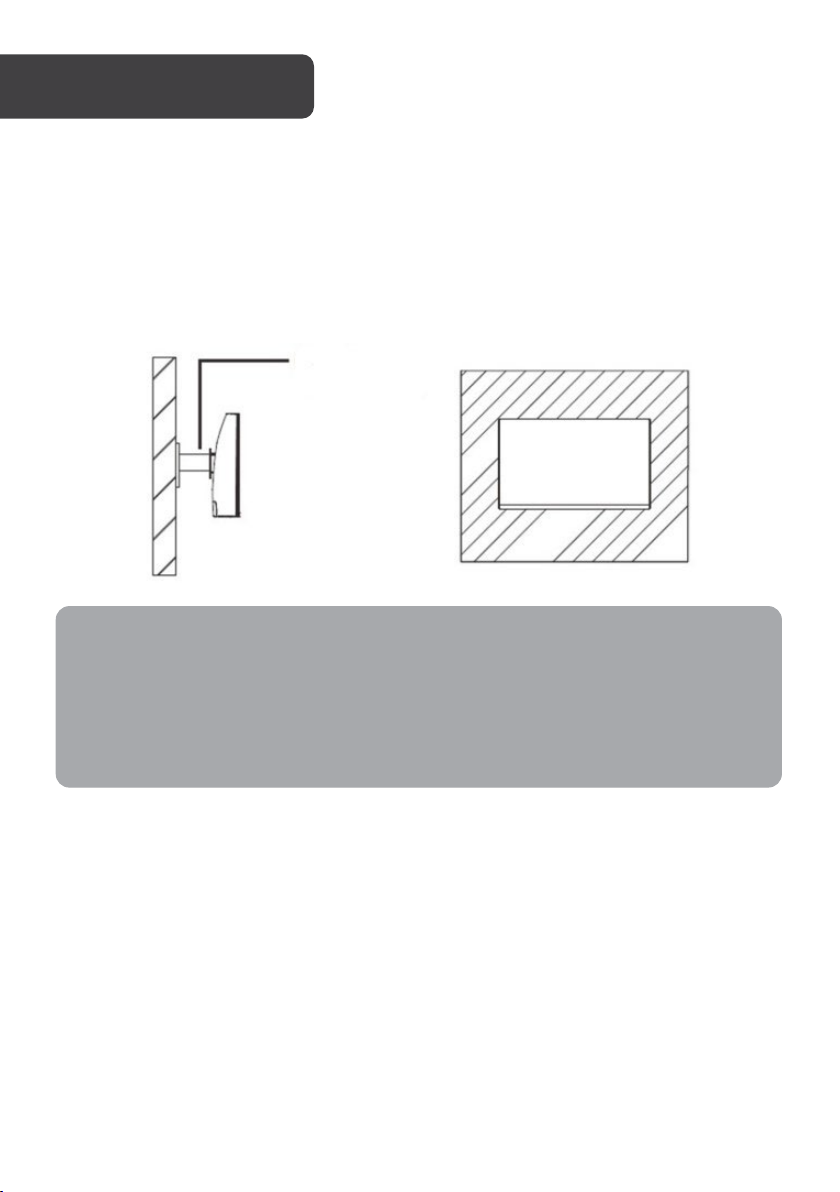

VESA MOUNT
Notes:
•Ensure there is at least a 10cm clearance away from all sides of the monitor.
•The mounting hole distance for this monitor is 75mm x 75mm.
•M4 8mm screws are required.
•VESA mount and mounting accessories are not included.
•Images are for reference only.
Mount
(not included)
Before connecting, ensure the display is switched off.
Power cable
Connect one end of the power cable into the power port
on the monitor. Connect the other end into a power
socket.
HDMI
In order for the monitor to receive HDMI signals to your
computer, plug one end of the included HDMI cable
into the HDMI port on the monitor.
Plug the other end into the HDMI port on your
computer.
3.5mm audio port
In order to receive audio signals to your computer, plug
your earphones, headphones, or other audio device (not
included) into the 3.5mm audio port on the monitor.
If any audio device is connected to the computer at the
same time, it will not produce sound.
VGA
In order for the monitor to receive VGA signals to your
computer, plug one end of a VGA cable (not included)
into the VGA port on the monitor.
Plug the other end into the VGA port on your computer.
CONNECTIVITY
Power cable
Earphones
(not included)
VGA cable
(not included)
VGA OUTPUT
(PC)
HDMI cable
HDMI OUTPUT
(PC
)
1. Connect the monitor to your computer via HDMI/VGA.
2.Connect one end of the power cable into the power port of the monitor. Connect the
other end into an outlet, then turn the outlet on.
3.Press the power button to turn the monitor on.
On-Screen display (OSD) menu
The OSD menu allows adjustments to various settings for the monitor.
1. Press the menu/select button to access the OSD menu.
2.Press the up and down buttons to browse through the categories of settings. Press the
menu/select button to enter the sub-menu.
3.Press the up and down buttons to browse through the sub-menu. Press the
menu/select button to enter the adjustment settings of the desired setting.
4.Press the up and down buttons to adjust the desired setting. Press the menu/select
button to confirm the adjustment.
5.Press the exit/input menu button to exit the OSD menu.
OPERATION
Note:
It is recommended that a surge protector with adequate voltage is used if the
monitor cannot be directly connected to an outlet.
OSD menu settings
Below is a list of the settings available that can be adjusted through the OSD menu.
Category Sub-Menu Options Description
BRIGHTNESS
Brightness 0–100 Adjusts the display
brightness
Contrast 0–100 Adjusts the display contrast
ECO modes
Standard, Movie,
RTS, FPS,
Game, Text
Sets the display’s colour
balance to pre-set levels to
suit different uses
DCR On, Off Turns the DCR function
on/off
H. position 0–100 Adjusts the horizontal
position of the display
V. position 0–100 Adjusts the vertical position
of the display
Clock 0–100 Adjusts the clock setting
Phase 0–100 Adjusts the phase setting
Aspect Wide, 4:3 Sets the aspect ratio
COLOUR TEMP.
Colour temp. Warm, User,
Cool
Includes pre-set (Warm,
Cool) and custom (User)
colour temperatures
Red 0–100 Allows for manual
adjustment of the RGB
colour balance
Green 0–100
Blue 0–100
Low blue light 0–100 Adjusts the intensity of the
low blue light effect
