Kodak DP1100 - Digital Projector Manuel utilisateur

PN 010-0210-00 8/99

with KODAK Image Manager

KODAK DP900 / DP1100 Digital Projectors

Reference Manual

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

Canada

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

Safety Certifications

UL, CUL, TÜV, NOM

EN 55022 Warning

This is a Class A product. In a domestic environment it may cause radio interference, in which case the user may be

required to take adequate measures. The typical use is in a conference room, meeting room or auditorium.

Declaration of Conformity

Manufacturer: Eastman Kodak Company

Rochester, New York 14650 USA

We declare under our sole responsibility that the KODAK DP900/1100 Digital Projector conforms to the following direc-

tives and norms:

Directive 89/336/EEC, Amended by 93/68/EEC

EMI: EN 55022 (1992) Class A

EMC: EN 50082-1 (1992)

IEC 801-2, IEC 801-3, IEC 801-4

Directive 73/23/EEC, Amended by 93/68/EEC

Safety: EN 60950: 1992 + A1 + A2 + A3: 1995

July, 1999

Australian Certification C-tick mark

3/99 5

Contents

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Safety Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Safety Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Safety Terms: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Image Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Unpacking the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Projector Features . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Front of Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Rear and Side of Projector . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Connector Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Usage Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

If You Need Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Setting up the Projector . . . . . . . . . . . . . . . . . . . . . . 11

Connecting the Cable Hub Connector . . . . . . . . . . . . . . . 13

Connecting a Video Player . . . . . . . . . . . . . . . . . . . . . . . . . 20

Starting the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Turning Off the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Using the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Reference Manual KODAK DP900 / DP1100

63/99

Basic Image Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Using the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Adjusting the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Using the Keypad and Remote Buttons . . . . . . . . . . . . . . . 29

Using the On-Screen Menus . . . . . . . . . . . . . . . . . . . . . . . . 31

Kodak Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Maintenance & Troubleshooting . . . . . . . . . . . . . . . 45

Cleaning the Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Replacing the Projection Lamp . . . . . . . . . . . . . . . . . . . . . . 46

Replacing the Batteries in the Remote Control . . . . . . . . . 49

Using the Kensington Lock . . . . . . . . . . . . . . . . . . . . . . . . . 49

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Appendix A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Appendix B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Appendix C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Portable and Laptop Activation Chart . . . . . . . . . . . . . . . . 61

Appendix D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Using Video Mirroring with a PowerBook Computer . . . . 71

Appendix E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Projected Image Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

3/99 1

Safety Instructions

Please read and follow all safety instructions provided before

using your new projector. Failure to comply with safety

instructions may result in fire, electrical shock, or personal injury

and may damage or impair protection provided by equipment.

Please save all safety instructions.

Safety Definitions

•Warning: Statements identify conditions or practices that

could result in permanent personal injury.

•Caution:Statements identify conditions or practices that

could result in damage to your equipment.

Safety Symbols

Attention: For information about use of a feature, please

refer to the Reference Manual.

Warning: Hot surface. Do not touch.

An arrow pointing to the lamp door on the projector.

Reference Manual KODAK DP900 / DP1100

23/99

Safety Terms:

•Warning: Don’t look directly into the lens when the

projector is turned on.

•Warning: Don’t block ventilation openings.

•Warning: To replace the lamp, turn the power off

and unplug the power cord. To avoid burns, wait 30

minutes before opening the lamp door. Follow all

instructions provided in the Reference Manual.

•Warning: Please use the power cord provided.

Connect the power cord to a receptacle with a

protective safety (earth) ground terminal.

•Warning: Refer all service to qualified service personnel.

Servicing your own projector will void the warranty. See “If

You Need Assistance” on page 8 for the customer service

contact information.

•Caution: Don’t set liquids on the projector. Spilled liquids

may damage your projector.

•Caution:Don’t place the projector on a hot surface or in

direct sunlight.

•Caution: Do not drop the projector. Transport the projector

in a Kodak-approved case.

•Caution: For ceiling mount installations, please use the

ceiling mount recommended in the Reference Guide and

follow all instructions provided with it.

•Caution: The projector lamp bulb is pressurized and may

rupture after more than 1,000 hours use. Always change the

bulb as soon as you notice a decrease in the brightness.

3/99 3

Introduction

The KODAK DP900 /DP1100 Digital Projectors are lightweight

multimedia projectors specifically designed for the mobile

presenter. They generate crisp, clear images using Digital Light

Processing™ (DLP) technology. The projectors are easy to

connect, easy to use, and easy to maintain. The soft carry case

makes it easy to transport the 7.4 pound projectors. The DP900

has SVGA 800x600 graphics, the DP1100 has XGA 1024x768

graphics. The user interfaces of the two products are identical;

information in this User’s Guide applies to both products.

Included with the DP900 / 1100 projectors is Kodak’s exclusive

Image Manager feature. With this feature you can select the

image display setting best suited for your specific presentation

material and projection environment.

Image Resolution

DP900

The SVGA resolution of the DP900’s projected image is

800x600. Screen resolutions between 800x600 and 1024x768 are

compressed to 800x600. The DP900 cannot compress screen

resolutions above 1024x768. If your computer’s screen resolution

is higher than 1024x768, reset it to a lower resolution before you

connect the projector.

Note: The DP900 automatically expands 640x480 images to

800x600. You can display these images at 640x480 by

turning off the Auto Resize feature. See “Auto Resize” on

page 35.

Reference Manual KODAK DP900 / DP1100

43/99

DP1100

The XGA resolution of the DP1100’s projected image is

1024x768. The DP1100 cannot compress screen resolutions

above 1024x768. If your computer’s screen resolution is higher

than 1024x768, reset it to a lower resolution before you connect

the projector.

Note: The DP1100 automatically expands 640x480 and 800x600

images to 1024x768. You can display these images at their

original resolutions by turning off the Auto Resize feature.

See “Auto Resize” on page 35.

Compatibility

The projector is compatible with a wide variety of computers and

video devices, including:

• IBM-compatible computers, including laptops, up to

1024x768 resolution at 75 Hz

• Apple Macintosh and PowerBook computers up to

1024x768 resolution at 75 Hz.

• Most standard VCRs, DVD players, camcorders and

laser disc players.

Introduction

3/99 5

Unpacking the Projector

The projector comes with the items shown in Figure 1. Check to

make sure all are included. Contact your Kodak dealer

immediately if anything is missing.

Note: The contents of your shipping box may vary depending on

the projector configuration you’ve ordered.

Figure 1 Shipping box contents

1. Digital projector and lens cap 6. RCA audio/video cable

2. Soft carry case 7. Cable connector hub

3. Remote control 8. Audio cable

4. Power cord 9. PS/2 mouse cable

5. DP900 / DP1100 User’s Guide,

Reference Manual, and Online

User Guide CD

10.

11.

USB mouse cable

MAC adapter

Reference Manual KODAK DP900 / DP1100

63/99

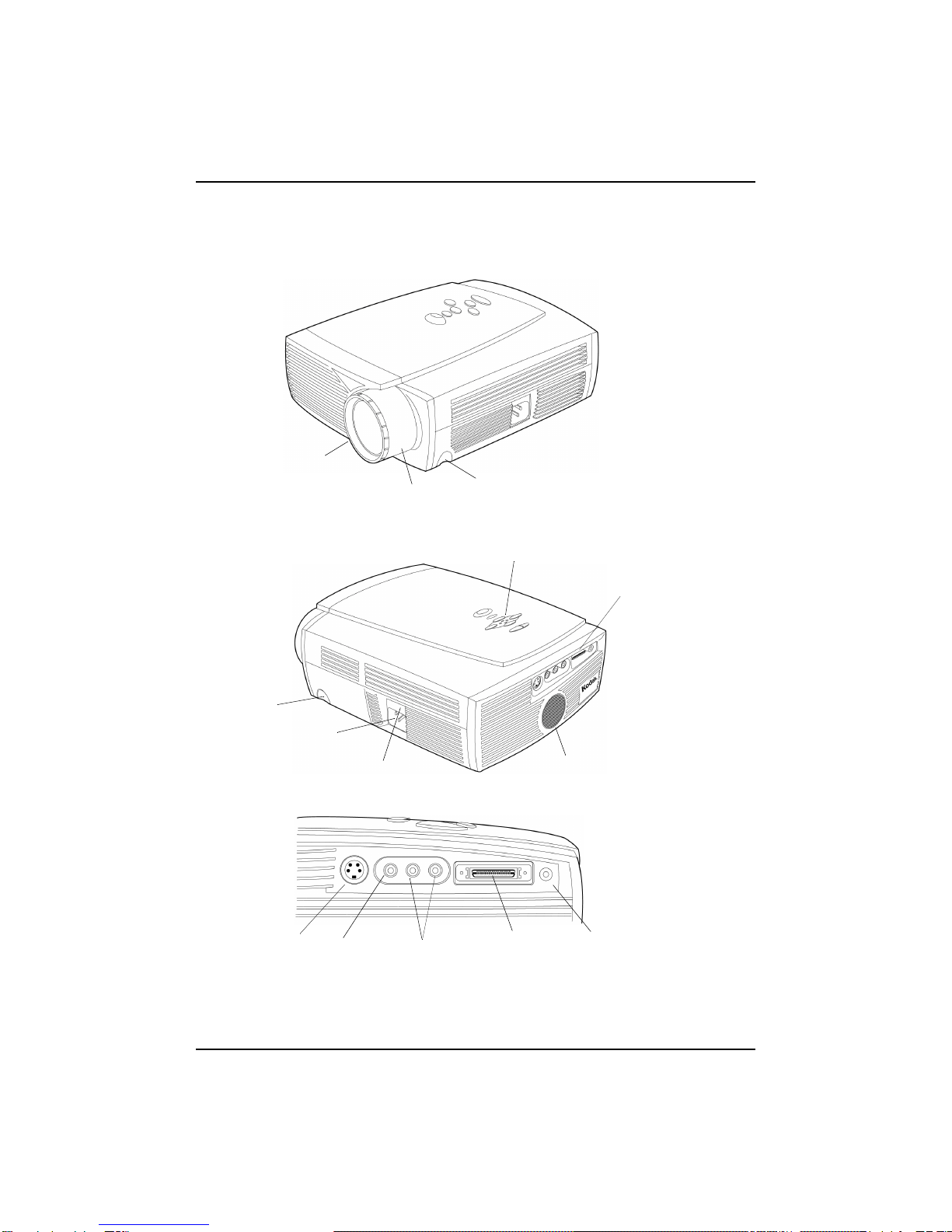

Projector Features

Front of Projector

Rear and Side of Projector

Connector Panel

focus ring

zoom ring elevator button

speaker

elevator button

power

cord

connector power switch

front of projector

keypad

connector panel

composite audio in

computer

L/R audio in

connector

s-video cable

hub connector

(for video source)
