KOBE RA9230SQB Guide de dépannage

KOBE Brand Range Hood

Model No. / Nos de modèles / Modelo No.

RA9230SQB

RA9236SQB

RA-092 SERIES –12"HEIGHT

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

NOTICE D'INSTALLATION

ET MODE D'EMPLOI

INSTRUCCIONES DE INSTALACIÓN Y

MANUAL DE OPERACIÓN

[ENGLISH] ......................................................................................................................1

[FRENCH].....................................................................................................................21

[SPANISH] ....................................................................................................................43

READ BEFORE INSTALLATION

1. Carefully check all contents of packages;

2. Thoroughly inspect the unit for any cosmetic damages or

defects;

3. Test the unit before installation;

4. Have a certified contractor/electrician do the installation.

IF THERE IS ANY PROBLEM:

1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL

PACKAGING MATERIAL.

2. Have your original proof of purchase and product serial

number ready.

3. Call 1-877-BUY-KOBE (289-5623); or e-mail to

[email protected] to report the problem.

NO RETURN, NO REFUND, NO EXCHANGE IF:

1. PRODUCT HAS BEEN INSTALLED

2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED

3. MISSING ORIGINAL PACKAGING MATERIAL AND/OR

PARTS

IMPORTANT

READ THIS

FIRST

[ENGLISH]

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS.........................................................................2

COMPONENTS OF PACKAGE.......................................................................................4

INSTALLATION...............................................................................................................5

OPERATION INSTRUCTIONS........................................................................................9

MAINTENANCE............................................................................................................10

SPECIFICATIONS.........................................................................................................12

MEASUREMENTS & DIAGRAMS.................................................................................13

PARTS LIST..................................................................................................................14

CIRCUIT DIAGRAM......................................................................................................16

TROUBLE SHOOTING.................................................................................................17

WARRANTY..................................................................................................................18

PRODUCT REGISTRATION.........................................................................................20

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL W IRING MUST B E DO NE BY A PROFE SSI O NAL AN D IN

ACCORDAN CE W ITH NATI O NAL AND LOCAL ELE C TRICAL CO DES

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air

properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl

spaces or garages.

NOTE

This warranty is invalid without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried out without the

supervision of KOBE RANGE HOODS authorized agents will

automatically void the warranty.

KOBE RANGE HOODS will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.

WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

- Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

- Always turn hood ON when cooking.

- Use high settings on cooking range ONLY when necessary.

- Do not leave cooking range unattended when cooking.

- Always use cookware and utensils appropriate for the type and amount of food prepared.

- Use this unit only in the manner intended by the manufacturer.

- Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

- Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

•SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not

go out immediately, EVACUATE THE AREAAND CALL THE FIRE DEPARTMENT or 911.

•NEVER PICK UP A BURNING PAN –You May Get Burned.

•DO NOT USE WATER, including wet dishcloths or towels –a violent steam blast will result.

•Use an extinguisher ONLY if:

a) You have a ClassA, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

- Extinguish any open flame.

- Do not try to turn on the lights or any type of appliance.

- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and

vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion

and exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, two people installation is recommended.

ELECTRICAL SHOCK HAZARD –Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If

equipped, the fluorescent light bulb contains small amounts of

mercury, which must be recycled or disposed of according to Local,

State, and Federal Codes.

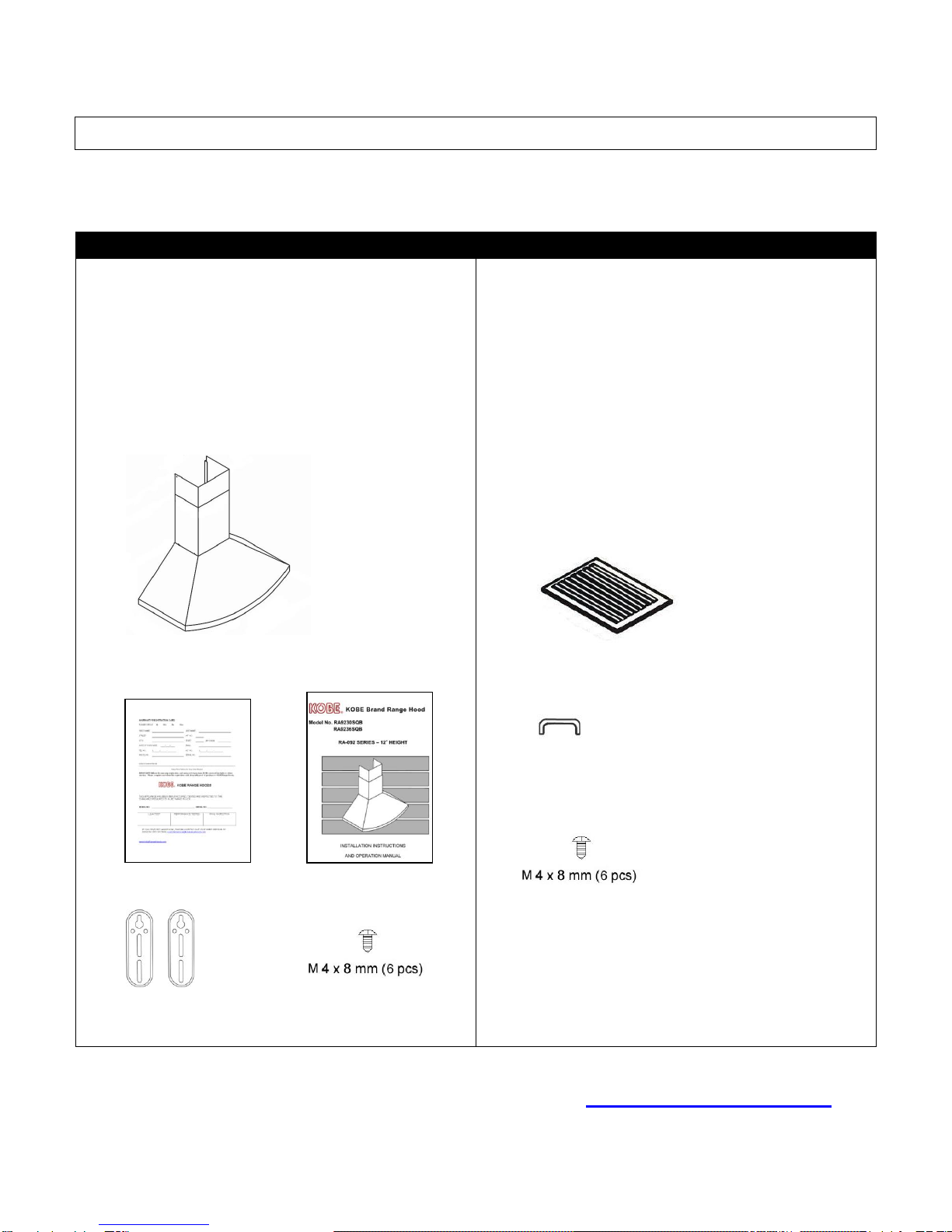

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

Range Hood Box

Model No. RA9230SQB

RA9236SQB

(1) KOBE Range Hood –1

(2) Warranty Registration Card –1

(3) Instructions Manual –1

(4) Hood-Mounting Bracket –2

(5) Screws Package –1

(1)

(2) (3)

(4) (5)

*Attached to Hood

(6) Baffle Filter

- 2 (30")

- 3 (36")

(7) Baffle Handle

- 2 (30")

- 3 (36")

(8) Screws Package –1

(6)

(7)

(8)

FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KOBERangeHoods.com OR

CONTACT KOBE RANGE HOODS AT (626) 775-8880

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

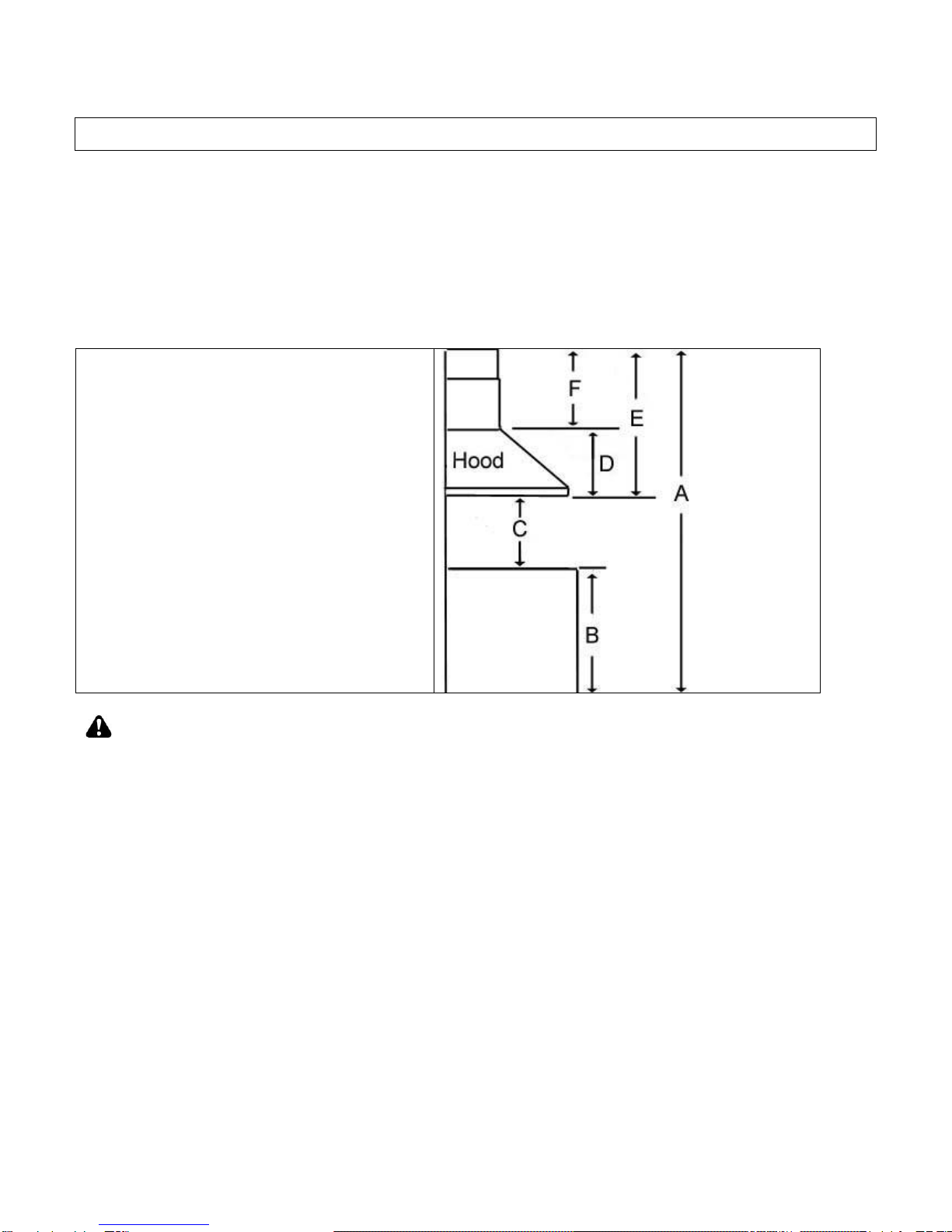

Calculation before Installation

To calculate installation, please refer to TABLE 1. (All calculation in inches.)

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top to

Hood Bottom (Recommended 27” to 30”)

D = Height of Hood

E = Height of the Hood Installation

[A –(B+C)]

F = Height of Duct Cover

[E –D]

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD

MAY OCCUR.

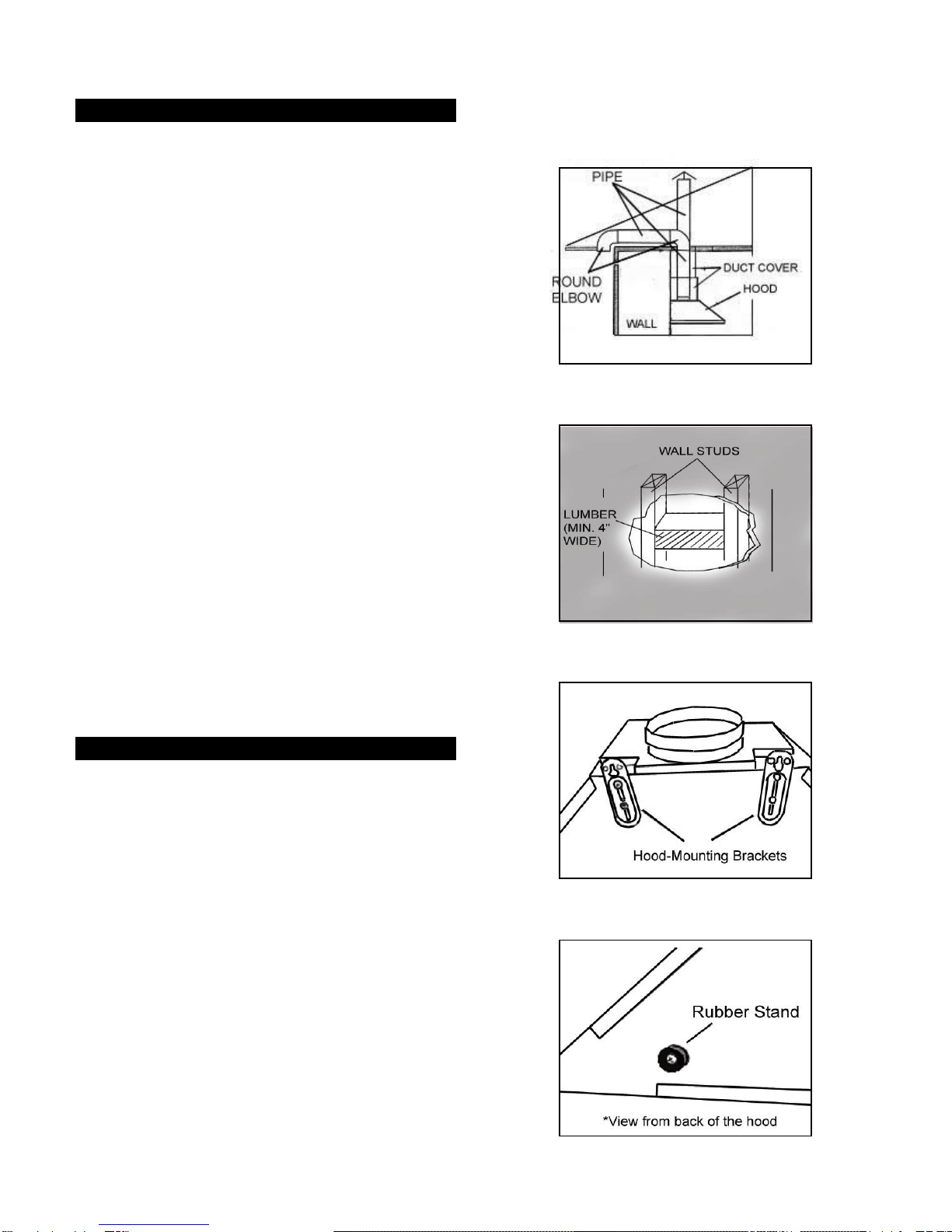

Preparation before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD,

PREVENT DEBRIS FROM ENTERING THE

VENT OPENING.

- Decide the location of the venting pipe from

the hood to the outside. (Figure 1)

- A straight, short venting run will allow the

hood to perform more efficiently.

- Try to avoid as many transitions, elbows,

and long run as possible. This may reduce

the performance of the hood.

- Temporarily wire the hood to test for proper

operation before installing. Refer to step 8

& 9 and figure 8 on page 7.

- Important: Peel any protective film off the

hood.

- Use duct tape to seal the joints between

pipe sections.

- If necessary, prepare back wall frame with

cross framing lumber for secure installation.

Refer to Table 1 and measurements on

Page 13 to decide the level of the lumber.

(Figure 2)

- Loosen hood-mounting brackets at the back

of the hood, adjust brackets and tighten

screws as shown in Figure 3.

- If necessary, remove the rubber stand on

the back of the hood and discard. (Figure

Hood Installation

CAUTION: If it is necessary to move the

cooking range to install the hood, be sure to

turn off the power on an electric range at the

main electrical box. SHUT OFF THE GAS

BEFORE MOVING A GAS RANGE.

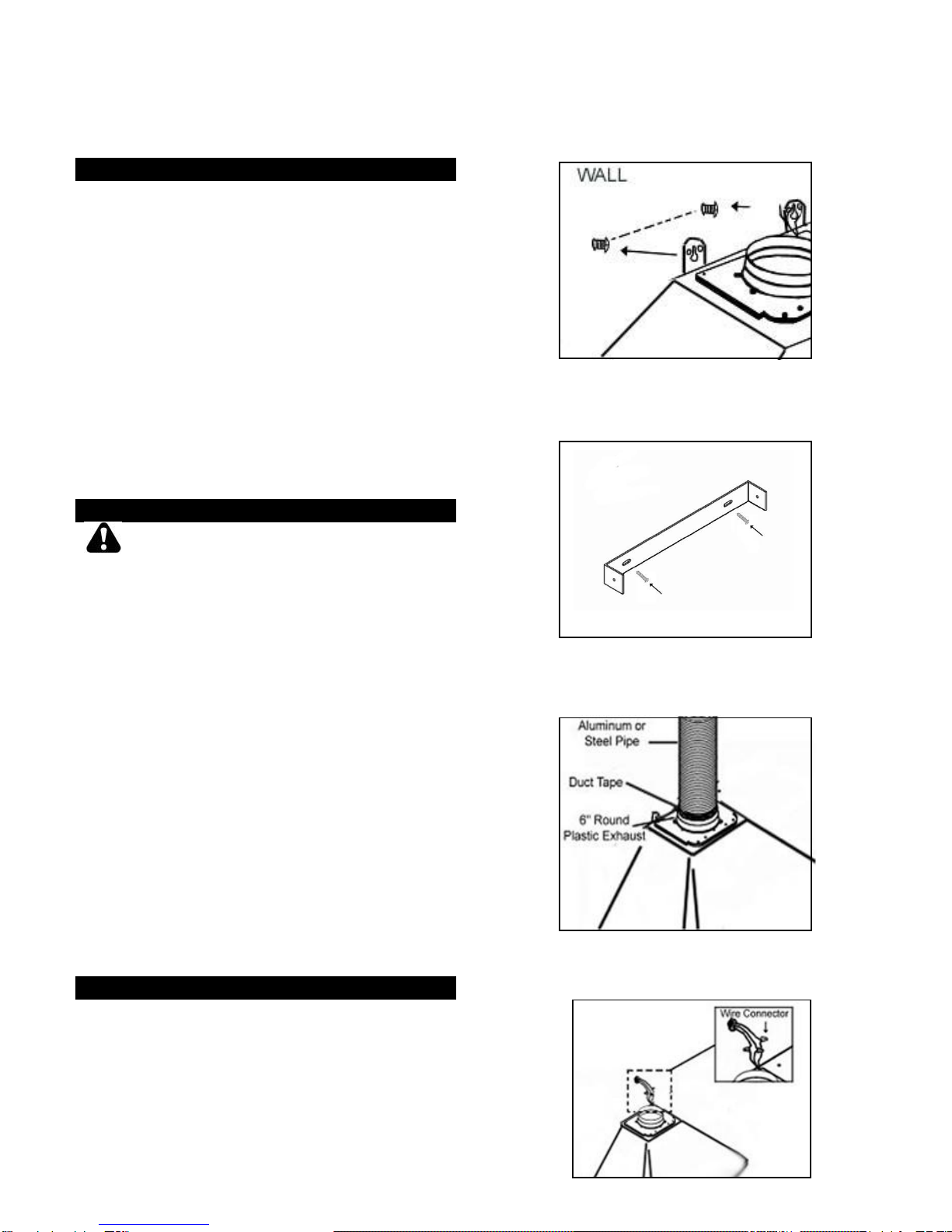

1. Using references in Table 1 and

measurements on Page 13, mark the

leveling locations point for hood-mounting

bracket on the wall.

2. Secure two mounting screws (not provided)

to the wall, leaving an 1/8” space from the

wall. (Figure 5)

3. Align the hood-mounting bracket to the

mounting screws on the wall and hang hood

into place.

Figure 1

Figure 2

Figure 3

Figure 4

4. Secure and tighten the mounting screws.

CAUTION: MAKE SURE THE HOOD IS

SECURE BEFORE RELEASING.

Ductwork Installation

5. Using Reference Efrom Table 1 and

measurements on Page 13, mark the

leveling point for duct cover-mounting

bracket.

6. Secure the duct cover-mounting bracket to

the wall with two screws (not provided).

(Figure 6) Make sure all screws are

tightened. NOTE: Inner duct cover will

cover the duct cover-mounting bracket.

7. Use aluminum or steel pipe (not provided)

to connect the plastic exhaust on the hood

to the ductwork above. Use duct tape to

ensure all joints are secure and air tight as

shown in Figure 7.

Wiring to Power Supply

SAFETY WARNING

RISK OF ELECTRICAL SHOCK. THIS RANGE

HOOD MUST BE PROPERLY GROUNDED.

MAKE SURE THIS IS DONE BY A

SPECIALIZED ELECTRICIAN IN

ACCORDANCE WITH ALL APPLICABLE

NATIONAL AND LOCAL ELECTRICAL

CODES. BEFORE CONNECTING WIRES,

SWITCH POWER OFF AT SERVICE PANEL

AND LOCK SERVICE PANEL TO PREVENT

POWER FROM BEING SWITCHED ON

ACCIDENTALLY.

8. Connect three wires (black, white and

green) to house wires and cap with wire

connectors. Connect according to color:

black to black, white to white, and green to

green as shown in Figure 8

9. Test the operation of the hood before

performing the next step. Make sure power

is supplied to the hood.

Duct Cover Installation

10.Slide inner duct cover up 2 inches

before sliding entire duct cover onto the

hood. (Figure 9)

11.Align the inner duct cover to the duct

cover-mounting bracket. Secure

Figure 5

Figure 6

Figure 7

Figure 8

Autres manuels pour RA9230SQB

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels KOBE hotte de ventilation

KOBE

KOBE IS2436GSB Manuel utilisateur

KOBE

KOBE IN2636SQB-700-1 Guide de dépannage

KOBE

KOBE CHX79 Manuel utilisateur

KOBE

KOBE IS2236SQB-1 Guide de dépannage

KOBE

KOBE IS22 SQB-5 Series Guide de dépannage

KOBE

KOBE CH9130SQB-1 Guide de dépannage

KOBE

KOBE Brillia RAX2130SQB-1 Guide de dépannage

KOBE

KOBE RA3830SQD Guide de dépannage

KOBE

KOBE RAX9530SQB-1 Guide de dépannage

KOBE

KOBE IN2642SQB-1200-1 Guide de dépannage

KOBE

KOBE CH0042SQB-1 Guide de dépannage

KOBE

KOBE CHX20 Guide de dépannage

KOBE

KOBE OVS-ISX2130SQB-40 Guide de dépannage

KOBE

KOBE Brillia INX27 SQB-700-3 Series Guide de dépannage

KOBE

KOBE RAX2830SQB-2 Guide de dépannage

KOBE

KOBE RA9230SQB-1 Manuel d'utilisation et d'entretien

KOBE

KOBE Brillia RAX21 SQB-2 Series Guide de dépannage

KOBE

KOBE CH7630SQB Guide de dépannage

KOBE

KOBE SQB-650-5A Series Guide de dépannage

KOBE

KOBE CH2230SQ-1 Guide de dépannage

KOBE

KOBE PREMIUM IN26 Series Guide de dépannage

KOBE

KOBE RA0230SQB-DC48-1 Guide de dépannage

KOBE

KOBE IN28 SQP Series Guide de dépannage

KOBE

KOBE Brillia Series Guide de dépannage

Manuels hotte de ventilation populaires d'autres marques

emmeti

emmeti RECUPA MED A-140 Mode d’emploi

Nibe

Nibe F135 Manuel utilisateur

Kuppersberg

Kuppersberg INTRO 60 Instructions d'installation et d'entretien

Zephyr

Zephyr Spruce AK9834BS Guide d'installation

Hisense

Hisense MH6INBG Manuel utilisateur

Miele

Miele DA 1255 Manuel utilisateur

Broan

Broan 46000 Manuel utilisateur

GE Profile PV977 Instructions originales

FALMEC

FALMEC FFRIA24W5FS Manuel utilisateur

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuel utilisateur

Küppersbusch

Küppersbusch DX ISLA Manuel utilisateur

ETNA

ETNA AV360RVS Manuel utilisateur

JUNO

JUNO JDF603E6 Manuel utilisateur

Miele

Miele DA 6708 D Manuel utilisateur

Tricity Bendix

Tricity Bendix LE 150 Manuel

AEG

AEG X68163BV1 Manuel utilisateur

AEG

AEG 125 D Manuel utilisateur

Smeg

Smeg KSEV97X Manuel utilisateur
