KOBE CHX79 Manuel utilisateur

KOBE Range Hoods

“So Quiet…You Won’t Believe It’s On!”

Page 1 of 9

Version 20160725

CHX79 SQB-1 Parts Location and Replacement

This basic guide is to show the parts location of the CHX79 SQB-1 and how to remove or install certain parts.

To see more detailed guidelines, please visit: Kobe Service and Repair

For under cabinet models: CHX7930SQB-1 and CHX7936SQB-1

For wall mount models: CHX7930SQB-WM-1 and CHX7936SQB-WM-1

Overall Snapshot of CHX79 SQB-1

1. Plastic Oil Tunnel (Manual Part #15 –See “Parts List” page on manual)

2. Safety Screen (Manual Part #16 –See “Parts List” page on manual)

3. LED Light (3W) (Manual Part #6 –See “Parts List” page on manual)

KOBE Range Hoods

“So Quiet…You Won’t Believe It’s On!”

Page 2 of 9

Version 20160725

Removing the Capacitor Support

Figure 1 Figure 2

Figure 3 Figure 4

4. Capacitor Support (Manual Part #9 –See “Parts List” page on manual)

Warning:

1. Loosen the screw first with a hand tool screw driver.

2. When pulling the wires from the capacitor support, press the ‘push

release’ at the back of the cord.

KOBE Range Hoods

“So Quiet…You Won’t Believe It’s On!”

Page 3 of 9

Version 20160725

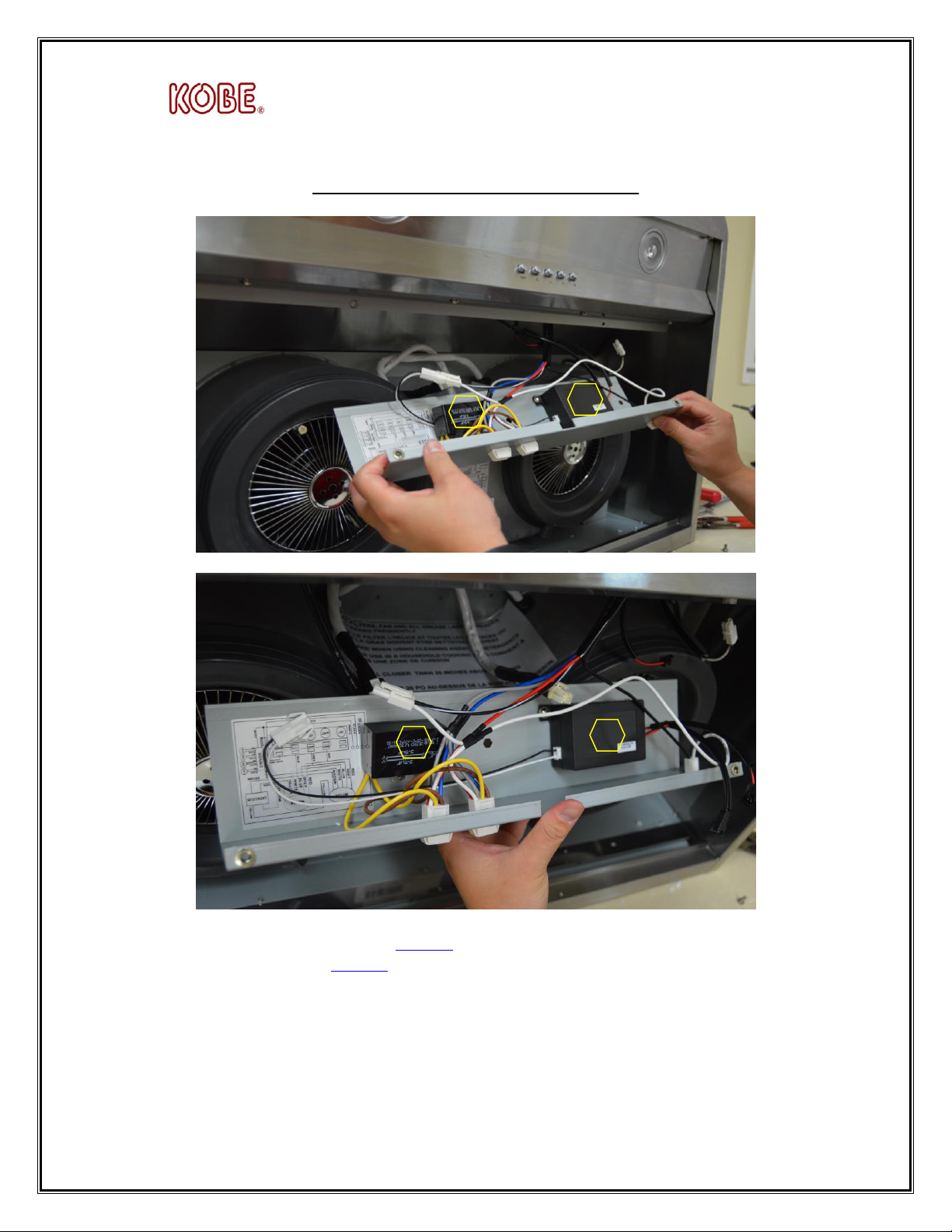

Accessing the Capacitor and LED Driver

5. LED Light Driver (Manual –See “Parts List” page on manual)

6. Capacitor (Manual Part #10 –See “Parts List” page on manual)

KOBE Range Hoods

“So Quiet…You Won’t Believe It’s On!”

Page 4 of 9

Version 20160725

Accessing the Control Switch

Figure 1 Figure 2

Figure 3 Figure 4

7. Control Switch (Manual Part #8 –See “Parts List” page on manual)

Accessing the LED Light

For a more detailed guideline,

visit:

How to Replace LED Lights

Warning: For the

process above, loosen

the screw first with a

hand tool screw driver.

KOBE Range Hoods

“So Quiet…You Won’t Believe It’s On!”

Page 5 of 9

Version 20160725

Removing the Impeller

Figure 1 Figure 2

Figure 3 Figure 4

Figure 5 Figure 6

8. Turbine Impeller (Manual Part #13 and #14 –See “Parts List” page on manual)

9. Motor (Manual Part #11 and #12 –See “Parts List” page on manual)

KOBE Range Hoods

“So Quiet…You Won’t Believe It’s On!”

Page 6 of 9

Version 20160725

Removing the Motor

Attaching Back the Motor

Note: When placing back the motor, make sure that the wire is properly placed underneath the metal wiring

guard. This is to prevent the wire from turning loose and hitting the turbine impeller.

Warning: Loosen the screw first with a

hand tool screw driver.

KOBE Range Hoods

“So Quiet…You Won’t Believe It’s On!”

Page 7 of 9

Version 20160725

Attaching Back the Impeller

Figure 1 Figure 2

Figure 3 Figure 4

Figure 5

Note: When attaching back the impeller, make sure that the open tube in the middle of the impeller is aligned

evenly to the metal rod in the center of the motor. The metal rod should not be sticking out of the tube.

Warning: Do not

overtighten the

nut.

KOBE Range Hoods

“So Quiet…You Won’t Believe It’s On!”

Page 8 of 9

Version 20160725

More on attaching the impeller:

Figure 1 Figure 2

Figure 3

Figure 4

Warning: Make

sure to attach the

screw on the flat

surface of the

motor’s metal rod.

KOBE Range Hoods

“So Quiet…You Won’t Believe It’s On!”

Page 9 of 9

Version 20160725

Placing the Impellers in their Correct Positions

Left Side Impeller Right Side Impeller

(Turbine Impeller B—Part #: L1-0251-0747-B) (Turbine Impeller A—Part #: L1-0251-0747-A)

“



R” means motor

rotates clockwise (to

the Right)

Left Side

Right Side

“L



” means motor

rotates counterlockwise

(to the Left)

Right

Side

Motor:

Has “L”

Marking

Left Side

Motor:

Has No

Marking
