KOBE IN28 SQP Series Guide de dépannage

KOBE Range Hoods

Premium Series

IN28 SQP-XX Series

Model No.: IN2830SQP-XX (30”)

IN2836SQP-XX (36”)

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

IMPORTANT

READ THIS FIRST

READ BEFORE INSTALLATION

1. Carefully check all contents of packages.

2. Thoroughly inspect the unit for any shipping damages, cosmetic

damages or defects.

3. Have a certified contractor/electrician test the unit before installation.

IF THERE ARE ANY PROBLEMS:

1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL

PACKAGING MATERIAL.

2. Have your original invoice as proof of purchase and product serial

number ready.

3. Contact your merchant for product replacement due to shipping

damages, cosmetic damages or defects.

4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to

customer.service@koberangehoods.com.

NO RETURN, NO REFUND, NO EXCHANGE IF:

1.PRODUCT HAS BEEN INSTALLED

2.KNOCK-OUT HOLES HAVE BEEN PUNCTURED

3.MISSING ORIGINAL PACKAGING MATERIAL

AND/OR PARTS

[ENGLISH]

- READ AND SAVE THESE INSTRUCTIONS –

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ........................................................................1

COMPONENTS OF PACKAGE ...................................................................................... 3

INSTALLATION...............................................................................................................5

OPERATING INSTRUCTIONS .......................................................................................9

MAINTENANCE............................................................................................................10

SPECIFICATIONS ........................................................................................................11

MEASUREMENTS & DIAGRAMS.................................................................................12

PARTS LIST.................................................................................................................. 14

CIRCUIT DIAGRAM......................................................................................................16

TROUBLESHOOTING..................................................................................................17

WARRANTY.................................................................................................................. 18

WARRANTY INFORMATION FORM............................................................................ 20

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN

ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODE

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated constructions.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air properly,

make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or

garages.

NOTE

This warranty is invalid without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried out without the

supervision of KOBE RANGE HOODS authorized agents will

automatically void the warranty.

KOBE RANGE HOODS will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the hood.

WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE TOP

GREASE FIRE:

1) Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

2) Always turn hood ON when cooking.

3) Use high settings on cooking range ONLY when necessary.

4) Do not leave cooking range unattended when cooking.

5) Always use cookware and utensils appropriate for the type and amount of food prepared.

6) Use this unit only in the manner intended by the manufacturer.

7) Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

8) Clean ventilating fan frequently.

What to Do In the Event Of a Range Top Grease Fire

•SMOTHER FLAMES with a tight filling lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not

go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.

•NEVER PICK UP A BURNING PAN –You May Get Burned.

•DO NOT USE WATER, including wet dishcloths or towels –a violent stem blast will result.

•Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

•Extinguish any open flame.

•Do not try to turn on the lights or any type of appliance.

•Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion

and exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those published

by the National Fire Protection Association (NFPA), and the American Society for Heating,

Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, two people installation is recommended.

ELECTRICAL SHOCK HAZARD –Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If equipped,

the fluorescent light bulb contains small amounts of mercury, which must

be recycled or disposed of according to Local, State, and Federal Codes.

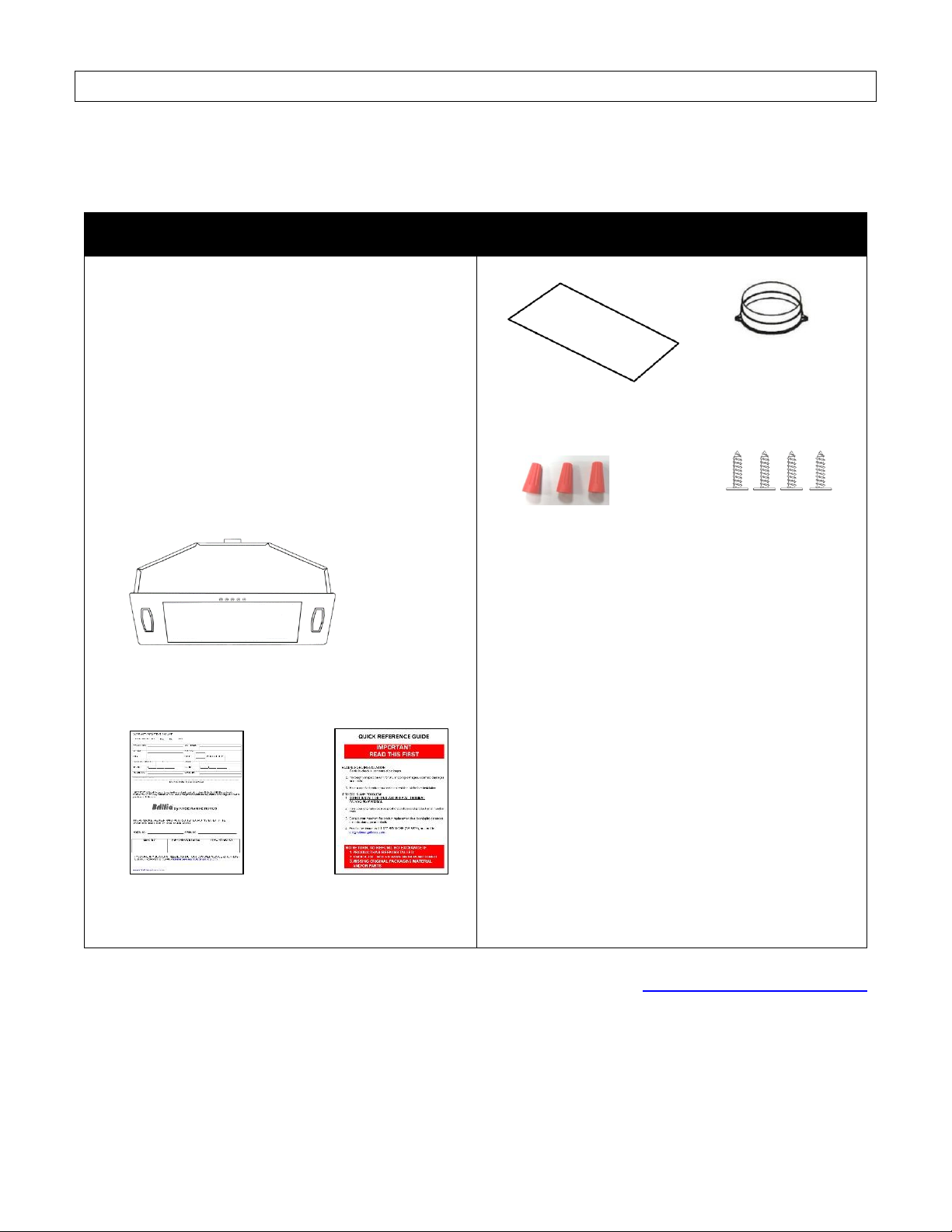

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

MODEL NO.: IN2830SQP-XX (30”)

Range Hood Box

{A} KOBE Range Hood

{B} Warranty Registration Card x 1

{C} Quick Reference Guide x 1

{D} Airflow Efficiency Panel x 1

{E} 6” Round Plastic Collar x 1

{F} Wire Cap x 3

{G} Screw Package

{A}

{B} {C}

{D} {E}

{F} {G}

•FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com

OR CONTACT KOBE RANGE HOODS AT (626) 775-8880.

M4 x 1/2" (4)

(Must keep all material for returns or refunds)

MODEL NO.: IN2836SQP-XX (36”)

Range Hood Box

{H} KOBE Range Hood

{I} Warranty Registration Card x 1

{J} Quick Reference Guide x 1

{K} Airflow Efficiency Panel x 2

{L} 6” Round Plastic Collar x 1

{M}Wire Cap x 3

{N} Screw Package

{A}

{B} {C}

{D} {E}

{F} {G}

•FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com

OR CONTACT KOBE RANGE HOODS AT (626) 775-8880.

M4 x 1/2" (4)

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installation

To calculate installation, please refer to TABLE 1. (All calculation in inches)

- FOR UNDER THE CABINET -

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Height of Counter Top to Wood Frame

Bottom (Recommended 26” to 30”)

D = Height of Wood Frame

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE

HOOD MAY OCCUR.

Preparation Before Installation

Figure 1

Figure 2

Figure 3

NOTE: TO AVOID DAMAGE TO YOUR HOOD,

PREVENT DEBRIS FROM ENTERING THE

VENT OPENING.

•Decide the location of the venting pipe from the hood

to the outside. Refer to Figure 1.

•A straight, short vent run will allow the hood to perform

more efficiently.

•Try to avoid as many transitions, elbows, and long run

as possible. This may reduce the performance of the

hood.

•Temporarily wire the hood to test for proper operation

before installing.

•Important: Peel protective film off the hood, if any.

•Use duct tape to seal joints between pipe sections.

CAUTION: If moving the cooking range is

necessary to install the hood, turn off the power in an

electric range at the main electrical box. SHUT OFF

THE GAS BEFORE MOVING A GAS RANGE. And use

a protective covering to protect cooktop and/or

countertop from damage.

Custom Hood Preparation

1. The custom hood frame must be sized to the shape

and the weight of the insert. Refer to Measurements

and Diagram on Page 12-13.

2. Install 6” Round Plastic Collar using 2 attached screws.

Refer to Figure 2.

3. It must have a sturdy base (1/2 inch thick plywood

recommended) to sustain the weight of the insert.

4. If an optional liner will be installed, the side of the wood

cabinet must be sturdy (1/2 inch thick plywood

recommended).

5. It is recommended to install a rear and front stud

support. Refer to Figure 3. The stud supports are

located 1-1/2” up from the base of the wood frame.

Liner Installation (for 30” hood only)

6. The custom/wood hood must have a sturdy base to

accommodate the cut-out for the insert. The base must

be recessed to accommodate the height of the liner

(See liner dimension on Page 12).

7. Secure the liner to the bottom of the base using screws

(not included) appropriate for the size and material of

your wood frame.

8. Position the liner so that it aligns with the back edge of

the custom wood frame. Use a pen to trace the outline

of the pre-cut area. Remove the liner and proceed to

Hood Preparation before Installation on Page 7.

9. Install the liner with 5 screws (not provided)

Wiring to Power Supply

Figure 4

Figure 5

Figure 6

IN2830SQP-XX (30”)

IN2836SQP-XX (36”)

SAFETY WARNING

RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD

MUST BE PROPERLY GROUNDED. MAKE SURE THIS

IS DONE BY QUALIFIED ELECTRICIAN IN

ACCORDANCE WITH ALL APPLICABLE NATIONAL

AND LOCAL ELECTRICAL CODES. BEFORE

CONNECTING WIRES, SWITCH POWER OFF AT

SERVICE PANEL AND LOCK SERVICE PANEL TO

PREVENT POWER FROM BEING SWITCHED ON

ACCIDENTALLY.

10.Temporarily wire the hood to test for proper operation

before installing. If the insert does not operate, check

the circuit breaker or house fuse. If the insert is still not

working, disconnect the power supply and check the

continuity of all wiring connections.

11.Connect electrical wires.

12.Connect three wires (black, white and green) to house

wires and cap with wire connectors. Connect wires

according to their colors (i.e. black to black, white to

white, and green to green). See Figure 4.

13.Store wires in the wiring box.

NOTE: Connect all electrical wires before installing insert.

DO NOT turn on the power until installation is

complete.

Ductwork Installation

14.Use 6” steel pipe (follow building codes in your area) to

connect the ducting on the hood to the ductwork above.

Use duct tape to seal and secure joints as shown in

Figure 5.

15.Please refer to local codes for the usage of a damper.

Hood Preparation Before Installation

CAUTION: If moving the cooking range is

necessary to install the hood, turn off the power in an

electric range at the main electrical box. SHUT OFF

THE GAS BEFORE MOVING A GAS RANGE.

16.Determine and mark the centerlines on the base of the

wood frame where the insert will be installed.

17.Determine and make all necessary cuts in the wall or

ceiling for the ductwork. Note: Install the duct work

before installing the insert.

18.Cut out the opening where the insert will be installed.

Figure 6.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels KOBE hotte de ventilation

KOBE

KOBE RA9430SQB Guide de dépannage

KOBE

KOBE IN2630SQB-650-5A Guide de dépannage

KOBE

KOBE CH3830SQB-1 Guide de dépannage

KOBE

KOBE Brillia CHX81 SQB-2 Series Guide de dépannage

KOBE

KOBE CH7730SQB Guide de dépannage

KOBE

KOBE Brillia Series Guide de dépannage

KOBE

KOBE RA9230SQB-DC30-1 Guide de dépannage

KOBE

KOBE RAX21 SQB-X Series Guide de dépannage

KOBE

KOBE CX1842GS-8 Guide de dépannage

KOBE

KOBE CH2230SQ Guide de dépannage

KOBE

KOBE CH7630SQB Guide de dépannage

KOBE

KOBE INX28 SQ-700-2 Series Guide de dépannage

KOBE

KOBE CHX-30 Series(400 CFM-LED) Guide de dépannage

KOBE

KOBE IN26 SQB-1100-5A Series Guide de dépannage

KOBE

KOBE Brillia INX27 SQB-700-2 Series Guide de dépannage

KOBE

KOBE OVS-CHX2030SQB-40 Guide de dépannage

KOBE

KOBE CH0036SQB Manuel utilisateur

KOBE

KOBE CHX30 Series Guide de dépannage

KOBE

KOBE RA3830SQB-1 Guide de dépannage

KOBE

KOBE IS2336SQ Guide de dépannage

KOBE

KOBE ISX2130SQB-2 Guide de dépannage

KOBE

KOBE CH7936SQB Manuel utilisateur

KOBE

KOBE CH-191 Guide de dépannage

KOBE

KOBE RA02 SQB-1 Manuel d'utilisation et d'entretien

Manuels hotte de ventilation populaires d'autres marques

emmeti

emmeti RECUPA MED A-140 Mode d’emploi

Nibe

Nibe F135 Manuel utilisateur

Kuppersberg

Kuppersberg INTRO 60 Instructions d'installation et d'entretien

Zephyr

Zephyr Spruce AK9834BS Guide d'installation

Hisense

Hisense MH6INBG Manuel utilisateur

Miele

Miele DA 1255 Manuel utilisateur

Broan

Broan 46000 Manuel utilisateur

GE Profile PV977 Instructions originales

FALMEC

FALMEC FFRIA24W5FS Manuel utilisateur

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuel utilisateur

Küppersbusch

Küppersbusch DX ISLA Manuel utilisateur

ETNA

ETNA AV360RVS Manuel utilisateur

JUNO

JUNO JDF603E6 Manuel utilisateur

Miele

Miele DA 6708 D Manuel utilisateur

Tricity Bendix

Tricity Bendix LE 150 Manuel

AEG

AEG X68163BV1 Manuel utilisateur

AEG

AEG 125 D Manuel utilisateur

Smeg

Smeg KSEV97X Manuel utilisateur
