Klipsch IC-400-T Manuel utilisateur

KLIPSCH PROFESSIONAL

IN-CEILING LOUDSPEAKERS

IC-400-T | IC-500-T-SC | IC-525-T | IC-650-T | IC-800-T

OWNER’S MANUAL

1. READ these instructions.

2. KEEP these instructions.

3. HEED all warnings.

4. FOLLOW all instructions.

5. DO NOT use this apparatus near water.

6. CLEAN ONLY with dry cloth or lightly damped cloth.

7. DO NOT block any ventilation openings. Install in accordance

with the manufacturer’s instructions.

8. DO NOT install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including ampliﬁers)

that produce heat.

9. ONLY USE attachments/accessories speciﬁcally designed

for this application

10. USE only with a cart, stand, tripod, bracket, or table speciﬁcally

designed for this application, or sold with the apparatus. When

a cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

11. DO NOT expose this apparatus to dripping or splashing and ensure that

no objects ﬁlled with liquids, such as vases, are placed on

the apparatus.

12. DO NOT modify or alter in any way.

13. SWITCH OFF ampliﬁer prior to connecting speakers.

14. DO NOT hang or suspend any items from this apparatus.

The exclamation point, within an equilateral triangle, is intended to

alert the user to the presence of important operating and mainte-

nance (servicing) instructions in the literature accompanying the product.

The lightning ﬂash with arrowhead symbol within an equilateral

triangle is intended to alert the user to the presence of uninsu-

lated “dangerous voltage” within the product’s enclosure that may be of

sufﬁcient magnitude to constitute a risk of electrical shock to persons.

WARNING: To reduce the risk of ﬁre or electrical shock, do not expose

this apparatus to rain or moisture.

WARNING: No naked ﬂame sources – such as candles – should be

placed on the product.

WARNING: The apparatus is not designed to be used for any type of

moving or lifting installation.

WARNING: For Indoor use only.

WARNING: Installation must be done by qualiﬁed personnel to

appropriate standards and/or building codes.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Neglect to follow the safety and

installation instructions may cause malfunctions

resulting in property damage and personal injury.

WARNING: Do Not Open! Risk of Electrical Shock.

Voltages in this equipment are hazardous to

life. No user-serviceable parts inside. Refer all

servicing to qualiﬁed service personnel.

Klipsch recommends that only qualiﬁed personnel install its

loudspeaker systems. At all times, be sure that adequate

safety factors are observed. Due to the weight and size of the

components involved, potential damage could occur if devices

were to become unattached.

The included tile-bridge must be used when installing into

suspended ceilings. Use the seismic tab as a secondary means of

support. In some areas, using the seismic tab is required by code.

CONTENTS

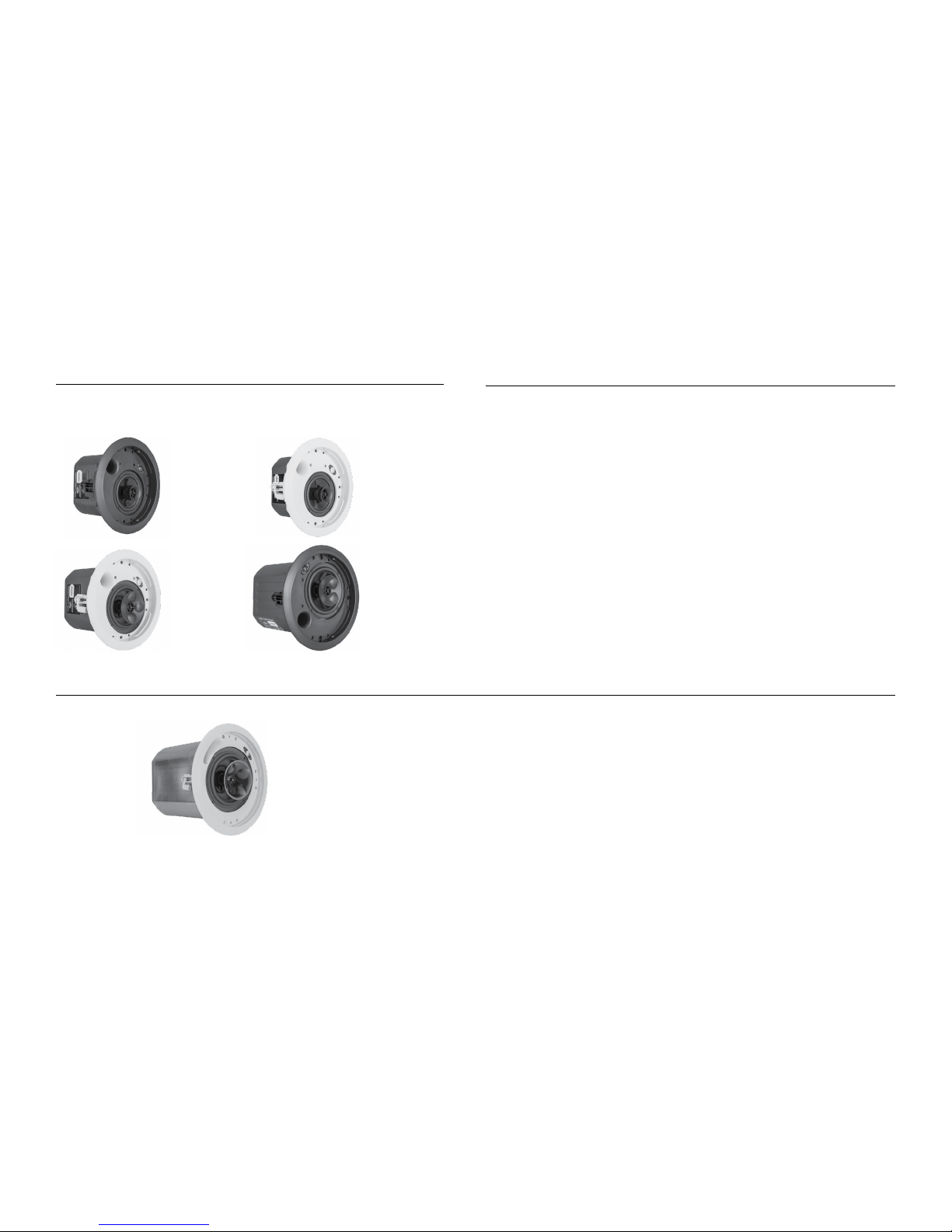

IC-400-T

IC-525-T IC-650-T

IC-800-T

IC-500-T-SC

x2 Speaker Modules

x2 Grilles

x2 Reinforcement Rings

x4 Rails

x2 Cardboard Cutout Template and Paint Mask

x8 Screws (Attach Rails to Reinforcement Ring)

x2 3/4” Adapter ﬁttings

x1 Speaker Module

x1 Grille

x1 Reinforcement Ring

x2 Rails

x1 Cardboard Cutout Template

and Paint Mask

x4 Screws (Attach Rails to Reinforcement Ring)

x1 3/4” Adapter ﬁtting

KLIPSCH PROFESSIONAL IN-CEILING SPEAKERS

INSTALLATION

BE SURE TO COMPLY WITH

ANY AND ALL BUILDING

CODES IN YOUR AREA

All Klipsch Professional In-Ceiling

speakers include a tilebridge for use

when installing the loudspeaker into

suspended ceiling or wherever additional

reinforcement of the ceiling material is

required. The tilebridge and loudspeaker

are designed such that installation may

be accomplished where access above the

ceiling is not possible or may be difﬁcult.

The tilebridge is composed of three

parts: a reinforcement ring and two rails.

The two rails should be attached to the

reinforcement ring using the four included

screws as shown

2 3

INSTALLATION

1 2

TEMPLATE

To install your speaker cut a hole in the ceiling

using either the cardboard cutout template

provided with your speakers or consult the

measurements shown. Pull wiring through hole.

IC-400-T, IC-525-T, IC-500-T ø9.125”

IC-650-T ø10.125”

IC-800-T ø12.625”

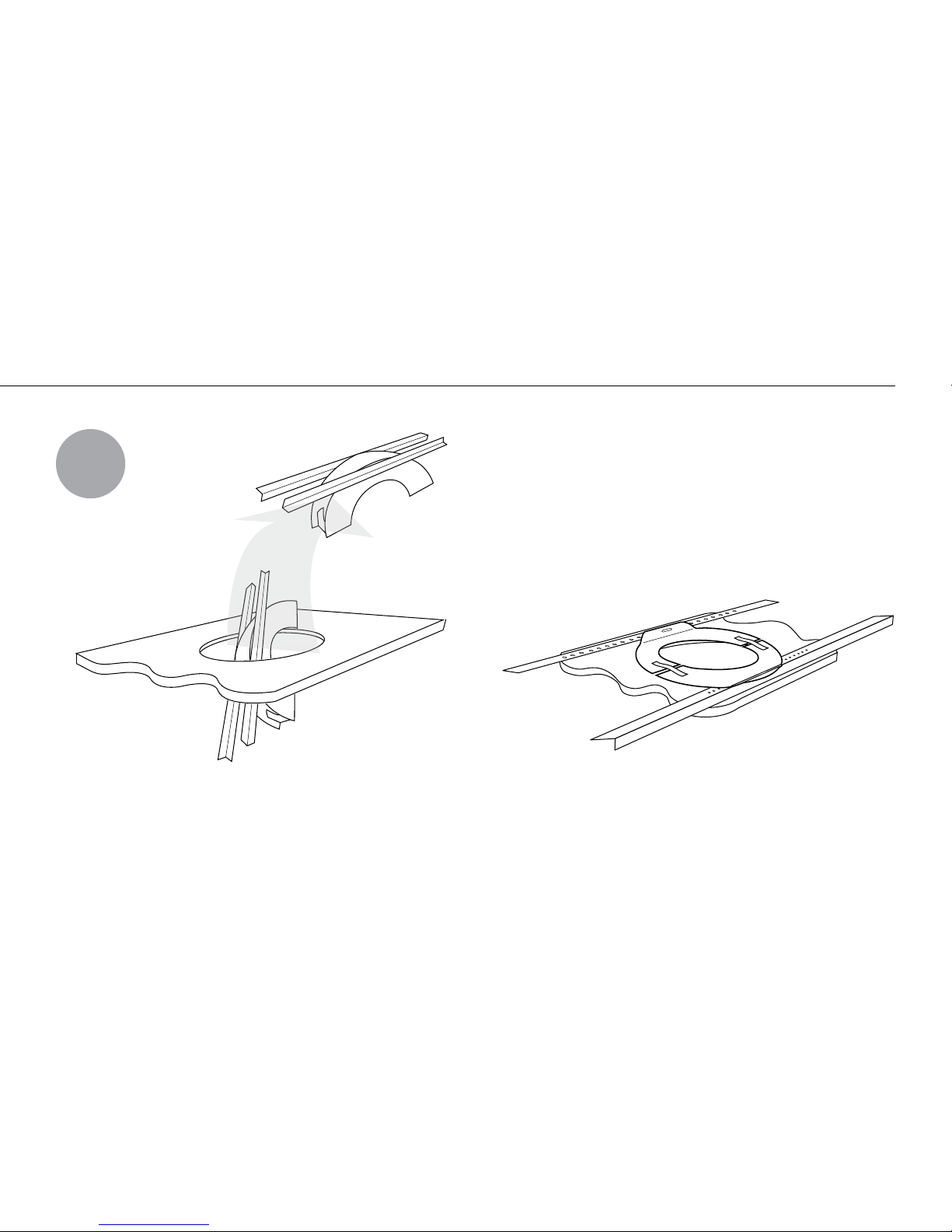

To Install the tilebridge, fold the rail side of the ring back upon itself using the spring tensioner on

the reinforcement ring to allow insertion into the cutout hole. Once it is inserted into the cutout

hole, release the reinforcement ring such that it unfolds back to its normal position. Position

tilebridge over cutout hole, and insure that the tile rails rest on the t-grid struts.

INSTALLATION

The wiring compartment is intended as a termination point for the audio circuit.

Access to the compartment is gained by removing the terminal cover located

on the back of the speaker. (For the IC-500-T-SC, the terminal is located on the

side of the speaker) The terminal cover will accept the appropriate conduit/wire

adapter. Feed wires through conduit/wire adapter and connect to the input terminal

according to the desired operation mode. Be sure to observe proper polarity.

Replace the terminal cover and tighten the conduit/wire adapter to secure the wire.

WHEN CONNECTING 70V OR 100V

DISTRIBUTED LINE SYSTEMS, TAKE CARE TO

ENSURE PROPER TERMINAL CONNECTION.

CONNECTION TO THE LOW IMPEDANCE

TERMINAL COULD RESULT IN SPEAKER

DAMAGE, AMPLIFIER DAMAGE, OR BOTH.

5FOR IC-500-T-SC ONLY

Insert the speaker into the cutout hole. With a #2 Phillips screwdriver, tighten the four

dog clamps until they are seated securely against the ceiling surface. Do not overtighten.

6 7

INSTALLATION

88Ω

8Ω

1.875W

3.75W

7.5W

15W

7.5W

3.75W

8Ω

3.75W

7.5W

15W

30W

15W

7.5W

8Ω

7.5Ω

7.5W

15W

30W

60W

30W

15W

8Ω

1.875W

3.75W

7.5W

15W

7.5W

3.75W

8Ω

12.5W

25W

50W

100W

50W

25W

120W

60W

30W

4Ω

Mono

4Ω

Mono

8Ω

Stereo

8Ω

Stereo

60W

For installations using 70V/100V

input connection, set the switch

on the front panel to the desired

setting. For applications where

8 Ohm impedance is desired, the

switch should be set to 8 Ohms.

(Or 7.5 ohm for the IC-650-T)

Note: The speaker comes from the

factory set at the lowest output

setting (high impedance).

IC-650-T tap selectable

8Ω

1.875W

3.75W

7.5W

15W

7.5W

3.75W

8Ω

3.75W

7.5W

15W

30W

15W

7.5W

8Ω

7.5Ω

7.5W

15W

30W

60W

30W

15W

8Ω

1.875W

3.75W

7.5W

15W

7.5W

3.75W

8Ω

12.5W

25W

50W

100W

50W

25W

120W

60W

30W

4Ω

Mono

4Ω

Mono

8Ω

Stereo

8Ω

Stereo

60W

IC-525-T tap selectable

IC-400-T tap selectable

IC-500-T-SC tap selectable

IC-800-T tap selectable
