INSTRUCTION MANUAL

ENGLISH

FRANÇAIS pg. 33

ESPAÑOL pg. 17

2000A

Digital Clamp Meter

1000V

2000A

60M

True RMS

Measurement

Technology

• NON-CONTACT

VOLTAGE TESTING

• INRUSH CURRENT

• LOW IMPEDANCE

• DATA HOLD

• RANGE HOLD

• AUDIBLE

CONTINUITY

• DIODE TEST

• CAPACITANCE

• FREQUENCY

CL900

GENERAL SPECIFICATIONS

Klein Tools CL900 is an auto-ranging, true root mean square (TRMS)

digital clamp meter that measures AC/DC current via the clamp and

measures AC/DC voltage, resistance, continuity, frequency, duty-

cycle, capacitance, and tests diodes via test-leads. It features a Low

Impedance (LoZ) mode for identifying and eliminating ghost or stray

voltages, and has a dedicated mode for capturing Inrush Current.

• Operating Altitude: 6562 ft. (2000m)

• Relative Humidity: <80% non-condensing

• Operating Temperature: 32°to 122°F (0°to 50°C)

• Storage Temperature: 14°to 140°F (-10°to 60°C)

• Accuracy: Values stated at 65° to 83°F (18° to 28°C)

• Temp Coefcient: 0.1 x (Quoted Accuracy) per °C above

28°C or below 18°C, corrections are required when ambient

working temp is outside of Accuracy Temp range

• Dimensions: 10.4" x 3.9" x 1.7" (265 x 99 x 43 mm)

• Weight: 18.6 oz. (526 g) including batteries

• Calibration: Accurate for one year

• Standards: Conforms to UL STD 61010-1, 61010-2-032,

61010-2-033.

Certified to CSA STD C22.2 # 61010-1,

61010-2-032, 61010-2-033.

IEC EN 61010-1, 61010-2-032,

61010-2-033.

• Pollution degree: 2

• Accuracy: ± (% of reading + # of least significant digits)

• Drop Protection: 6.6 ft. (2m)

• Safety Rating: CAT IV 600V, CAT III 1000V, Class 2,

Double insulation

CAT III: Measurement category III is applicable to test and

measuring circuits connected to the distribution part of the

building’s low-voltage MAINS installation.

CAT IV: Measurement category IV is applicable to test and

measuring circuits connected at the source of the building’s

low-voltage MAINS installation.

• Electromagnetic Environment: IEC EN 61326-1. This

equipment meets requirements for use in basic and controlled

electromagnetic environments like residential properties,

business premises, and light-industrial locations.

Specifications subject to change.

ENGLISH

ELECTRICAL SPECIFICATIONS

Function Range Resolution Accuracy (50/60 Hz)

AC Voltage

(V AC)

600.0mV 0.1mV ±(1.0% + 8 digits)*

6.000V 1mV ±(1.0% + 5 digits)

60.00V 10mV ±(1.2% + 5 digits)

600.0V 0.1V

1000V 1V ±(1.5% + 5 digits)

DC Voltage

(V DC)

600.0mV 0.1mV ±(0.9% + 8 digits)

6.000V 1mV

±(1.0% + 3 digits)60.00V 10mV

600.0V 0.1V

1000V 1V ±(1.2% + 3 digits)

Input Impedance:

10MΩ

Frequency Range:

50 to 400Hz

Maximum Input: 1000V AC RMS or 1000V DC

*Accuracy specified from 5% to 100% of the measuring range

AC Current

(A) TRMS

600.0A 0.1A ±(2.0% + 5 digits)

2000A 1A ±(2.5% + 8 digits)

DC Current (A) 600.0A 0.1A ±(2.0% + 5 digits)

2000A 1A ±(2.5% + 8 digits)

AC Frequency Range: 50 to 60Hz , >500mA

DC:

>200mA (low current requires use of DC ZERO function)

AC Current (A)

Inrush

600A 0.1A ±(2.5% + 5 digits)**

2000A 1A ±(3.0% + 8 digits)**

AC Frequency Range: 50 to 60Hz

when auto-ranging >3A detectable

(>2A if held in 600A range)

**Accuracy specified assumes AC sine wave

Resistance

600.0Ω 0.1Ω

±(1.5% + 5 digits)

6.000KΩ 1Ω

60.00kΩ 10Ω

600.0kΩ 100Ω

6.000MΩ 1kΩ

60.00MΩ 10kΩ ±(2.0% + 10 digits)

Maximum Input: 600V AC RMS or 600V DC

Capacitance

60.00nF 10pF ±(5.0% + 35 digits)

600.0nF 0.1nF

±(3.0% + 5 digits)

6.000µF 1nF

60.00µF 10nF

600.0µF 0.1µF

6000µF 1µF ±(5.0% + 5 digits)

Maximum Input: 600V AC RMS or 600V DC

ENGLISH

WARNINGS

To ensure safe operation and service of the meter, follow these instructions.

Failure to observe these warnings can result in severe injury or death.

• Before each use, verify meter operation by measuring a known voltage

or current.

• Never use the meter on a circuit with voltages that exceed the category

based rating of this meter.

• Do not use the meter during electrical storms or in wet weather.

• Do not use the meter or test leads if they appear to be damaged.

• Use only with CAT III or CAT IV rated test leads.

• Ensure meter leads are fully seated, and keep fingers away from the

metal probe contacts when making measurements.

• Use caution when working with voltages above 25V AC RMS or

60V DC. Such voltages pose a shock hazard.

• To avoid false readings that can lead to electrical shock, replace batteries

when a low battery indicator appears.

• Do not attempt to measure resistance or continuity on a live circuit.

• Do not hold meter above hand & finger guard during use.

ELECTRICAL SPECIFICATIONS

Frequency

9.999Hz 0.001Hz

±(1.0% + 5 digits)

99.99Hz 0.01Hz

999.9Hz 0.1Hz

9.999kHz 1Hz

99.99kHz 10Hz

500.0kHz 100Hz

Sensitivity: >8V RMS, Maximum Input: 600V DC or 600V AC RMS

Duty Cycle 0.1% – 99.9% 0.10% ±(1.2% + 2 digits)

Pulse width: 0.1ms – 100ms

Frequency width: 5Hz to 10kHz

Sensitivity: >8V RMS

Maximum Input: 600V AC RMS or 600V DC

OTHER MEASUREMENT APPLICATIONS

• Diode Test: Max. 1.5mA, open circuit voltage ~ 3.0V DC

• Continuity Check: Audible signal <50Ω, test current <0.35mA

• Sampling Frequency: 3 samples per second

• Low Impedence (Low Z): Input impedence: >3kΩ

Max input: 600V RMS

• Auto Power off: After ~30 minutes of inactivity

• Overload:

"OL" indicated on display, overload protection

1000V RMS in Voltage setting, 600V RMS in all other settings

• Polarity: "-" on display indicates negative polarity

• Non-Contact Voltage Detection:

>90V AC

• Display: 3-5/6 digit, 6000 Count LCD

SYMBOLS ON METER

Alternating Current (AC) Direct Current (DC)

AAmperage VVoltage

Audible Continuity

Frequency

Diode Test

Duty-Cycle

Capacitance Low Impedance

Resistance (Ohms) DC Current Zero Function

+ Positive – Negative

COM Common Ground

Double Insulated Class II

Warning or Caution:

To ensure safe operation and service of this

meter, follow all warnings and instructions detailed in this manual.

Risk of Electrical Shock:

mproper use of this meter can lead to risk of

electrical shock. Follow all warnings and instructions detailed in this manual.

SYMBOLS ON LCD

AC Measurement DC Measurement

Negative Reading Data Hold

AUTO Auto Ranging MAX Maximum Value Hold

MIN Minimum Value Hold Low Battery

Auto Power Off Audible Continuity

Diode Test Inrush Current

kilo (value x 10

)

mili (value x 10

-3

)

Mega (value x 10

)

nano (value x 10

-9

)

micro (value x 10

-6

)

Farads

Ohms

Amps

Volts

LoZ

Low Impedence

Frequency (Hertz)

Duty Cycle

WARNINGS

• Always adhere to local and national safety codes. Use personal

protective equipment to prevent shock and arc blast injury where

hazardous live conductors are exposed.

• Usage of this meter in any way other than that specified by the

manufacturer can impair safe operation, resulting in severe injury or death.

• To avoid risk of electric shock, disconnect leads from any voltage source

before removing battery door.

• To avoid risk of electric shock, do not operate meter while battery door is

removed.

ENGLISH

FEATURE DETAILS

NOTE: There are no user-serviceable parts inside meter.

1. 6000 count

LCD display

2. Function

selector

switch

3. Clamp

4. "COM" jack

5. "VΩ" jack

6. Data Hold /

Backlight

button

7. "RANGE"

button

8. "MAX/MIN"

button

SEL (select) /

DC Zero button

10. INRUSH button

11.

Clamp trigger

(press to open

clamp)

12. Arrow markings

13. N

on-contact

Voltage Testing

Button

14. N

on-contact

Voltage Testing

Sensor

15. N

on-contact

Voltage Testing

LED Indicator

16.

Polarity markings

(for DC current)

FUNCTION BUTTONS

ON/OFF

To power ON the meter, rotate the Function Selector switch

from

the OFF setting to any measurement setting. To power OFF the meter,

rotate the Function Selector switch

to the OFF setting. By default,

the meter will automatically power OFF after aprox. 30 minutes of

inactivity. To deactivate the auto power OFF functionality, press and

hold the "SEL/DC ZERO" button

before powering ON from the OFF

setting. When auto power OFF is deactivated, the Auto Power Off icon

will not be visible in the display.

SEL (SELECT) / DC ZERO BUTTON (FOR SECONDARY FUNCTIONS)

The SEL/DC ZERO button

activates the secondary function for

each application accessible by the function selector switch

• In Current

and Low Impedance modes, it toggles between

AC and DC measurements.

• In Frequency/Duty Cycle

setting, it toggles between these

measurements

• In Continuity/Resistance/Diode-Test

setting, it toggles

through these measurements in order

• In DC current setting, pressing and holding for more than one

second initiates the DC ZERO function. Subsequent DC current

measurements automatically subtract the measurement that was

present as an offset correction.

The default function for each application is printed on the meter in

white, the secondary functions in orange. An icon on the LCD display

will indicate which function is active.

DATA HOLD

Press the Data Hold / Backlight button

to hold the measurement

on the display. Press again to release the display to return to live

measuring.

BACKLIGHT

Press and hold the Data Hold / Backlight button

for more than

one second to turn ON the backlight. The backlight will automatically

power OFF after 3 minutes of inactivity.

RANGE

The meter defaults to auto-ranging mode

AUTO

. This mode

automatically determines the most appropriate measurement range

for the testing that is being conducted. To manually force the meter to

measure in a different range, use the Range button

1. Press the "RANGE" button

to manually select measurement

range (AUTO is deactivated on the LCD). Repeatedly press the

"RANGE" button

to cycle through the available ranges, stopping

once the desired range is reached.

2. To return to auto-ranging mode, press and hold the "RANGE"

button

for more than one second (AUTO is reactivated).

ENGLISH

FUNCTION BUTTONS

MAX/MIN

When the "MAX/MIN" button

is pressed, the meter keeps track of

the Maximum and Minimum values as the meter continues to take

samples.

1. When measuring, press "MAX/MIN" button

to toggle between

the Maximum value (MAX) and Minimum value (MIN). If a new

Maximum or Minimum, the display will update with the new value.

2. Press "MAX/MIN" button

for more than one second to return to

normal measuring mode.

INRUSH CURRENT

Rotate the Function Selector switch

to the Current

setting

and

press INRUSH

prior to an inrush event to test for inrush

current. While the meter monitors current waiting for the inrush

event, "----" will be visible on the display.

NON-CONTACT VOLTAGE TESTING

Press and hold the "NCV" button

to test for AC voltage using the

integrated non-contact voltage tester. Approach the conductor under

test leading with the sensing antenna

. The meter delivers visual

warning signals via the LED indicator

and audible signals (beeps)

when AC voltage is detected. Release the "NCV" button to exit NCV

testing mode.

NOTE: It is not recommended to perform continuity and NCV testing

simultaneously, as both tests utilize the same audible signal, making

it difficult to resolve which test is responsible for the audible alarm.

NOTE: Only voltages of 90V AC or greater will be detected.

OPERATING INSTRUCTIONS

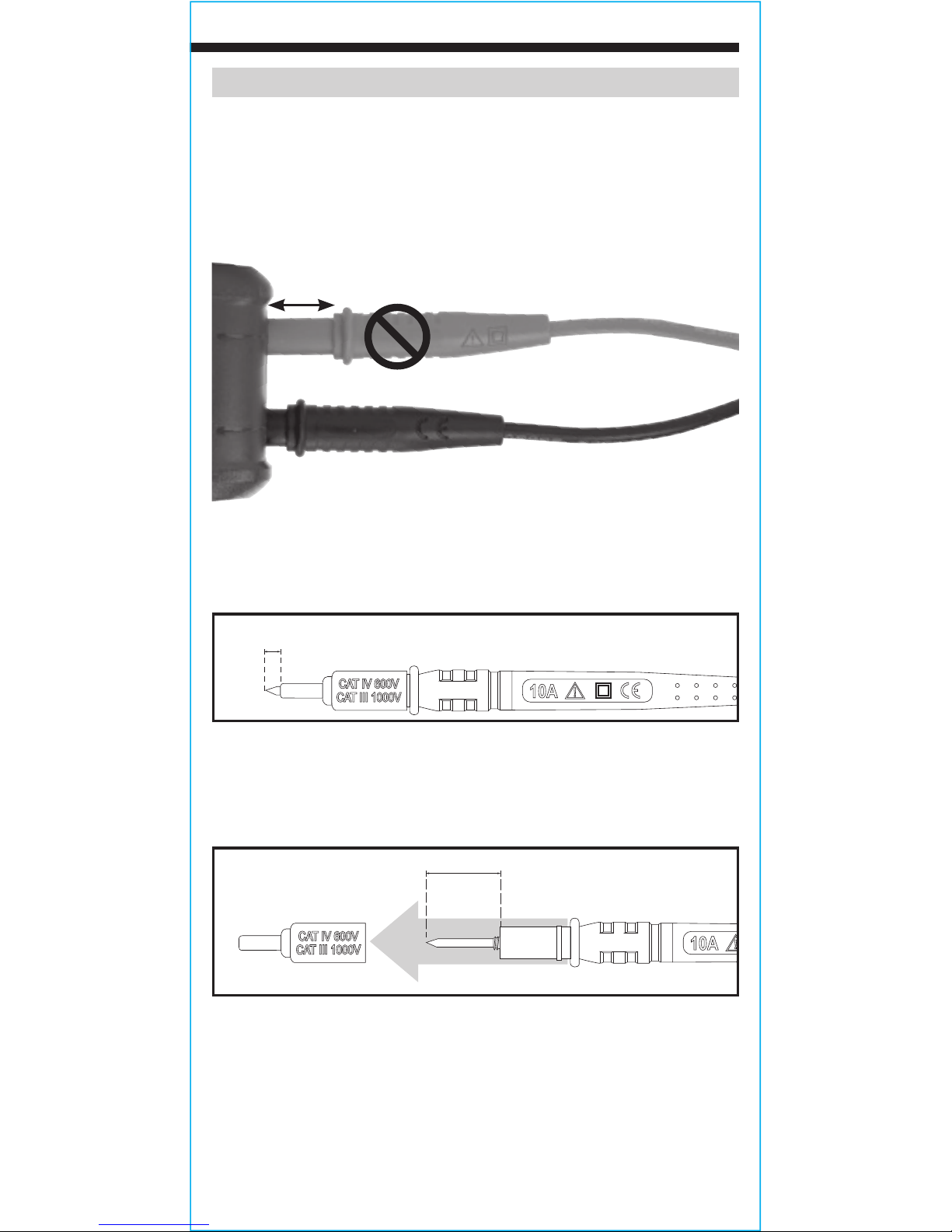

CONNECTING TEST LEADS

Do not test if leads are improperly seated. Results could cause

intermittent display readings. To ensure proper connection, firmly

press leads into the input jack completely.

INCORRECT

CORRECT

TESTING IN CAT III / CAT IV MEASUREMENT LOCATIONS

Ensure the test lead shield is pressed firmly in place. Failure to use

the CATIII / CATIV shield increases arc-flash risk.

TESTING IN CAT II MEASUREMENT LOCATIONS

CAT III / CAT IV shields may be removed for CAT II locations. This

will allow testing on recessed conductors such as standard wall

outlets. Take care not to lose the shields.

5/32"

(4 mm)

.7" (18 mm)

OPERATING INSTRUCTIONS

AC/DC CURRENT (LESS THAN 2000A)

AC Current is measured by pressing the clamp

trigger

to open the clamp

and placing

it around a current-carrying wire. When

measuring, care should be taken to ensure

that the clamp

is completely closed with

trigger

fully released, and that the wire

passes perpendicularly through the center of

the clamp

in line with the arrow markings

To measure current:

1. Rotate the Function Selector switch

to the

Current

setting

2. The meter defaults to AC measurement.

To measure DC, press the

"SEL/DC ZERO" button

to toggle between AC and DC modes.

The AC or DC icon on the LCD indicates

which mode is selected. Note "AC" or "DC"

on the display.

3. Place the clamp

around the wire.

When measuring DC current, align the

polarity markings

on the clamp with

the polarity of the wire to avoid negative

readings. The current measurement will be shown in the display.

The meter will auto-range to display the measurement in the

most appropriate range.

To measure inrush current:

1. Rotate the Function Selector switch

to the Current

setting.

Place the clamp

around the wire and press "INRUSH"

. The

Display

will show "----". Initiate the Inrush event and the inrush

current will be captured and presented in the display. A second press of

"INRUSH"

will reset the Inrush measurement, "----" will be presented

on the display and the meter will wait for the next Inrush event.

2. P

ress and hold

"INRUSH"

for more than one second to return to

normal measuring mode.

Disconnect test leads when measuring with the clamp.

NOTE: If non-zero values are displayed prior to measuring in DC

current mode, an offset correction may be required to improve

accuracy. With meter in DC current mode, press and hold the

"SEL/DC ZERO" button

for more than one second to initiate the

DC current ZERO function. Subsequent DC current measurements

automatically subtract the measurement that was initially present as

an offset correction.

ENGLISH

WIRE

Autres manuels pour CL900

Table des matières

Langues :

Autres manuels Klein Tools Instrument de mesure

Klein Tools

Klein Tools MM5000 Manuel utilisateur

Klein Tools

Klein Tools CL220 Manuel utilisateur

Klein Tools

Klein Tools CL3000 Manuel utilisateur

Klein Tools

Klein Tools ET910 Manuel utilisateur

Klein Tools

Klein Tools CL320 Manuel utilisateur

Klein Tools

Klein Tools VDV Scout Pro 2 LT Manuel utilisateur

Klein Tools

Klein Tools 501-915 Manuel utilisateur

Klein Tools

Klein Tools 935DAA Manuel utilisateur

Klein Tools

Klein Tools MM1300 Manuel utilisateur

Klein Tools

Klein Tools CL2000 Manuel utilisateur

Klein Tools

Klein Tools ET920 Manuel utilisateur

Klein Tools

Klein Tools VDV501-098 Manuel utilisateur

Klein Tools

Klein Tools CL800 Manuel utilisateur

Klein Tools

Klein Tools CL450 Manuel utilisateur

Klein Tools

Klein Tools CL210 Manuel utilisateur

Klein Tools

Klein Tools CL390 Manuel utilisateur

Klein Tools

Klein Tools VDV500-123 Probe-Pro Manuel utilisateur

Klein Tools

Klein Tools CL600 Manuel utilisateur

Klein Tools

Klein Tools CL2000 Manuel utilisateur

Klein Tools

Klein Tools 501-915 Manuel utilisateur

Klein Tools

Klein Tools ET50 Manuel utilisateur

Klein Tools

Klein Tools ET900 Manuel utilisateur

Klein Tools

Klein Tools DTL304 Manuel utilisateur

Klein Tools

Klein Tools PROBEplus Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
