KitchenAid KICU465S Instructions d'utilisation

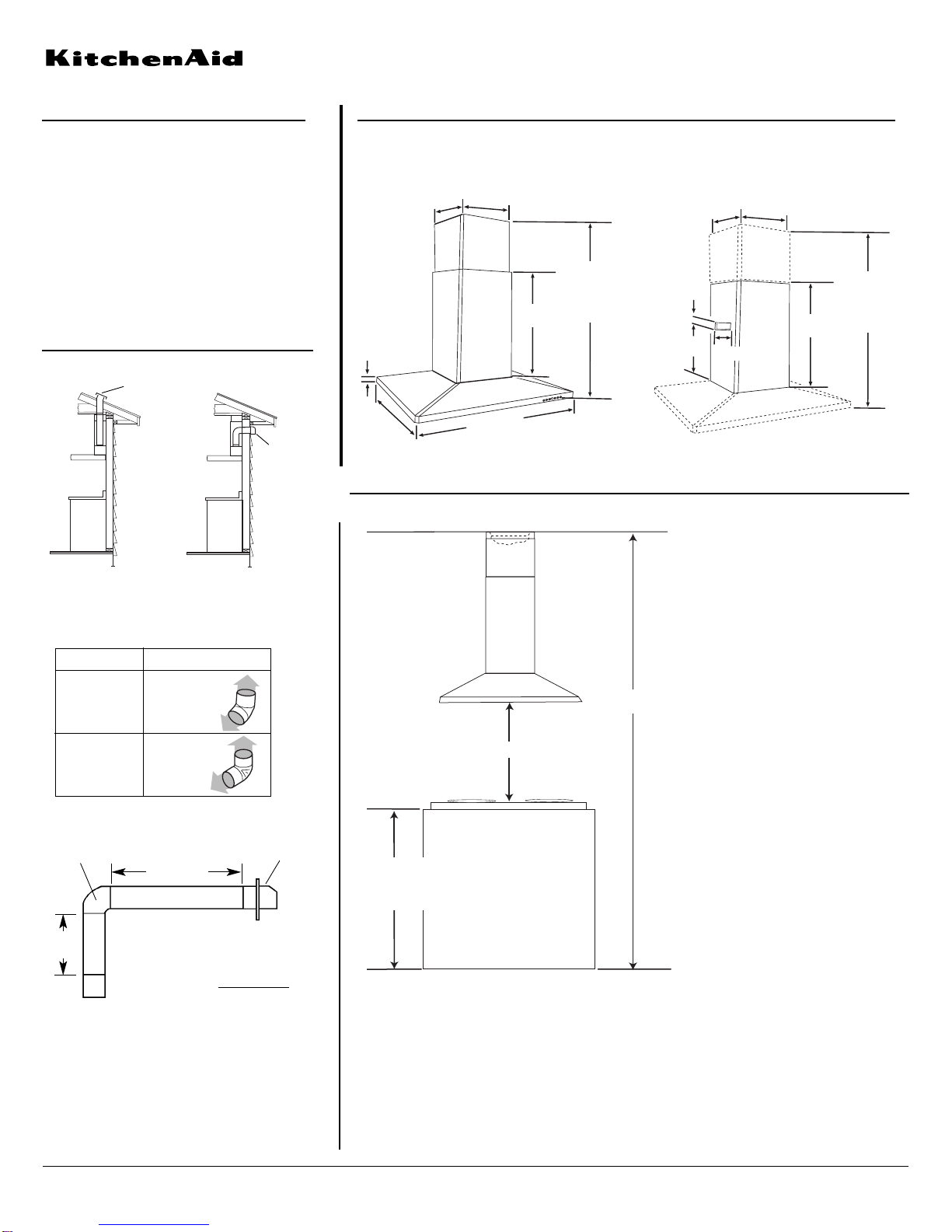

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS

CABINET OPENING DIMENSIONS

VENTING REQUIREMENTS

KICU465S

Electrical: 120-volt, 60-Hz, AC-only, 15-amp.

electrical supply. Use copper wire only. A time-

delay fuse or circuit breaker and separate circuit is

recommended.

36" Island Range Hood

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. W10094880B

02-07-08

Horizontal wall venting

Vertical roof venting

90°

elbow wall

cap

Maximum length = 35 ft. (10.7 m)

1 — 90° elbow = 5 ft. (1.5 m)

8 ft. (2.4 m) straight = 8 ft. (2.4 m)

1 — wall cap = 0 ft. (0 m)

system length =13 ft. (3.9 m)

6 ft. (1.8 m)

2 ft.

(0.6 m)

(15.2 cm) v

ent system

To calculate the length of the system

you need, add the equivalent feet

(meters) for each vent piece used in

the system.

Note: Flexible vent is Not recommended.

Vent piece 8" (20.3 cm) round

45° elbow 2.5 feet

(0.8 m)

90° elbow 5.0 feet

(1.5 m)

roof cap

wall

cap

Non-vented (recirculating)

chimney dimensions

Vented chimney dimensions

Note:

The hood chimneys are adjustable

and designed to meet varying ceiling or

soffit heights depending on the distance

“X” between the bottom of the hood and

the cooking surface. For higher ceilings, a

40” (101.6 cm) Chimney Extension Kit Part

Number 8212698 (Black), Kit Part Number

8212696 (Stainless Steel) or Kit Part Number

8212697 (White) is available. See your

dealer. The chimney extension replaces the

upper chimney shipped with the hood.

Important:

Minimum distance “X”: 24” (61.0 cm)

Suggested maximum distance “X”:

30” (76.2 cm)

For vented installations, the chimney can be

adjusted for ceilings between 7’ 7-1/8”

(2.31 m) and 9’ 1-3/4” (2.79 m).

For non-vented (recirculating) installations,

the chimney can be adjusted for ceilings

between 8’ 3-3/8” (2.52 m) and 9’ 5-1/4”

(2.88 m).

Important:

As hood height (distance X) increases,

hood's venting effectiveness decreases.

13³⁄₄"

(34.9 cm)

12¹⁄₁₆"

(30.6 cm)

26³⁄₈"

(65.1 cm)

min.

38¹⁄₂"

(97.8 cm)

max.

27¹⁄₂"

(69.9 cm)

23⁵⁄₈"

(60.0 cm)

3¹⁵⁄₁₆"

(10.0 cm)

36" (91.4 cm)

13³⁄₄"

(34.9 cm)

12¹⁄₁₆"

(30.6 cm)

26³⁄₈"

(65.1 cm)

min.

38¹⁄₂"

(97.8 cm)

max.

23⁵⁄₈"

(60.0 cm)

3¹⁄₂"

(8.9 cm)

12¹⁄₂"

(31.8 cm) 5"

(12.7 cm)

See NOTE

36" (91.4 cm)

Countertop

height
