Assembly instructions

Before installing the refrigerator 4

Water connection 4

Electrical connection 5

Positioning and levelling your refrigerator 6

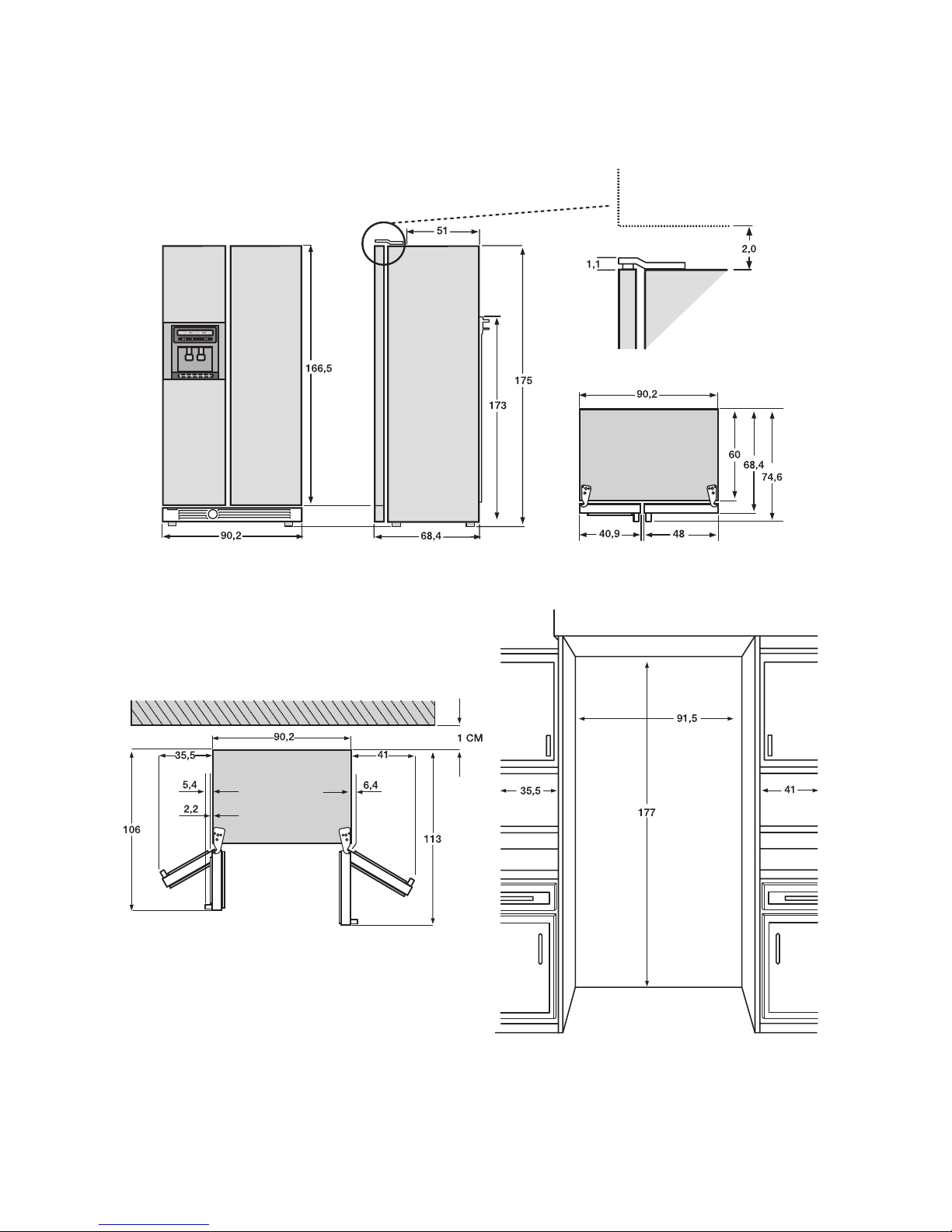

Installation dimensions and requirements 7

Removing the freezer door (A) 8

Removing the refrigerator door (B) 8

Fitting the freezer door (C) 9

Fitting the refrigerator door (D) 9

Horizontal alignment of freezer and refrigerator door (E) 10

Vertical alignment of freezer and refrigerator door (F) 10

Your new appliance is a FULL NO FROST model exclusively for domestic use, i.e. both refrigerator and

freezer compartments are provided with an automatic defrosting function.

This manual contains indications and warnings for correct and safe installation of the appliance - read it

carefully before starting installation operations.

The model you have purchased may differ slightly with respect to some descriptions in this manual, since

this manual covers several models.

Keep this manual for future consultation. If you sell the appliance give it to the new buyer.

Install the appliance in a dry and well-ventilated place.

Avoid locations in direct sunlight or near a source of heat (oven, heating, etc.). If this cannot be avoided,

install the appliance respecting the following minimum distances:

Coal or paraffin stoves: 30 cm

Electric and/or gas stoves: 3 cm

To allow product handling and sufficient air circulation, leave at least 1 cm clearance at the sides, above the

appliance, and between the rear panel and the wall.

Before installing the refrigerator

Disconnect the appliance from the mains

power supply before starting operations.

• The ice maker and water circuit must be

connected to a water supply of potable and/or

chemically purified water.

• Make sure to comply with the current local

regulations regarding connection to the water

system.

• The appliance is supplied with a water pipe

(1.800 m. long) already connected to the back

of the product.

• The water pipe is in accordance with IEC 61770

standard.

• Remove the packing tape from the grey coiled

water pipe on the back of the product.

• Connect the transition connector (1) to the

household water supply (2).

• Make sure the water pipe is not twisted.

• The appliance is pre-set for operation at

pressures between 0.17 and 0.81 Mpa (1.7 and

8.1 bar).

• Open the water tap. Check for and eliminate

any leaks.

• The appliance does not require any adjustment

or water drain.

Water connection

Earthing of the appliance is compulsory by law.

The type of current and the mains voltage to which

the appliance is connected must correspond to that

given on the rating plate.

The connection socket must be accessible even

after installation, so that the appliance can be

unplugged if necessary.

If this is not possible, connect the appliance to the

mains by means of a two-pole switch, with contact

opening distance of at least 3mm, located in an

accessible place.

If the power cable plug and socket are not of the

same type, replace the socket.

Do not pull the power cable when unplugging the

appliance.

Electrical connection

The refrigerator has two front wheels and

two rear wheels at the base of each product

on each side, and two adjustable feet at the

front (see figure A).

If the appliance seems unsteady or you want

the doors to close easier, adjust the

appliance’s tilt following the instructions

below (depending on the model, as shown in

the figures on the right).

1. Check the installation location to be sure you

have at least 1 cm clearance on all sides

including the top.

2. Connect the appliance to the mains power

supply.

3. Move the refrigerator into its final position.

4. Open both doors and remove the plinth to

locate the feet and the levelling bolts at the left

and right of the refrigerator base (if provided).

The top screw (1) adjusts the back wheel, if

present, while the bottom screw (2) adjusts the

front wheel (see figure B).

5. Use the wrench provided to adjust the levelling

bolts. Turn the levelling bolt clockwise to raise

the appliance, or anti-clockwise to lower it. It

may take several turns of the levelling bolts

and/or the feet to adjust the tilt of the

refrigerator.

6. After adjusting the level ensure that both feet

touch the floor to ensure safe operation.

Note: Do not unscrew the levelling bolts and

the feet too much as they could fall out.

Aligning the doors

If after switching on the appliance and adjusting the

refrigerator and freezer doors, the doors are

misaligned, disconnect the appliance from the

power supply and adjust both doors as indicated in

the diagram at the end of this manual.

Figure A

Figure B

Positioning and levelling your refrigerator
