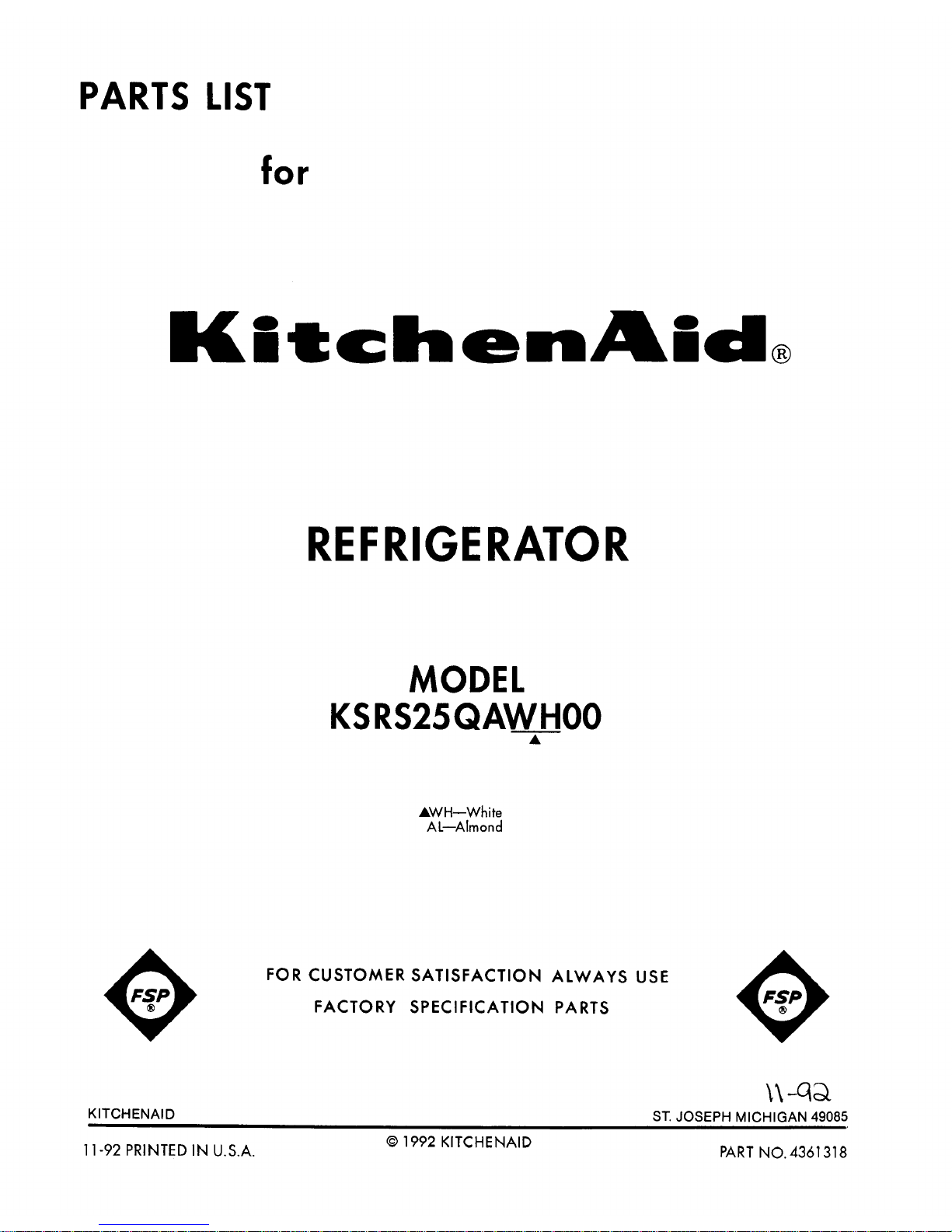

KitchenAid KSRS25QAWH00 Manuel utilisateur

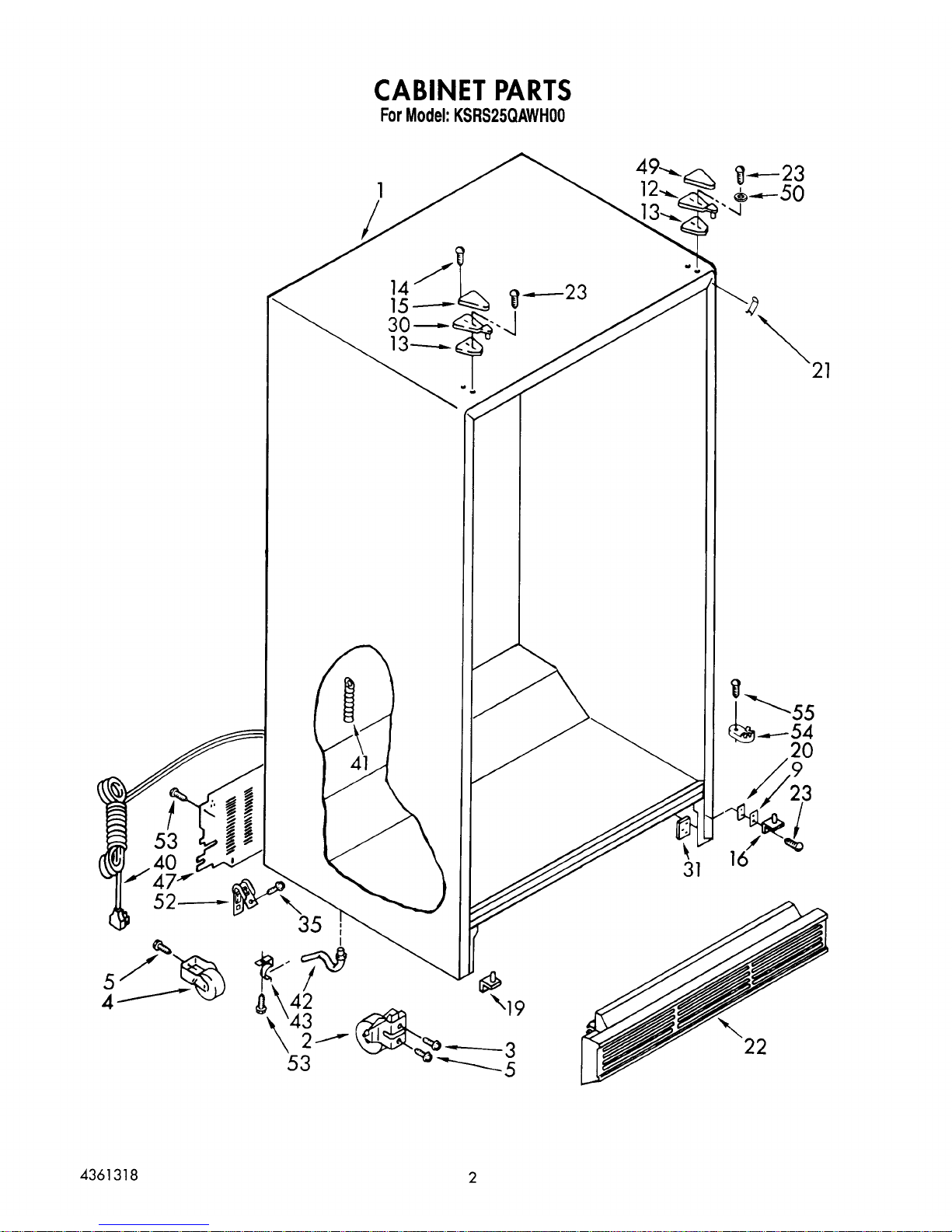

1 Cabinet (Not A Serviceable Part)

2 2152011 Front Roller (2)

3 489393 Screw,

4 981122 Roller (Rear) (2)

5 488454 Screw, 1/4-28 x 1/2 (6)

9 836196 Shim

12 1117937 Hinge Top (R.H.)

13 1123515 Shim, Hinge Top

14 489284 Screw

15 Hinge Cover

1129262 White

2150343 Almond

16 2151629 Hinge Bottom (R.H)

19 2151630 Hinge Bottom (L.H)

20 1129868 Spacer, Hinge

21 Filler, Wrapper

1110708 White

1110709 Almond

22 Grille

1125715 White

1125717 Almond

23 489327 Screw

30 1123510 Hinge, Top (L.H.)

31 2147310 Tap Plate (2)

35 489337 Screw

40 937360 Service Cord

41 940139 Drain Fitting

42 2155557 Tube, Extension

43 1108439 Clip, Drain Tube

47 2161317 Cover, Unit

49 Hinge Cover

1119787 White

1119789 Almond

50 489366 Washer

52 549193 Clamp, Service Cord

53 489084 Screw, 8x 1/2

54 986759 Door Closer, Lower Cam (2)

55 489375 Screw

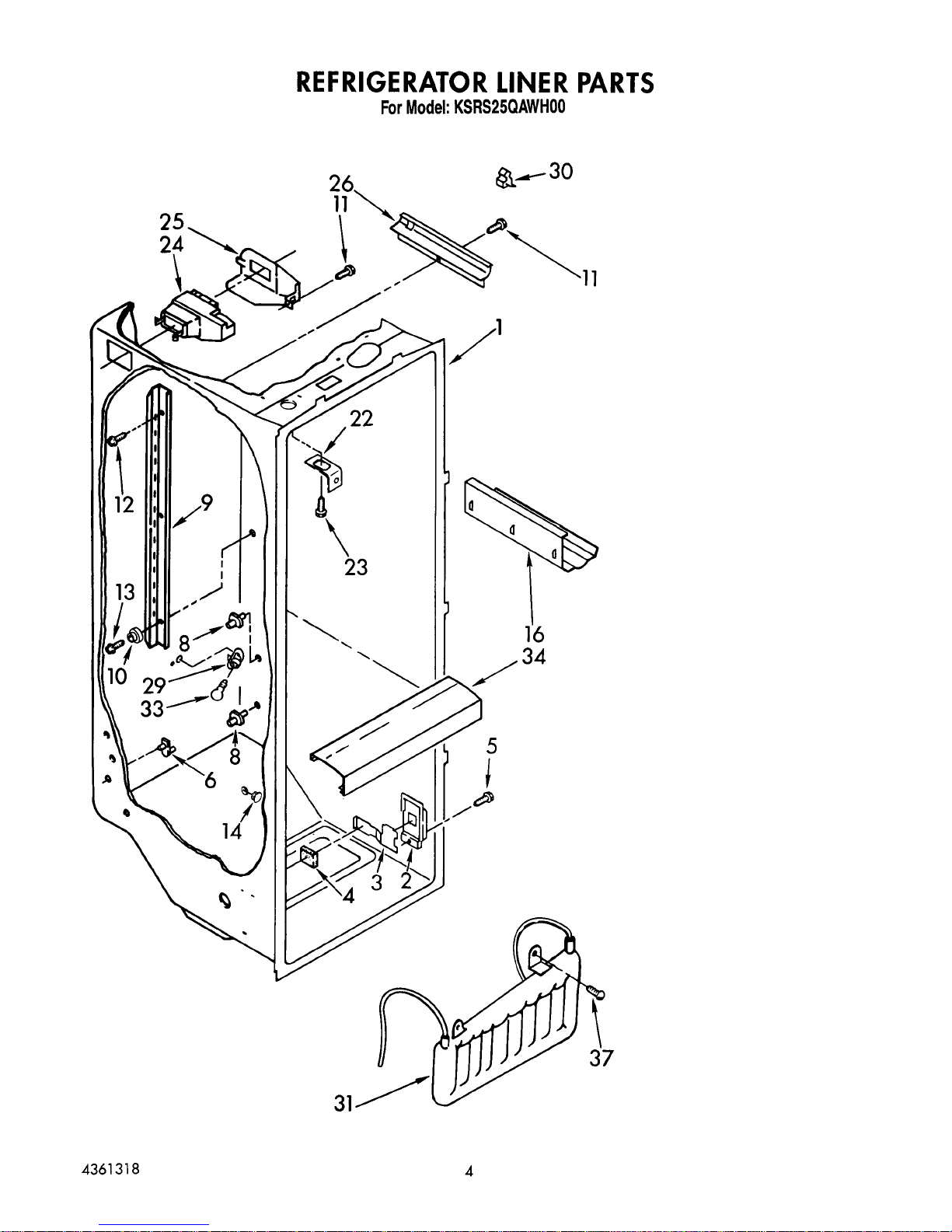

1 Liner (Not A Serviceable Part)

2 985468 Escutcheon, Meat Pan Control

3 984102 Slide Meat Pan Control

4 992358 Foam Pad

5 486214 Screw, 8-15 x 1/2

6 1125675 Stud, Pan Cover

8 1110718 Stud (9)

9 1116794 Ladder, Shelf (2)

10 658944 Stud, Shelf (2)

11 486298 Screw (2)

12 487539 Screw, 8 x 1/2 (4)

13 487559 Screw (2)

14 941839 Plug, Hole

16 1126137 Rack, Wine & Egg

22 1123919 Bracket Retainer

23 489290 Screw, (2)

24 2161251 Air Diffuser Assembly

25 2152019 Air Diffuser Cover

26 2150331 Cover, Conduit

29 851067 Socket, Light

30 842534 Clip, Air Duct

31 2155784 Reservoir

33 527949 Light Bulb

34 1125586 Light Lens

37 488280 Screw (2)

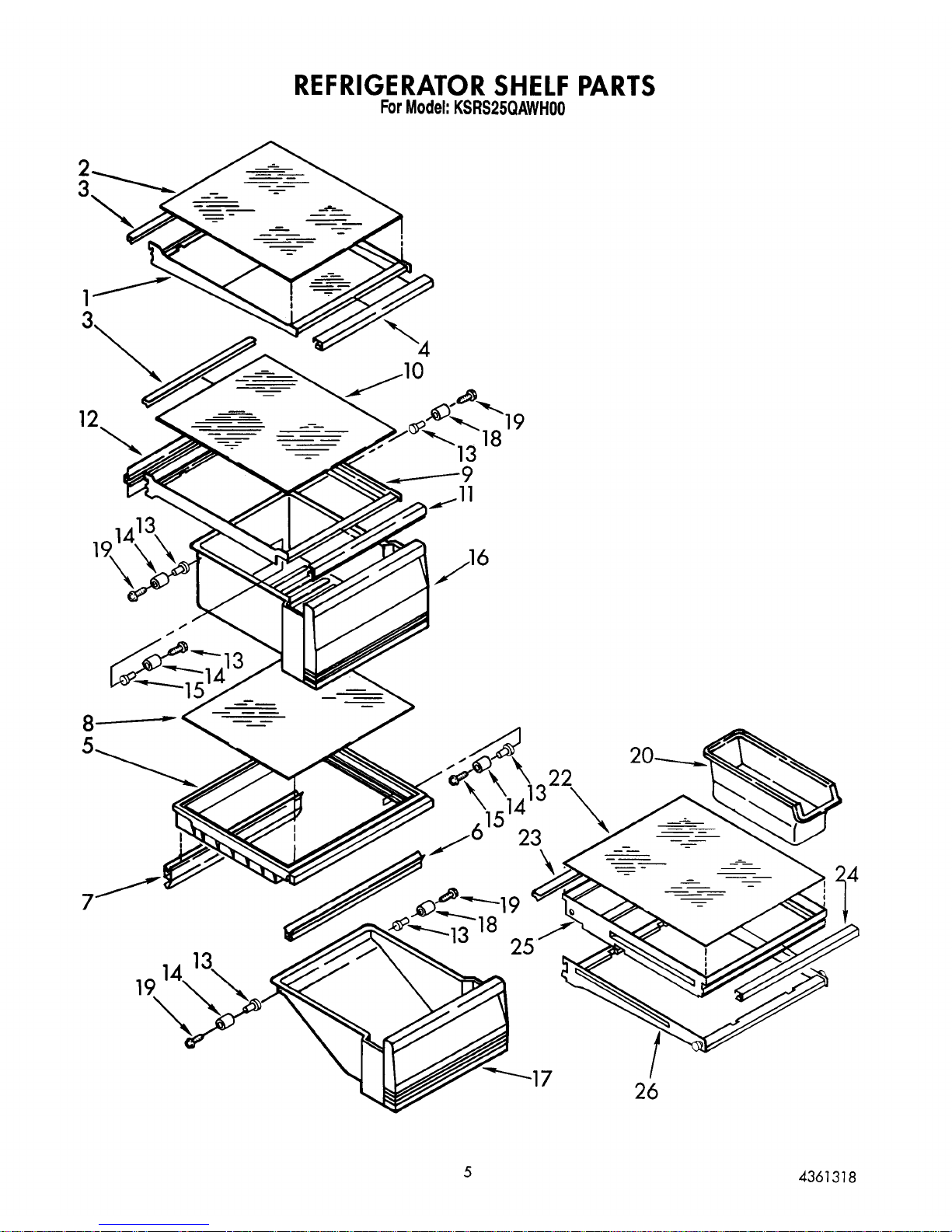

1 1125597 Shelf Assembly, Cantilever (2)

2 1125593 Glass, Shelf

3 1125594 Retainer, Glass

4 1125786 Gasket, Front

5 1126154 Cover, Pan Assembly (2)

6 1125705 Gasket, Cover (Front)

7 1125706 Gasket, Cover (Rear)

8 1125822 Glass, Cover (2)

9 2161760 Pan Shelf & Slide Assembly (Includes 13, 14, & 15)

10 1125595 Glass, Shelf

11 1125814 Gasket (Front)

12 1125817 Gasket (Rear)

13 1112308 Eyelet, Roller

14 2161749 Roller

15 489212 Screw

16 2161755 Crisper Pan (2) (Includes 13, 14, 18, & 19)

17 2161754 Utility Pan

18 2161750 Roller

19 489261 Screw

20 1116917 Container

22 2161683 Glass, Shelf

23 2161809 Reflector

24 2161686 Gasket, Front

25 2161706 Frame And Roller

26 2161806 Frame And Roller Assembly (Cantilever)

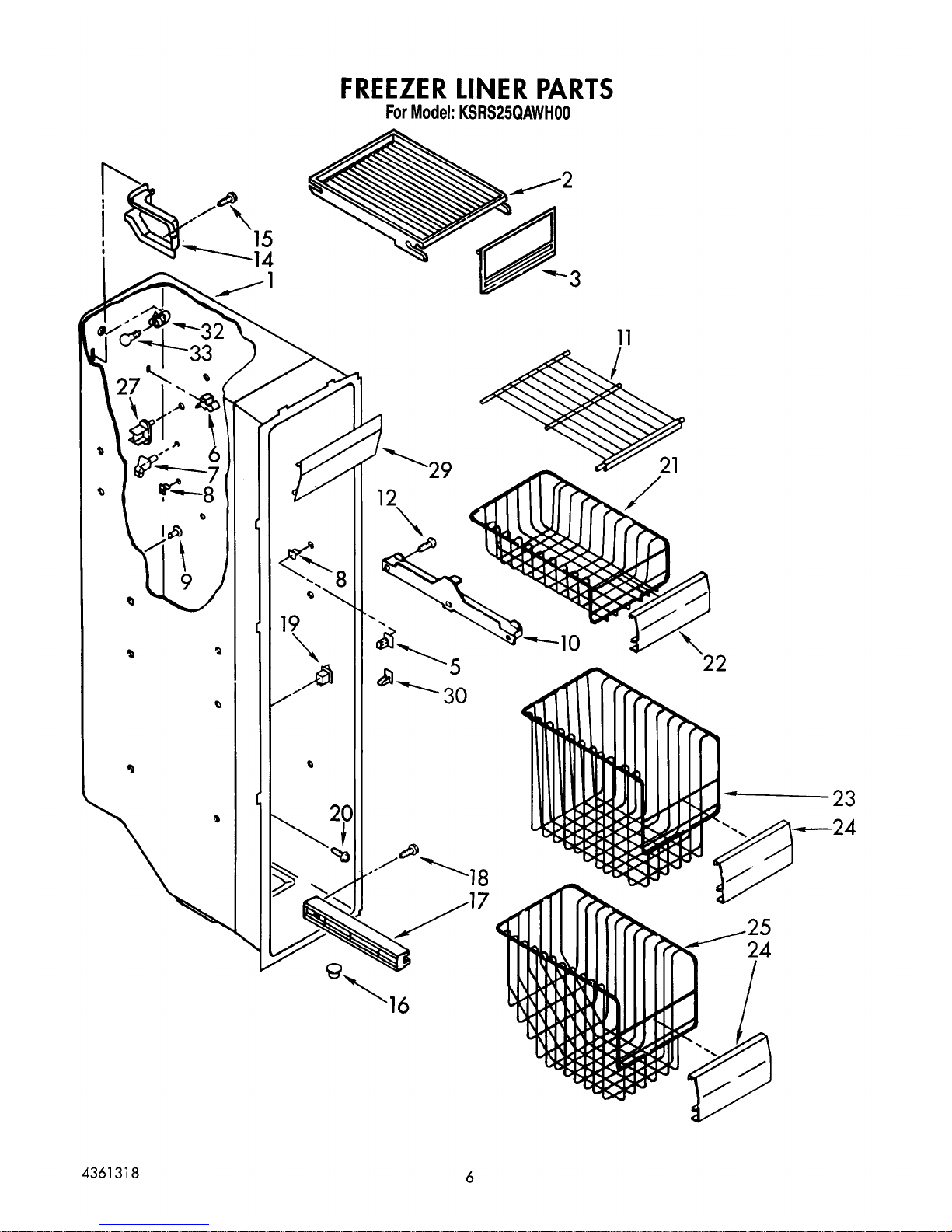

1 Liner (Not A Seviceable Part)

2 1125824 Shelf, Top Compartment

3 1125657 Door, Ice Compartment

5 946356 Stud, R.S. Front

6 842534 Clip, Air Duct (2)

7 1115317 Support, Stud (4)

8 946355 Support, Stud (2)

9 1110779 Grommet (2)

10 Slide, Container

1119237 Left Side

1119293 Right Side

11 2155683 Shelf

12 489100 Screw (4)

14 2155572 Cover, Wiring

15 489176 Screw

16 2155556 Drain Fitting

17 Shelf Track

1126354 Right Side (3)

1126355 Left Side (3)

18 487042 Screw

19 1115373 Switch, Rocker Arm

20 489242 Screw

21 2155685 Basket, Middle

22 1125770 Front, Basket

23 2152093 Basket, Upper

24 1125612 Front, Basket

25 2152102 Basket, Lower

27 1115386 Stud, Shelf (4) Compartment

29 1115389 Light Lens

30 1106982 Stud, R.S. Rear

32 851067 Socket, Light

33 527949 Bulb, Light
