CABINET PARTS

For Models: KBLS19KTSS4, KBRS19KTSS4

(Stainless−LH) (Stainless−RH)

6−10 Litho In U.S.A. (mat)(bay) Part No. W10300578 Rev.A

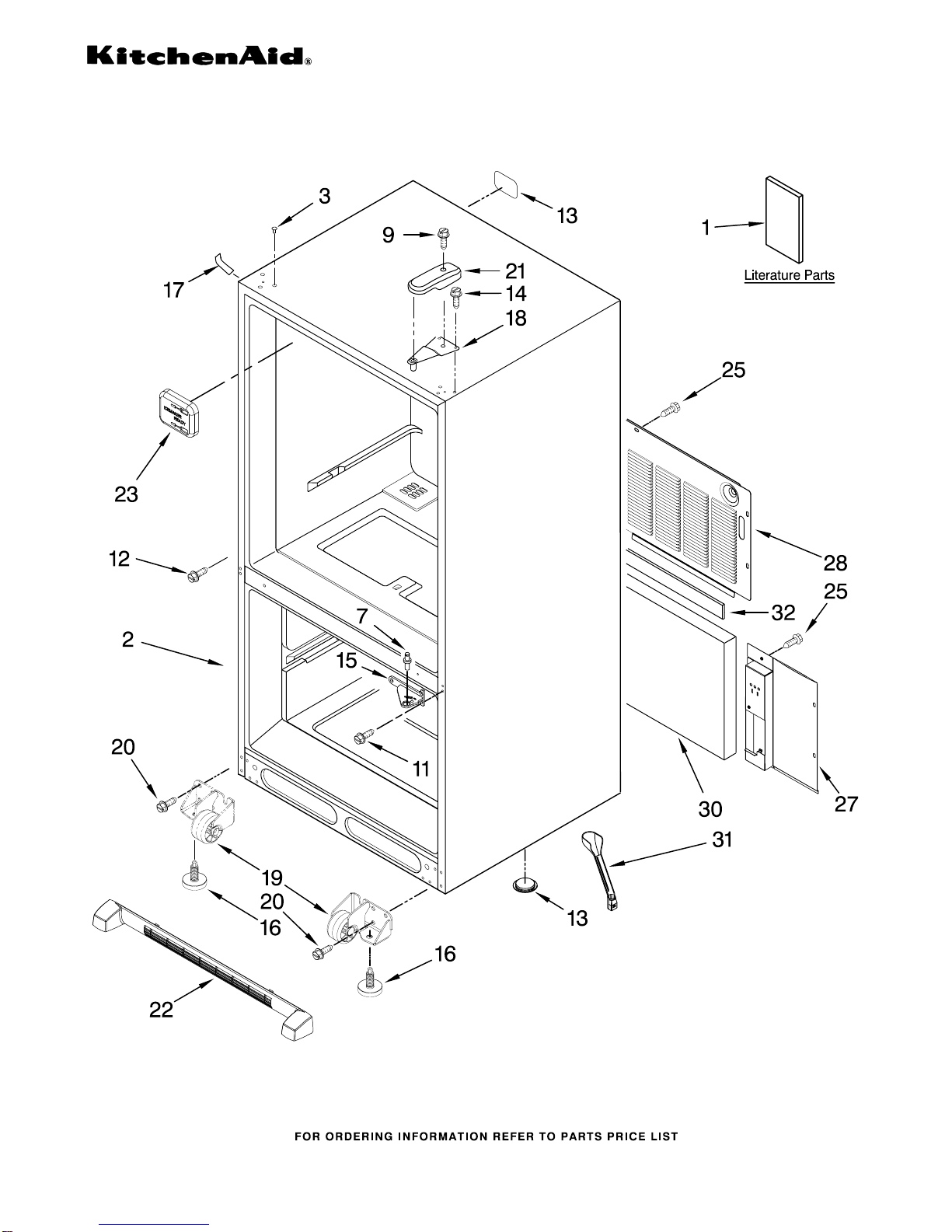

REFRIGERATOR

CABINET PARTS

For Models: KBLS19KTSS4, KBRS19KTSS4

(Stainless−LH) (Stainless−RH)

W10300578

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10137649

Use & Care Guide

W10183307

Energy Guide

W10279329

Tech Sheet

2 Cabinet (Not A

Serviceable Part)

3 12246607 Plug, Button

7 10351006 Pin, Center Hinge

9 12992602 Screw

11 12992201 Screw

12 12990521 Screw

13 12249902 Label, Fill Tube

14 12992403 Screw

15 Hinge, Center

12607104ED

Black

W10141622

Foot Brake (2)

17 Cover, Corner

12587703B

Black

12566606ED

Hinge, Top

19 Roller Assembly

W10275850

Left

W10275849

Right

20 12990521 Screw

12477601B

Cover, Hinge

22 Grille Assembly

(Includes Clips)

W10236650

Black

23 12477501 Cover, Fill Tube

25 12990511 Screw

W10217701

Cover, Water Valve

W10210978

Cover, Unit

30 12820505 Insulation, Sound

W10210987

Tube, Drain

32 B5759655 Gasket

REFRIGERATOR LINER PARTS

For Models: KBLS19KTSS4, KBRS19KTSS4

(Stainless−LH) (Stainless−RH)

W10300578

REFRIGERATOR LINER PARTS

For Models: KBLS19KTSS4, KBRS19KTSS4

(Stainless−LH) (Stainless−RH)

W10300578

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 12806301 Bracket, Control

and Lights

3 12816515 Overlay

4 12806406 Housing,

Electronic Control

5 12868513 Board, Control

C3680310V

Switch, Light

7 12806501 Cover, Light

12806601V

Housing, Light

W10194422V

Bulb, Light (2)

12570701V

Socket, Light (2)

11 12806801 Insert,

Damper Cover

12 12990604 Screw (2)

13 12806701 Cover, Damper

14 13012402 Insulation

W10196393

Control, Damper

Following Parts Not Illustrated

12868701 Harness, Controls

(Refrigerator)

(Includes

Thermistor)

FREEZER LINER PARTS

For Models: KBLS19KTSS4, KBRS19KTSS4

(Stainless−LH) (Stainless−RH)

W10300578

FREEZER LINER PARTS

For Models: KBLS19KTSS4, KBRS19KTSS4

(Stainless−LH) (Stainless−RH)

W10300578

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 A3189392 Gasket, Foam (2)

3 12002497 Gear (2)

(Includes RH & LH)

12812901WD

Shaft

12570701V

Socket, Light

8 12990521 Screw (8)

W10194422V

Bulb, Light

W10277466

Foil, Housing

11 12226110 Cover, Evaporator

12 12990101 Screw (7)

13 Bracket, Door

W10277025

Module, Light

W10122148

Right

14 12805001 Housing, Lighting

15 13058002 Clip, Evap. Motor

16 12466105 Switch, Light

18 Cradle, Basket

W10280608

Left

W10280613

Right

W10120018

Slide, Drawer (2)

20 A3189394 Gasket, Bottom

21 Adapter, Slide

W10284680

Left

W10284681

Right

22 13024803 Cover, Fan Shroud

23 13057901 Shroud, Evap.Fan

24 2169142 Fan, Evaporator

W10121318

Grommet (2)

W10128551

Motor, Evaporator

27 D7753903 Funnel, Drain

(Incl. # 28 & 29)

28 M0500703 Seal

29 B8381501 Gasket

31 12815301 Cover, Thermistor

32 12990501 Screw (6)

REFRIGERATOR DOOR PARTS

For Models: KBLS19KTSS4, KBRS19KTSS4

(Stainless−LH) (Stainless−RH)

W10300578

REFRIGERATOR DOOR PARTS

For Models: KBLS19KTSS4, KBRS19KTSS4

(Stainless−LH) (Stainless−RH)

W10300578

Illus. Part

No. No. DESCRIPTION

1 Door, Refrigerator

13023887SQ

Stainless−LH

13023886SQ

Stainless−RH

2 12643908 Bucket, Short

12744905V

Door, Dairy

(Includes #4)

12369502SP

Tray, Dairy

12849106V

Bucket, Medium

W10046610

Nameplate

7 Gasket, Door

W10164033

Black

8 Handle, Door

W10119644

Stainless

9 3196181 Screw, Handle

10 Closure, Door

12028505B

Black

12849103V

Bucket, Shelf (1)

(Small)

12 Bushing, Door

10961006B

Black

13 12690501 Retainer, Door

14 12990504 Screw

15 10447112 Stop, Door

16 12691403 Mount, Handle

12690102V

Caddy, Can

FREEZER DOOR PARTS

For Models: KBLS19KTSS4, KBRS19KTSS4

(Stainless−LH) (Stainless−RH)

W10300578

FREEZER DOOR PARTS

For Models: KBLS19KTSS4, KBRS19KTSS4

(Stainless−LH) (Stainless−RH)

W10300578

Illus. Part

No. No. DESCRIPTION

1 Door, Freezer

13092260SQ

Stainless

2 Handle, Door

W10119644

Stainless

3 12691403 Mount, Handle

4 Gasket, Door

W10164031

Black

5 3196181 Screw
